Micro Matic USA  |  Pro-Line  |  SKU: MDD23GR-E

Micro Matic USA MDD23GR-E Pro-Line Back Bar Coolers

$2,874.96
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Owner's manual Warranty sheet
Related Searches
Commercial Beer Dispensers Commercial Refrigeration Commercial Refrigerators Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

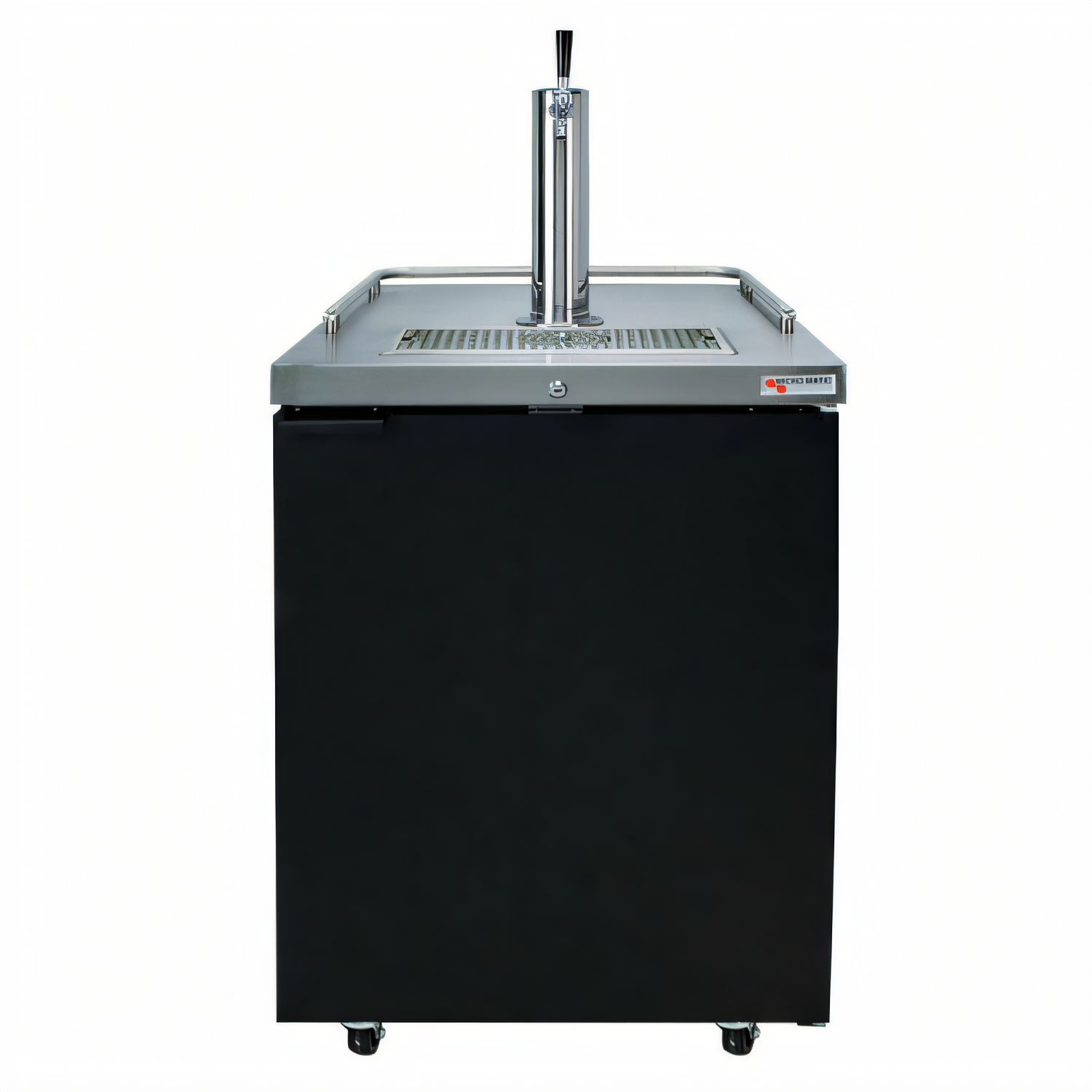

Pro-Line™ E-Series 25" Direct Draw Beer Dispenser

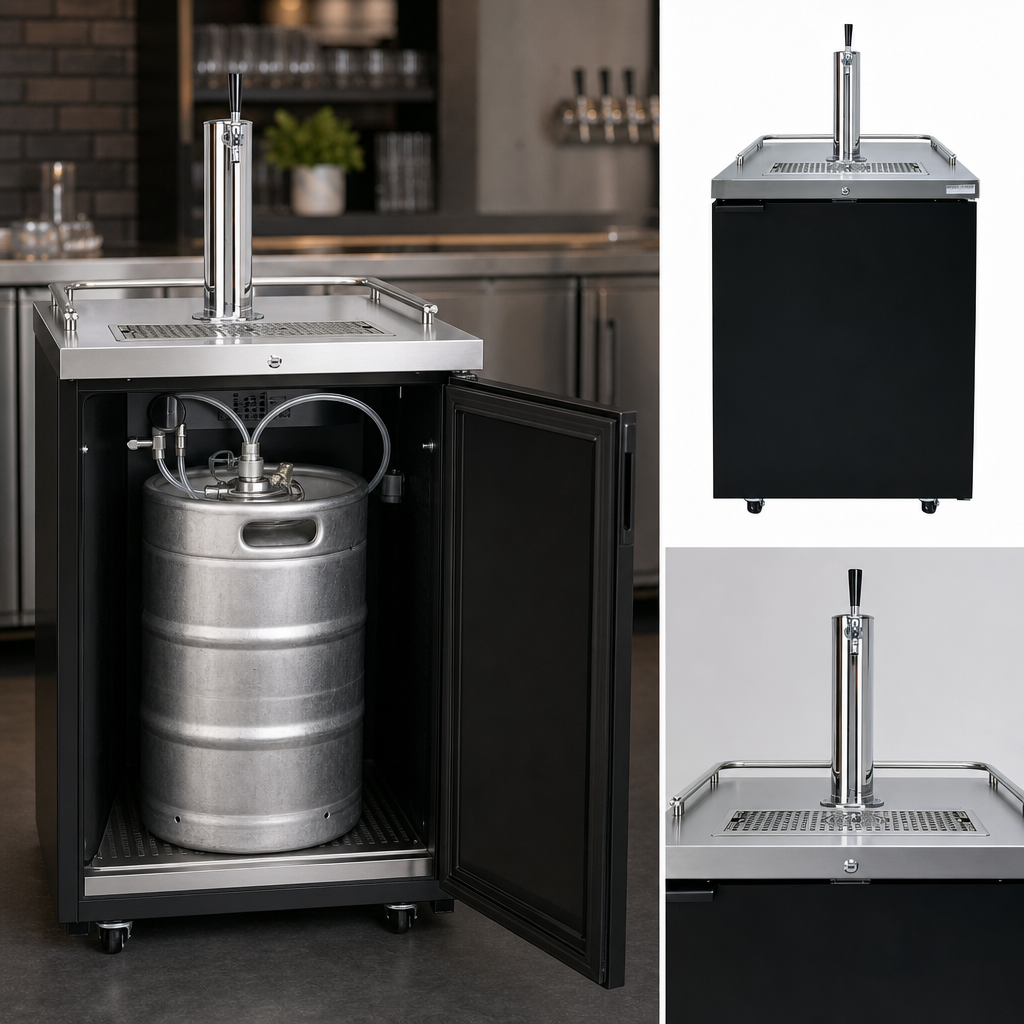

Model MDD23GR-E • 1 × ½ Barrel Keg Capacity

Purpose-built by Micro Matic for bars, breweries and event pros, the Pro-Line E-Series packs commercial-grade cooling, an integrated glass rinser and a polished stainless tower into a space-saving 25-inch cabinet—so you pour perfect pints anywhere power is available.

Key Benefits

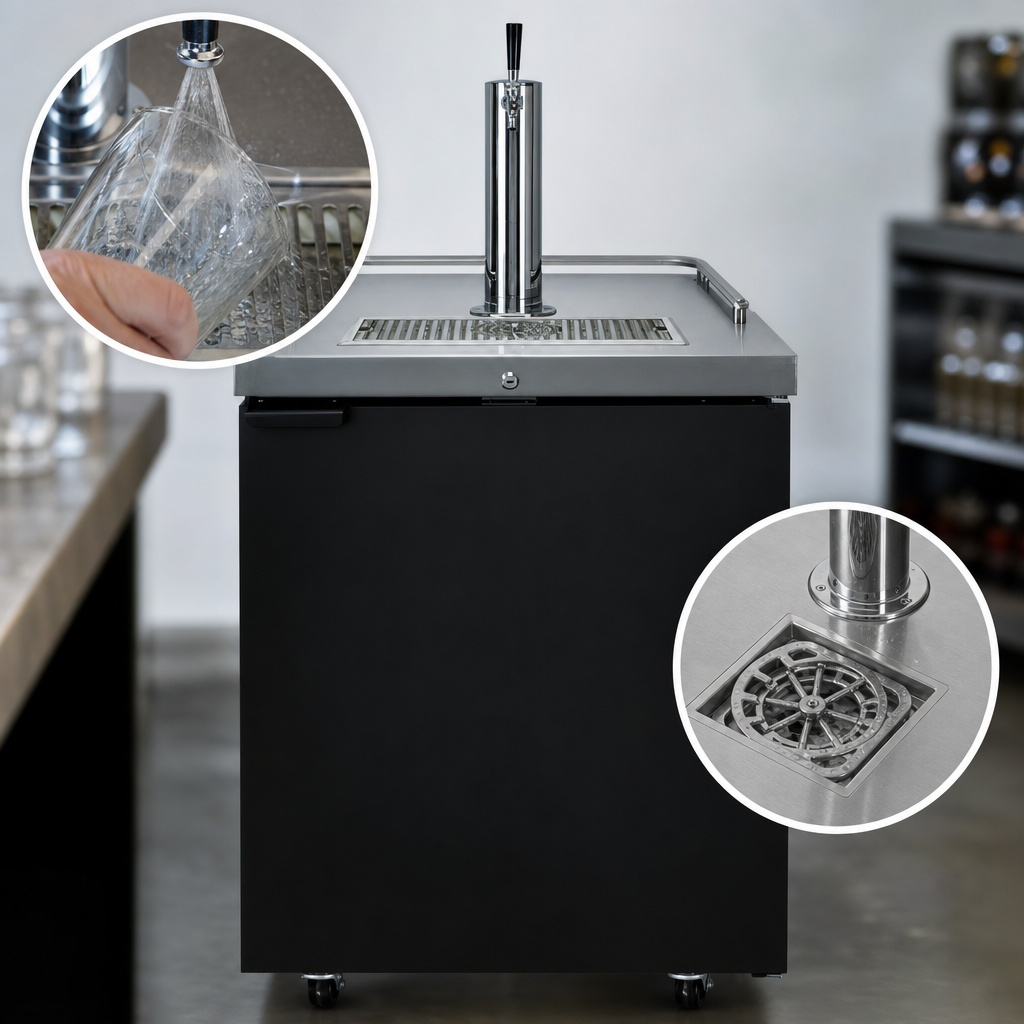

  • Integrated glass rinser chills & cleans glassware instantly for ideal beer head retention.
  • 3" polished stainless draft tower with NSF-approved faucet (knob sold separately).
  • Full-width stainless drip tray with removable grill, drain hose & bottle keeps work surfaces clean.
  • Heavy-duty keg slide protects the interior floor and speeds keg changes.
  • Self-contained 1/6 HP refrigeration—just plug into a standard 115 V outlet.
  • Analog dial thermostat offers simple, precise temperature control.
  • Lockable solid door and pre-installed casters deliver security and mobility.
  • cETLus & ETL-Sanitation listed; fully compliant with NSF 7 & NSF 18.

Built to Perform—Built to Last

  • 18-gauge stainless steel top with glass guard rail on front & sides.
  • Black vinyl-clad steel exterior resists dents, scuffs and fingerprints.
  • 20-gauge stainless interior floor, reinforced frame & galvanized walls.
  • 2" foamed-in-place, CFC-free polyurethane insulation for superior cold retention.
  • Automatic condensate evaporator—no floor drain required.

Technical Specifications

Capacity 8.4 cu. ft (239 L) • 1 × ½-barrel keg
Overall Width 25" (635 mm)
Overall Depth 29.5" (749 mm)
Height (to tower) 53.6" (1,363 mm)
Draft Tower / Faucets 3" Ø polished stainless • 1 faucet
Refrigeration Self-contained • 1/6 HP • R-134a (6.7 oz / 190 g)
Electrical 115 V / 60 Hz / 1-ph • 2.7 A • NEMA 5-15P • 8' cord
Thermostat Analog dial
Door 1 solid, hinged, lockable
Mobility 4 casters (installed)
Certifications cETLus • ETL-Sanitation • NSF 7 & NSF 18

What’s Included

  • Polished stainless 1-faucet draft tower
  • NSF-approved faucet (knob not included)
  • Stainless drip tray with removable grill, drain hose & bottle
  • Integral glass rinser assembly (line hookup required)
  • Lock & keys
  • Pre-installed casters
  • User manual & warranty
Important:
  • Faucet knob and keg tapping kit are sold separately.
  • The glass rinser requires a 15–20 psi cold-water connection; Micro Matic recommends installation by a licensed plumber with an in-line shut-off and pressure regulator.

Need a complete draft setup? Explore compatible tapping kits or chat with our beverage experts for tailored advice.

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

40.5in

Width

25.0in

Depth

28.0in

Shipping Weight

172.0lbs

Width

20" - 36"

Faucet Qty

1 faucet per column

Keg Capacity

1 - 2 kegs

Column Qty

1 column / tower

Barrel Style

1/2 barrel (full keg)

Top Style

flat top

Exterior Finish

black / stainless exterior

Specifications

Pro-Line™ E-Series™ Draft Beer Cooler, one-section, 25"W, self-contained refrigeration, 8.4 cu. ft. capacity, (1) 1/2 size keg capacity, integral glass rinser, 3" diameter polished stainless steel draft tower with (1) faucet (NSF-approved, faucet knob not included), (1) solid hinged door with lock, digital thermostat, stainless steel drip tray with removable grill includes hose & drain bottle, automatic condensate evaporator, galvanized steel interior walls & stainless steel interior floor with keg slide, stainless steel top with glass guard rail on front & sides, black vinyl over steel exterior, casters, R290, 1/6 HP, 115v/60/1-ph, 2.7 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
