Description

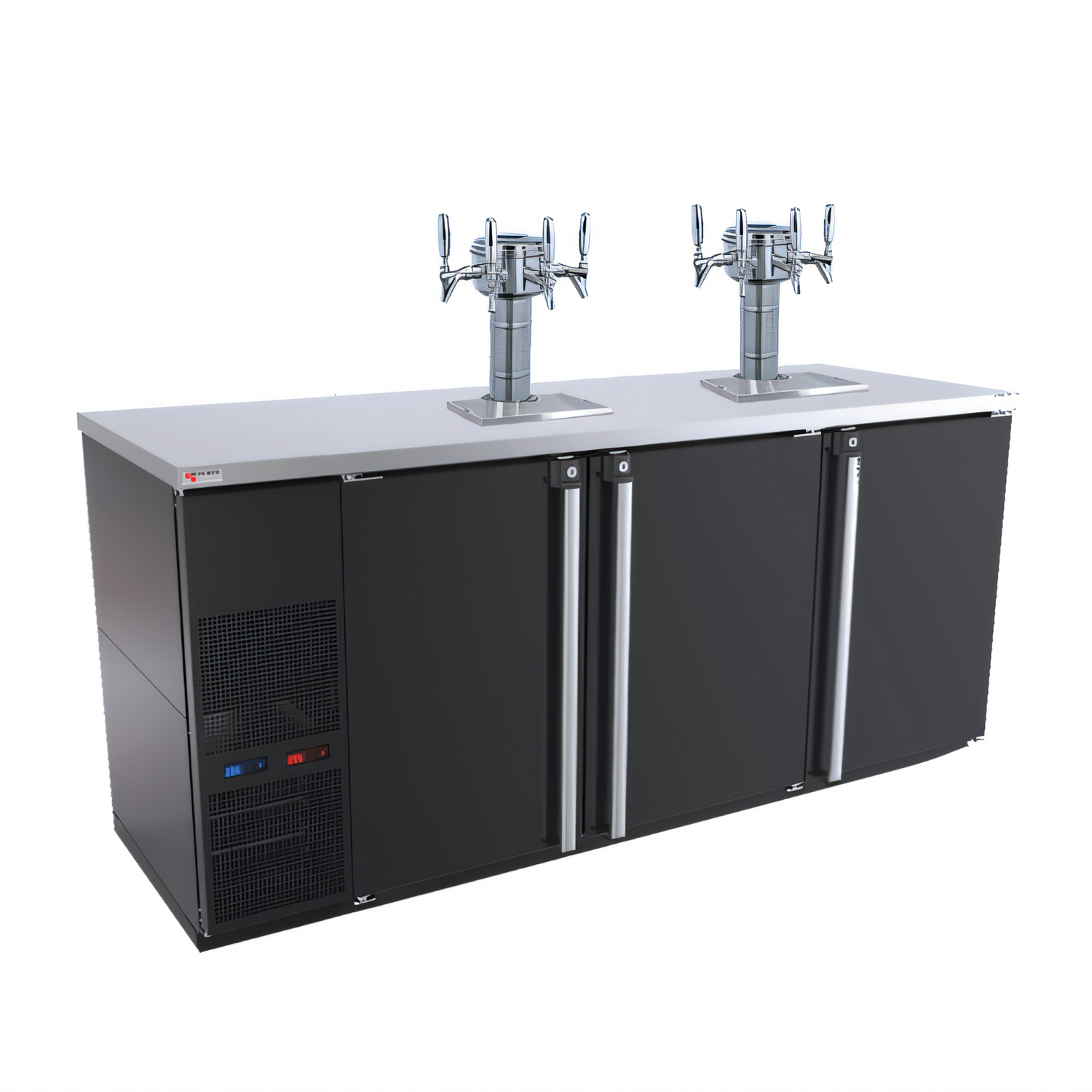

Pro-Line™ E-Series Beverage Station – 80" Dual-Zone, 8-Faucet

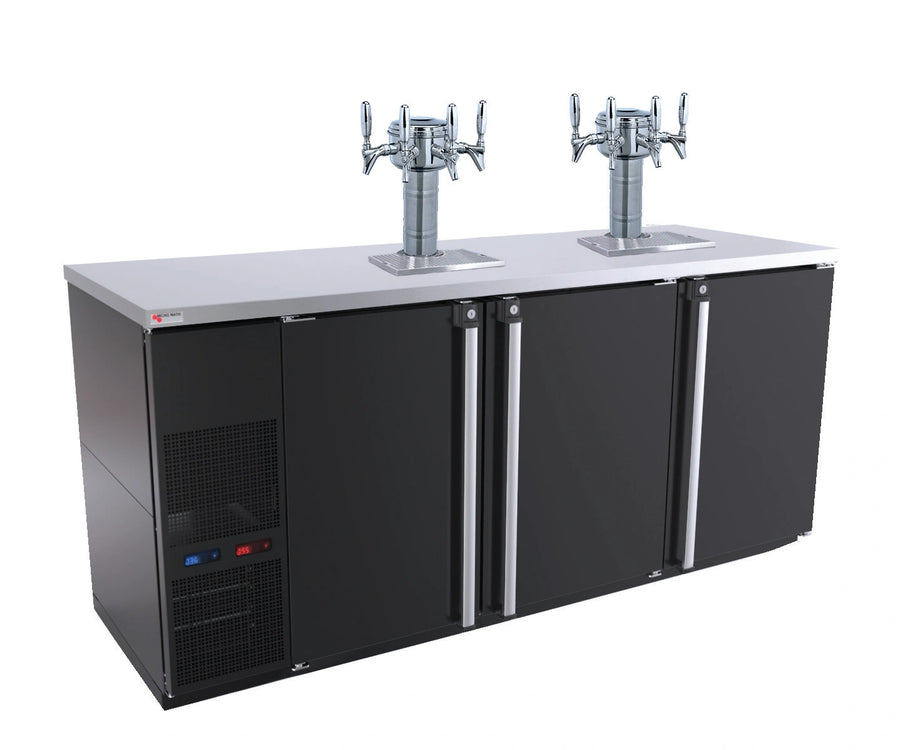

Model MBB78BC-E-B | Micro Matic USA

Serve beer, wine, batch cocktails or cold brew from one powerhouse. The Pro-Line™ E-Series Beverage Station combines two independent temperature zones, eight chrome faucets and the durability that busy bars, taprooms and event venues demand—all in a single 80-inch footprint.

Key Benefits

  • Dual-zone refrigeration with separate digital thermostats for precise service temps: 36 °F for beer/white wine/cocktails  |  45 – 70 °F for red wine

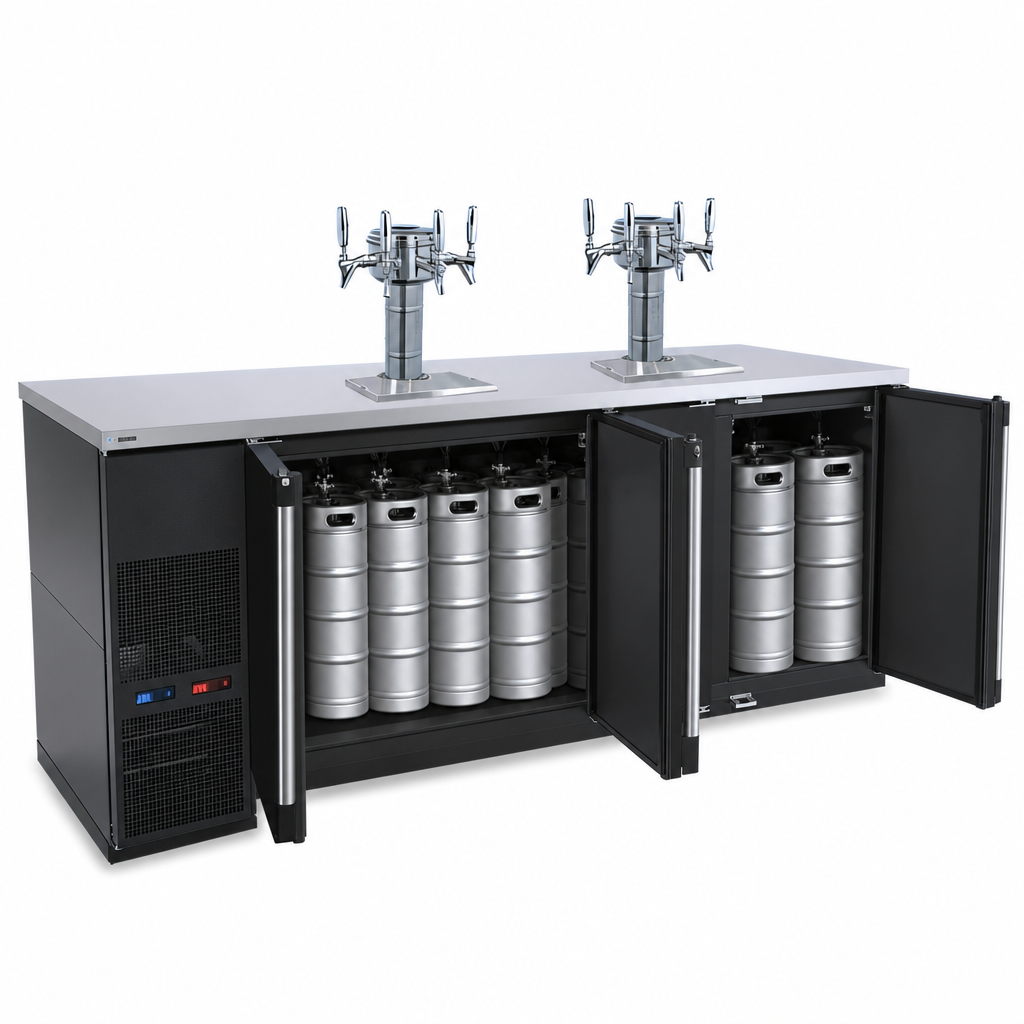

  • Holds up to 12 slim 1/6-barrel kegs (10 chilled + 2 ambient “backup” kegs)
  • (2) 14" Mini Mushroom towers, each with 4 chrome faucets & integrated drip trays
  • Front-ventilated, self-contained 1/3 HP refrigeration—no side or rear clearance required
  • Automatic condensate evaporator—no floor drain to install
  • Heavy-duty 18 ga. stainless-steel top and 20 ga. stainless interior withstand daily commercial use
  • Black vinyl-clad steel exterior resists dents and corrosion
  • Eco-friendly R290 hydrocarbon refrigerant cuts energy use & meets latest regulations
  • cETLus & ETL-Sanitation listed for electrical safety and foodservice sanitation

Ideal Applications

  • Bars & pubs looking to expand their beverage program
  • Restaurants offering both draft wine and beer
  • Event venues & hotels needing quick change-over between beverage types
  • Tasting rooms, taprooms and caterers seeking a compact multi-drink solution

Technical Specifications

Overall width 80" (203.3 cm)
Sections / doors 3 sections | 3 solid hinged doors
Keg capacity 10 × 1/6 slim barrels (cold side) + 2 × 1/6 slim barrels (warm side)
Dispense towers (2) Mini Mushroom, 4 faucets each + drip trays (8 faucets total)
Temperature range Cold side: 32 – 70 °F (0 – 21 °C)
Warm side: 40 – 70 °F (4 – 21 °C)
Refrigeration Self-contained, front-breathing, 1/3 HP compressor
Refrigerant R290 Hydrocarbon, 4.9 oz charge
Electrical 115 V / 60 Hz / 1-ph, 3.0 A, 8-ft cord, NEMA 5-15P plug
Exterior construction 18 ga. stainless top, black vinyl-coated steel front/sides/back
Interior construction 20 ga. stainless floor & walls, foamed-in-place 2" polyurethane insulation
Certifications cETLus, ETL-Sanitation
Shipping weight 407 lb (184 kg)

Casters or 6" legs sold separately. Always verify field wiring and local code compliance before installation.

Features & Specs

Manufacturer

Micro Matic USA

Brand_name

Pro-Line

Certifications

cETLus, ETL-Sanitation

Height

55.17in

Width

80.0in

Depth

29.5in

Shipping Weight

407.0lbs

Top Style

flat top

Barrel Style

1/6 barrel

Column Qty

2 columns / towers

Keg Capacity

9 - 12 kegs

Exterior Finish

black / stainless exterior

Width

73" (and up)

Faucet Qty

4 faucets per column

Specifications

Pro-Line™ E-Series Beverage Station, three-section, dual temperature, 80"W, self-contained refrigeration, holds (10) 1/6 slim barrel kegs (cold side) & (2) 1/6 slim barrels (warm side), (2) built-in digital thermostats, front ventilated, automatic condensate evaporator, 18 gauge stainless steel top, (2) mini mushroom towers each with (4) faucets & drip tray, (3) solid hinged doors, black vinyl exterior, 20 gauge stainless steel interior, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 3.0 amps, 8' cord, NEMA 5-15P, cETLus, ETL-Sanitation
