Micro Matic USA H2O-UCM-X-KIT Draft Beer & Wine Dispensers
Description

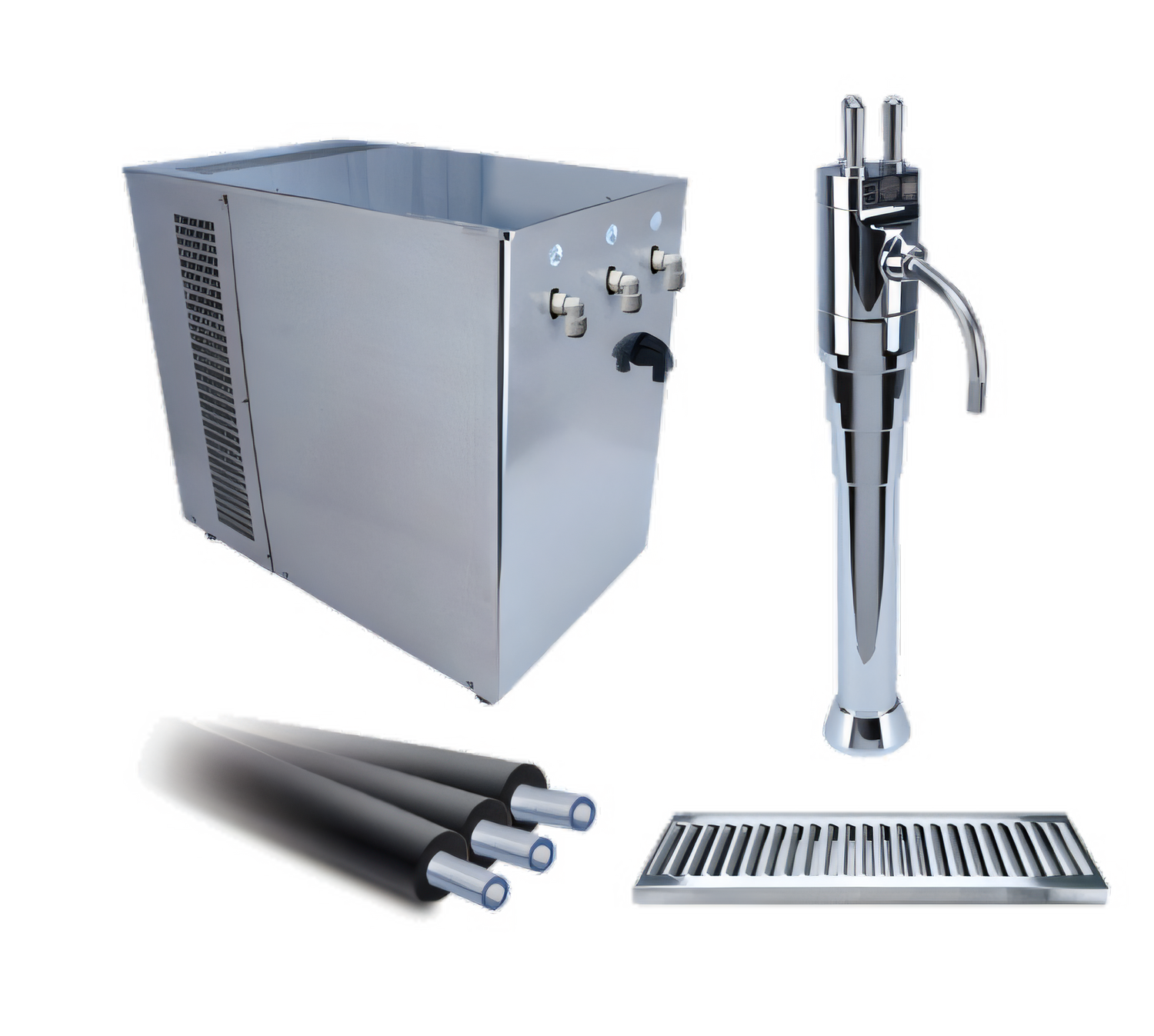

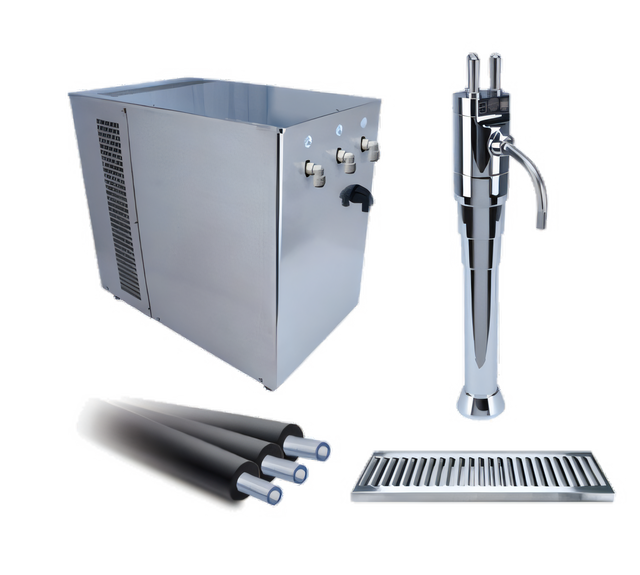

Xenia™ Under-Counter Water Dispenser Kit

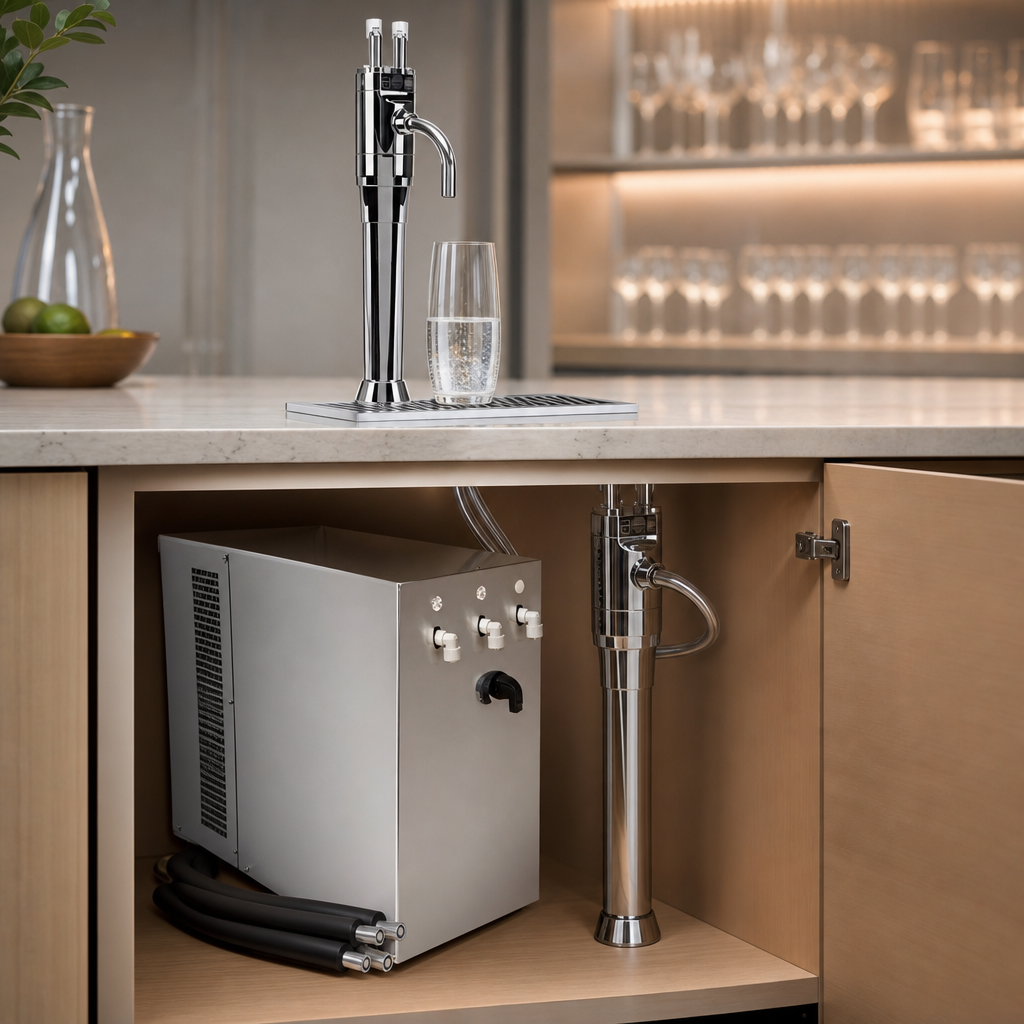

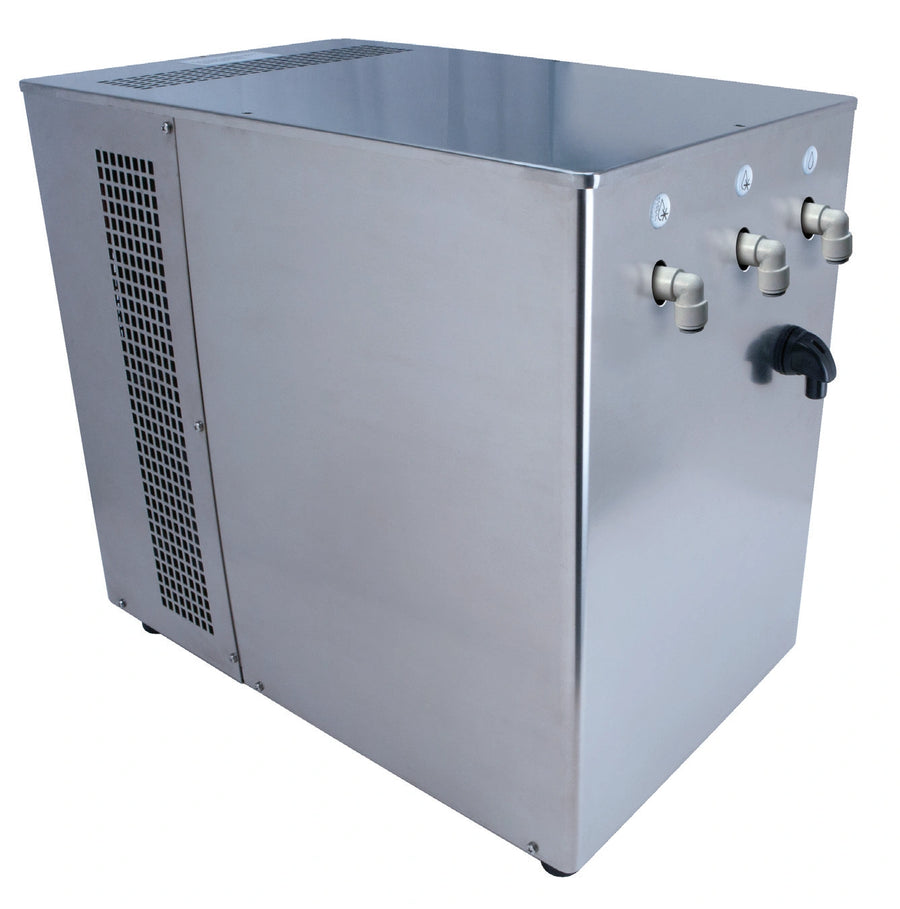

Model H2O-UCM-X-KIT by Micro Matic USAServe premium still or sparkling water at the touch of a button—without sacrificing bar space or cold-storage capacity. The Xenia™ Under-Counter Water Dispenser places a high-output chiller/carbonator below the counter while a sleek chrome tower provides three dispense choices (ambient, chilled, or chilled sparkling) right at the bar.
Why You’ll Love It
- 26 gal/hr output keeps up with peak service times.
- Choice On Tap: ambient, chilled, and chilled sparkling water from a single faucet.
- 316 grade stainless steel water path for pure, fresh taste.
- Integrated high-pressure CO2 regulator, water regulator, and 1 gpm activated-carbon filter—everything included.
- Front & side ventilation for reliable under-counter performance.

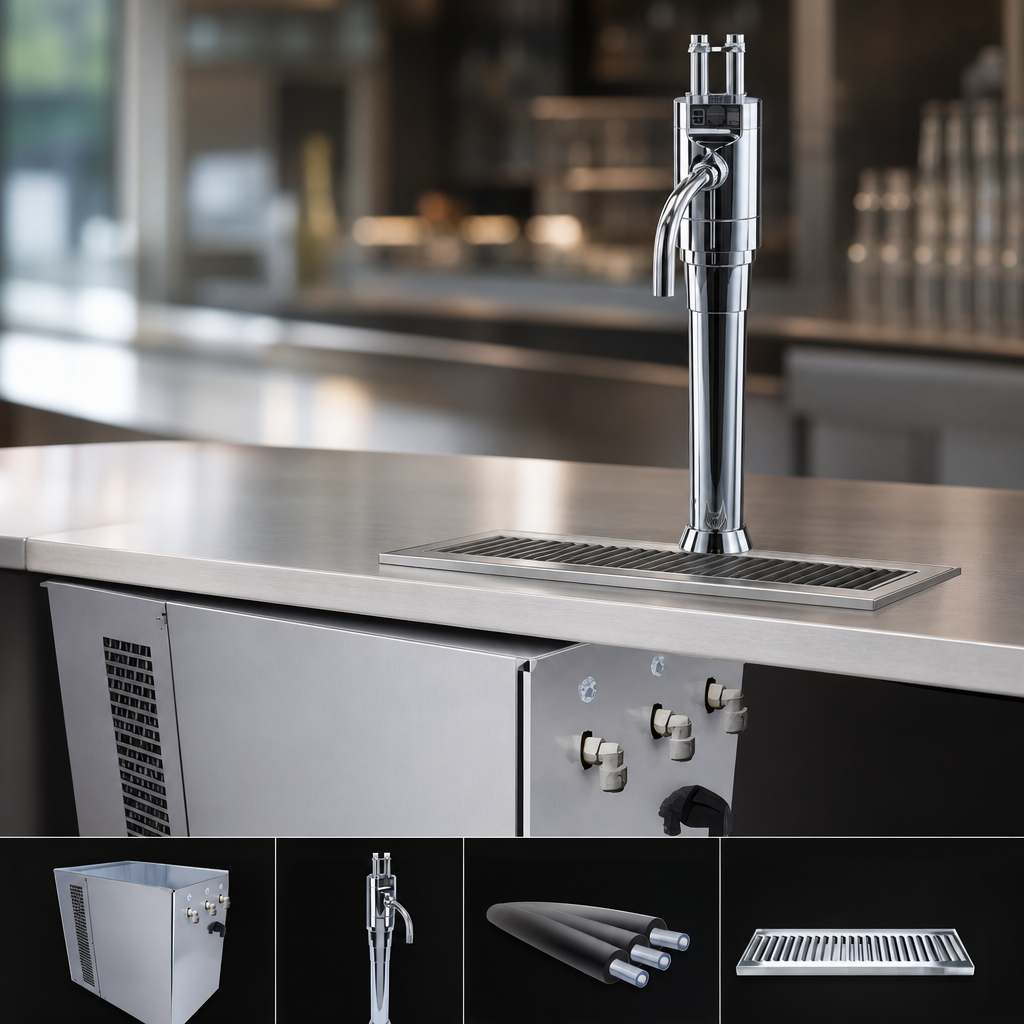

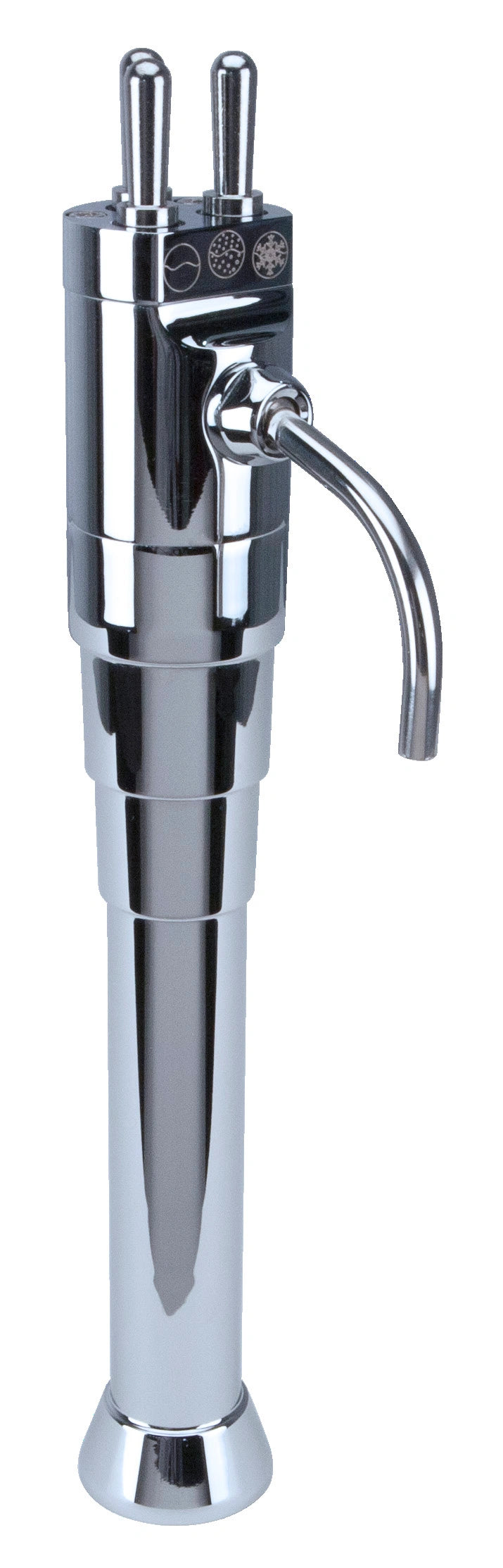

- Compact Xenia tower installs with a single 1.1" hole and includes a 12-1/4" × 7-3/8" drip-tray trough.
- NSF & UL listed for peace of mind in any commercial setting.
- Eliminates single-use bottles to cut costs and reduce waste.
Technical Specifications
| Dispense Options | Ambient, Chilled, Chilled Sparkling |
|---|---|
| Hourly Capacity | 26 gal (98 L) |
| Dispenser Dimensions (W × D × H) | 13 1/4" × 20 7/8" × 21 7/8" (336 × 527 × 555 mm) |
| Tower Height | 12 1/2" (321 mm) |
| Electrical | 120 V / 60 Hz / 1-ph, 15 A, NEMA 5-15P plug |
| Condenser | ¼ HP, full ice-bank recovery ≈3 hrs |
| Construction | 18 ga stainless steel exterior; 316 stainless water contact surfaces |
| Included | Chrome single-faucet Xenia tower, insulated hoses, CO2 regulator (120 psi max), water regulator & 1 μm carbon filter, drip tray |
| Ventilation | Front & side |
| Water Inlet Pressure | 30 – 86 psi (60 psi recommended) |
| CO2 Inlet Pressure | 37.5 – 75 psi (≥8 psi above water pressure) |
| Certifications | NSF listed, UL listed |
Quick Installation Notes
- Requires a level surface that supports at least 120 lbs (55 kg) and ≥6" of clearance on all sides.
- Connect to a dedicated 15 A outlet within 4 ft of the unit.
- Cold-water supply must be direct and not shared with other equipment.
- Food-grade CO2 cylinder (upright) required, sold separately.
- Filter cartridge should be replaced every 6 months (3–4 months in medium-volume locations).
Warranty
Micro Matic provides a 1-year limited warranty against defects in materials and workmanship. All service must be pre-authorized by Micro Matic.
