Micro Matic USA H2O-UCM-M-KIT Draft Beer & Wine Dispensers
$11,356.09
Unit price
/
Unavailable
Description
Magic Tower Undercounter Water Dispenser
Model H2O-UCM-M-KIT — Ambient • Chilled • SparklingServe premium still or sparkling water straight from the tap and slash your spend on single-use bottles. The Micro Matic Magic Tower kit tucks a powerful chiller/carbonator under the counter while a sculpted white-ceramic tower wows guests front-of-house.

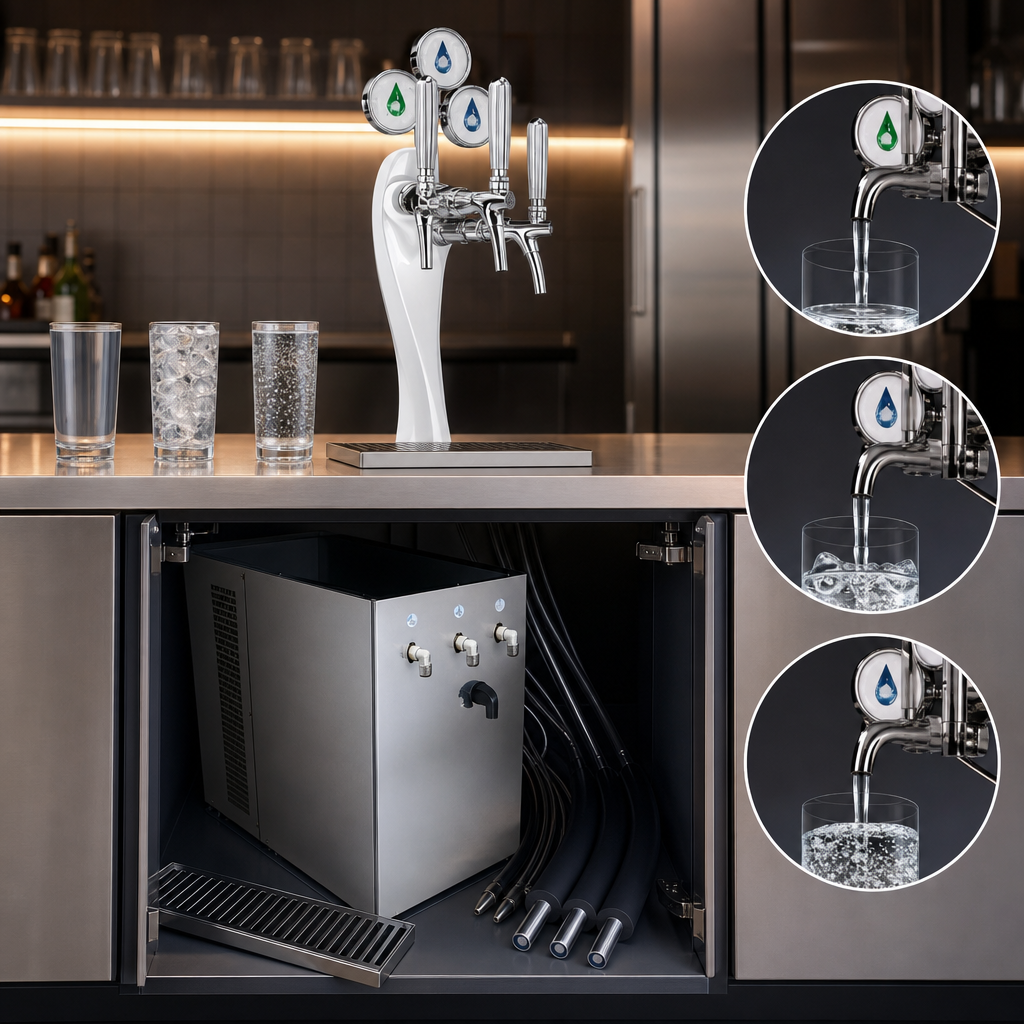

- Three dedicated faucets for ambient, ice-cold still, and ice-cold sparkling water.

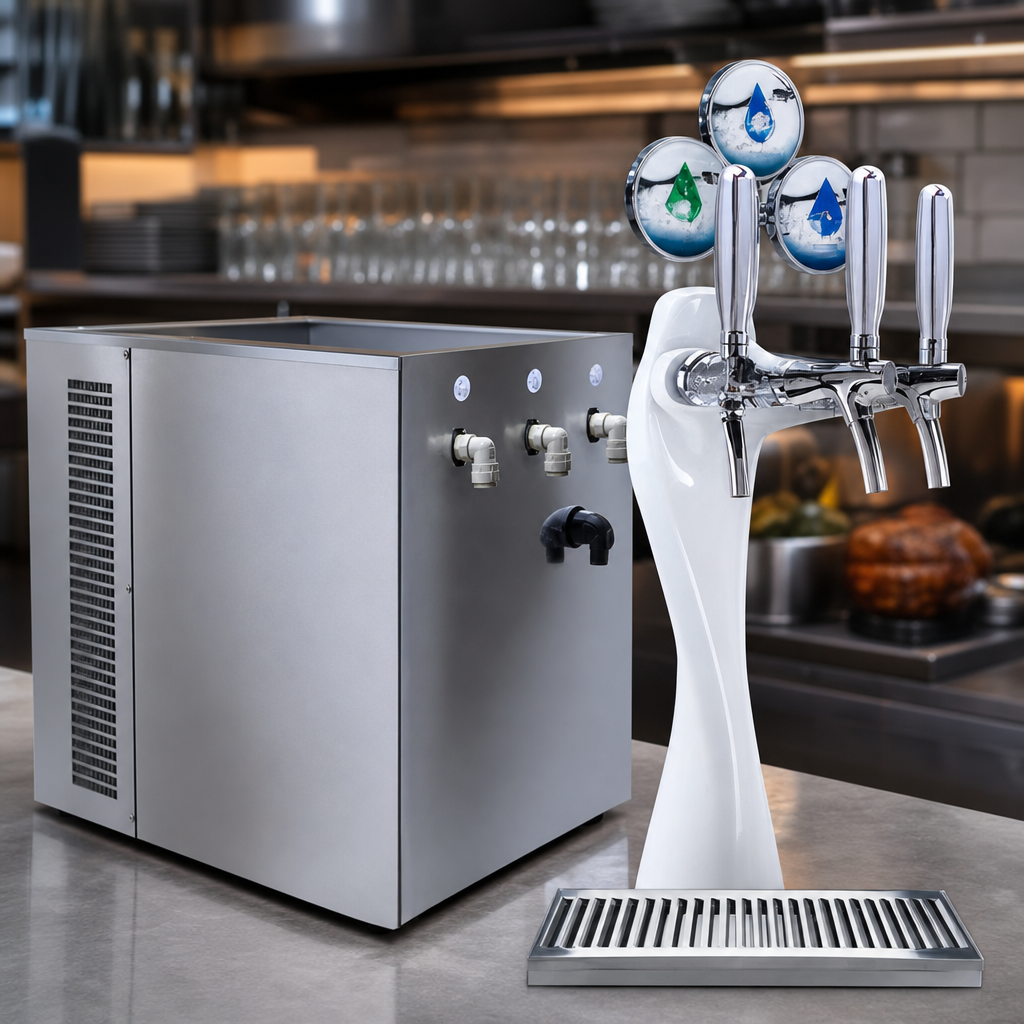

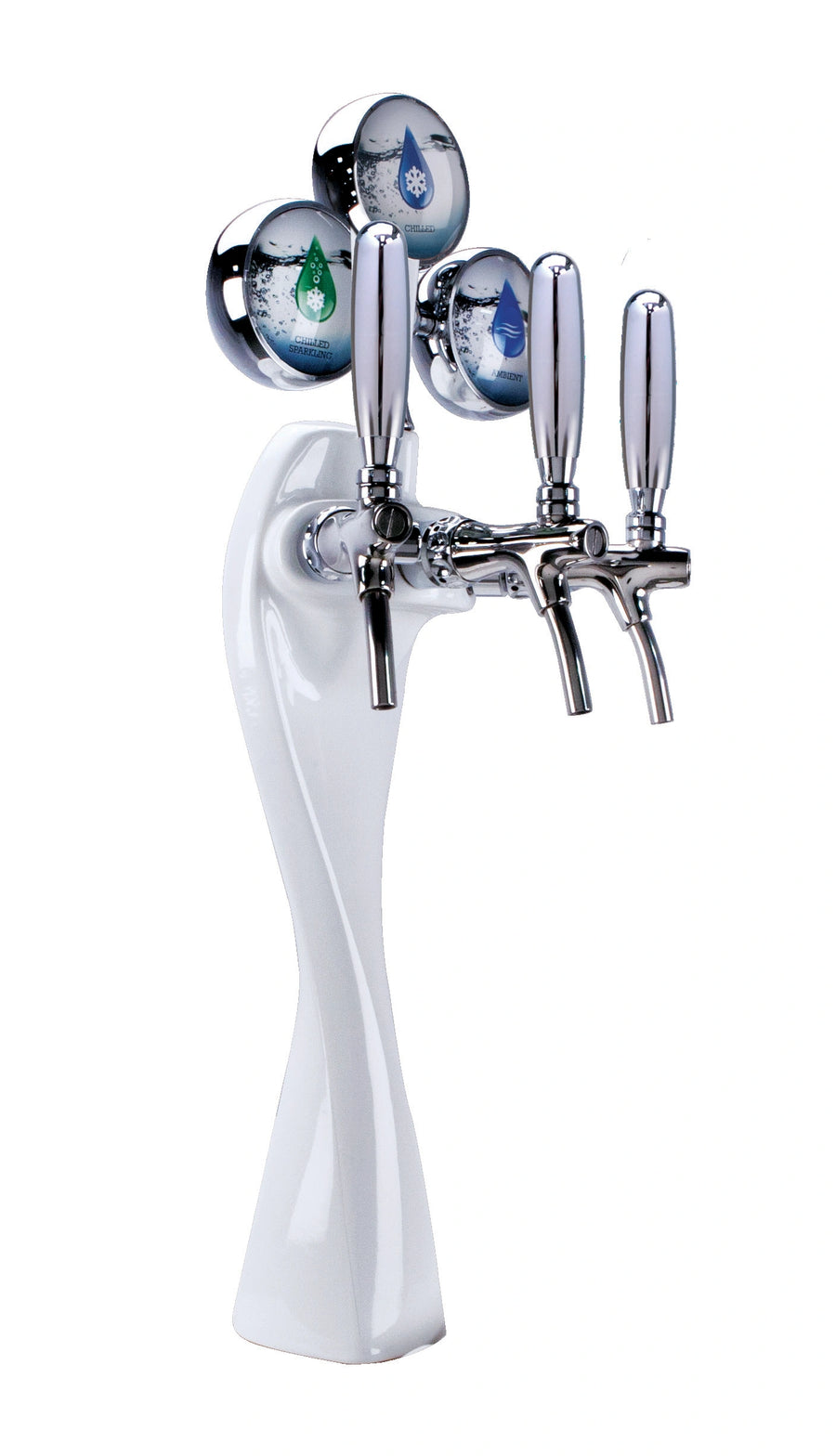

- Glossy white ceramic “Magic” tower with illuminated medallions for instant brand theatre.
- High-capacity output – up to 26 gal/hr (98 L) to keep pace with busy service times.
- Food-grade 316 stainless steel water path plus 1 gpm activated-carbon filtration for pure, fresh taste.
- Front & side-ventilated 1/4 HP condenser with full ice bank delivers consistently cold, highly-carbonated pours.
- Compact undercounter footprint – just 13-1/4″ W × 20-7/8″ D × 21-7/8″ H.
- Supplied high-pressure CO2 regulator (up to 120 PSI), water regulator & filter head, and factory-insulated hoses.
- NSF & UL listed; built for commercial food-service compliance.
- Reduces packaging waste by replacing bottled still and sparkling water.

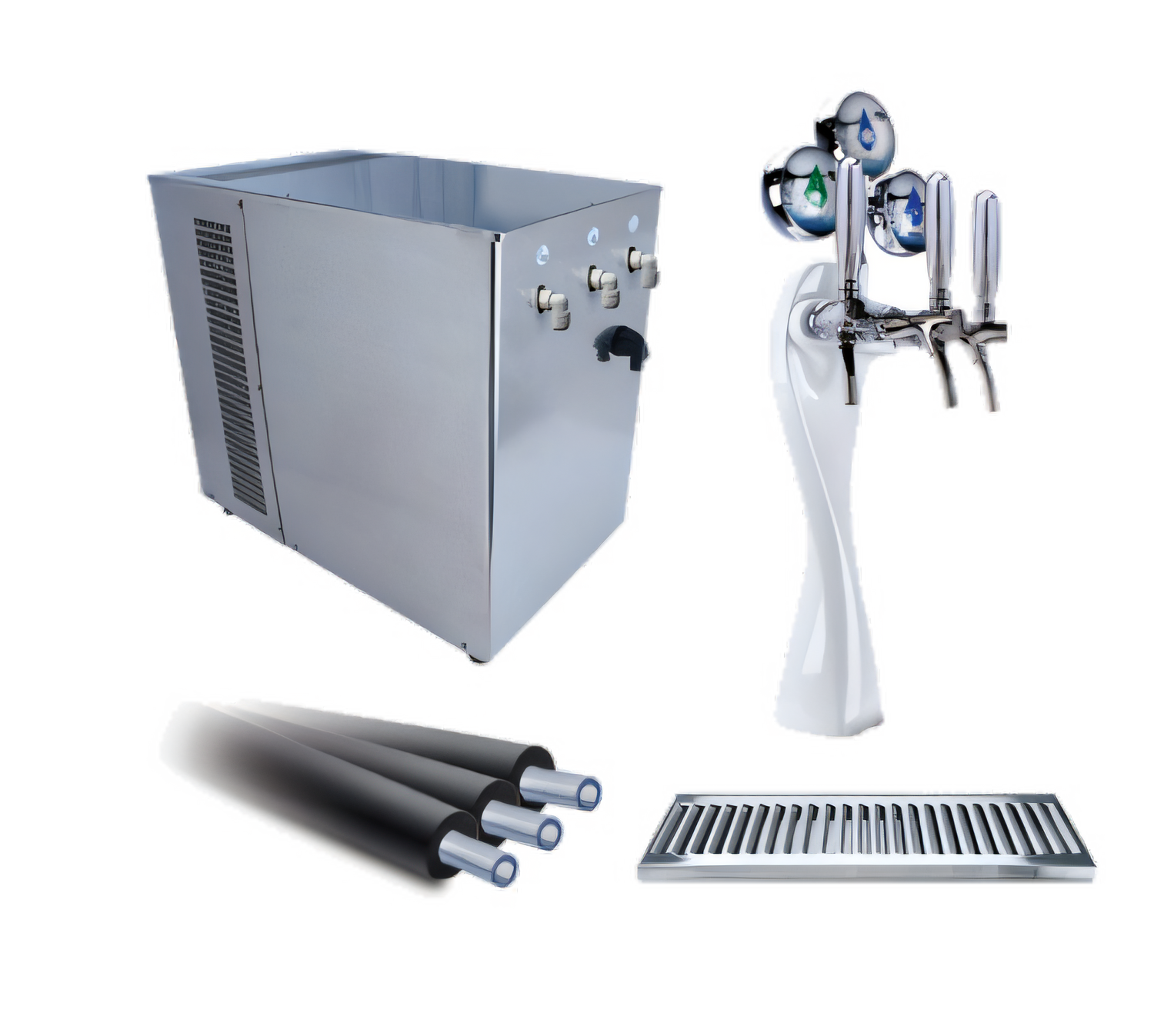

Complete Kit Includes
- Stainless-steel undercounter chiller / carbonator
- Magic Tower – white ceramic, 3 faucets, LED illumination (low-voltage transformer included)
- 12-1/4″ W × 7-3/8″ D stainless drip-tray trough
- High-pressure primary CO2 regulator
- Water pressure regulator with shut-off, check valve & filter head
- 1 gpm sintered activated-carbon water filter cartridge
- Pre-insulated supply hoses & mounting hardware
- Cleaning brush & quick-start guide
Technical Specifications
| Dispense options | Ambient, chilled still, chilled sparkling |
|---|---|
| Hourly capacity | 26 gal (98 L) |
| Undercounter unit size | 13-1/4″ W × 20-7/8″ D × 21-7/8″ H |
| Tower height (above counter) | 18-3/4″ (475 mm) |
| Condenser | 1/4 HP, full ice bank (≈ 3 hr) |
| Construction | 18-ga stainless exterior / 316 stainless water contact |
| Electrical | 120 V / 60 Hz / 1-ph, 15 A dedicated circuit, NEMA 5-15P |
| Water inlet | 30–86 PSI (60 PSI recommended), 3/4-11.5 NH male |
| CO2 inlet | 37.5–75 PSI (keep ≥ 8 PSI above water pressure) |
| Filter capacity | 1 gpm activated-carbon cartridge |
| Regulators supplied | Water pressure regulator & high-pressure CO2 regulator (120 PSI max output) |
| Ventilation | Front & side; allow ≥ 6″ clearance |
| Certifications | NSF Listed, UL Listed |
| Shipping weight | 124 lb (56 kg) |
Utility Requirements
| Electrical | 1× 120 V outlet for chiller (15 A) & 1× 115 V outlet for tower lights |
|---|---|
| Water | Cold, filtered line ≥ 30 PSI constant (60 PSI ideal) |
| Gas | Food-grade CO2 cylinder, 8 PSI above water pressure (≈ 68 PSI at 60 PSI water) |
| Clearance | 6″ minimum on all sides or install ventilation fan if enclosed |
| Counter cut-out | 2″ dia. mounting hole for tower |
NSF/ANSI listings cover materials, construction and performance for safe drinking-water applications. One-year limited parts warranty provided by Micro Matic USA.
Installation notice:
This dispenser must be installed by qualified personnel.
Use a dedicated 15 A circuit, maintain required water & CO2 pressures,
and keep condenser grills clear of dust to retain warranty coverage.
Features & Specs
Features & Specs
Manufacturer
Micro Matic USA
Certifications
NSF, UL
Water type
sparkling & still
Type
undercounter
Specifications
Water Dispenser, undercounter mount with Magic Tower, 13-1/4"W x 20-7/8"D x 21-7/8"H, 316 grade stainless steel construction, (26) gal/hr capacity, white ceramic Magic Tower with (3) faucets, front & side ventilated, 18 gauge stainless steel exterior, high-pressure CO2 regulator, water regulator & filter, includes insulated hoses & 12-1/4"W x 7-3/8"D drip tray trough, 1/4 HP condenser, NEMA 5-15P, 15 amp, 120/60/1-ph, NSF, UL (provides ambient, chilled, & chilled sparkling water)
