Micro Matic USA DS-256-PVDKR T Style Draft Beer & Wine Dispensers
Description

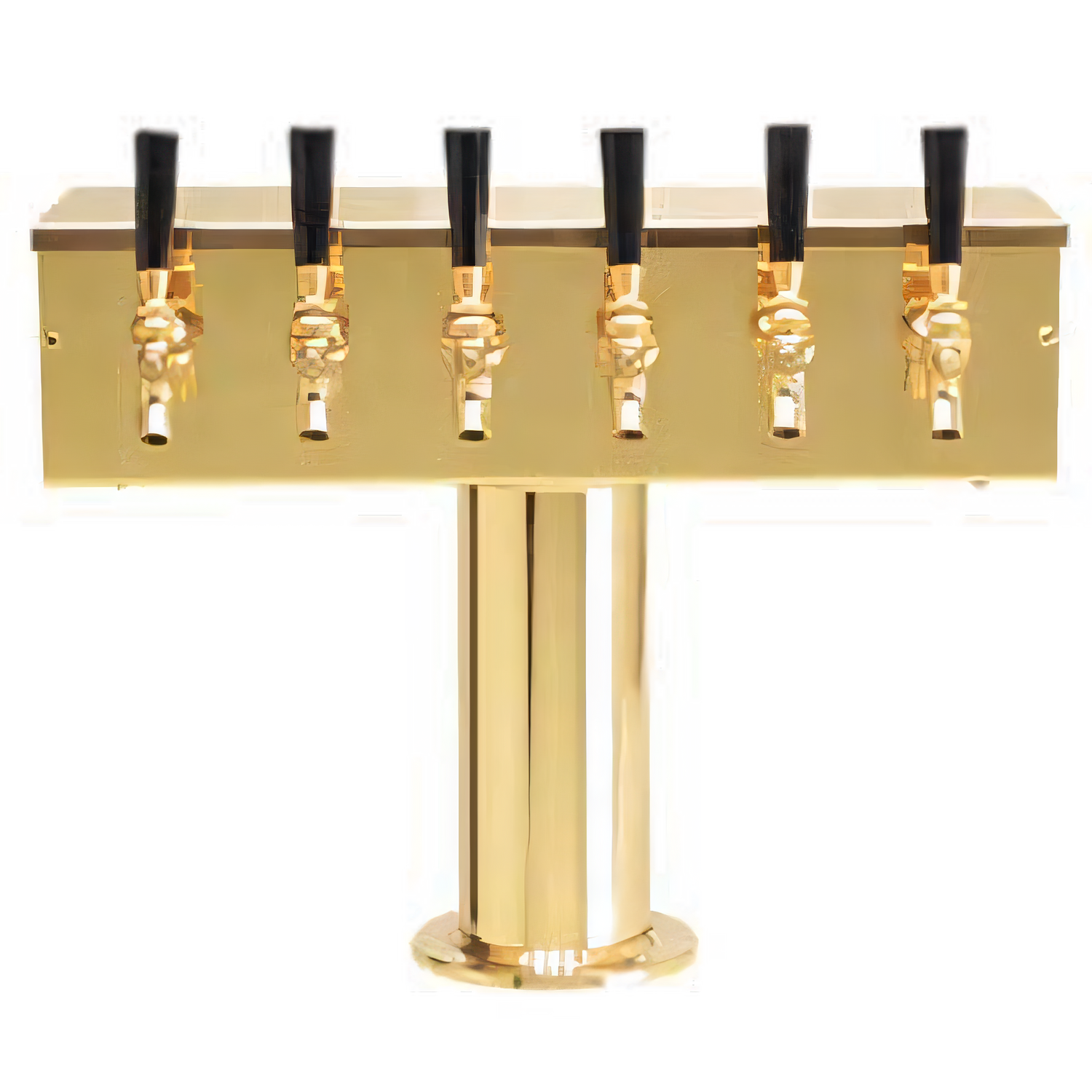

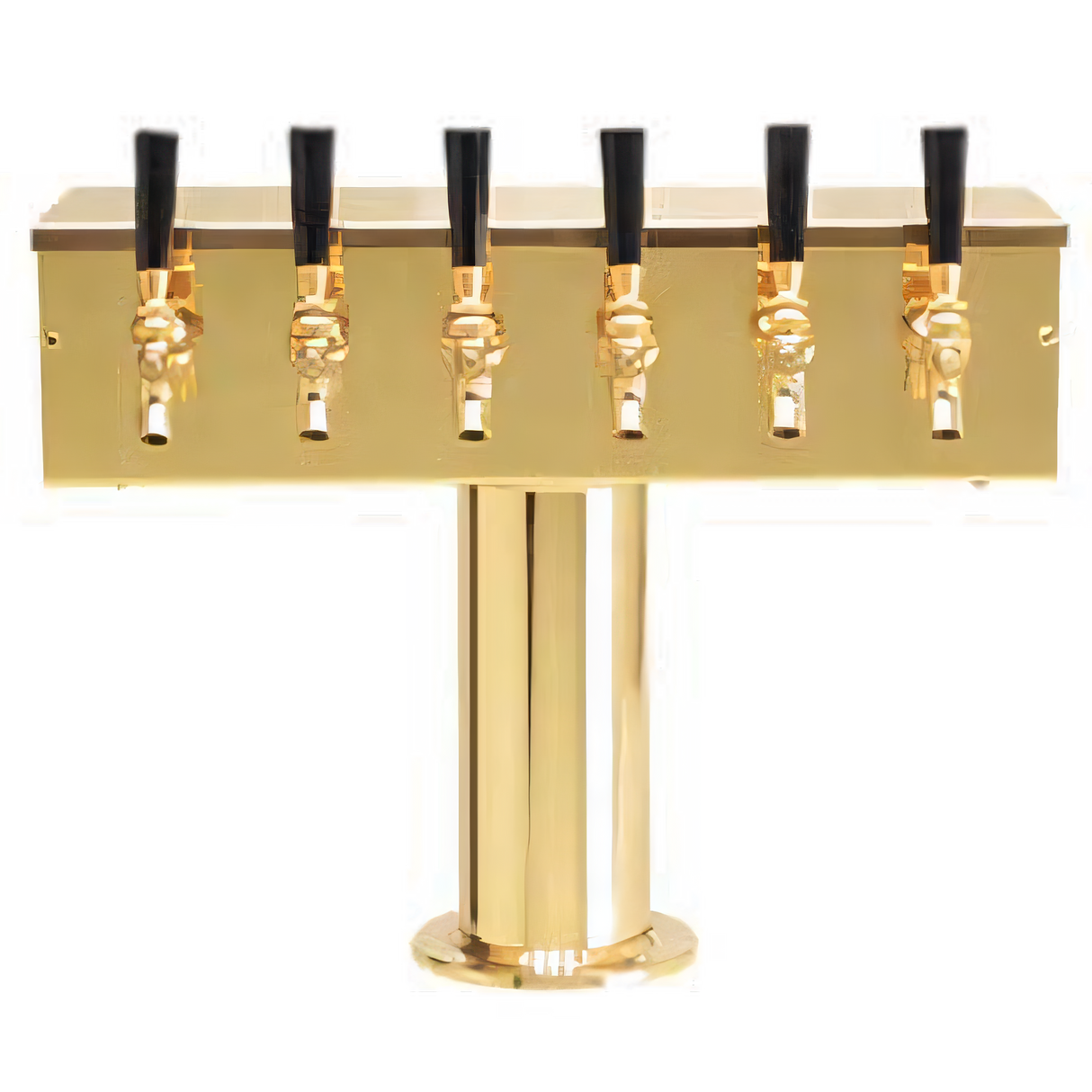

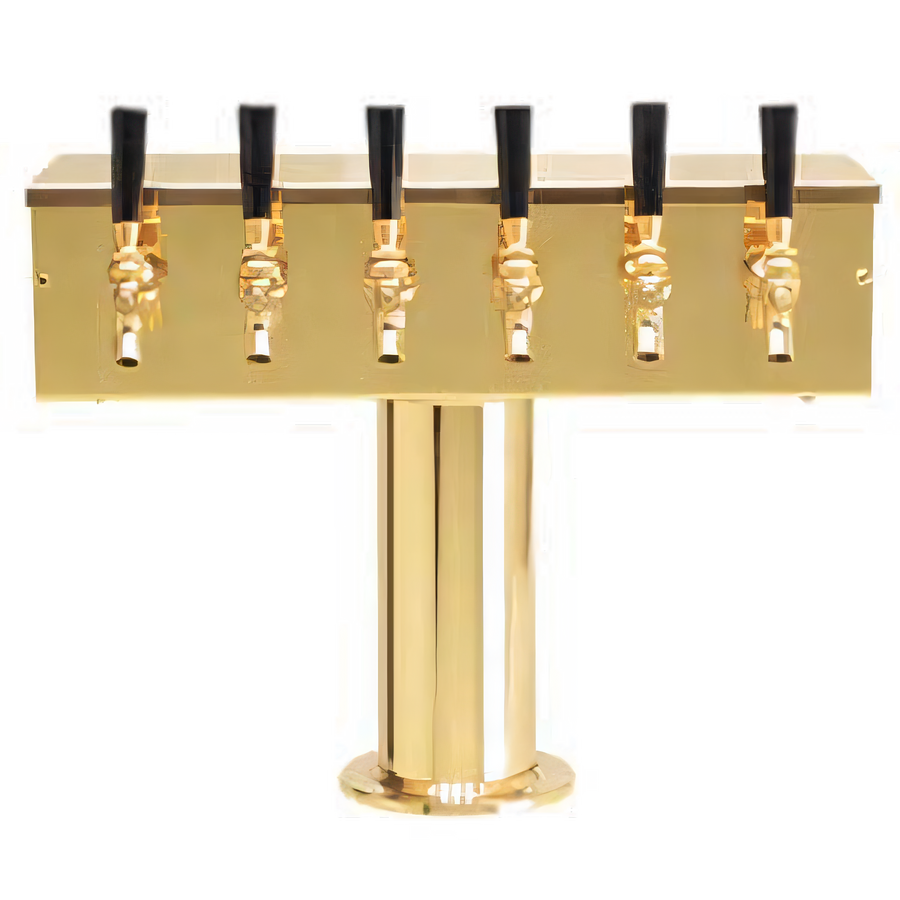

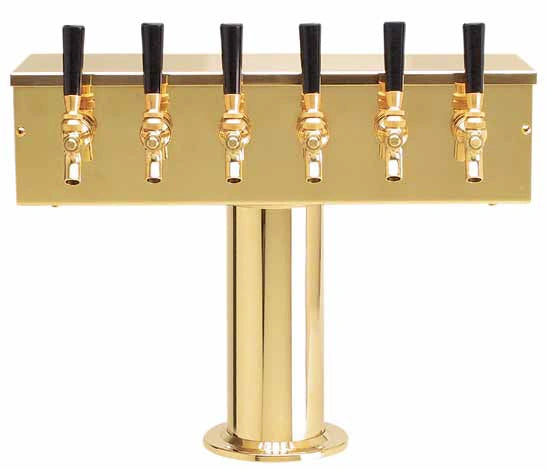

T Style 6-Faucet Draft Beer Tower – PVD Brass
Micro Matic Model DS-256-PVDKR | Glycol-cooled with Kool-Rite™ Plug ‘N’ Pour ModuleShowcase up to six draft beer varieties with brilliant, tarnish-free PVD brass style. The Micro Matic T Style tower pairs eye-catching looks with all-stainless beer contact and an integrated Kool-Rite™ glycol cooling block, giving your bar a true centerpiece that pours brewery-fresh beer shift after shift.
Key Features & Benefits

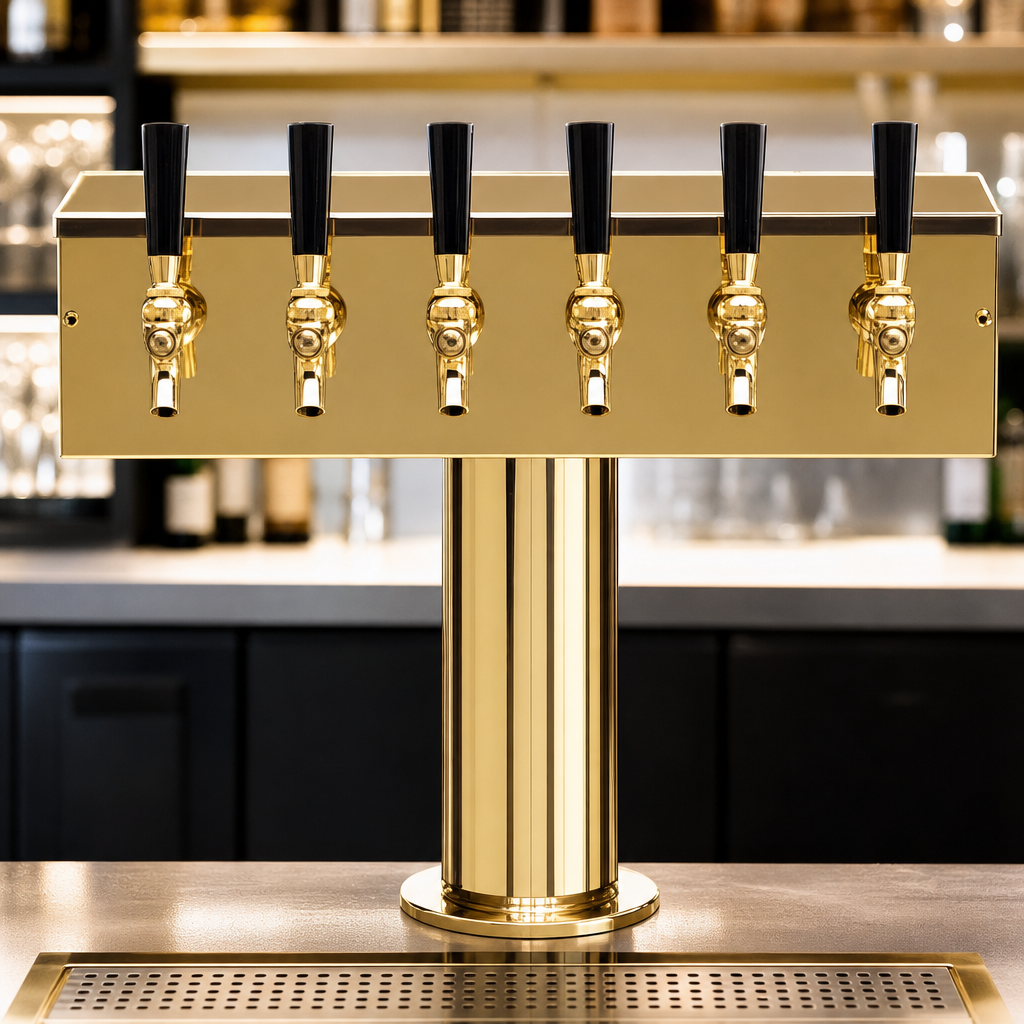

- Six PVD brass-plated 304 SS faucets deliver a clean, consistent pour (handles sold separately).
- Kool-Rite™ “Plug ‘N’ Pour” glycol module provides optimum point-of-dispense cooling.
- All beer contact surfaces are 304 stainless steel for maximum purity and NSF certification.
- 1/4" O.D. stainless steel product lines arrive pre-assembled with leak-proof shanks.
- 3/8" O.D. copper coolant lines ensure efficient heat transfer from cooler to tap.
- Durable, tarnish-free PVD brass exterior maintains its showroom shine for years.
- Modular construction speeds up installation—mount, connect, pour.
- Mounting gaskets and hardware included for a rock-solid countertop install.
Technical Specifications
| Model / Part No. | DS-256-PVDKR |
|---|---|
| Dispense System | Glycol-cooled (Kool-Rite™ integrated module) |
| Number of Faucets | 6 × PVD brass-plated 304 SS (handles not included) |
| Faucet Spacing | 3" on-center (76 mm) |
| Faucet Clearance | 11-5/8" (297 mm) |
| Tower Width | 20" (508 mm) |
| Overall Height | 15-1/2" (396 mm) |
| Column Diameter / Base | 4" Ø column with 6" Ø base |
| Beer Lines | 6 × 1/4" O.D. 304 SS with 5/16"–3/8" barb fittings |
| Coolant Lines | 3/8" O.D. copper with 3/8" barb fittings |
| Finish | PVD brass (tarnish-free) |
| Certification | NSF listed |
| Shipping Weight | 33 lb (15 kg) |
| Box Dimensions | 49" L × 24" W × 14" H |
| Warranty | 1-year limited parts warranty |
What’s in the Box
- T Style PVD brass tower with six pre-installed stainless steel faucets
- Kool-Rite™ cooling block & copper coolant lines
- Pre-assembled stainless steel beer lines and leak-proof shanks
- Mounting gasket, column base plate & hardware
- Comprehensive mounting guide
Backed by Micro Matic’s 1-year limited warranty and nationwide technical support.
