Micro Matic USA D7744PVDKR T Style Draft Beer & Wine Dispensers
Description

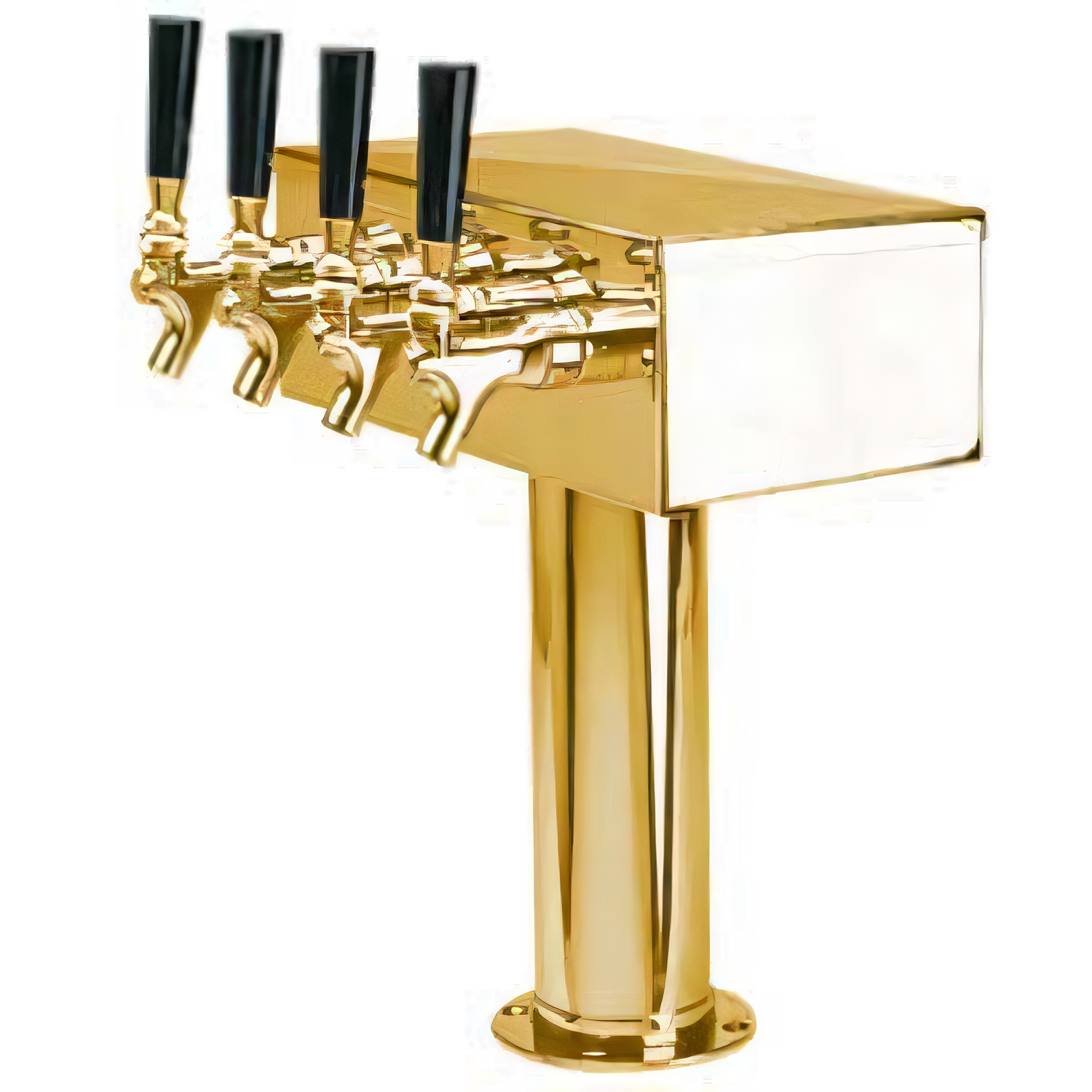

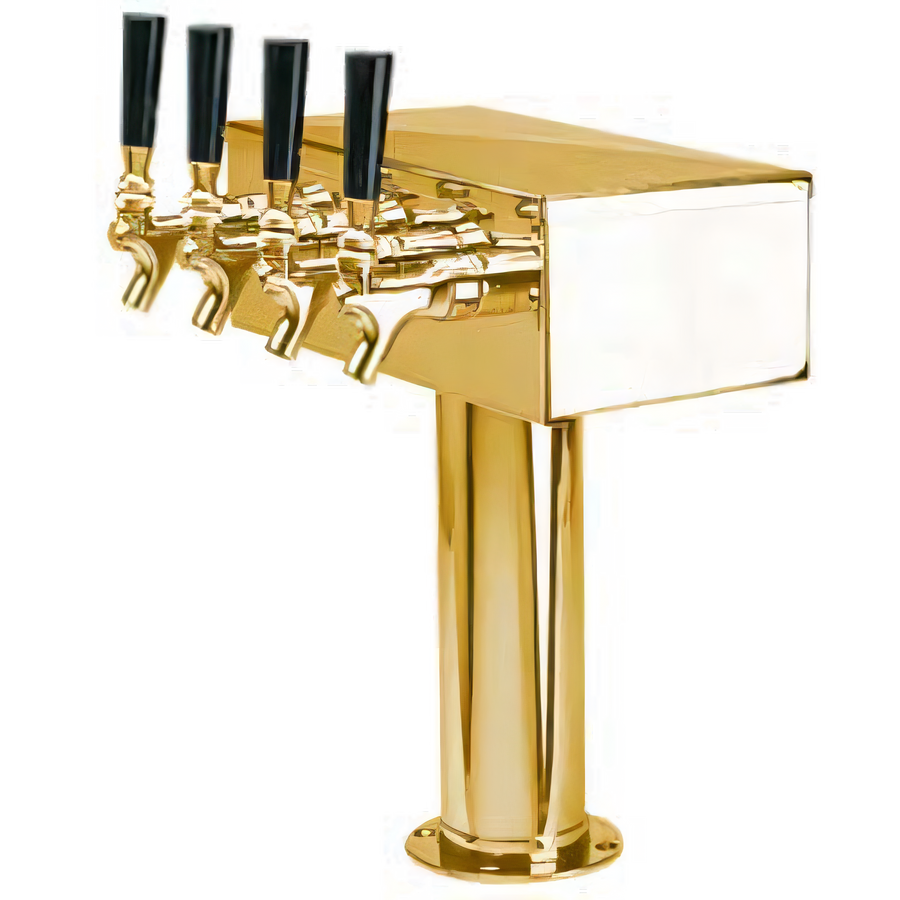

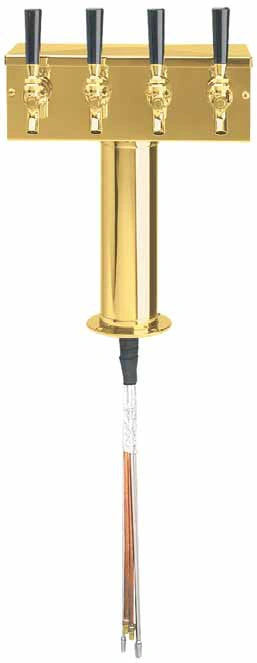

“T Style” 4-Faucet Draft Beer Tower – PVD Brass
Model D7744PVDKR | Kool-Rite™ Glycol-Cooled | Micro Matic USAUnlock big tap variety in a small footprint. Micro Matic’s “T Style” tower pairs a compact 12" box with a sleek 3" column, delivering rock-solid temperature control and show-stopping PVD brass shine that never tarnishes.
Highlights
- PVD brass finish – mirror-bright, scratch resistant and tarnish-free.

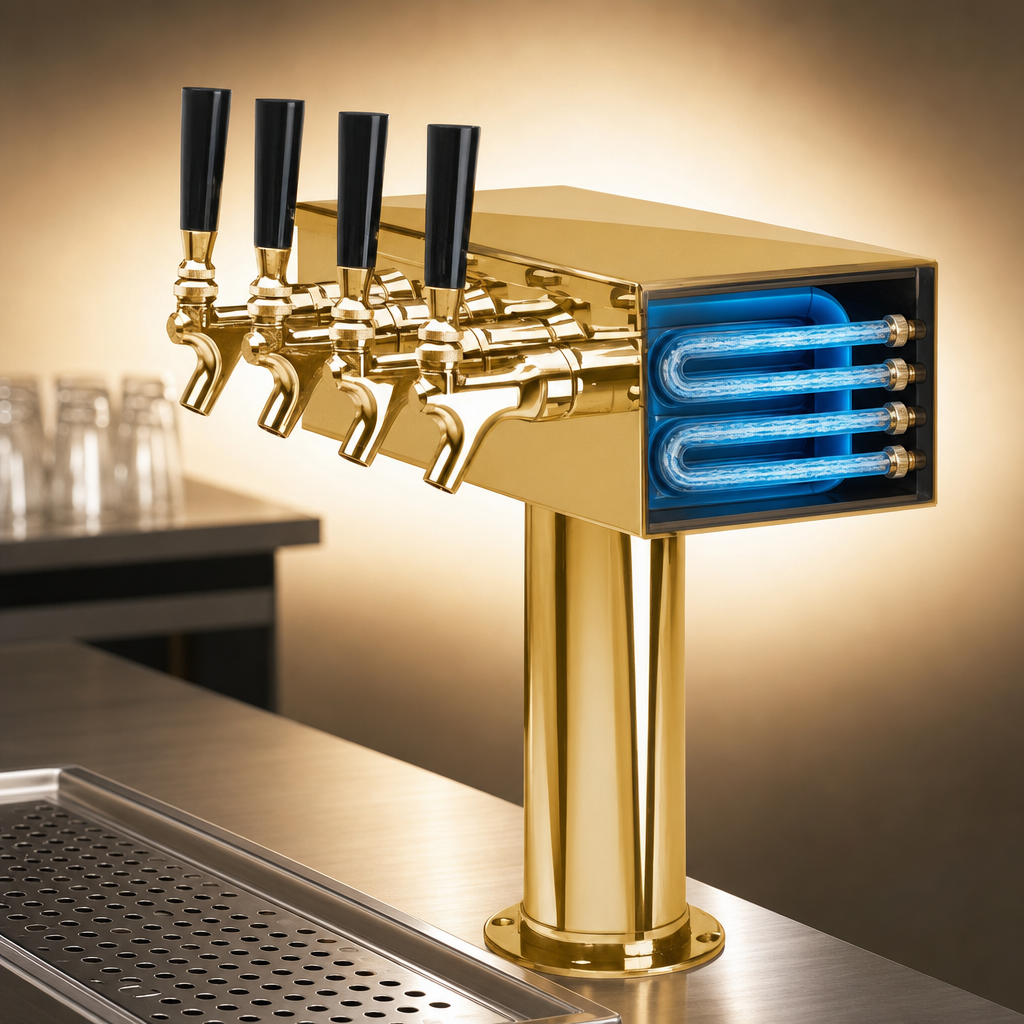

- Kool-Rite™ glycol module keeps beer cold right to the faucet for perfect pours.
- All 304 stainless steel beer contact (tubing, shanks & faucets) for absolute draft purity.

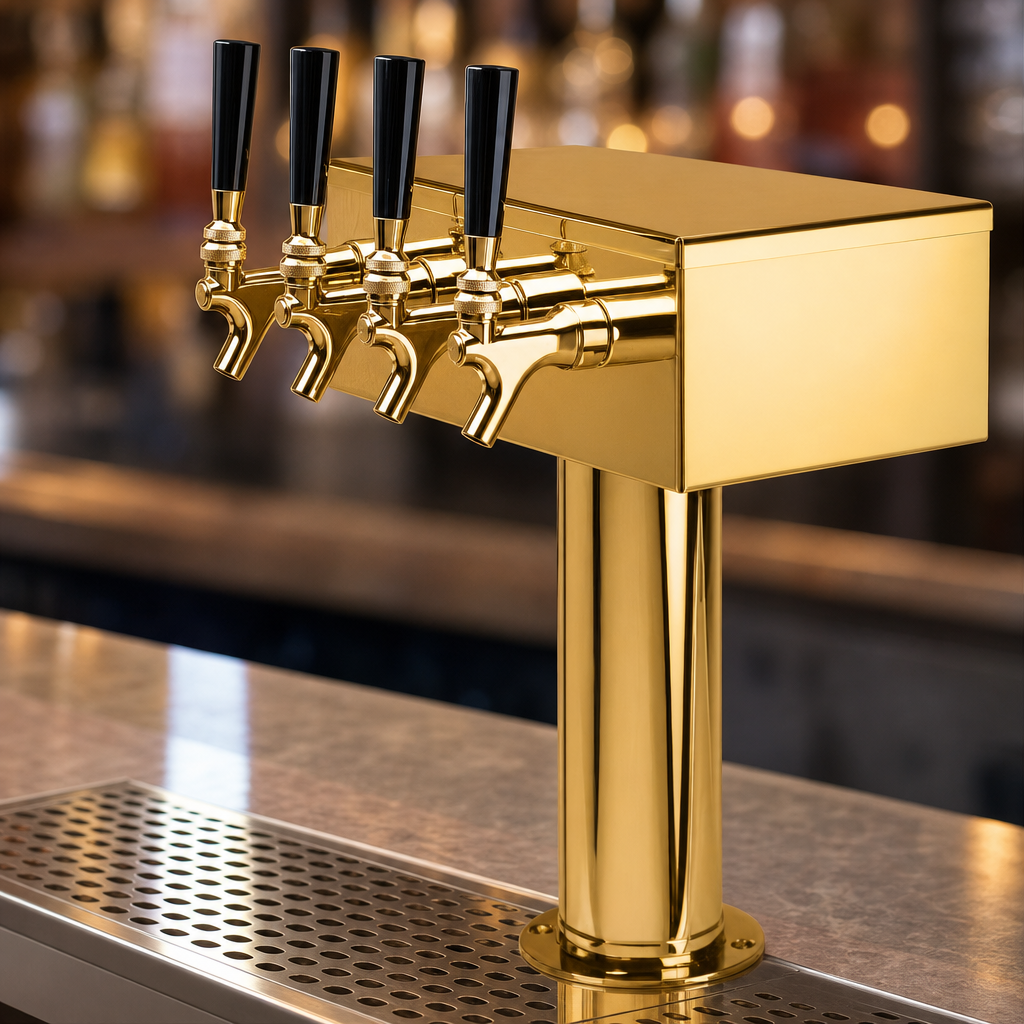

- Four (4) faucets on 3" centers with 11-1/4" clearance – ideal for pints, pitchers & growlers.
- “Plug ’n Pour” modular design ships pre-assembled to slash installation time.
- Includes cooling block, copper coolant lines, mounting gaskets & hardware.
- NSF certified and backed by Micro Matic’s 1-year limited warranty.
Technical Specifications
| Part number | D7744PVDKR |
|---|---|
| Number of faucets | 4 (handles sold separately) |
| Finish | PVD brass over 304 stainless steel |
| Cooling method | Kool-Rite™ glycol recirculation |
| Overall width | 12" (305 mm) |
| Overall height | 14-3/4" (373 mm) |
| Column / base Ø | 3" column / 4-1/4" base |
| Faucet spacing | 3" on-center |
| Pour clearance | 11-1/4" (266 mm) |
| Beer lines | 1/4" O.D. stainless steel w/ 5/16"–3/8" barbs |
| Glycol lines | 3/8" O.D. copper w/ 3/8" barbs |
| Shipping weight | 25 lb (11 kg) |
| Box dimensions | 49" W × 24" H × 24" L |
What’s Included
- T Style draft tower with 4 stainless-steel faucets installed
- Integrated Kool-Rite™ cooling block & copper coolant lines
- Pre-assembled stainless beer lines & leak-proof shanks
- Mounting gasket, hardware & installation guide
Installation Notes
Tower mounts through a 3" countertop hole; four lag screws (included) secure the base. Route glycol supply/return lines without kinks and insulate as needed for peak performance.
Need help sizing a glycol power pack or choosing accessories? Talk with a Micro Matic draft specialist.
