Micro Matic CDI852-BF Beverage Trunk Line, 5/16" I.D., 8 Product Lines, 2 Glycol Lines
- Product line diameter
- 5/16 in. I.D.
- Product lines
- 8
- Glycol lines
- 2
- Glycol line dimensions
- 3/8 in. I.D. x 1/2 in. O.D.
- Glycol tubing material
- Polyethylene
- Outgoing glycol line color
- Blue
Specifications
Description

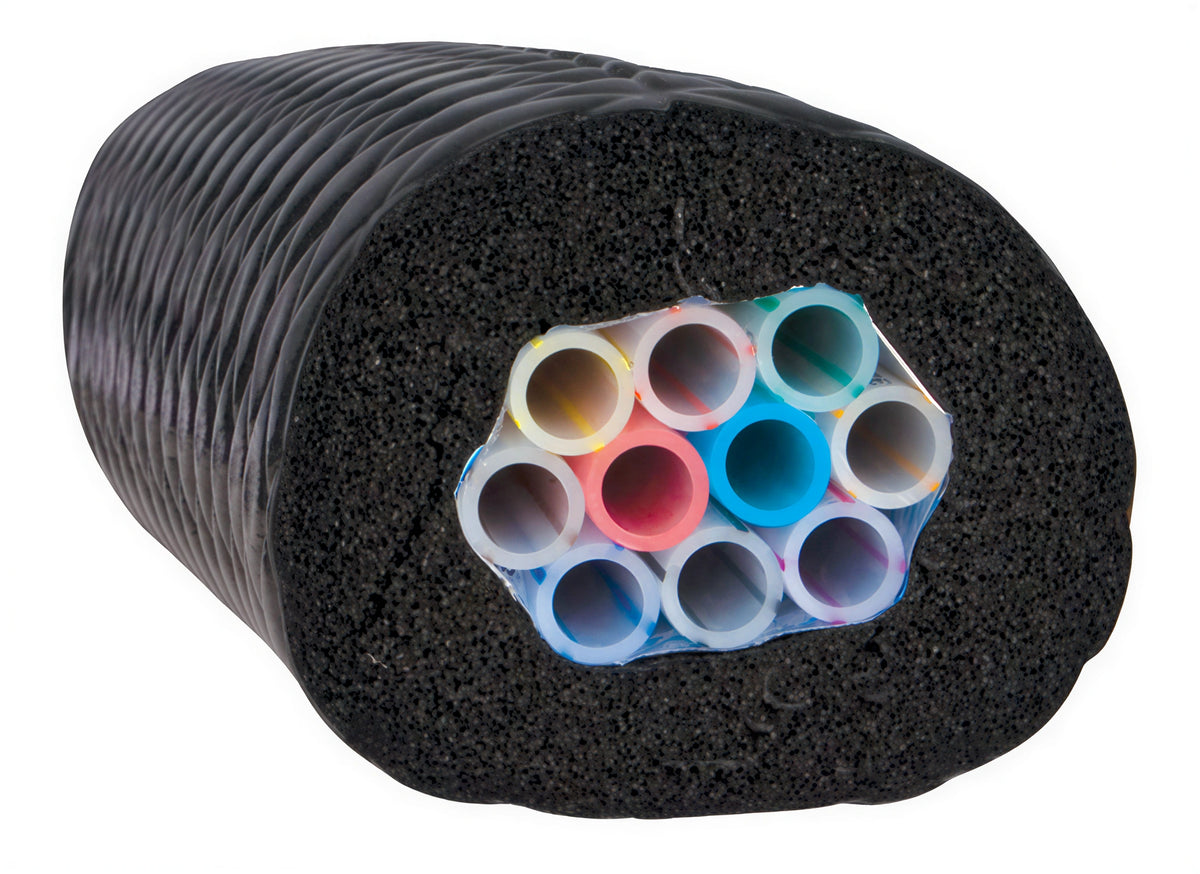

CDI852-BF is a Barriermaster Flavourlock trunk line with eight 5/16 in. I.D. product lines and two glycol cooling lines for beverage delivery from a walk-in to a tower.
- Color-coded tubing supports line identification.
- Aluminum foil cold transfer wrap transfers cold from the glycol lines to the product lines.
- A Black Diamond jacket provides a braid-reinforced exterior with a surface designed to reduce installation time.
- NSF/ANSI Standard 51 Food Equipment Materials certification.
Overall Dimensions:
3.0"WProduct Weight:
150.0 lbEight product lines
The trunk line contains 8 Barriermaster Flavourlock product lines with 5/16 in. I.D. tubing.
Two glycol cooling lines
The glycol cooling lines use 3/8 in. I.D. by 1/2 in. O.D. polyethylene tubing.
Color-coded glycol lines
The outgoing glycol supply line is blue and the glycol return line is red.
Black Diamond jacket
The jacket is braid reinforced and described as 15% more thermally efficient than tape.
Cold transfer wrap
Aluminum foil wrap conducts cold transfer from the glycol lines to the product lines.
Closed-cell insulation
The trunk line uses 3/4 in. closed-cell insulation.
Moisture barrier wrap
Food quality barrier film helps prevent condensation from compromising the insulation.
Sequential foot marking
Exterior marks are provided every 2 ft. or 610 mm.
