Micro Matic CDI632-BF Beverage Trunk Line, 3/8" I.D., 6 Product Lines, 2 Glycol Lines
- Product line diameter
- 3/8 in. I.D.
- Product lines
- 6
- Glycol lines
- 2
- Glycol cooling line size
- 3/8 in. I.D. x 1/2 in. O.D.
- Product tubing
- Barriermaster Flavourlock
- Glycol line colors
- Outgoing: blue; return: red
Specifications
Description

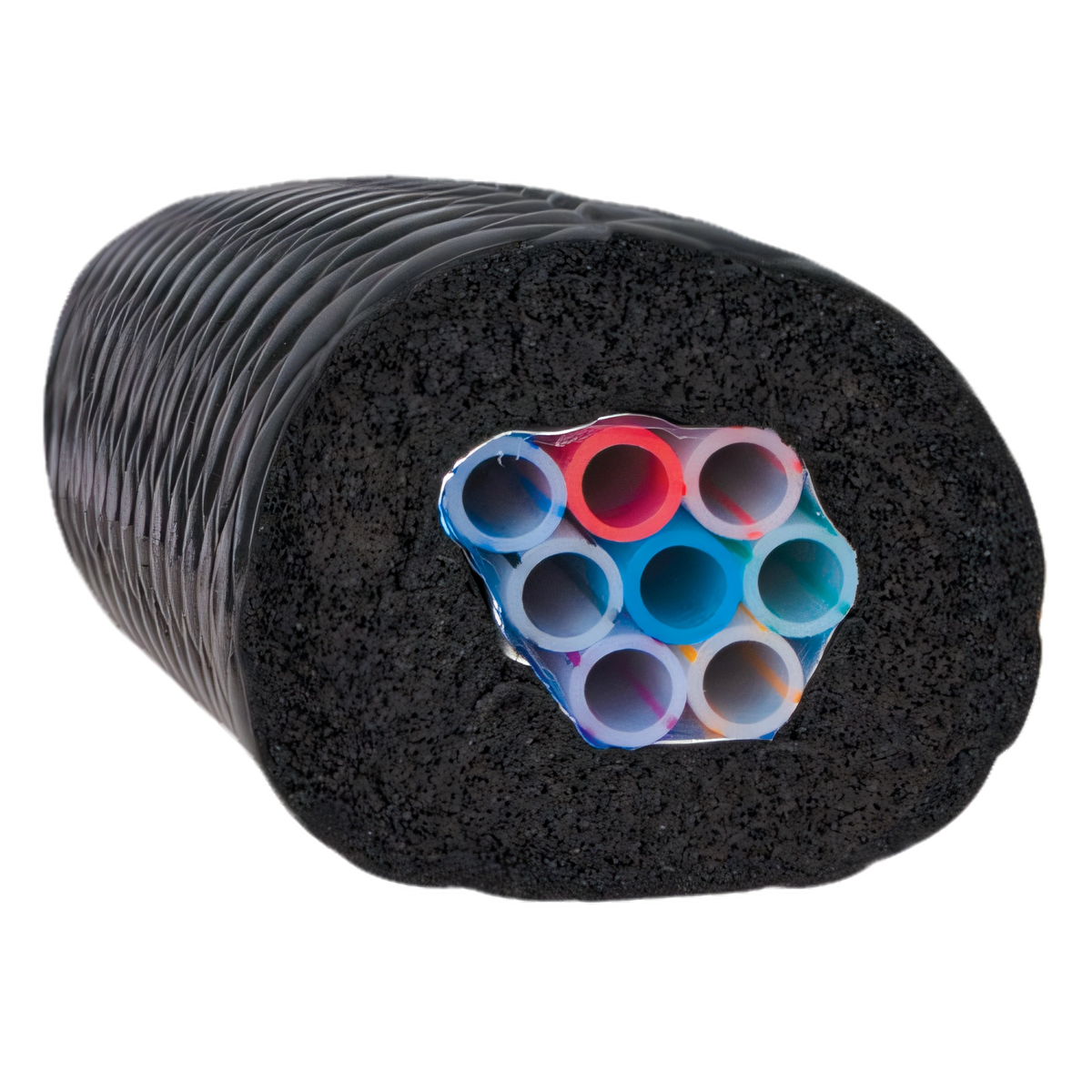

The Micro Matic CDI632-BF Barriermaster Flavourlock trunk line is configured with six 3/8 in. I.D. product lines and two glycol cooling lines.
- The product lines use Barriermaster Flavourlock tubing.
- Glycol outgoing and return lines are color coded blue and red.
- An aluminum foil wrap conducts cold transfer from the glycol lines to the product lines.
- The construction includes 3/4 in. closed-cell insulation and a food-quality moisture barrier film.
- The Black Diamond jacket is braid reinforced and specified as 15% more thermally efficient than traditional tape.
- The trunk line is certified to NSF/ANSI Standard 51 Food Equipment Materials.
Overall Dimensions:
12.0"W x 12.0"D x 24.0"HProduct Weight:
30.0 lbSix product lines
The trunk line has six product lines using 3/8 in. I.D. Barriermaster Flavourlock tubing.
Two glycol cooling lines
The glycol lines are 3/8 in. I.D. x 1/2 in. O.D. polyethylene tubing.
Color-coded glycol lines
The outgoing glycol line is blue and the return line is red.
Cold transfer wrap
An aluminum foil wrap conducts cold transfer from the glycol lines to the product lines.
Moisture barrier and insulation
The assembly includes a food-quality barrier film and 3/4 in. closed-cell insulation.
Black Diamond jacket
The jacket is braid reinforced and specified as 15% more thermally efficient than traditional tape.
Sequential foot marking
Exterior markings are provided at every 2 ft.
