Micro Matic CDI432-BF Beverage Trunk Line, 3/8" I.D., 4 Product Lines, 2 Glycol Lines, Color-Coded Tubing
- Product line diameter
- 3/8 inch I.D.
- Product lines
- 4
- Glycol lines
- 2
- Glycol tubing
- 3/8 inch I.D. x 1/2 inch O.D. polyethylene tubing
- Outgoing glycol line
- Blue color coded
- Return glycol line
- Red color coded
Specifications
Description

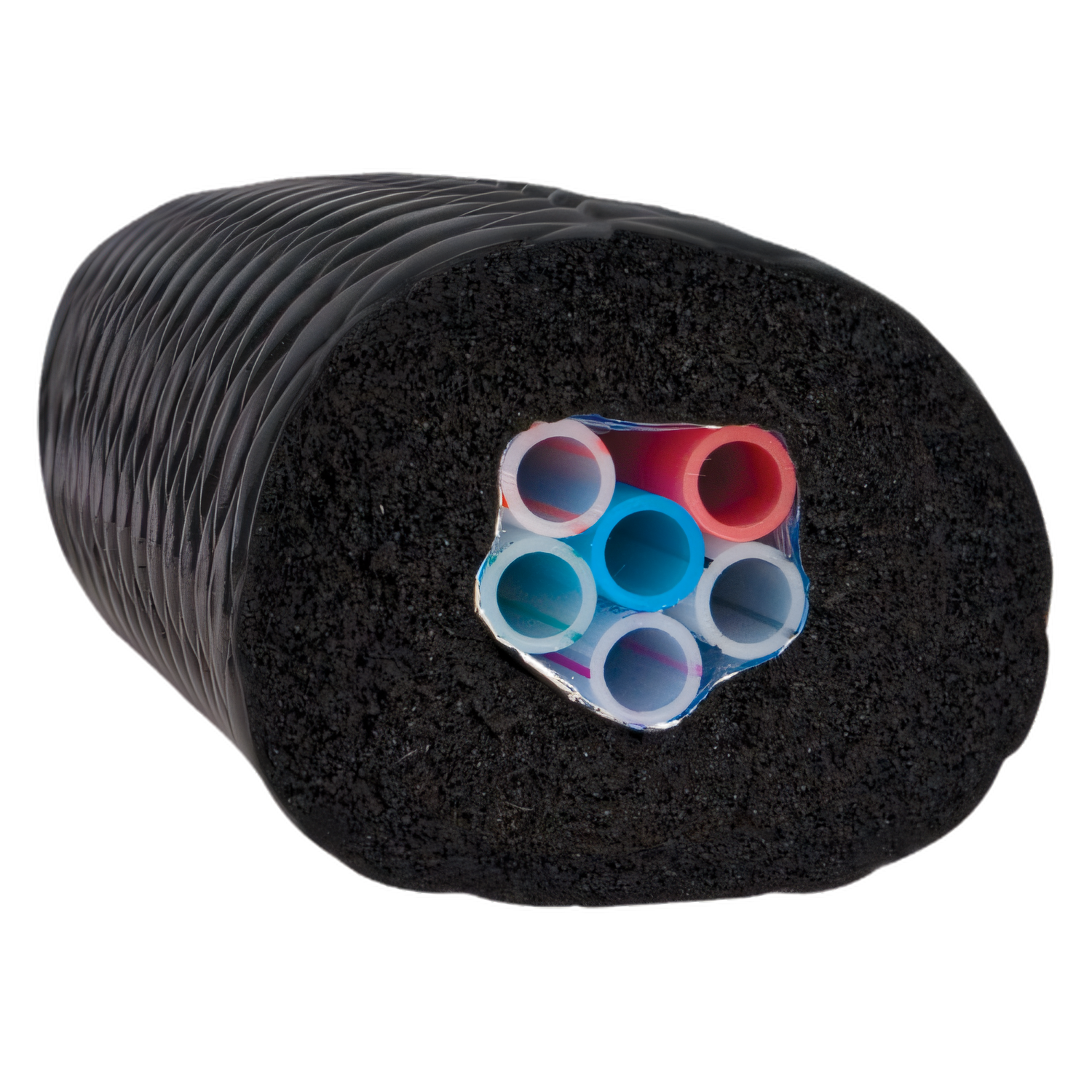

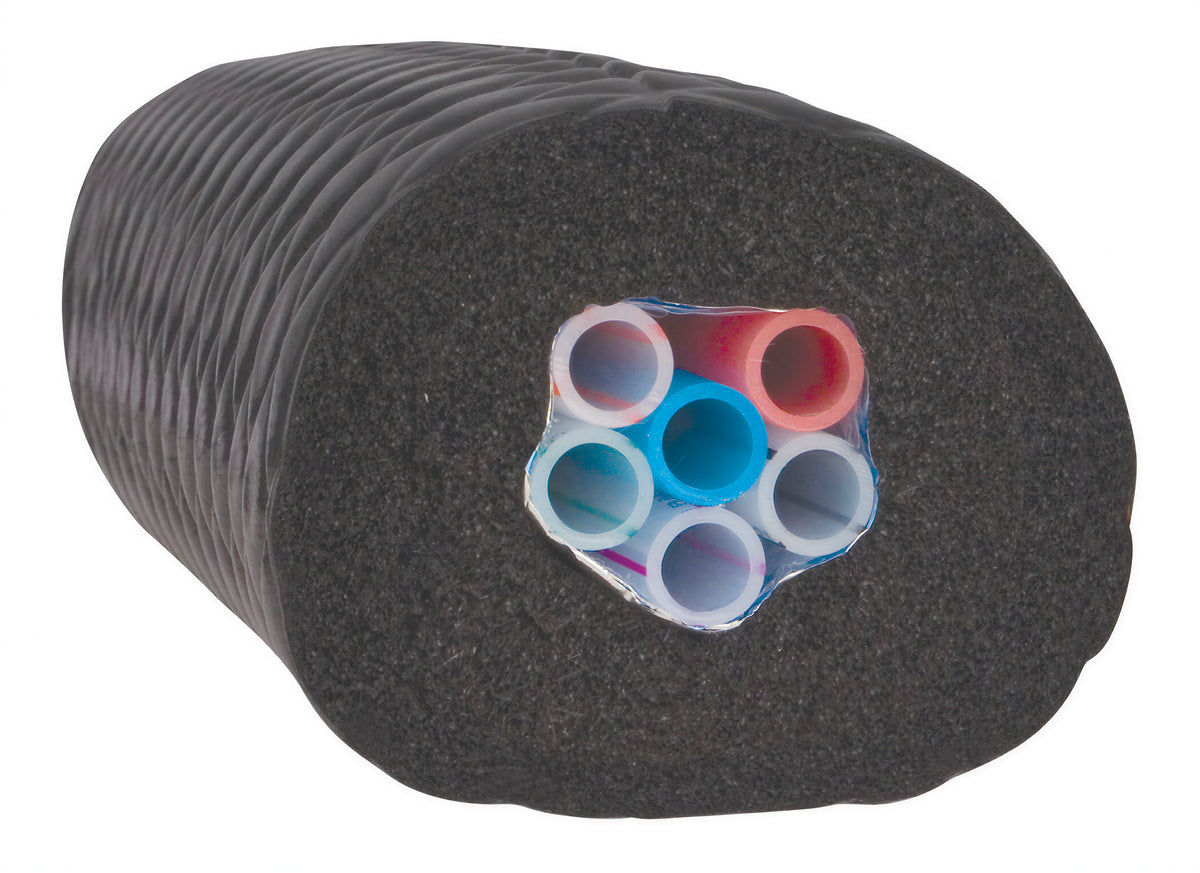

Micro Matic CDI432-BF is a Barriermaster Flavorlock beverage trunk line with four 3/8" I.D. product lines and two glycol lines.
- Color-coded tubing supports line identification.
- Aluminum foil cold transfer wrap conducts cold transfer from the glycol lines to the product lines.
- The construction includes moisture barrier wrap, closed-cell insulation, and a Black Diamond jacket.
- Certified to NSF/ANSI Standard 51 Food Equipment Materials.
Overall Dimensions:
12.0"W x 12.0"D x 24.0"HProduct Weight:
6.0 lbFour product lines
The trunk line contains four Barriermaster Flavorlock product lines with a 3/8 inch I.D.
Two glycol lines
The trunk line includes outgoing and return glycol lines with a 3/8 inch I.D. and 1/2 inch O.D.
Color-coded tubing
The outgoing glycol line is blue and the return glycol line is red; product lines are color-coded and identified.
Aluminum foil cold transfer wrap
The foil wrap conducts cold transfer from the glycol lines to the product lines.
Moisture barrier wrap
Food-quality barrier film helps protect the insulation from moisture.
Closed-cell insulation
The insulation is 3/4 inch closed cell.
Black Diamond jacket
The jacket is braid reinforced, resistant to tearing, and 15% more thermally efficient than traditional tape.
Sequential foot markings
Exterior markings are provided every 2 feet.
