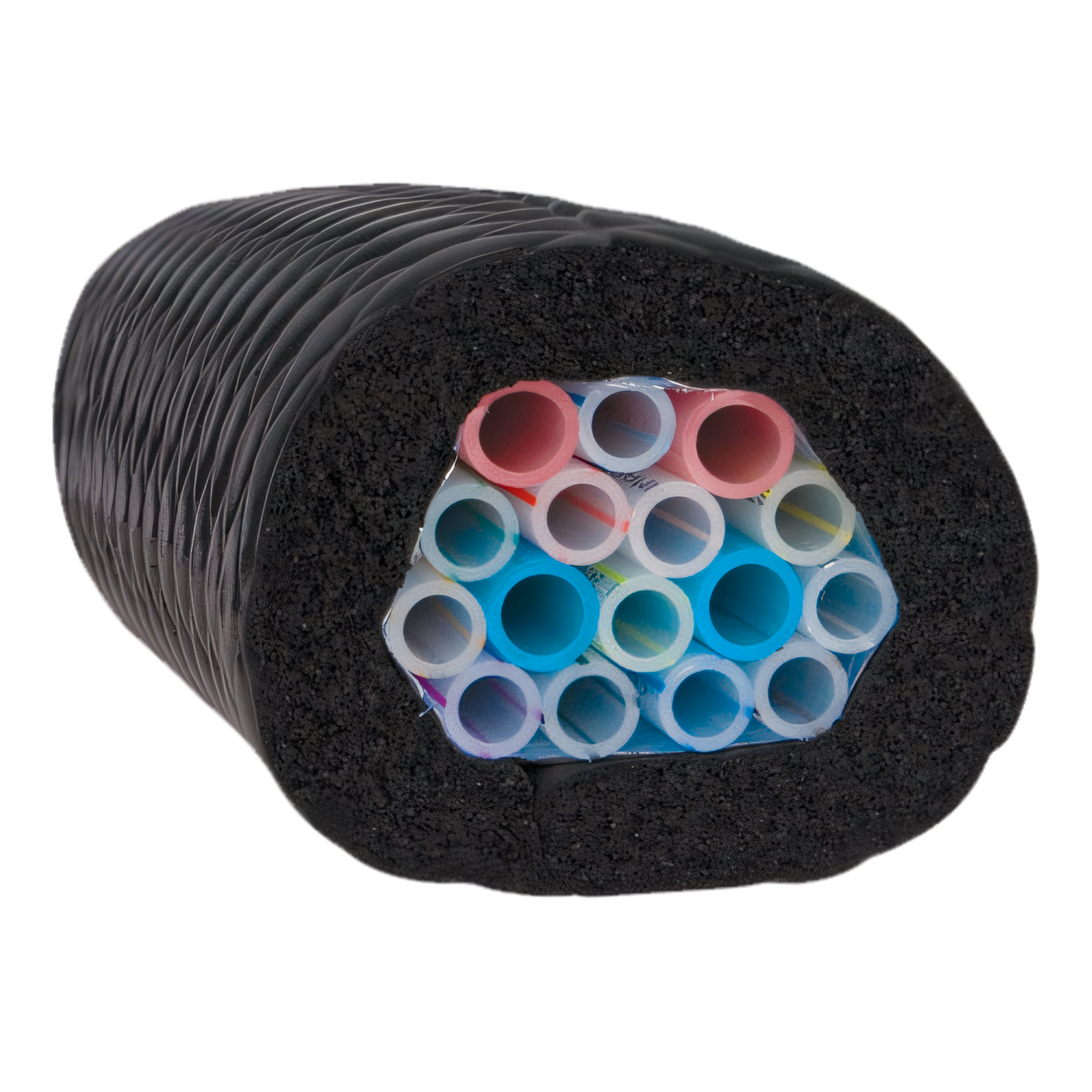

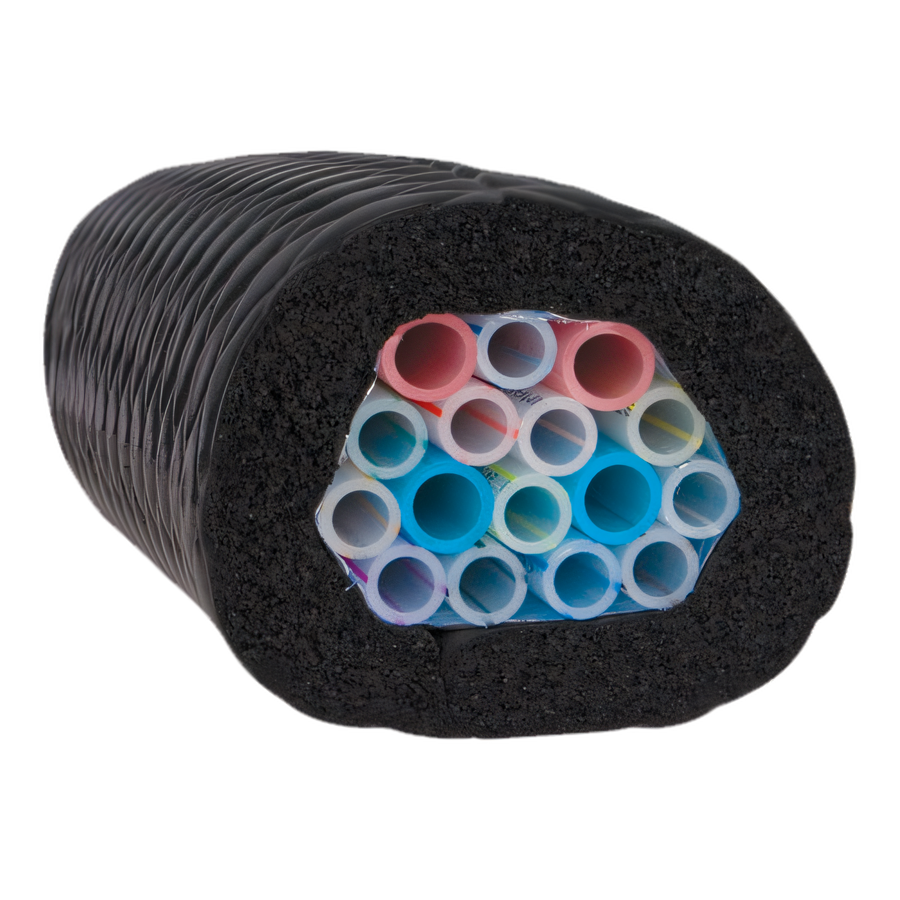

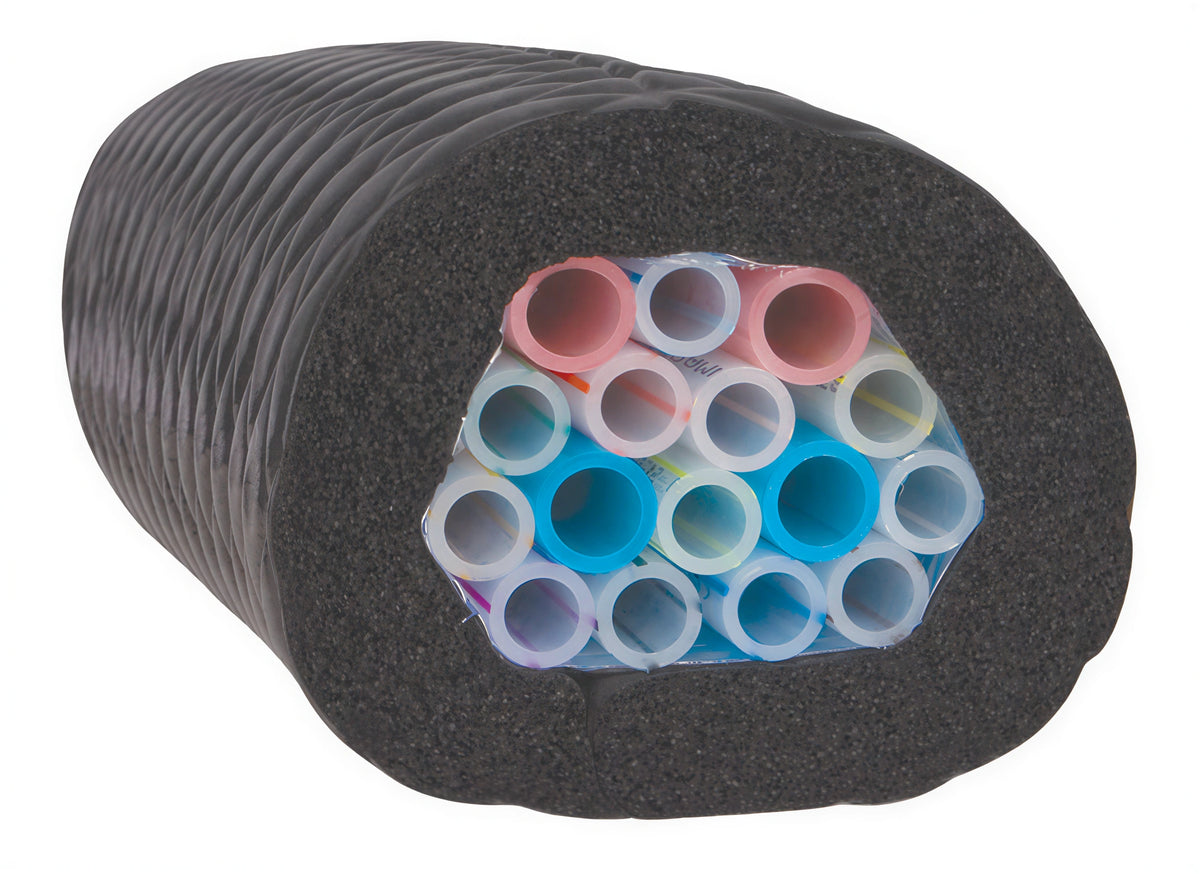

Micro Matic CDI1254-BF Beverage Trunk Line, 5/16" ID, 12 Product Lines, 4 Glycol Lines, Aluminum Foil Wrap
- Product line diameter
- 5/16" I.D.
- Product lines
- 12
- Glycol lines
- 4
- Glycol line diameter
- 3/8" I.D.
- Tubing
- Barriermaster Flavorlock
- Line identification
- Color coded
Specifications
Description
The Micro Matic CDI1254-BF Barriermaster Flavorlock trunk line is configured with 12 product lines and 4 glycol lines. Its 5/16" I.D. product tubing is color coded for identification and includes an aluminum foil wrap for cold transfer.
The construction includes a Black Diamond® jacket, closed-cell insulation, and a moisture barrier wrap. The product is NSF Standard 51 listed.
Overall Dimensions:
12.0"W x 12.0"D x 6.0"HProduct Weight:
1.0 lb12 product lines
Provides 12 product lines with 5/16" I.D. Barriermaster Flavorlock tubing.
4 glycol lines
Includes four 3/8" I.D. glycol lines, with red return and blue outgoing supply hoses for identification.
Cold-transfer foil wrap
Aluminum foil wrap conducts cold transfer from the glycol lines to the product lines.
Black Diamond® jacket
The jacket is specified as 15% more thermally efficient than traditional tape and has a braid-reinforced, easy-glide surface.
Color-coded tubing
Color-coded lines support quick line identification.
Insulation and moisture barrier
Includes 3/4" (19 mm) closed-cell insulation and a moisture barrier wrap.
