Micro Matic USA BS-SKY-2PVDKR Skyline Draft Beer & Wine Dispensers
Description

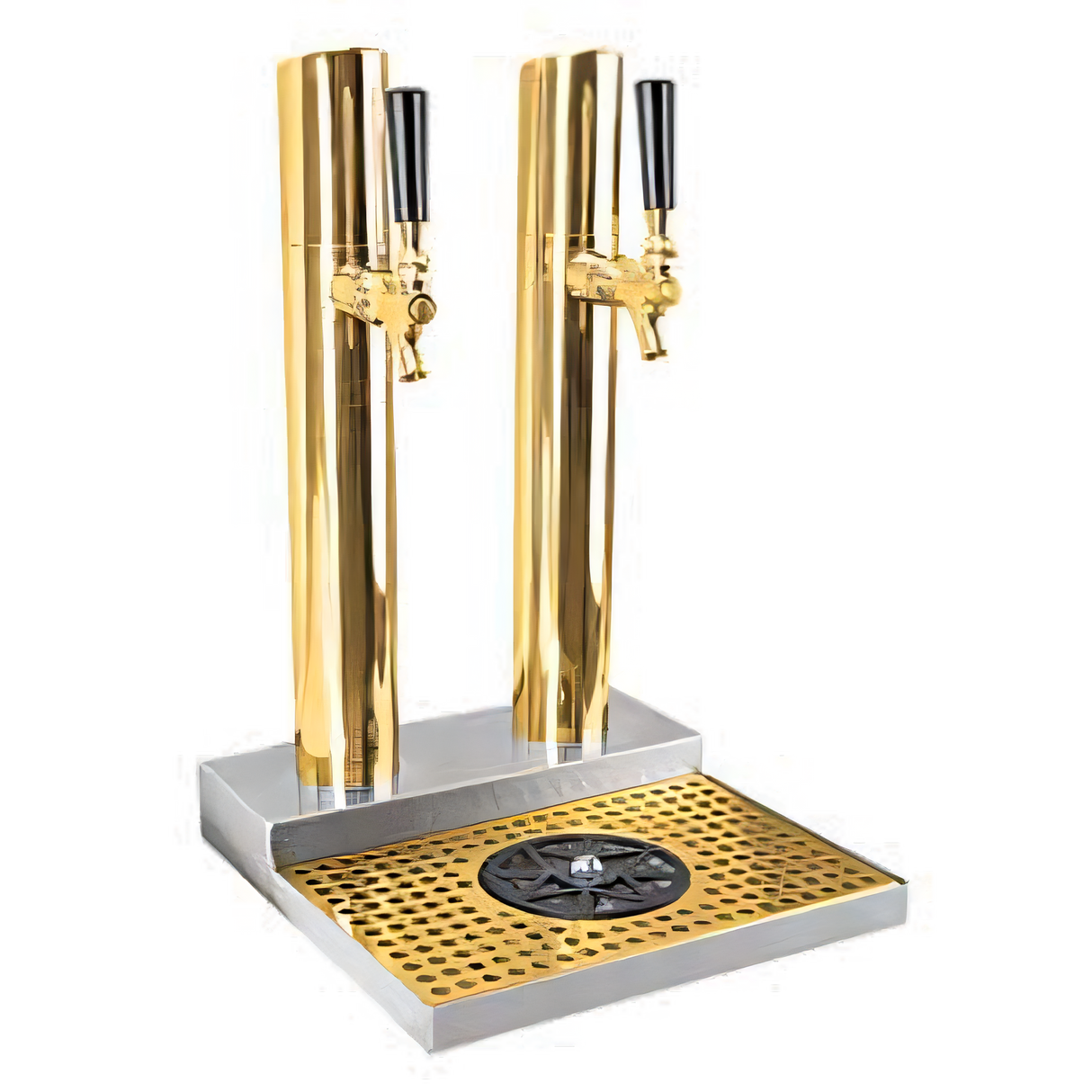

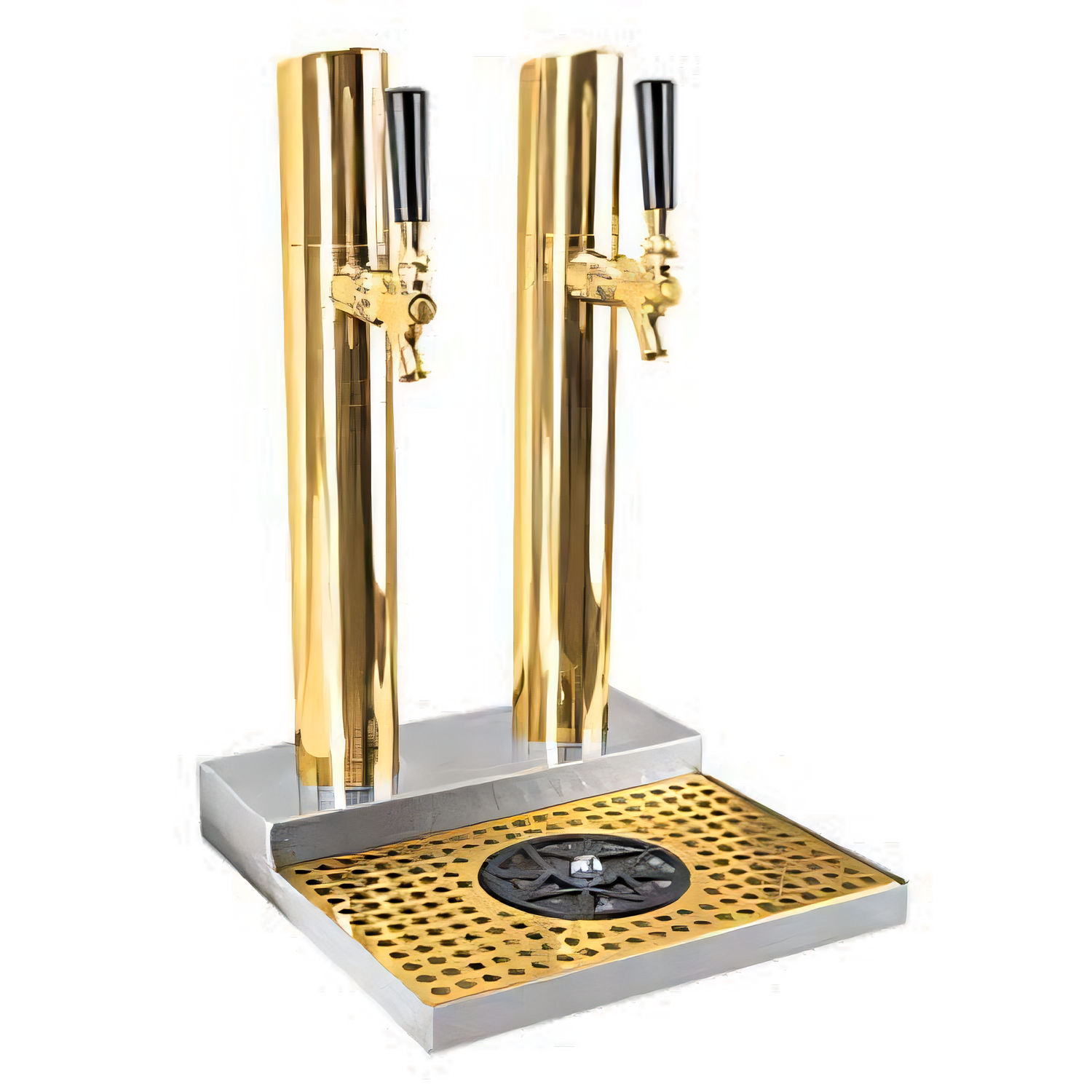

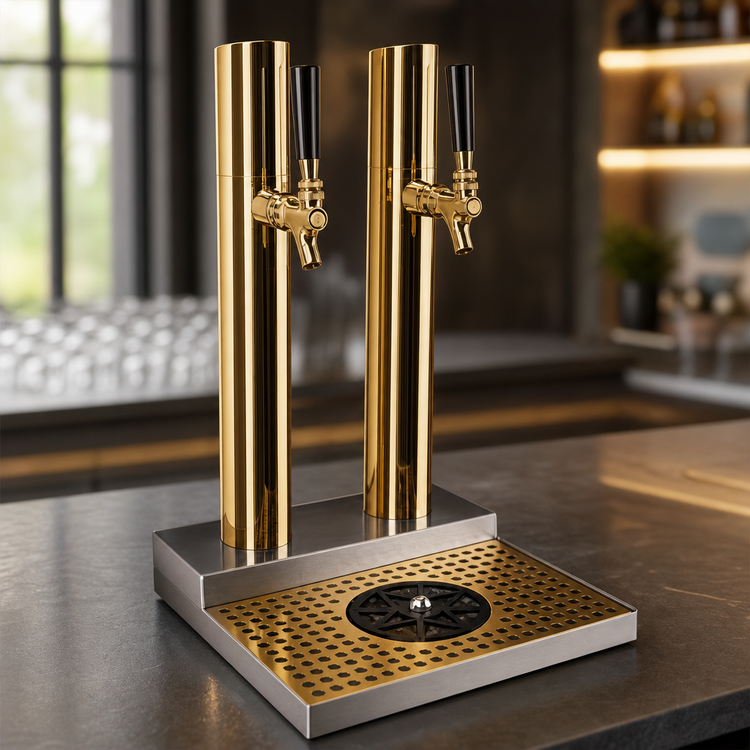

Skyline™ Draft Beer Station — PVD Brass, 2-Faucet
Model BS-SKY-2PVDKR · Glycol-ready “Plug 'N Pour” countertop towerTransform your bar top into a showpiece with the Skyline™ Draft Beer Station from Micro Matic USA. The dual-column tower combines eye-catching PVD brass with industry-leading Kool-Rite™ cooling, delivering flawless pours and unforgettable presentation in any venue.
Key Features
- Premium, tarnish-free PVD brass finish over rugged 304 stainless steel

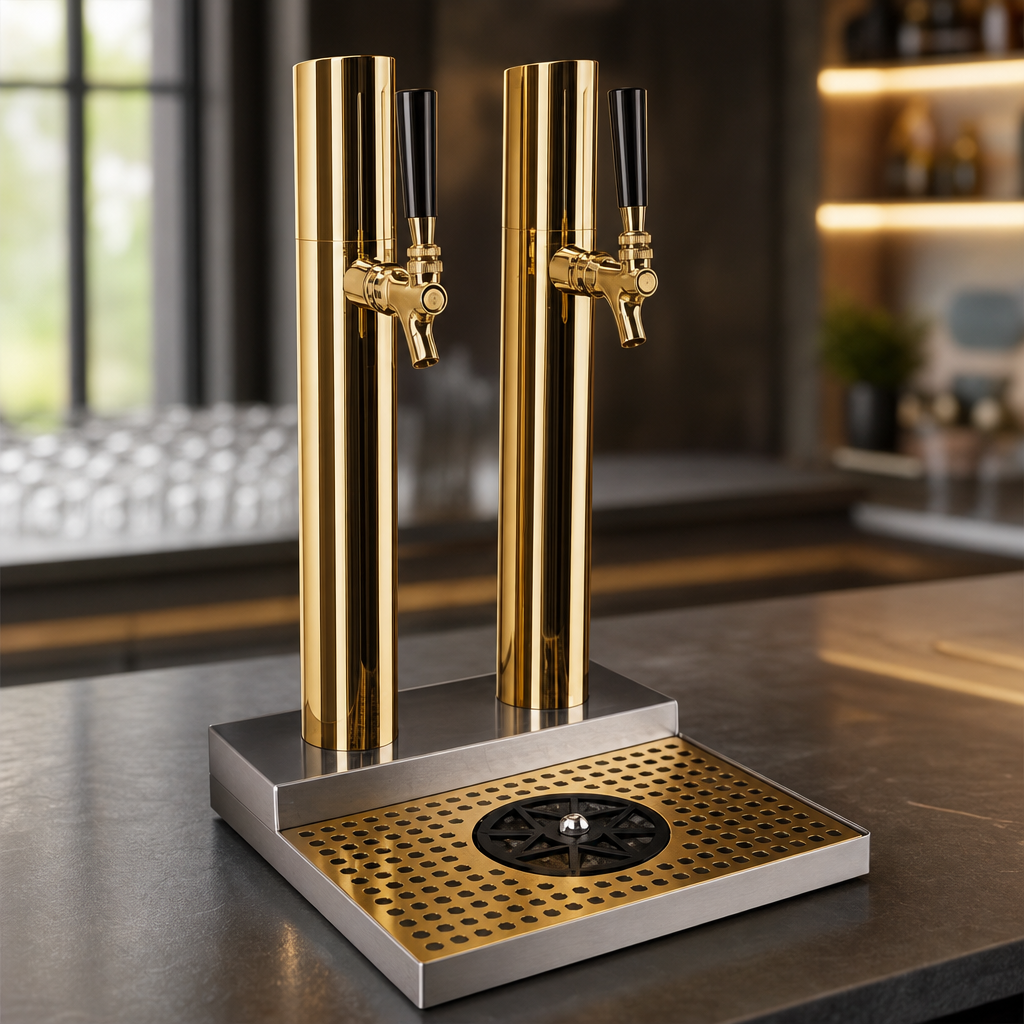

- Integrated Kool-Rite™ module keeps beer at perfect serving temperature right to the faucet

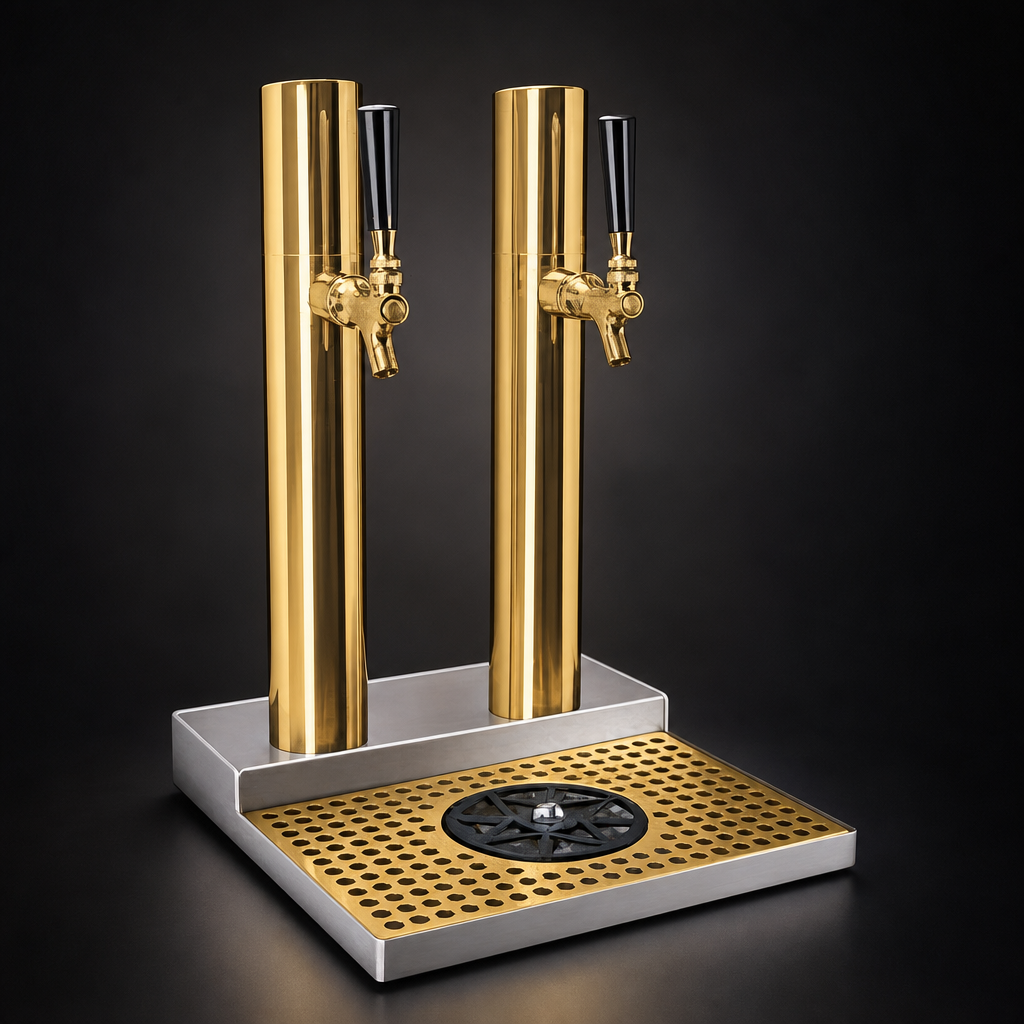

- (2) independent 2 ½" Ø stainless columns, each with a 304 SS faucet (handles sold separately)
- Generous 11" faucet clearance accommodates tall stemware, growlers and flight paddles
- All beer-contact surfaces are 304 SS for uncompromised flavor and easy sanitation
- 12" × 12.5" built-in drip pan with removable perforated insert and glass rinser for rapid chill & rinse
- Leak-proof stainless shanks and beer lines bonded to a cast cooling block
- Pre-assembled ⅜" O.D. copper glycol lines for fast hook-up to your remote chiller
- Ships ready to install with mounting gaskets, studs and hardware
- Backed by Micro Matic’s one-year limited warranty & nationwide support
Ideal For
- Craft beer bars & taprooms
- Upscale restaurants, hotels and event venues
- Mobile bars & catering stations
- Brewery tasting rooms
Technical Specifications
| Model | BS-SKY-2PVDKR |
|---|---|
| Finish | PVD Brass over 304 SS (tarnish-free) |
| Dispense Capacity | (2) 304 SS faucets – one per column (handles not included) |
| Cooling Method | Remote glycol via integrated Kool-Rite™ module |
| Faucet Clearance | 11" / 280 mm |
| Overall Height | 19" / 483 mm |
| Base Footprint | 12" W × 12.5" D (305 mm × 318 mm) |
| Column Diameter | 2.5" / 64 mm |
| Beer Lines | ¼" O.D. 304 SS tubing with 5/16"–3/8" barbs |
| Glycol Lines | ⅜" O.D. copper with ⅜" barbs |
| Drain | 3 ½" × ½" I.D. threaded brass |
| Mounting Studs | 5/16-18 × 4 (hardware included) |
| Shipping Weight | 36 lb / 16 kg |
| Shipping Dimensions | 45" L × 36" W × 15" H |
| Warranty | 1-year limited parts & labor |
Installation Notes
- Connect to a remote glycol chiller (not included) for optimum performance.
- Glass rinser water supply must be regulated to 15 PSI with a check valve and shut-off (per local code).
- Provide adequate drain and water hook-ups beneath the counter.
- Sanitize beer lines before first use and as part of routine maintenance.
Questions? Call the Micro Matic draft experts at 1-866-327-4159 or visit micromatic.com.
