Micro Matic USA BG-U-12KR Biergarten Draft Beer & Wine Dispensers
Description

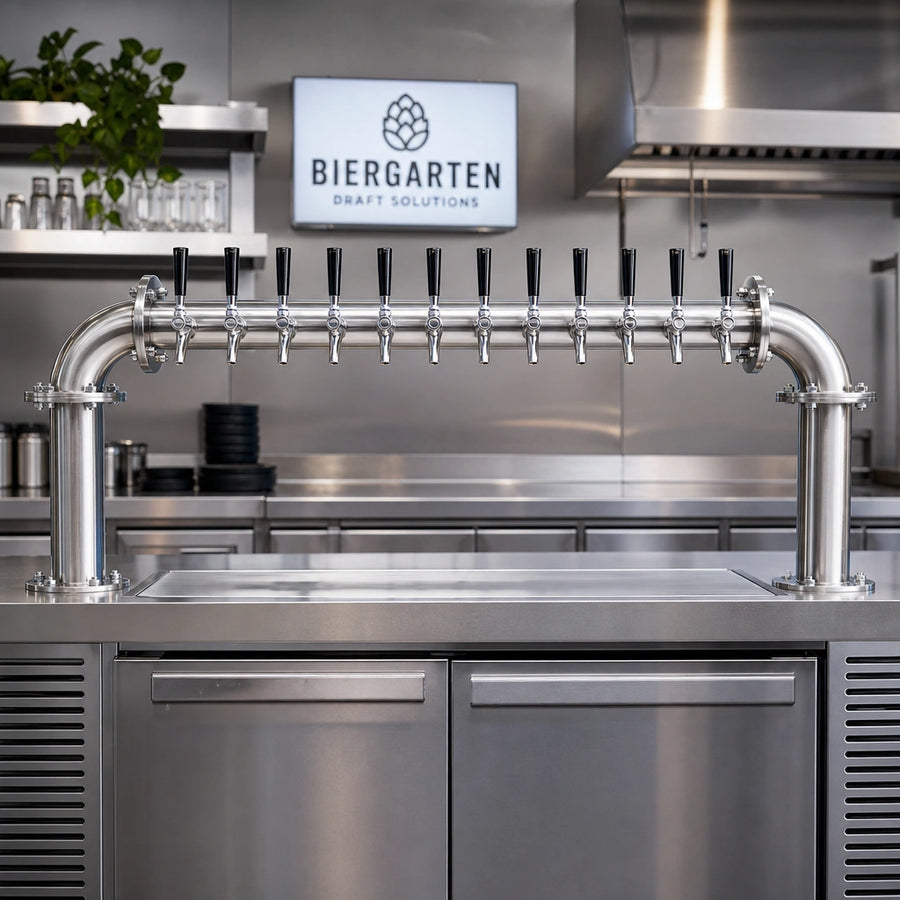

Biergarten™ “U” 12-Faucet Draft Beer Tower

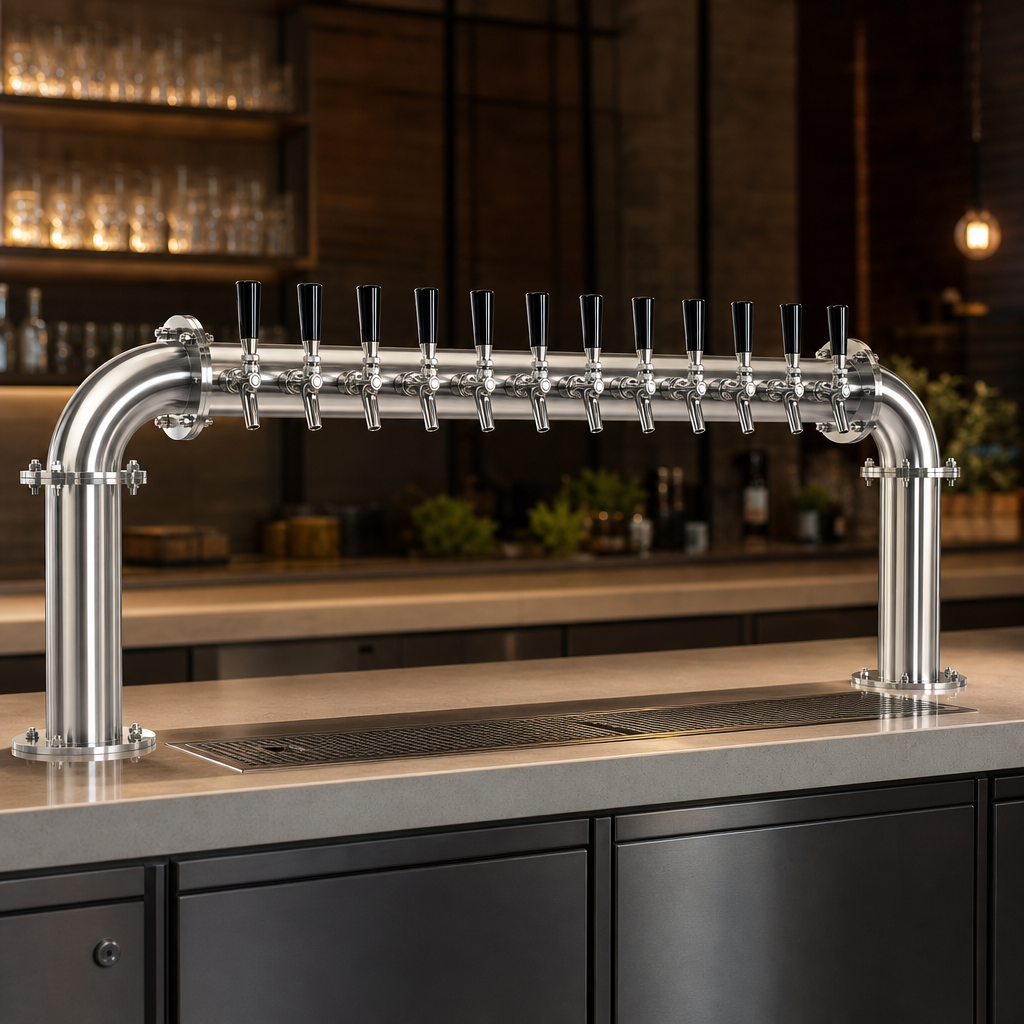

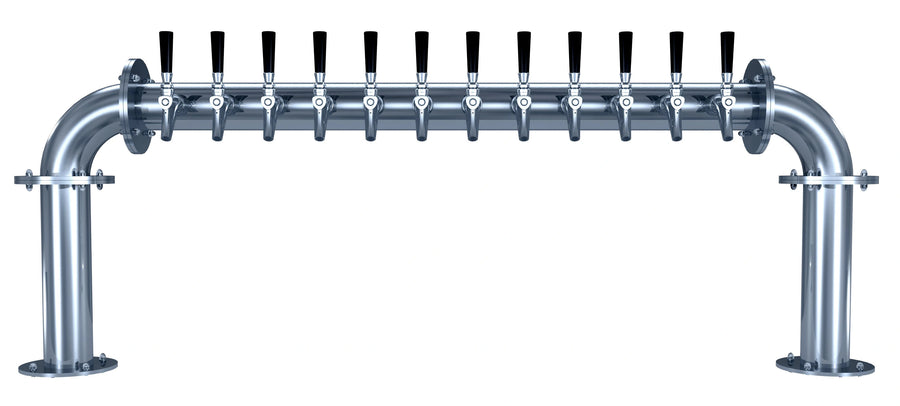

Model BG-U-12KR | Micro Matic USADesigned for high-volume bars, taprooms, and event spaces, the Biergarten “U” Tower delivers twelve perfectly chilled pours from a single, show-stopping centerpiece. Its factory-installed Kool-Rite™ glycol module keeps beer at serving temperature right to the faucet, while the polished 304 stainless steel construction guarantees purity, strength, and long-term good looks.
Key Features
- Brewery-pipe profile (3 in Ø) spans 52-3/4" for a commanding bar-top presence.

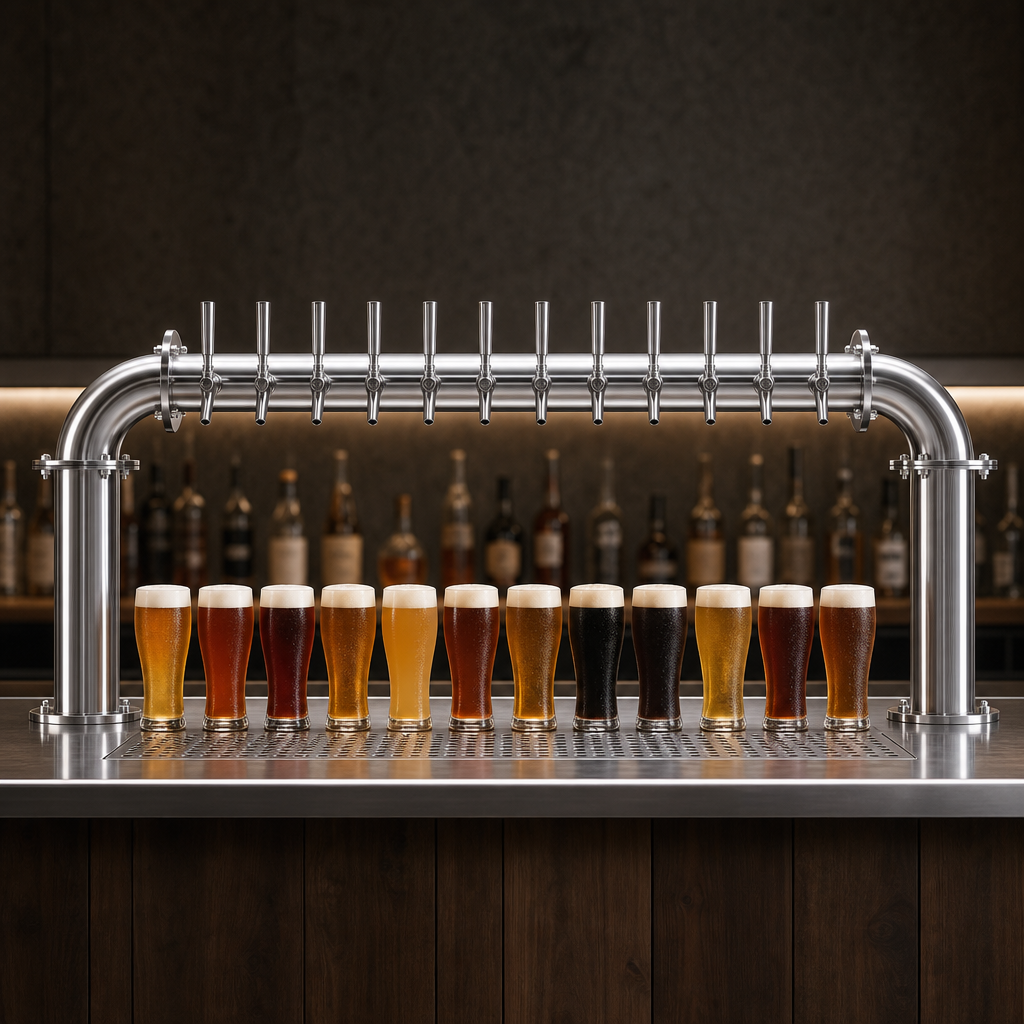

- 12 × 304 SS leak-proof faucets included for uncompromised product contact.
Faucet handles sold separately. - Kool-Rite™ integrated glycol module delivers consistent 38 °F pours even on long remote systems.
- All-stainless beer path (faucets, shanks, 1/4" product lines) eliminates off-flavors and corrosion.
- Modular “Plug-N-Pour” design speeds installation and future service.
- 14-1/4" faucet clearance accommodates tall pint, weizen, or growler fills.
- U.S.-manufactured and NSF-listed for commercial draft beverage service.
Technical Specifications
| Part number | BG-U-12KR |
|---|---|
| Faucets supplied | 12 × 304 SS (handles not included) |
| Cooling method | Glycol (Kool-Rite™ integrated module) |
| Beer lines | 1/4" OD 304 SS with 5/16" – 3/8" barb fittings |
| Glycol lines | 3/8" OD copper with 3/8" barb fittings |
| Finish | Polished stainless steel |
| Overall width | 52-3/4" (1339 mm) |
| Overall height | 18-7/8" (479 mm) |
| Faucet clearance | 14-1/4" (364 mm) |
| Faucet spacing | 3" on center |
| Brew pipe diameter | 3" (76 mm) |
| Base diameter / qty. | 4-1/2" (114 mm) × 2 |
| Material (product contact) | 100 % 304 stainless steel |
| Certification | NSF / ANSI |
| Warranty | 1-year limited parts & workmanship |
Need help with system design, remote chiller sizing, or custom finish options? Contact our draft experts anytime at MicroMatic.com or call 1-866-327-4159.
