Micro Matic USA BG-U-10KR Biergarten Draft Beer & Wine Dispensers
Description

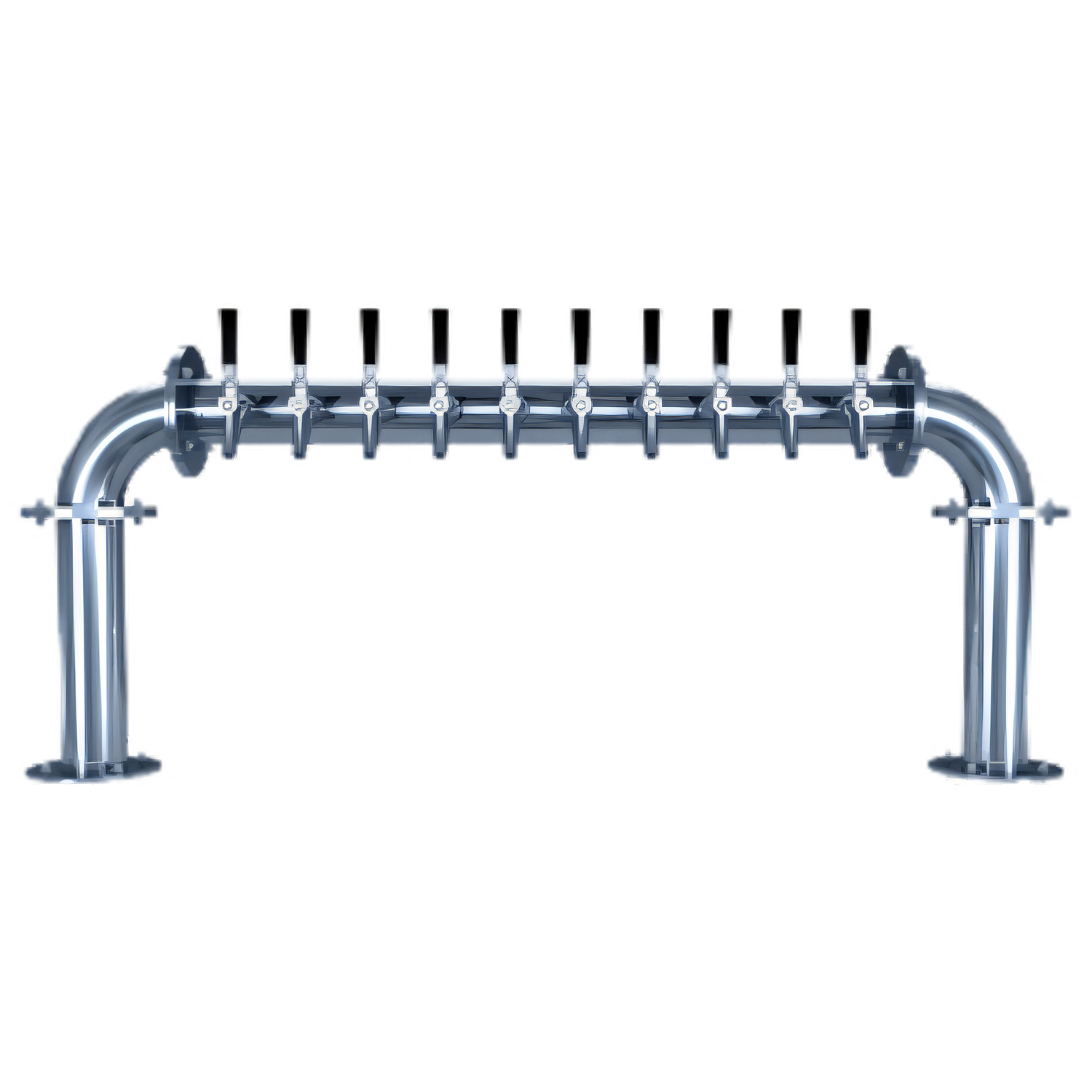

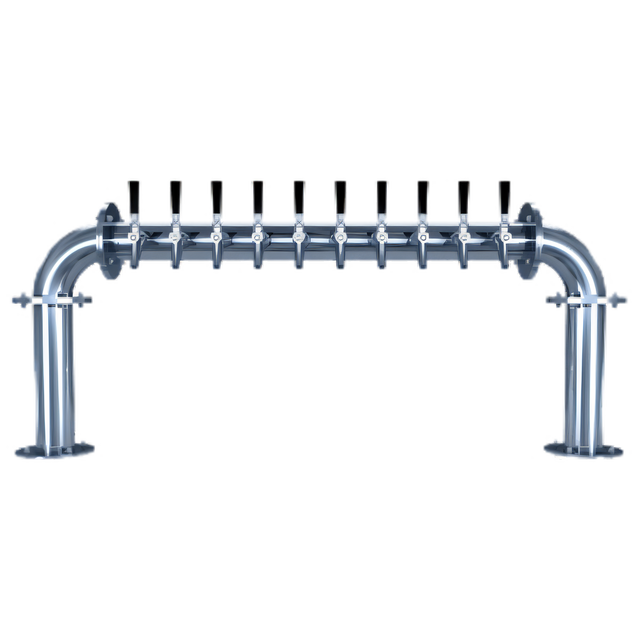

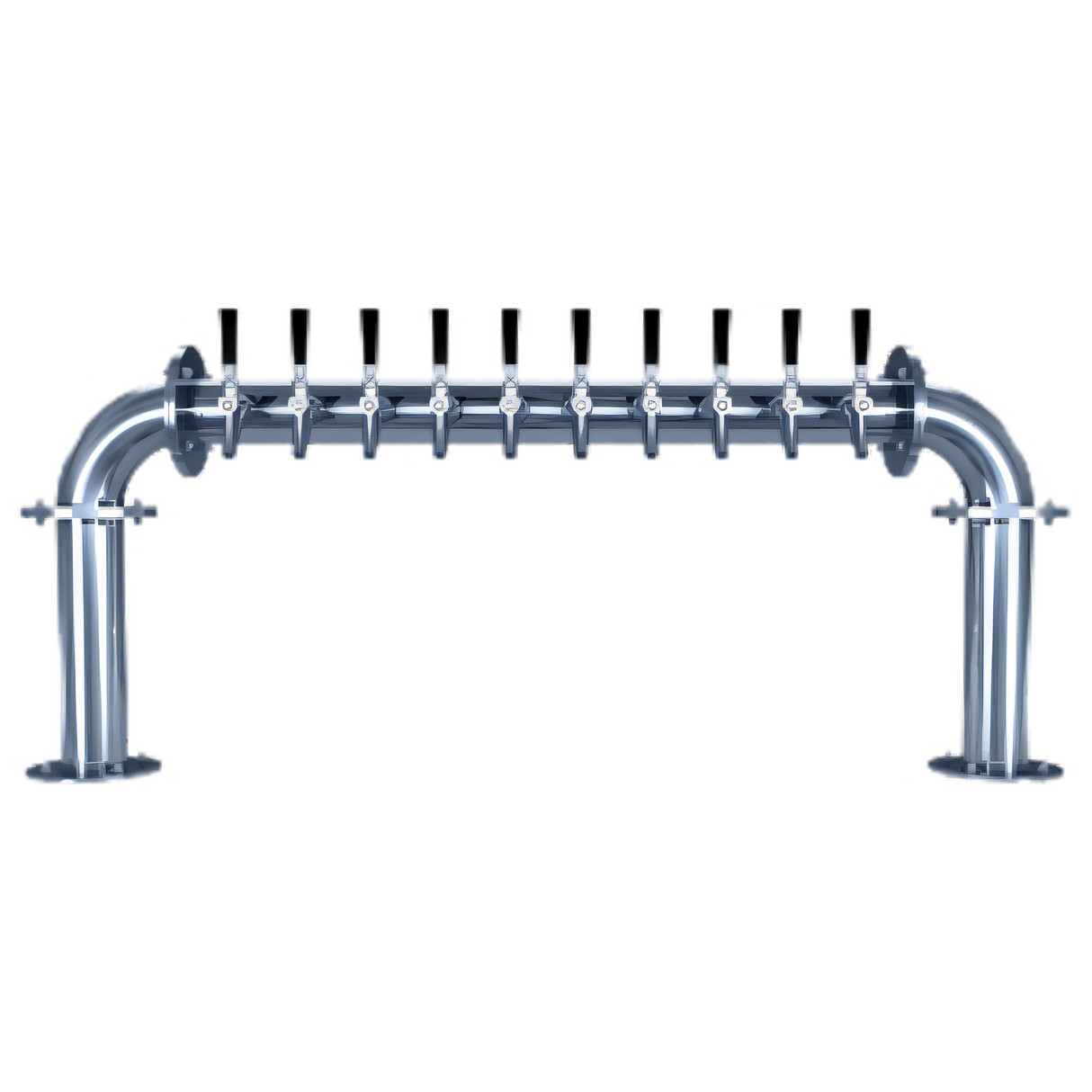

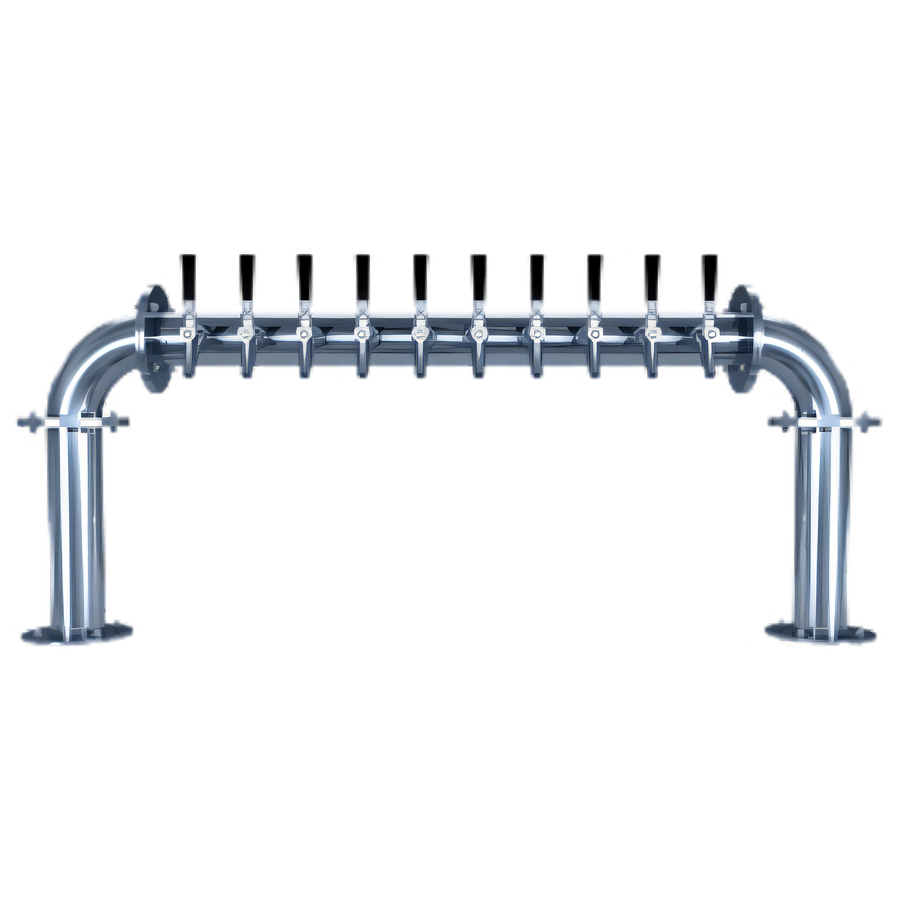

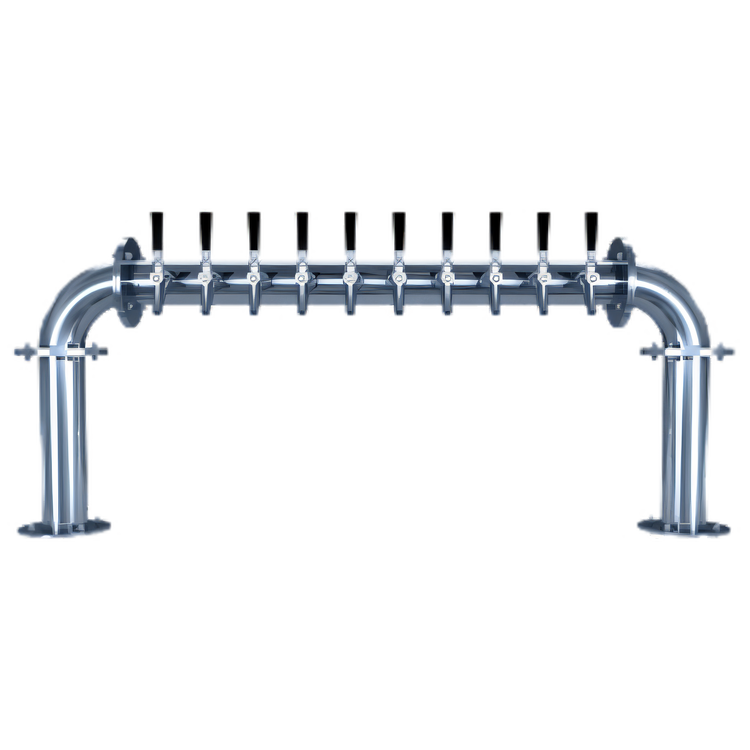

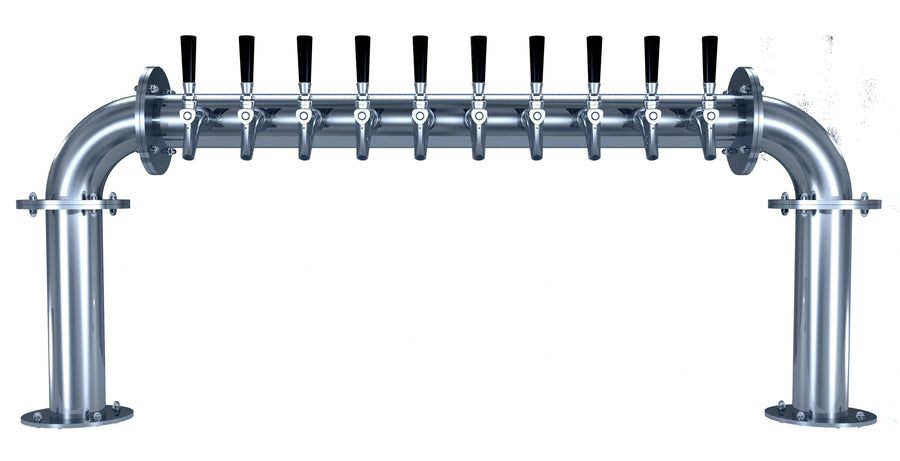

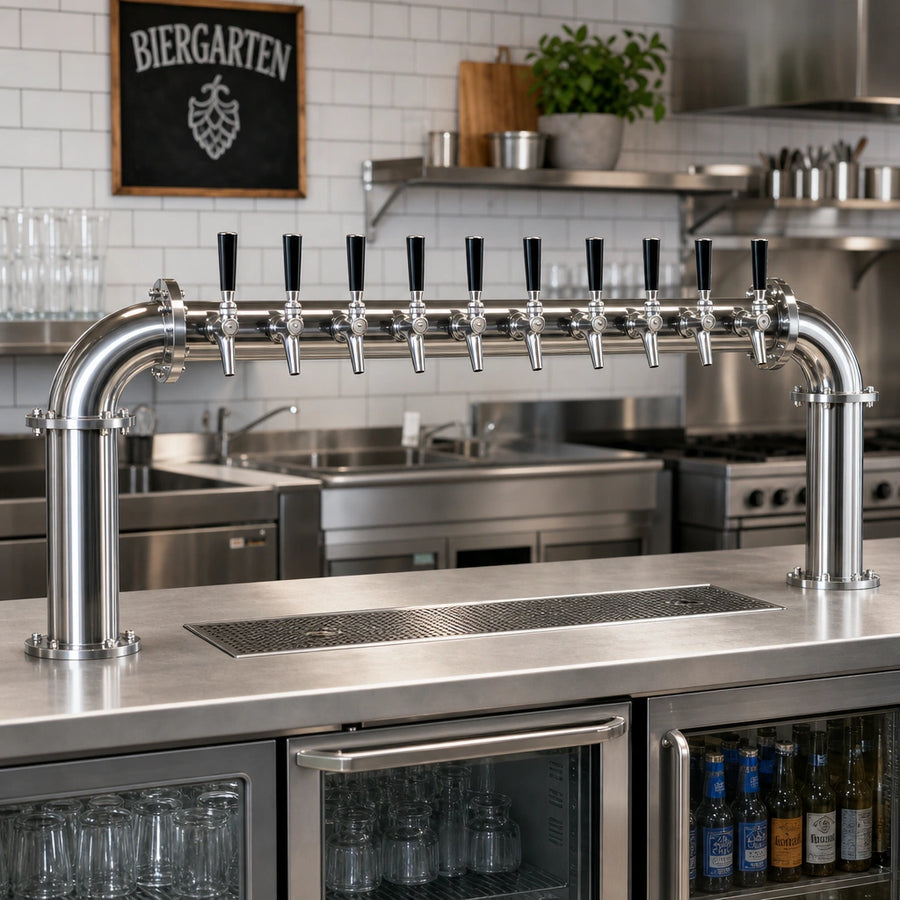

Biergarten™ “U” 10-Faucet Draft Beer Tower
Model BG-U-10KR | Micro Matic USATurn your bar top into a show-stopping centerpiece with the Biergarten™ “U” Tower. Built in the USA from 100 % 304 stainless steel and paired with an integrated Kool-Rite™ glycol module, this heavy-duty brewery-pipe tower keeps every pour ice-cold, consistent, and contamination-free—no matter how busy the shift.
Why Choose the Biergarten™ U Tower?

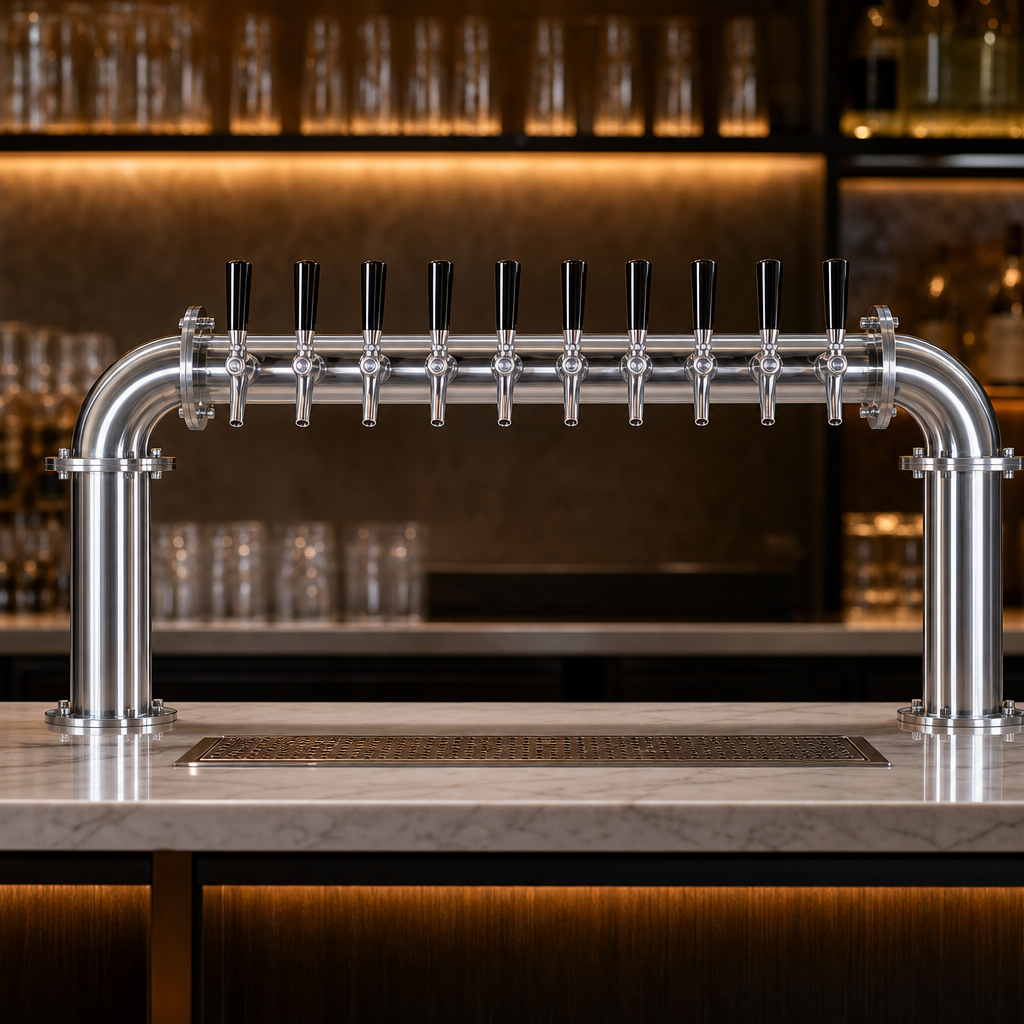

- High-Volume Capacity: Ten stainless steel faucets on a compact 46-3/4" span—perfect for extensive tap lists.

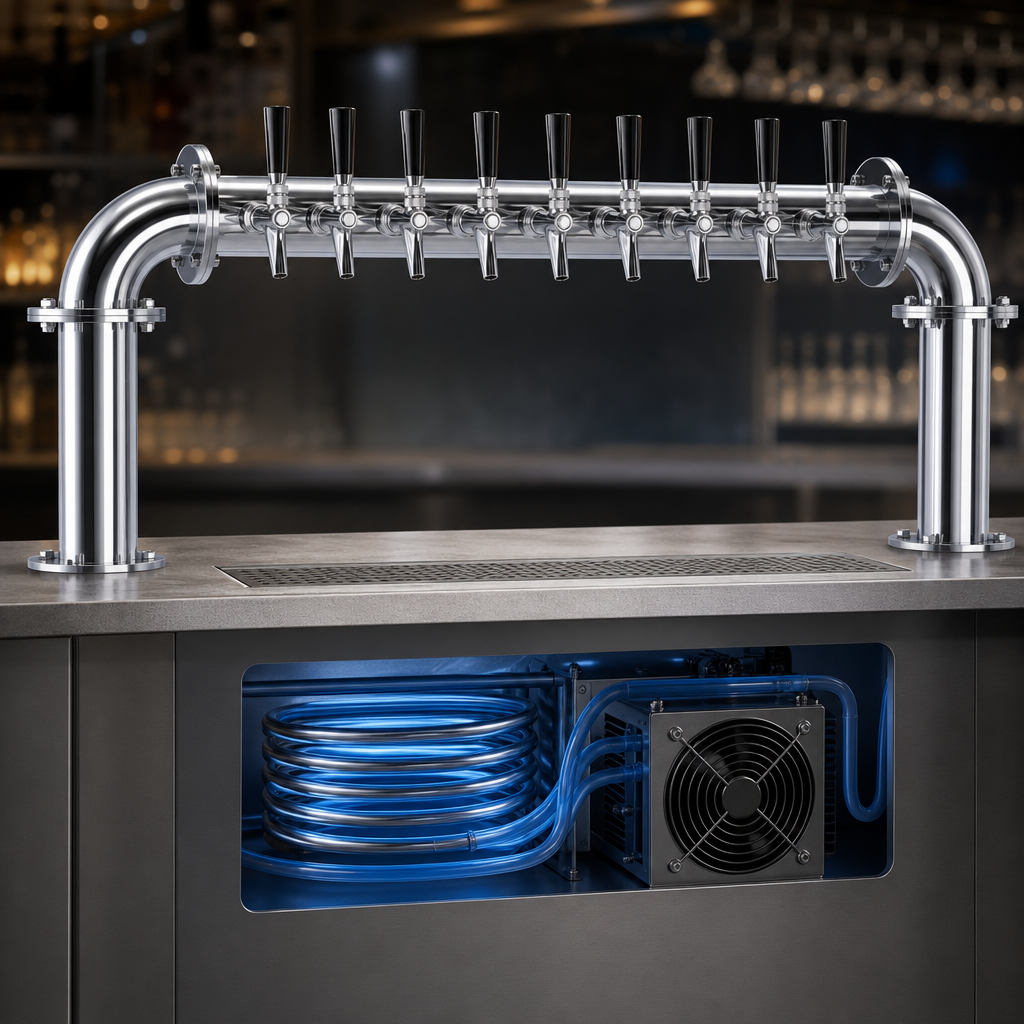

- Glycol-Cooled Precision: Factory-installed Kool-Rite™ module delivers optimum product temperature at the faucet.
- All-Stainless Product Contact: 304 SS faucets, shanks, and 1/4" O.D. product lines protect flavor and simplify sanitation.
- Plug-‘n’-Pour Installation: Modular design drops into the counter, connects to 3/8" O.D. copper coolant lines, and you’re pouring.
- Rugged Brewery-Pipe Aesthetic: 3" diameter top bar with a mirror-polished stainless finish commands attention and cleans easily.
- NSF Certified: Meets the rigorous standards of the National Sanitation Foundation for commercial draft service.
Technical Specifications
| Faucets / Spacing | 10 faucets | 3" on-center |
|---|---|
| Cooling System | Kool-Rite™ glycol module with cooling block & 3/8" O.D. copper coolant lines |
| Beer Lines | 1/4" O.D. 304 stainless steel tubing with 5/16"–3/8" barbed ends |
| Pipe / Tower Diameter | 3" (top bar) | (2) 4-1/2" diameter mounting bases |
| Overall Width | 46-3/4" (1187 mm) |
| Overall Height | 18-7/8" (479 mm) |
| Faucet Clearance | 14-1/4" (364 mm) to drip tray |
| Material / Finish | Polished 304 stainless steel inside & out |
| Certification | NSF |
| Country of Origin | Made in the USA |
Installation & Service Highlights
- Each base plate includes four 1/4" mounting holes for a secure countertop installation.
- Modular cartridge lifts out for rapid cleaning or service without removing the entire tower.
- Compatible with standard 3/8" I.D. glycol trunk lines (not included).
Backed by Micro Matic’s one-year limited parts warranty.
Faucet handles and tap badges shown in photos are for illustration only and are not included.
