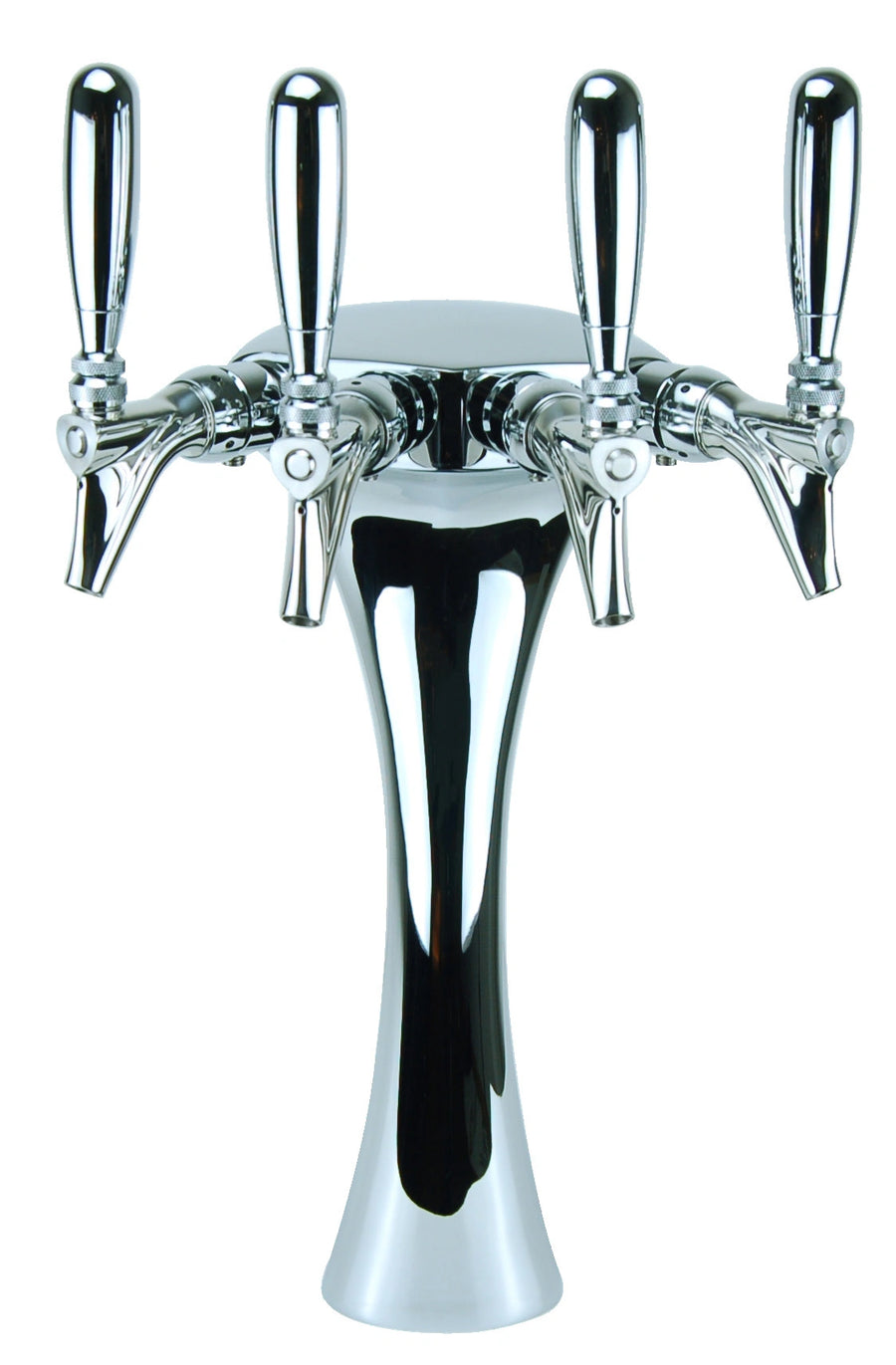

Micro Matic “Anaconda” 4-Faucet Draft Tower
Model A-G5-4-C-G · Glycol-Cooled · Chrome · NSF CertifiedMake a bold design statement—and pour perfectly chilled beer on every pull—with the Micro Matic Anaconda 4-Faucet Draft Tower. Its dramatic, serpent-like curves draw eyes from across the bar, while an all-stainless steel beer path and an integrated glycol recirculation loop protect product flavor over even the longest remote-dispense runs.
Why You’ll Love It
- Show-stopping style: sleek, polished-chrome tower with fluid, sculptural lines.
- Four stainless faucets included: NSF-approved, 304 SS contact surfaces from shank to spout for uncompromised beer quality.
- Glycol ready: dual 3/8" copper coolant lines keep beer ice-cold right up to the faucet—ideal for long draw systems.
- Pre-assembled beer lines: 1/4" OD 304 SS tubes with John Guest Super-Seal fittings for fast, reliable hook-up.
- Upgrade path: Medallion lighting kit available (order model A-G5-4-C-G-M) to illuminate your brand.
What’s In the Box
- Anaconda chrome tower body with integrated glycol recirculation loop
- (4) 304 SS beer line tubes – 1/4" OD, pre-terminated with 1/4" Super-Seal x 1/4" barb fittings
- (2) 3/8" OD copper coolant lines – terminated with 3/8" x 1/2" John Guest Speed-Fit union & 1/2" pipe x 3/8" barb
- (4) Micro Matic stainless steel faucets
- Mounting hardware & gasket
- Installation & maintenance guide
Perfect For
- High-volume bars and taprooms
- Restaurants with long remote-chilled trunk lines
- Stadium, casino & hotel beverage programs
- Design-forward installations wanting a sculptural centerpiece
Technical Specifications
| Part Number | A-G5-4-C-G |
|---|---|
| Number of Faucets | 4 (304 SS, NSF) |
| Finish | Polished Chrome |
| Cooling Method | Glycol recirculation – (2) × 3/8" OD copper lines |
| Beer Lines | (4) × 1/4" OD 304 SS tubes, John Guest 1/4" Super-Seal fittings |
| Overall Height | 20.75" / 527 mm |
| Height to Faucet Outlets | 15.75" / 400 mm |
| Body Width (faucet centers) | 17.0" / 432 mm |
| Base Flange Diameter | 4.75" / 121 mm |
| Material – Product Contact | 304 Stainless Steel |
| Certification | NSF |
| Warranty | 1-Year Limited Warranty (Micro Matic) |
Installation Notes
- Requires compatible remote glycol chiller (sold separately).
- Mounts through standard bar top with supplied gasket and hardware.
- Beer & coolant lines ship long for trimming to exact run length.
- Professional installation recommended for optimal performance.
