Description

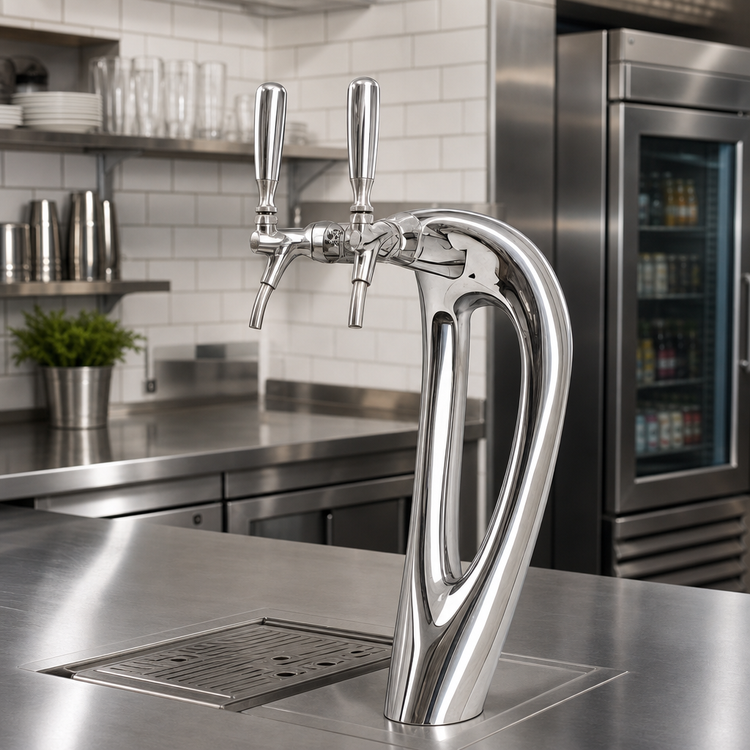

Mystique 2-Faucet Draft Beer Tower – Glycol-Cooled
Micro Matic USA | Model 9502-C (Polished Chrome, No-Ice)Transform your bar top into a work of art. The Mystique draft tower pairs eye-catching modern design with professional-grade, all-stainless beer contact to deliver perfectly chilled pints with every pull.
Key advantages
- Sleek, sculptural silhouette only 7-1/4" wide – a true marketing centerpiece for any venue.
- Two 304 stainless steel faucets and shanks ensure 100 % stainless beer contact for uncompromised flavor.

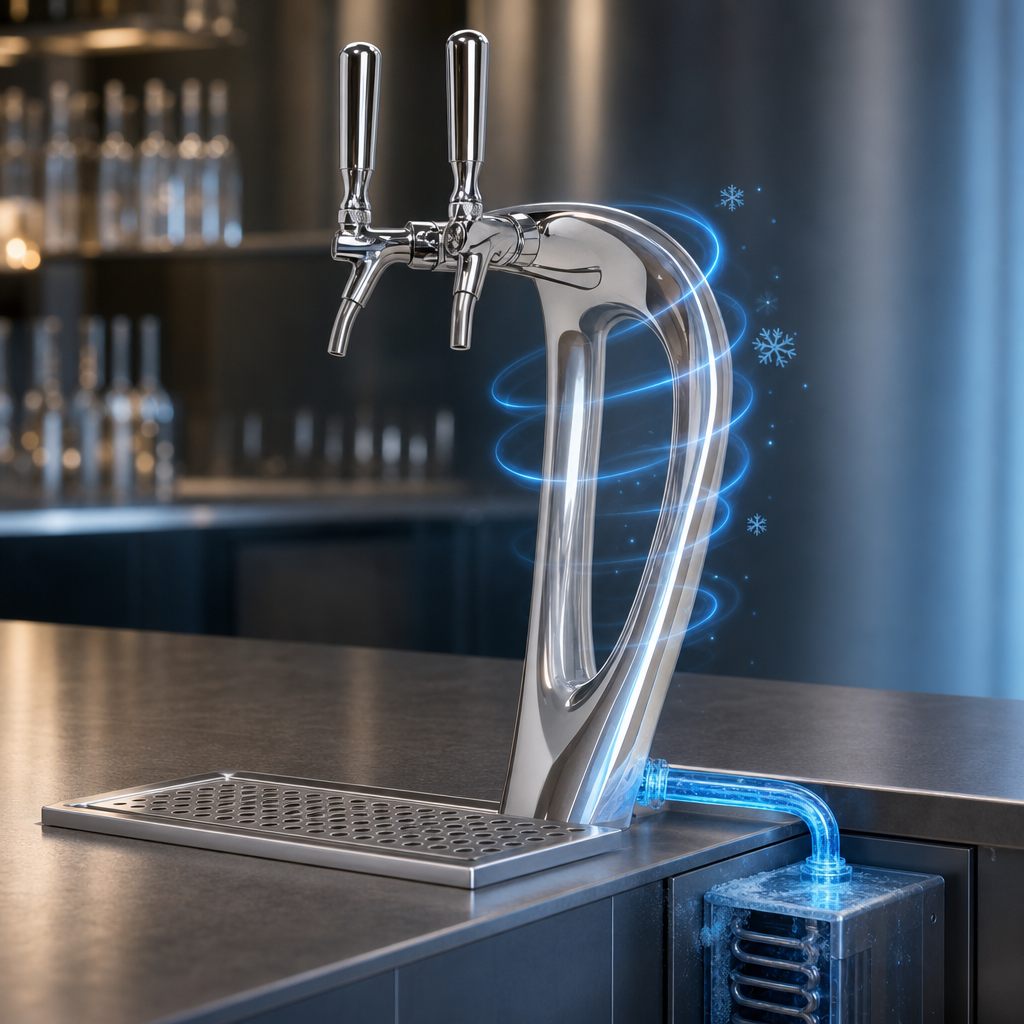

- Glycol-ready (3/8" O.D. copper recirculation lines) to maintain beer temperature all the way to the glass.
- Generous 13" faucet clearance accommodates growlers, pitchers and tall glassware.
- Frost-free polished chrome exterior keeps condensation off the bar and eliminates messy ice build-up.

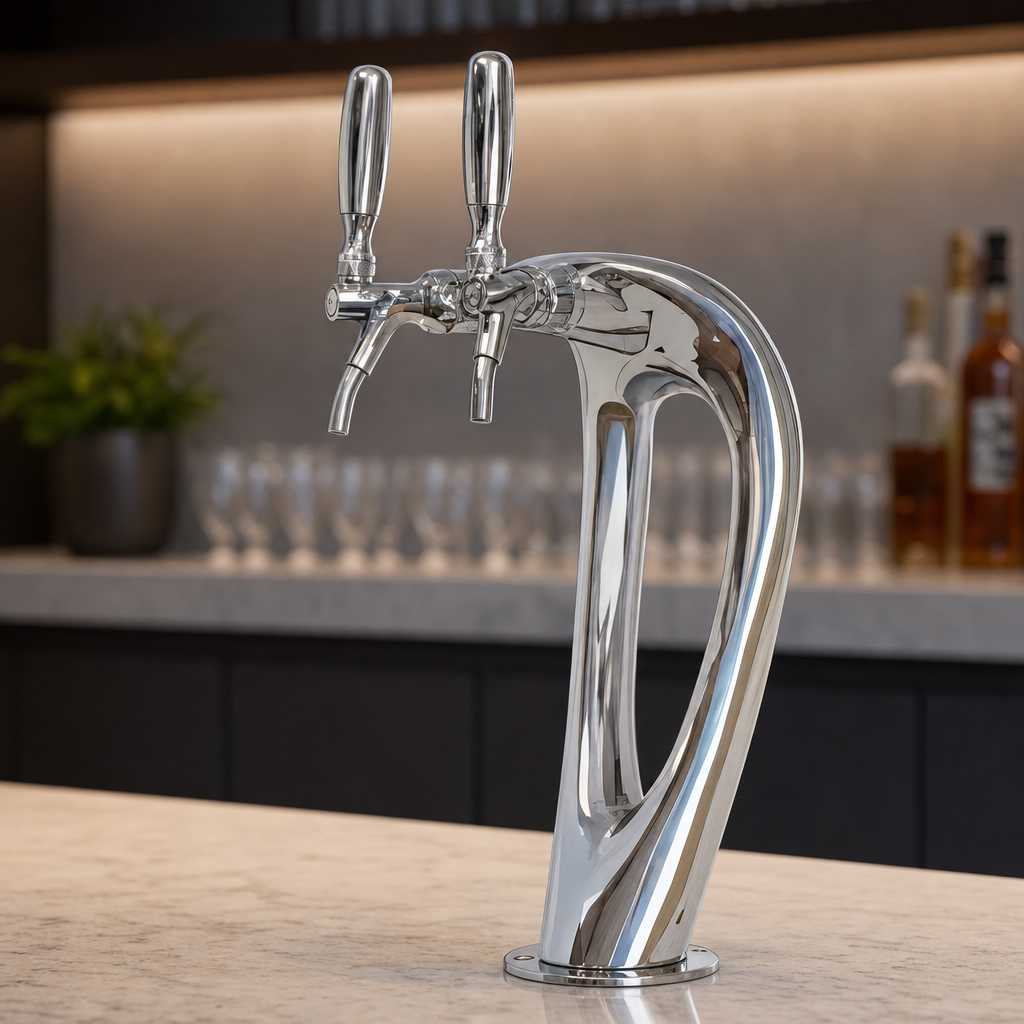

- Compact 2-1/2" base simplifies installation on crowded countertops.
- Backed by Micro Matic’s 1-year limited warranty and nationwide support network.
What’s in the box
- (1) Mystique countertop tower – polished chrome finish
- (2) 304 stainless steel beer faucets (pre-installed)
- Pre-assembled 1/4" O.D. stainless steel beer lines
- 3/8" O.D. copper glycol recirculation lines
- Mounting hardware & gasket
Technical specifications
Tower style | Mystique – countertop |
---|---|
Model / part no. | 9502-C (No-Ice) |
Number of faucets | 2 × 304 SS |
Cooling method | Glycol-cooled |
Finish | Polished chrome |
Faucet clearance | 13" / 330 mm |
Overall height | 17" / 431 mm |
Overall length | 21" / 530 mm |
Tower width | 7-1/4" / 185 mm |
Base diameter | 2-1/2" / 67 mm |
Beer line | 1/4" O.D. 304 SS (factory installed) |
Glycol line | 3/8" O.D. copper (factory installed) |
Required accessories | Glycol power pack • Faucet handles (both sold separately) |
Faucet handles, glycol chiller and tap decals shown in photos are not included.
