Micro Matic USA 1740-S Draft Beer & Wine Dispensers
Description

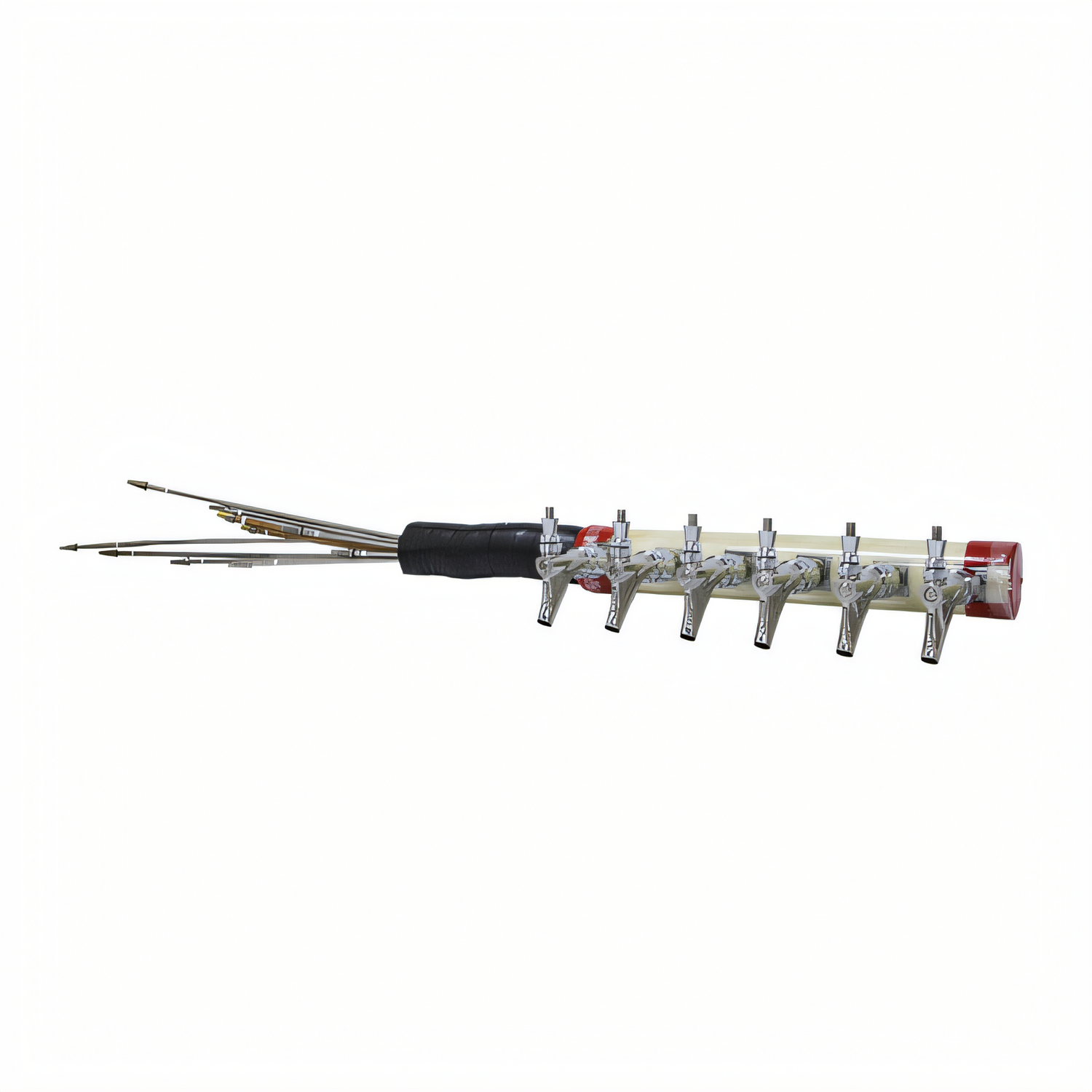

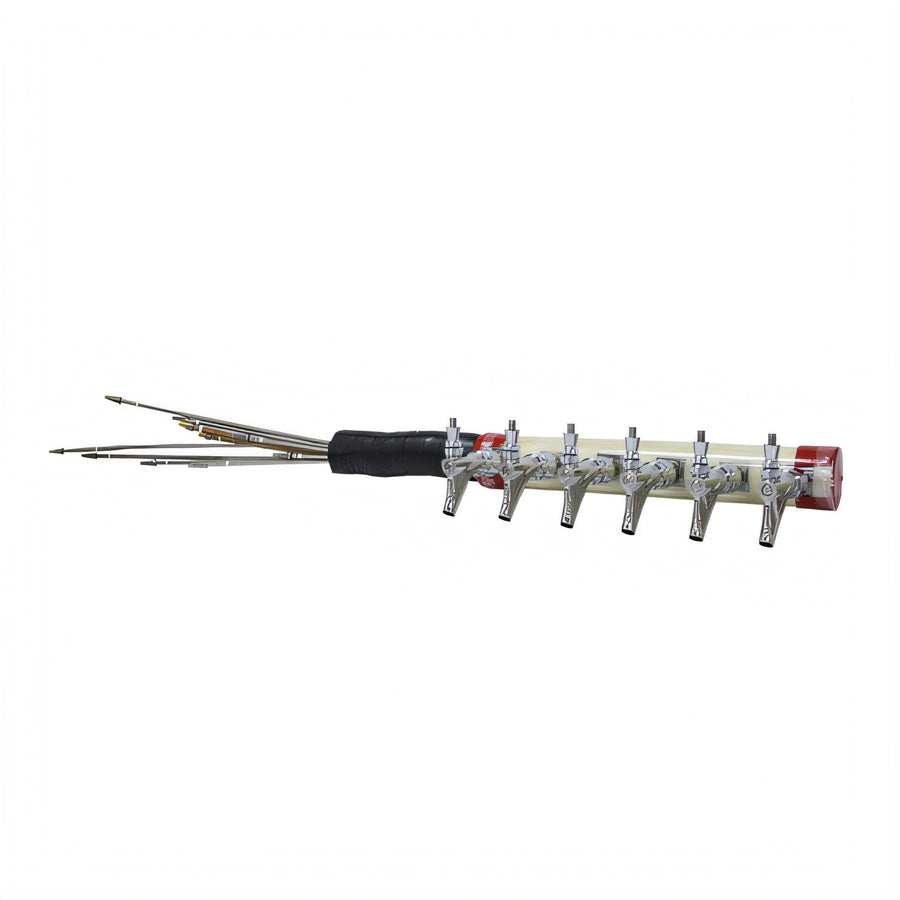

Kool-Rite™ 6-Faucet Insert Module – Short Shank, 3-1/2" On Center
Micro Matic Part No. 1740-SDrop Micro Matic’s patented Kool-Rite™ technology straight into your custom tower build and serve six perfectly chilled, great-tasting beers from one compact core.
Key Features
- Six (6) factory-installed 304 stainless steel faucets – included and pre-aligned.
- All beer-contact components are stainless steel for maximum draft purity and corrosion resistance.
- Patented Kool-Rite™ cooling blocks surround every shank, keeping beer cold right to the faucet.
- Leak-proof short stainless shanks – perfect for slim or low-profile tower shells.
- 3-1/2" (88.9 mm) on-center faucet spacing provides comfortable handle clearance.
- Pre-assembled 1/4" O.D. stainless beer lines with 1/4"–3/8" tapered barbs for fast hook-up.
- Dedicated 3/8" O.D. copper glycol lines with 3/8" barbs – ready for any Kool-Rite™ power pack.
- 25" overall module length fits most standard or custom six-tap tower designs.
- NSF-listed components and backed by Micro Matic’s one-year limited warranty.
Ideal Applications
Build a truly custom tower, retrofit an existing bar top, or replace a worn core without disturbing finished millwork. Perfect for bars, taprooms, stadiums, and high-volume venues that demand rock-solid temperature control and serviceability.
Technical Specifications
| Part Number | 1740-S |
|---|---|
| Number of Faucets | 6 (included) |
| Shank Length | Short |
| Faucet Spacing | 3-1/2" on center |
| Dispense System | Kool-Rite™ glycol-cooled |
| Overall Length | 25" (635 mm) |
| Beer Tubes | 1/4" O.D. stainless steel with 1/4"–3/8" tapered barbs |
| Glycol Lines | 3/8" O.D. copper with 3/8" barbs |
| Beer-Contact Materials | 304 stainless steel |
| Included Hardware | 6 × 304 SS faucets, integrated shanks & cooling blocks |
Complete Your Setup
- Matching 6-faucet backsplash drip tray: model DP-332ELD-6 (sold separately).
- Compatible with Micro Matic glycol power packs and trunk lines.
- Add tap handles, draft lines, and a CO₂ or mixed-gas system to finish your installation.
One-year limited warranty against defects in material and workmanship. See Micro Matic warranty policy for full details.
