Micro Matic USA 1740-L Draft Beer & Wine Dispensers
Description

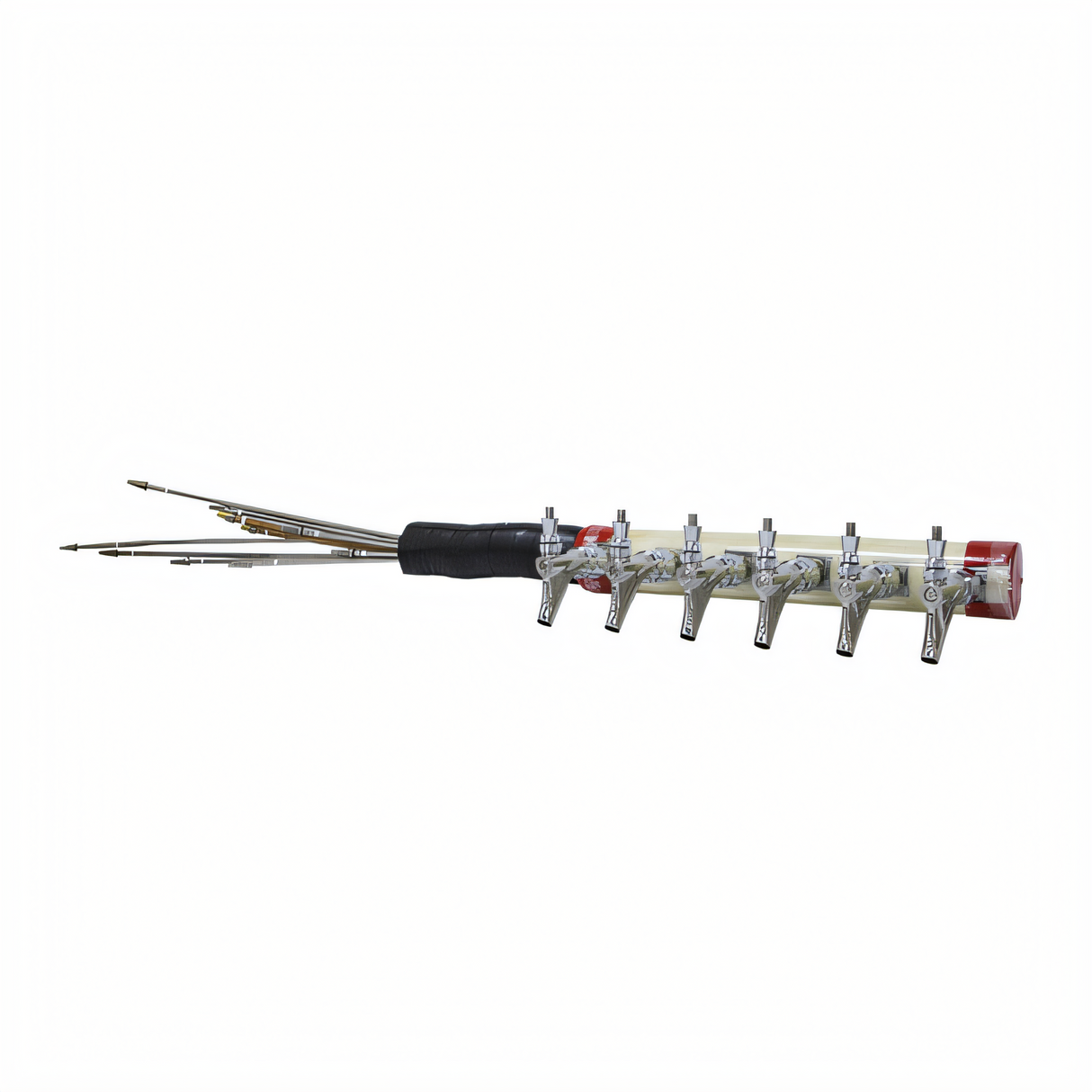

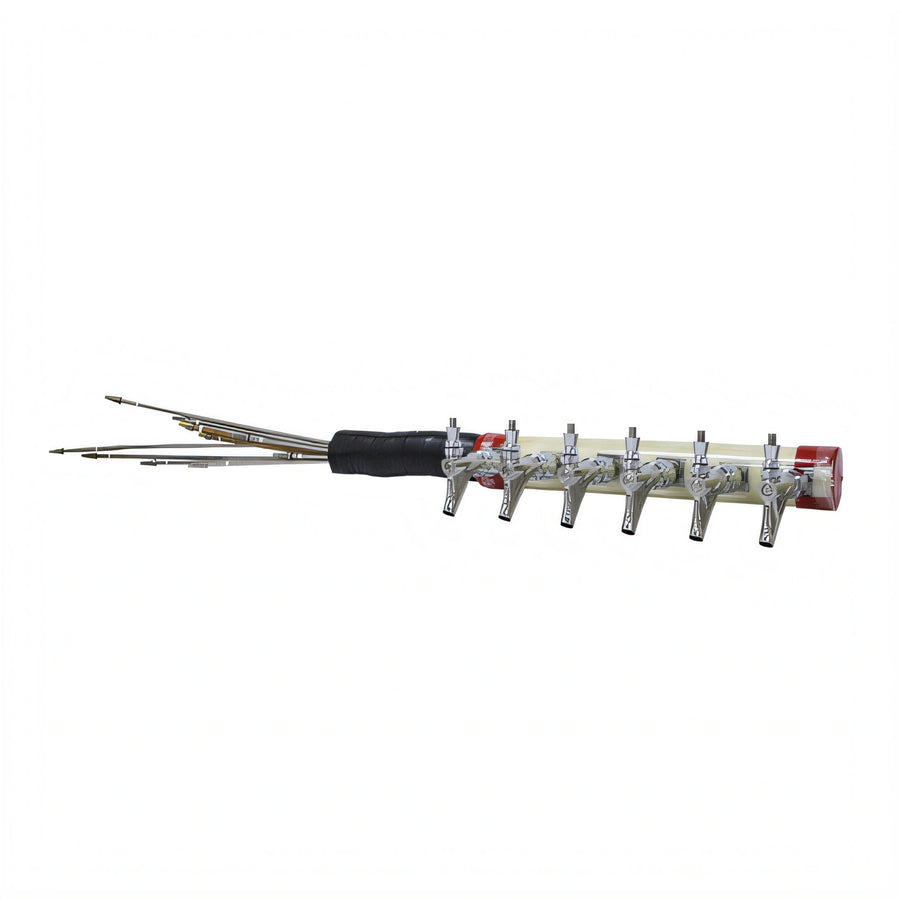

Kool-Rite™ Insert Module – 6 Faucets, 3-1/2" O.C. (Long Shank)
Part No. 1740-L | Build your own glycol-cooled draft towerTake total design freedom behind the bar. Drop this Kool-Rite™ insert into any custom enclosure—wood, stone, tile, metal—and pour perfectly chilled beer from six stainless-steel taps. Patented cooling blocks, leak-proof shanks, and full stainless contact deliver brewery-fresh flavor with rock-solid reliability.
Key Features

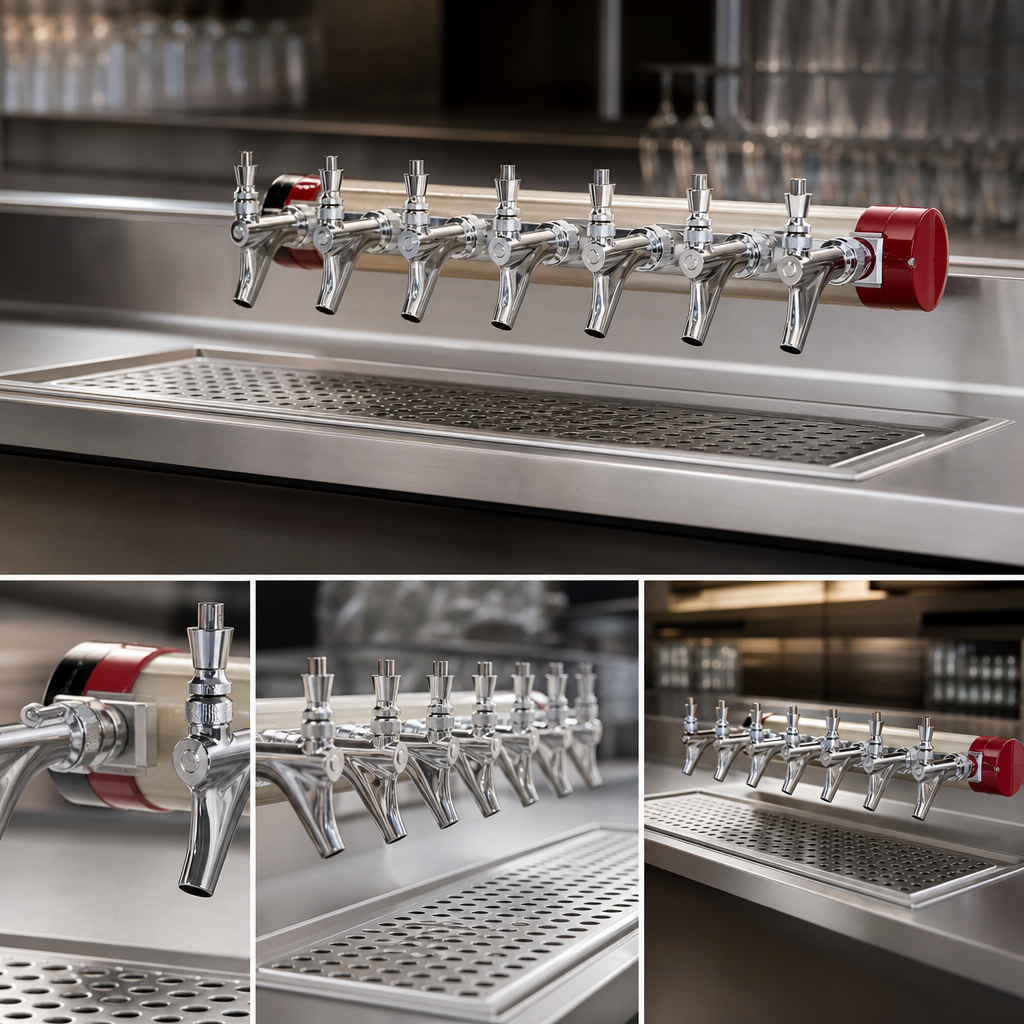

- Six 304 stainless-steel faucets factory-installed and ready to pour.
- Kool-Rite™ technology – aluminum cooling blocks surround each shank for maximum cold retention.
- Leak-proof, self-sealing shanks simplify installation and virtually eliminate service calls.
- All product contact surfaces—faucets, shanks & beer lines—are 100 % stainless steel for draft purity.

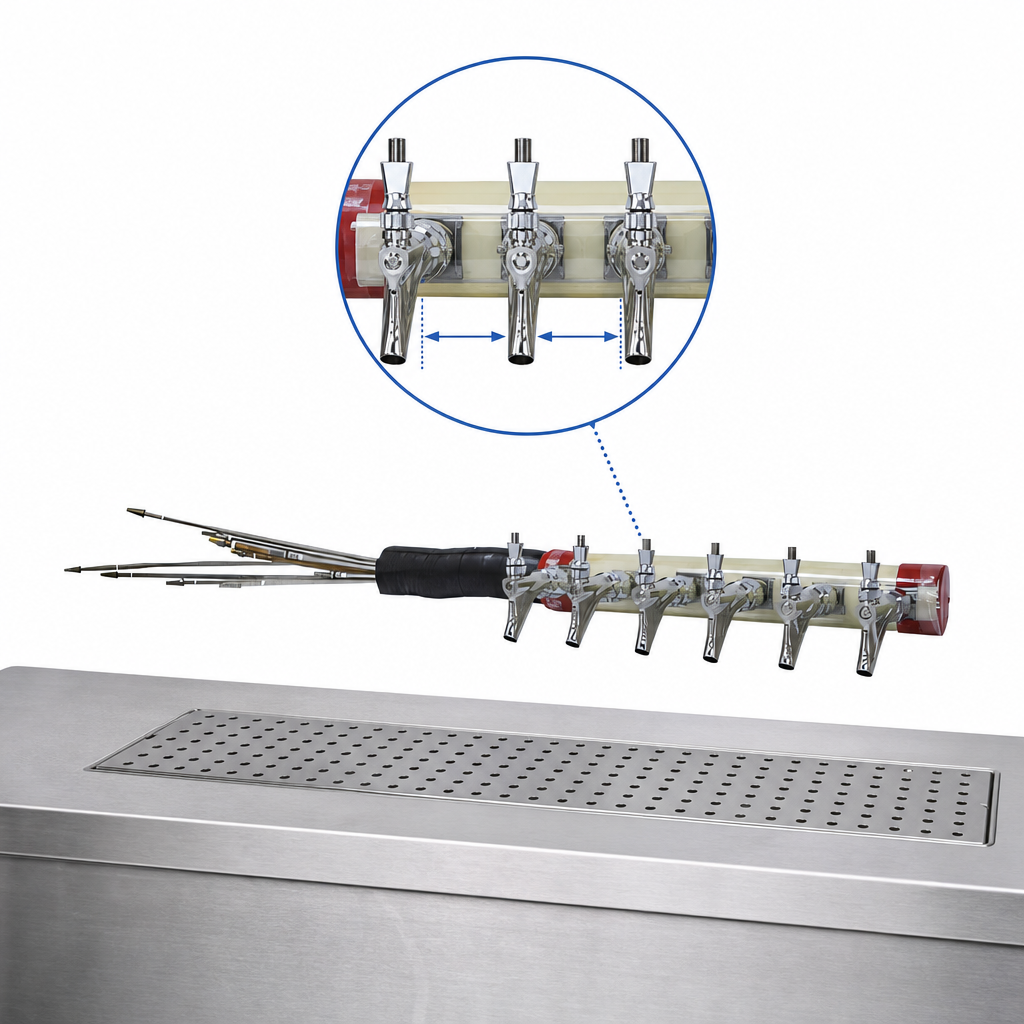

- 3-1/2" on-center spacing accommodates pints, goblets, growlers and tasting flights.
- Long shank version provides extra reach through thick bar tops or tower walls.
- Ready for remote glycol systems with pre-installed 3/8" O.D. copper coolant lines & barbs.
- Design freedom: build a signature tower that matches any décor—no visible hardware required.
Technical Specifications
| Part Number | 1740-L |
|---|---|
| Number of Faucets | 6 (304 SS) |
| Shank Length | Long |
| Faucet Spacing | 3.5" (88.9 mm) on center |
| Dispense System | Kool-Rite™ glycol-cooled |
| Beer Lines | 1/4" O.D. 304 SS tubing | 1/4"–3/8" tapered barbs |
| Glycol Lines | 3/8" O.D. copper tubing | 3/8" O.D. barbs |
| Overall Length | 25" (635 mm) |
| Insert Body Length | 20.5" (520.7 mm) |
| Faucet Centerline (end-to-end) | 17.5" (444.5 mm) |
| Material in Contact w/ Beer | 304 Stainless Steel |
| Optional Accessories | DP-332ELD-6 matching drip tray (sold separately) |
| Shipping Weight | TBD |
Why Choose Kool-Rite™?
- Coldest point-of-pour – Integrated cooling blocks transfer glycol temperature directly to each faucet.
- Consistent quality – Reduce foaming and waste by eliminating warm spots in the tower.
- Field-service friendly – Modular design lets you remove and service individual shanks without unplumbing the tower.
- NSF® certified components ensure compliance with health-department regulations.
Micro Matic warrants this product to be free from defects in material and workmanship for one year from the date of sale. Micro Matic reserves the right to change specifications without notice.
