Micro Matic USA 1735-L Draft Beer & Wine Dispensers
Description

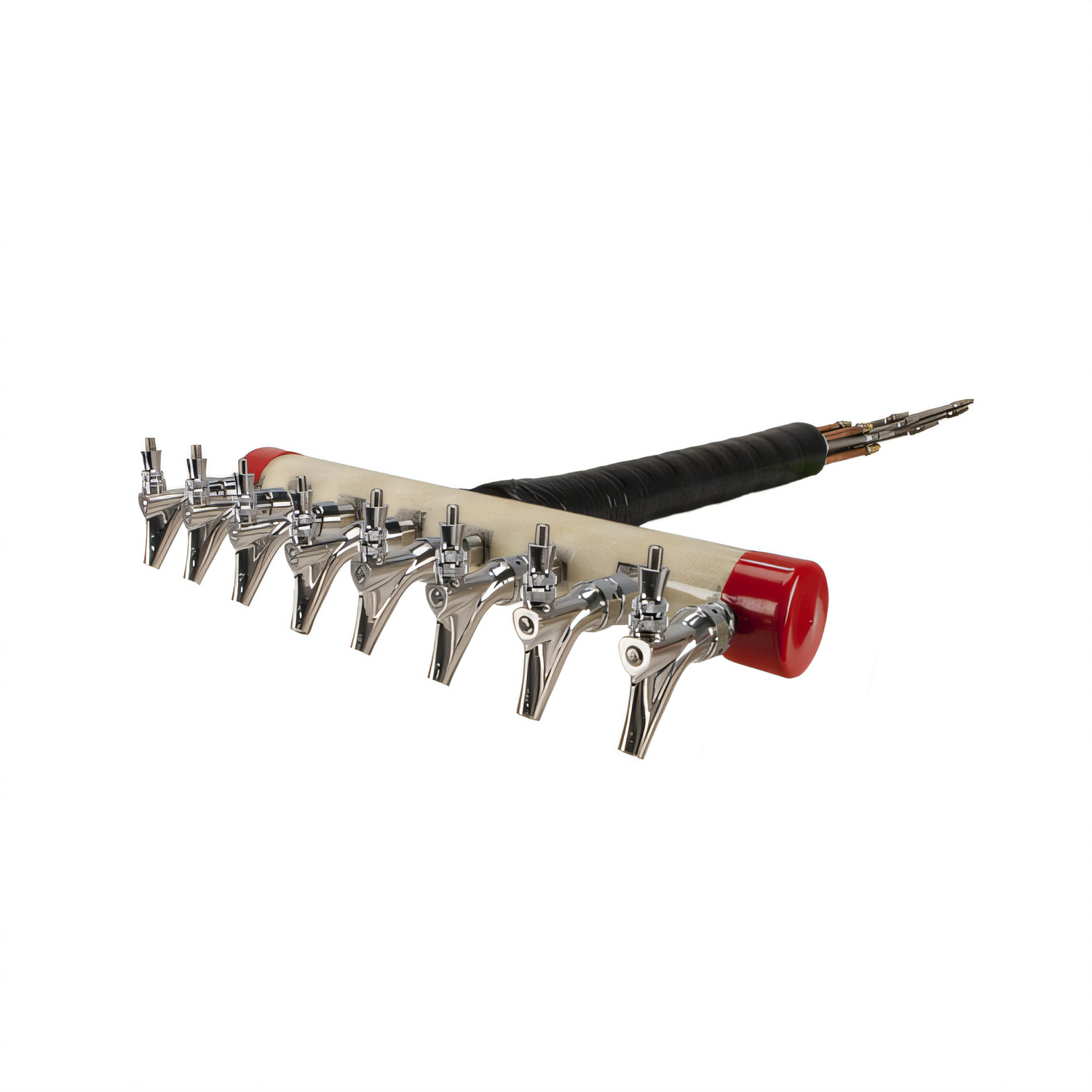

Kool-Rite™ 8-Faucet Insert Module – Long Shanks, 24"
Model 1735-L | Micro Matic USABuild the custom draft tower of your dreams—without compromising dispense quality. The Kool-Rite™ insert module delivers ice-cold, foam-free pours from eight 304 stainless-steel faucets while giving you the freedom to clad the outside in any material that complements your bar’s décor.
Why You’ll Love It
- Ready-to-pour package—eight factory-installed 304 SS faucets & shanks included.

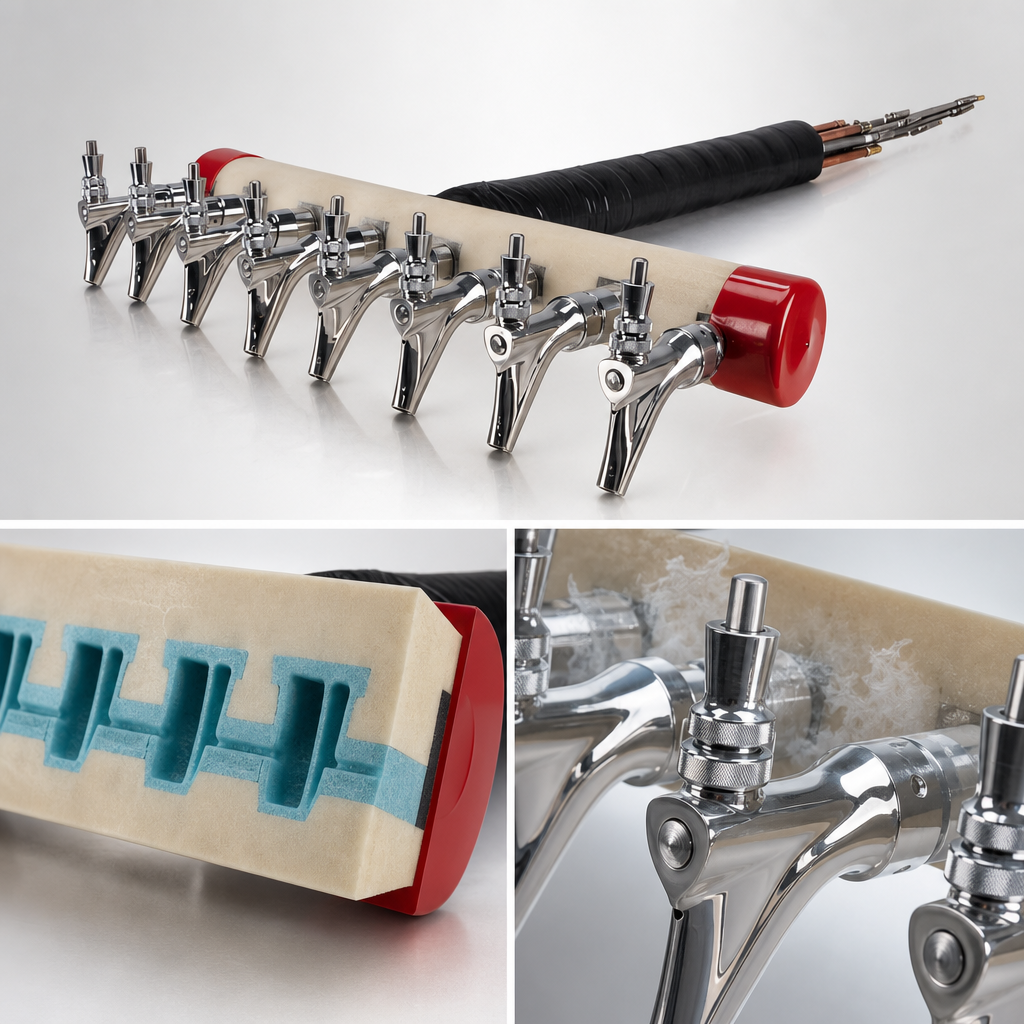

- 2-5/8" Kool-Rite™ leak-proof shanks with patented cooling blocks keep every ounce at the perfect temperature.
- All product-contact surfaces are 304 stainless for unbeatable flavor protection and sanitation.
- 3" on-center faucet spacing offers comfortable handle clearance for busy bartenders.
- Dedicated 3/8" OD copper coolant lines for efficient glycol circulation.
- 1/4" OD stainless beer lines with tapered barbs for a secure, restriction-free connection.
- NSF certified for commercial food-service installations.
- Design flexibility—slide the module into stone, tile, wood or metal surrounds to match any theme.
Technical Specifications
| Part Number | 1735-L |
|---|---|

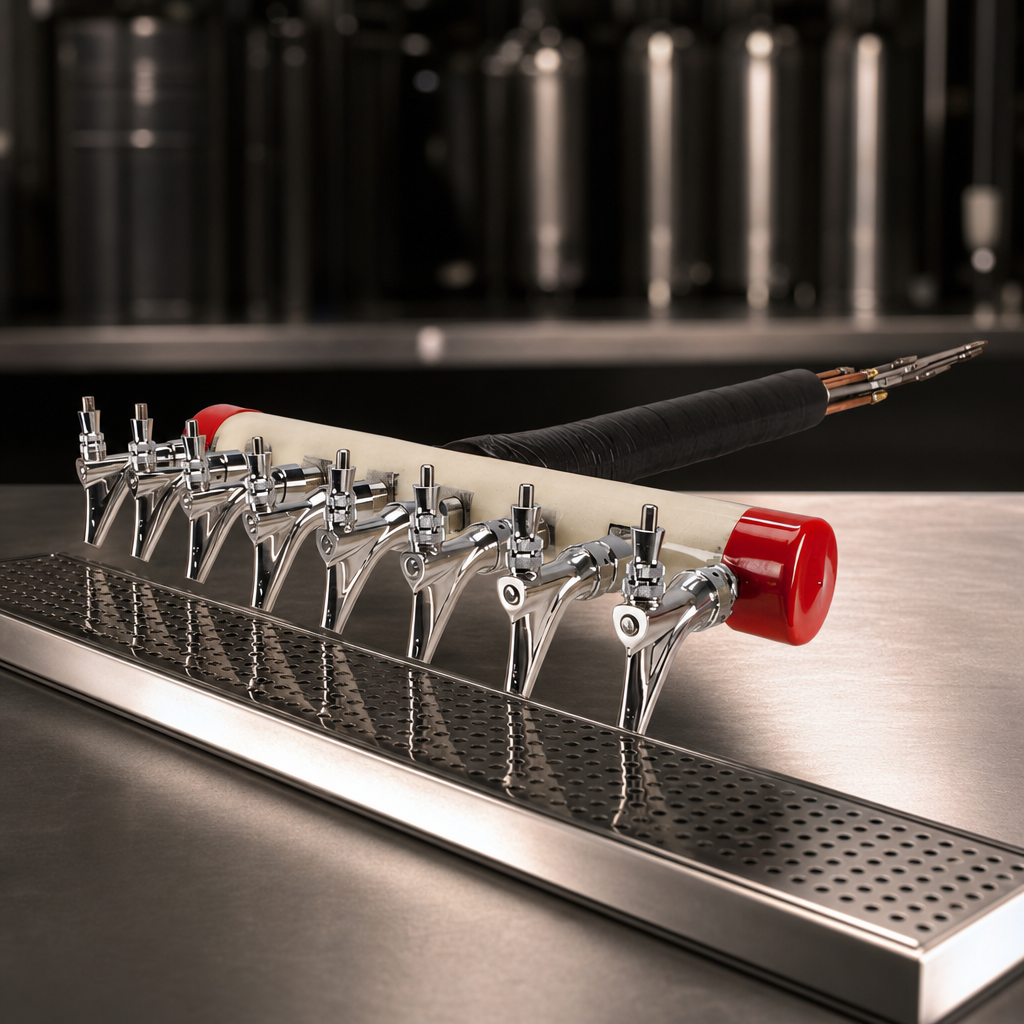

| Total Faucets | 8 × 304 SS standard beer faucets (included) |
| Shank Length / Type | 2-5/8" Kool-Rite™ leak-proof stainless shanks (long) |
| Faucet Spacing | 3" (76 mm) O.C. |
| Insert Width | 24" (609.6 mm) |
| Beer Lines | 1/4" OD 304 SS tubes with 1/4"–3/8" tapered barbs |
| Coolant Lines | 3/8" OD copper tubes with 3/8" barbs (glycol ready) |
| Dispense System | Kool-Rite™ (Glycol chilled) |
| Certification | NSF |
| Warranty | 1-year limited manufacturer warranty |
Requires connection to a glycol chiller system and proper insulation (not included). Matching 18" drip tray: Micro Matic DP-322ELD-8-18 (sold separately).
