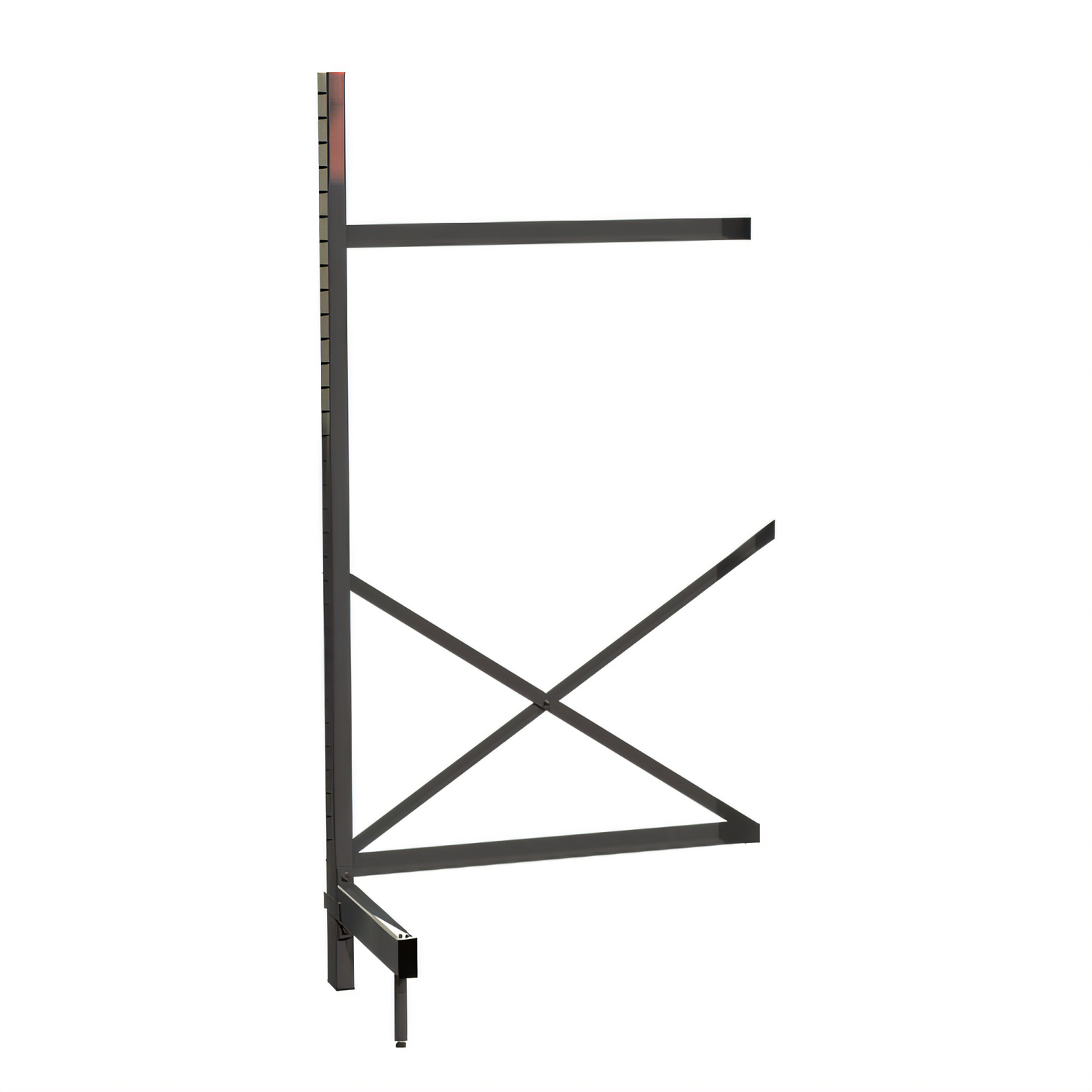

Metro SmartLever Cantilevered Add-On Unit Kit for 36" W x 30" D Shelves, 86-3/8" H

Epoxy-Coated Steel; Includes Upright, Leg, Cross Bars, Cross Braces & Hardware

Expand a SmartLever shelving run with a rugged, NSF-listed add-on section built for 36" x 30" Metro shelves.

  • Adds a modular cantilevered section to an existing SmartLever shelving system.
  • Fits 36" W x 30" D Metro shelves; overall size is 38-1/5" W x 34-1/2" D x 86-3/8" H.
  • Includes 1 upright, 1 leg, 2 cross bars, 2 cross braces, and hardware.
  • Heavy-gauge steel construction with an epoxy-coated finish and stainless steel hardware.
  • Supports up to 2,800 lbs. total load, with 600 lbs. evenly distributed per level.
  • Shelves are ordered separately, so you can pair the frame with the Metro shelf finish you need.
  • NSF listed and backed by a 10-year limited warranty against rust formation.

Overall Dimensions:

38.19"W x 34.5"D x 86.38"H

Product Weight:

63.0 lb

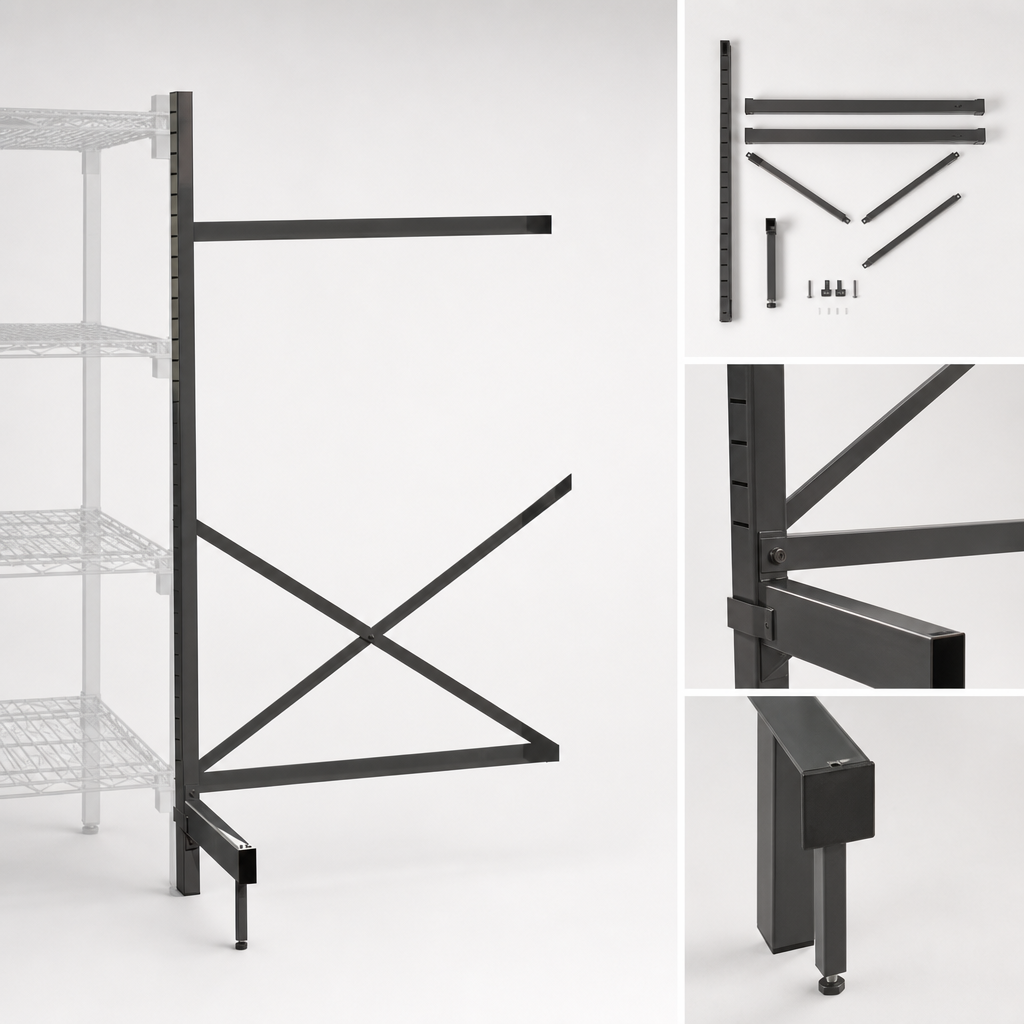

Add-On Kit Configuration

Provides one upright, one leg, two cross bars, two cross braces, and hardware for expanding a SmartLever run.

Shelf Compatibility

Accommodates 36" W x 30" D Metro shelves; shelving is ordered separately.

Heavy-Duty Steel Construction

Made from heavy gauge cold rolled steel with an electroplated, epoxy-coated finish and stainless steel hardware.

Adjustable System

Shelves and work surfaces can be positioned on 2" increments for flexible layout changes.

Load Capacity

Each section supports up to 2,800 lbs. total load, with 600 lbs. evenly distributed per level.

NSF Listed

Suitable for commercial storage applications where NSF listing is required.

Rust Warranty

Covered by a 10-year limited warranty against surface rust formation.

Type Add-On Unit Kit
Style Cantilevered Shelving
Installation Type Floor Model
Material Steel
Finish Epoxy Coated
Capacity 2,800 lbs. Total Load Capacity
Compatible Shelf Width 36 Inches
Compatible Shelf Depth 30 Inches
Shipping Width 39 Inches
Shipping Depth 35 Inches
Shipping Height 87 Inches
Shipping Weight 63 lbs.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty against surface rust formation.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes 1 upright, 1 leg, 2 cross bars, 2 cross braces, and hardware.
It accommodates 36" W x 30" D Metro shelves.
No. Shelves are ordered separately.
Yes. The documentation says all wire shelving finishes are compatible, and Super Erecta Pro is recommended for all-around superior performance.
Each section supports up to 2,800 lbs. total load, and each level supports 600 lbs. evenly distributed.
SmartLever components carry a 10-year limited warranty against rust formation.
