Metro SmartLever SM862172-KIT Cantilever Starter Kit — Fits 72" W x 21" D Shelves, 86-3/8" H

SKU: SM862172-KIT
GTIN: 0-41105-87963-4
$570.68
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Bulk Storage Shelving Cantilevered Shelving Commercial Shelving Metro New Arrivals Specialty Shelving Storage & Shelving Storage & Transport

Metro SmartLever SM862172-KIT Cantilever Starter Kit — Fits 72" W x 21" D Shelves, 86-3/8" H

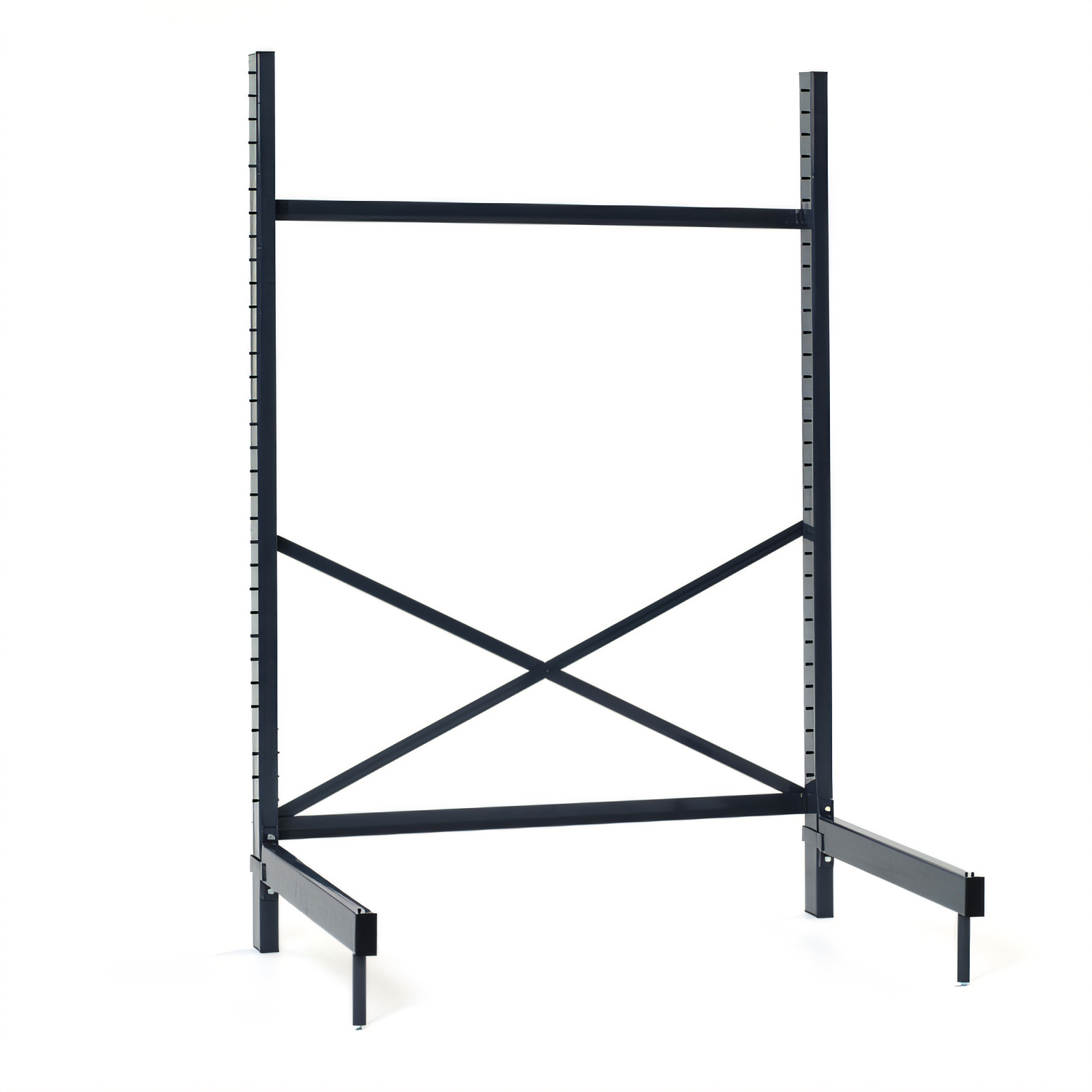

Starter unit for SmartLever productivity system; includes uprights, legs, cross braces, cross bars and hardware

Heavy-duty SmartLever starter kit delivers flexible, high-capacity cantilever storage for 72" x 21" Metro shelves with epoxy-coated steel construction and NSF listing.

  • Starter kit for SmartLever Productivity System — accommodates 72" W x 21" D Metro Super Erecta shelves
  • Includes (2) uprights, (2) legs, (2) cross braces, (2) cross bars and hardware for immediate installation
  • Heavy gauge cold-rolled steel, electroplated and epoxy coated with stainless steel hardware for corrosion resistance
  • Adjustable shelf/work-surface positions on 2" increments to optimize ergonomics and workflow
  • High load capacity: 2,800 lbs total per section; 600 lbs per level; 1,000 lbs on dunnage when mounted to legs
  • NSF listed and backed by a 10-year limited warranty against surface rust formation

Overall Dimensions:

76.25"W x 25.5"D x 86.38"H

Product Weight:

111.1 lb

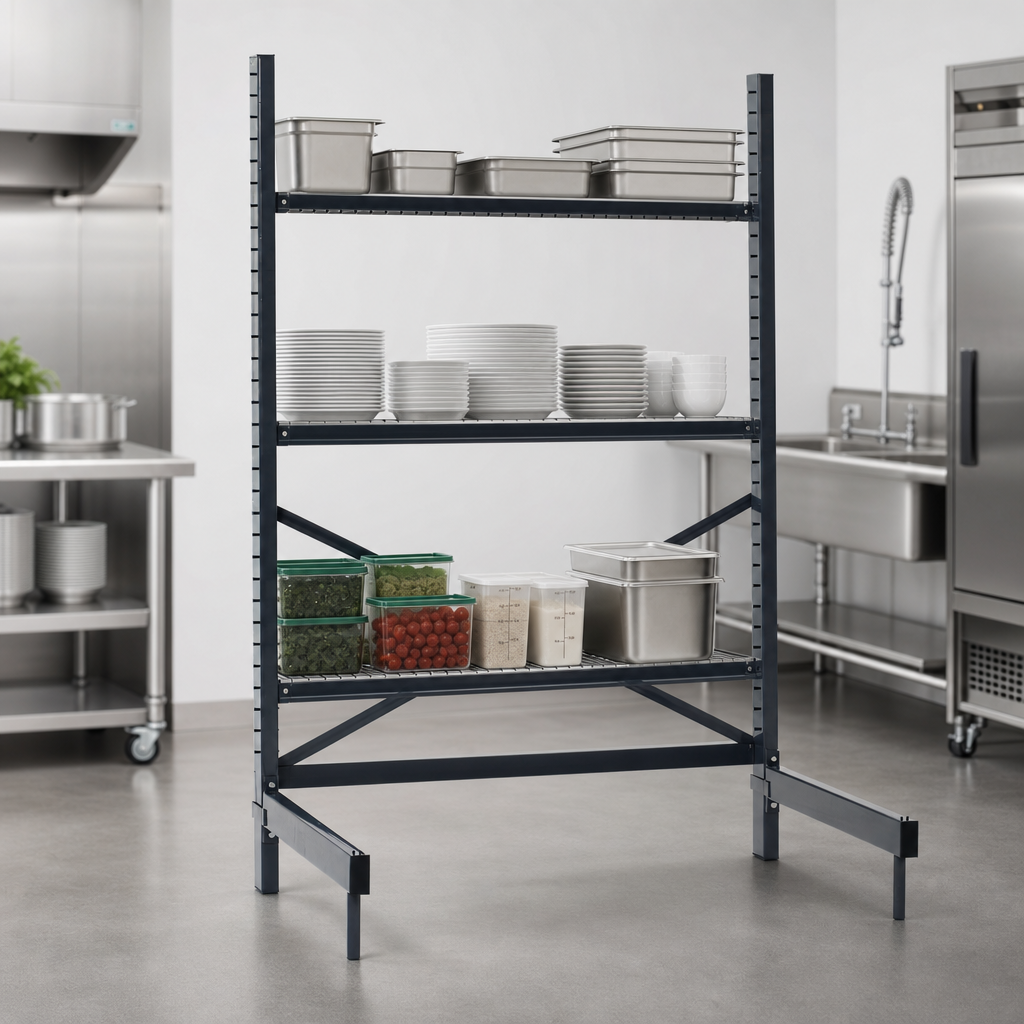

Cantilevered Design

Provides unobstructed access to shelves for improved visibility and 30–50% more usable storage vs four-post shelving in the same footprint.

Included Components

Starter kit ships with two uprights, two legs, two cross braces, two cross bars and mounting hardware — ready to accept Metro 72" x 21" shelves.

Durable Construction

Heavy gauge cold-rolled steel, electroplated and epoxy coated; stainless steel hardware for long-term corrosion resistance.

Adjustability

Uprights accept shelf positions in 2" (51 mm) increments to set work surface and shelf heights where needed.

High Load Capacity

Each SmartLever section supports a combined load of 2,800 lbs; each level (shelf or work surface) supports 600 lbs evenly distributed; dunnage on legs supports up to 1,000 lbs.

NSF Listed

Product is NSF listed for use in commercial environments where NSF listing is required.

Type Starter Kit
Installation Type Floor Model (With Legs)
Material Steel
Finish Epoxy Coated
Shelf Width 72 Inches
Shelf Depth 21 Inches
Total Load Capacity 2,800 lbs
Per Level Load Capacity 600 lbs
Dunnage Load Capacity 1,000 lbs (when mounted to Legs)
Selling Unit Each
Units Per Case 1
Shipping Width 77 Inches
Shipping Depth 26 Inches
Shipping Height 87 Inches
Shipping Weight 111.1 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10 year limited warranty against surface rust formation.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The starter kit includes two uprights, two legs, two cross braces, two cross bars and all required hardware to assemble a single SmartLever section.
This kit is designed to accommodate Metro 72" W x 21" D Super Erecta-style shelves and work surfaces sized to those dimensions.
Each SmartLever section supports a combined load of up to 2,800 lbs total; each shelf or work surface supports 600 lbs evenly distributed. Dunnage shelves mounted to the legs support up to 1,000 lbs.
Yes. Uprights allow shelf and work-surface heights to be set in 2" (51 mm) increments.
Yes — the unit is NSF listed. Construction is heavy gauge cold-rolled steel that is electroplated and epoxy coated, with stainless steel hardware.
SmartLever components carry a 10-year limited warranty against surface rust formation.
