Metro

SmartLever Cantilevered Shelving Starter Unit Base Kit for 42"W x 24"D Shelves, 76-3/8"H

SKU: SM762442-KIT
GTIN: 0-41105-88472-0
$525.53
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Bulk Storage Shelving Cantilevered Shelving Commercial Shelving Metro New Arrivals Specialty Shelving Storage & Shelving Storage & Transport

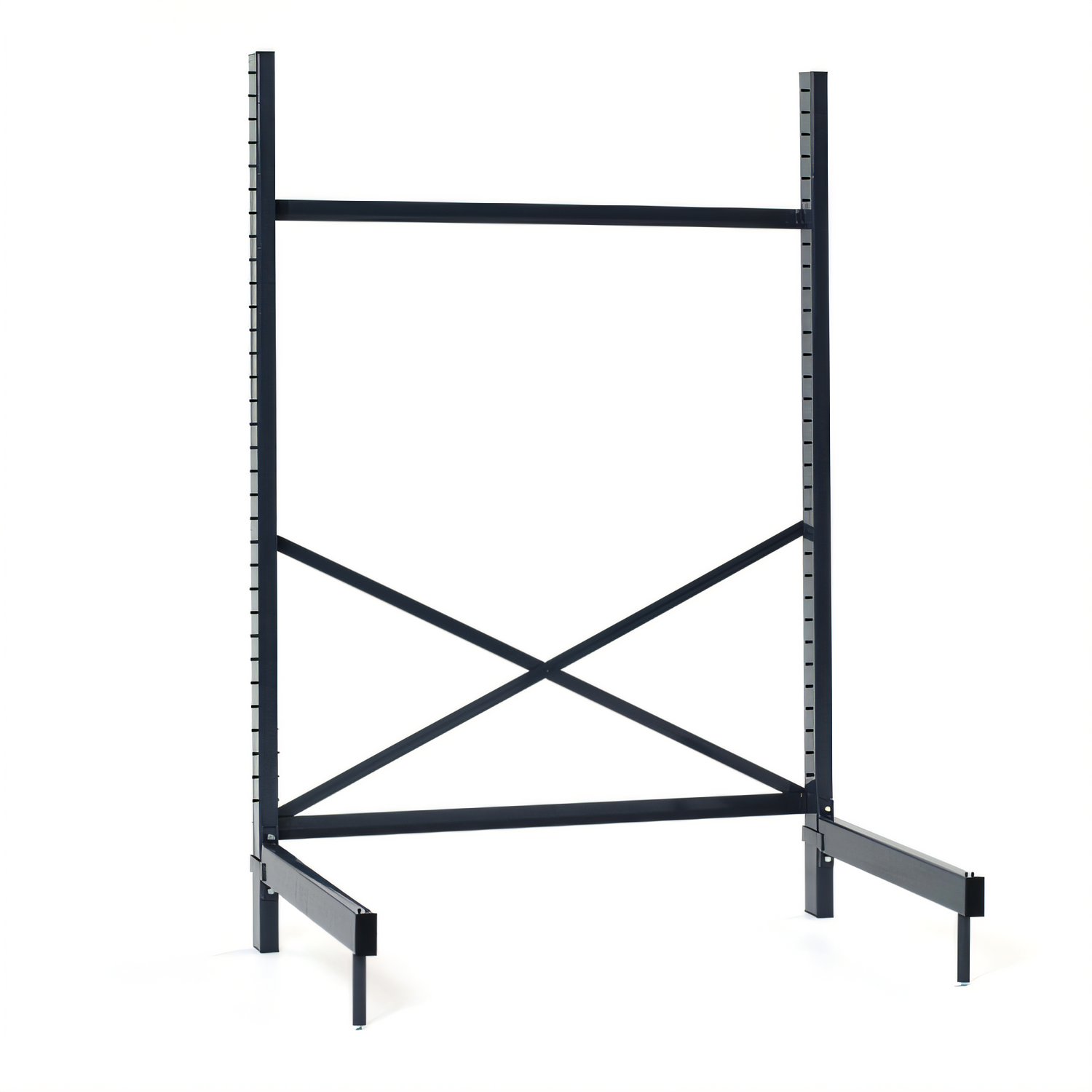

SmartLever Cantilevered Shelving Starter Unit Base Kit for 42"W x 24"D Shelves, 76-3/8"H

Epoxy-Coated Steel Stationary Base Kit with Uprights, Legs, Cross Braces, Cross Bars & Hardware

Build the first section of a rugged cantilevered shelving run with a starter kit that keeps shelves open, adjustable, and ready for heavy-duty storage.

  • Starter kit forms the first section of a SmartLever cantilevered shelving system.
  • Accommodates 42"W x 24"D Metro shelves and measures 46-1/4"W x 28-1/2"D x 76-3/8"H overall.
  • Includes (2) uprights, (2) legs, (2) cross braces, (2) cross bars, and hardware.
  • Shelf positions adjust in 2" increments for flexible layout and workflow changes.
  • Heavy-gauge steel construction with an epoxy coating and stainless steel hardware.
  • Supports up to 2,800 lb. per section and 600 lb. evenly distributed per level.

Overall Dimensions:

46.25"W x 28.5"D x 76.38"H

Product Weight:

102.6 lb

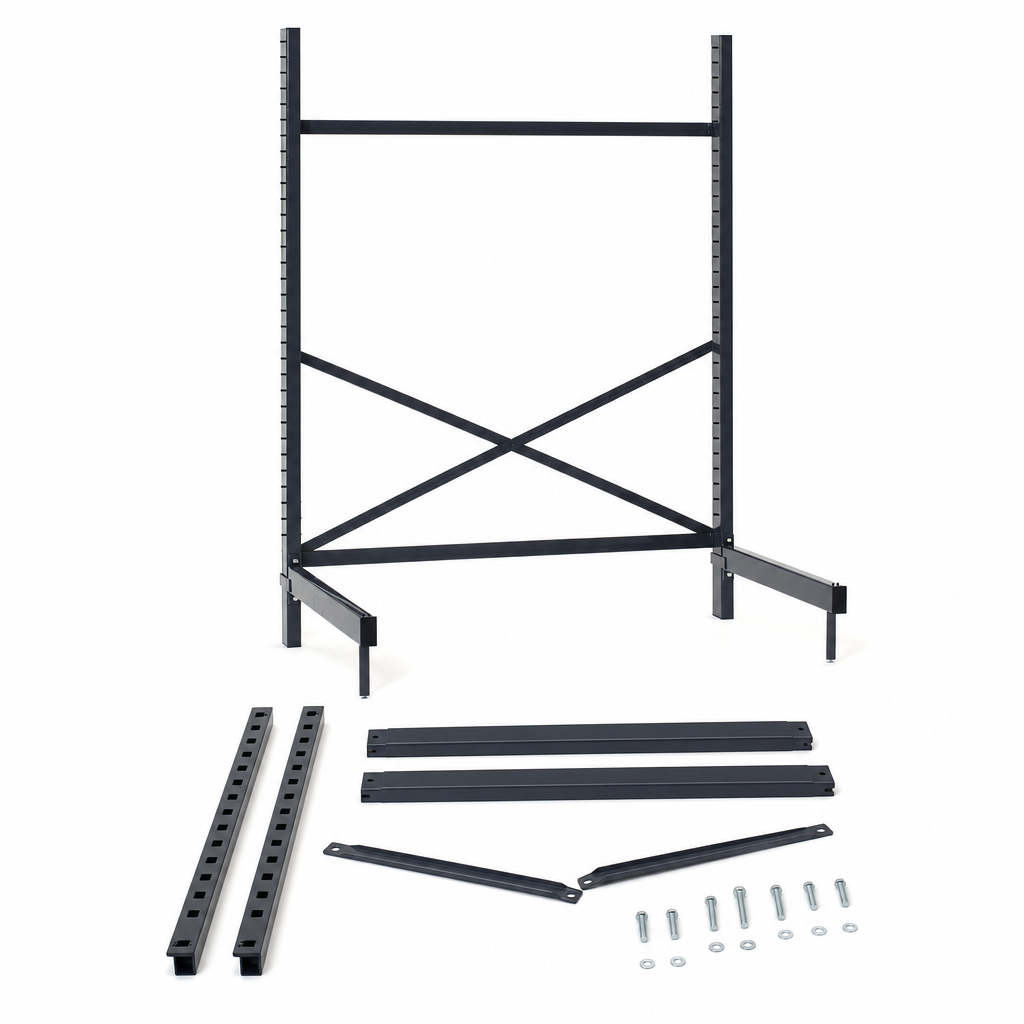

Complete Starter Kit

Provides the structural components for the first section of the system, including two uprights, two legs, two cross braces, two cross bars, and hardware.

Cantilevered Access

Open-front support design keeps shelves unobstructed for easier loading, unloading, and product visibility.

2-Inch Upright Adjustment

Shelves can be positioned in 2-inch increments to match your storage or workflow needs.

Heavy-Duty Steel Construction

Built from heavy-gauge cold rolled steel with an epoxy-coated finish and stainless steel hardware for durability.

High Load Capacity

Each section supports a combined load of 2,800 lb., with 600 lb. evenly distributed per level.

Compatible Shelf Size

Designed to accommodate Metro shelves that are 42 inches wide by 24 inches deep.

Limited Rust Warranty

Backed by a 10-year limited warranty against surface rust formation.

Type Starter Unit Kit
Style Cantilevered
Installation Type Freestanding
Material Steel
Finish Epoxy Coated
Capacity 2,800 lb.
Shelf Width 42 Inches
Shelf Depth 24 Inches
Shipping Width 47 Inches
Shipping Depth 29 Inches
Shipping Height 77 Inches
Shipping Weight 102.6 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The kit includes (2) uprights, (2) legs, (2) cross braces, (2) cross bars, and hardware.
It accommodates 42"W x 24"D Metro shelves.
Yes. Shelf positions can be adjusted in 2-inch increments.
Each section supports a combined load of 2,800 lb., and each level supports 600 lb. evenly distributed.
It is made of heavy-gauge cold rolled steel with an epoxy coating and stainless steel hardware.
The components carry a 10-year limited warranty against surface rust formation.
