Key specifications

Type
Pan Rack
Style
Pass-Thru
Installation Type
Floor Model
Material
Aluminum
Finish
Natural
Pan Capacity
13 Pans
Spec sheet
Metro SKU: RD78N GTIN: 0-41105-68439-9

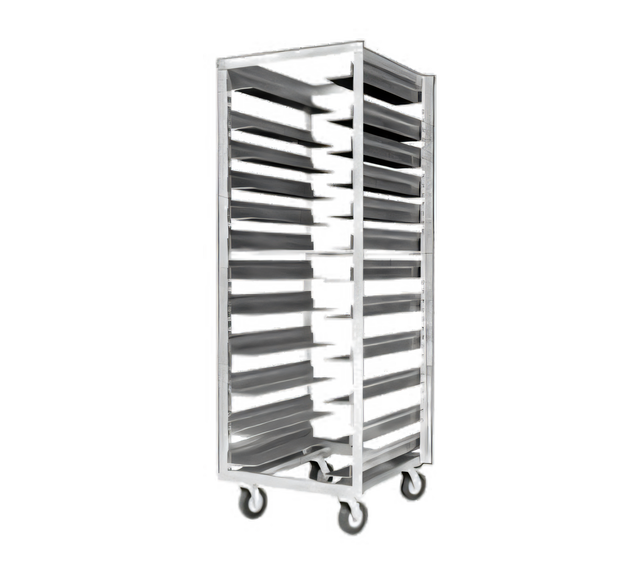

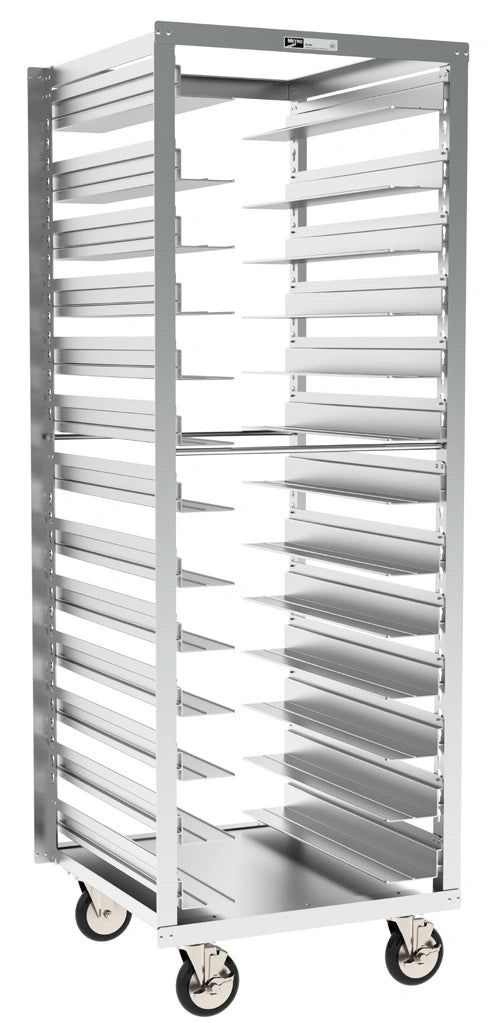

Metro RD78N 13-Pan Mobile Pass-Thru Pan Rack

$1,311.18
/each
Estimated to ship in 9–12 business days
Accessories
Included: Metro warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $121/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Pan Rack
Style Pass-Thru
Installation Type Floor Model
Material Aluminum
Finish Natural
Pan Capacity 13 Pans
Pan Size 18 x 26 Inches
Slide Sets 13 Sets
Standard Slide Spacing 4.5 Inches
Upright Keyhole Spacing 1.5 Inches
Minimum Slide Spacing 3 Inches
Loading End Loading
Side Configuration Open Sides
Top Configuration Open Top
Caster Size 5 Inches
Caster Type Swivel
Caster Brakes 2 Casters
Assembly Knocked Down
Load Capacity 350 lb per rack
Load Capacity Per Level 50 lb per slide level
Temperature Range -30°F to 160°F

Description

The Metro RD78N is a mobile, pass-thru aluminum pan rack for 18 x 26-inch pans. Its adjustable slide sets support end loading and unloading from the opposite side.

  • Capacity: Holds 13 18 x 26-inch pans in the standard configuration.
  • Adjustable slides: Thirteen slide sets with upright keyholes on 1.5-inch centers and standard slide spacing of 4.5 inches.
  • Construction: Natural-finish, extruded aluminum with aircraft-riveted construction.
  • Mobility: Five-inch swivel casters, including two with wheel brakes.
  • Load rating: Supports up to 50 lb per slide level and 350 lb per rack.

Overall Dimensions:

24.38"W x 26.0"D x 69.5"H

Product Weight:

93.0 lb

Adjustable Slides

Includes 13 slide sets with upright keyholes on 1.5-inch centers and standard slide spacing of 4.5 inches.

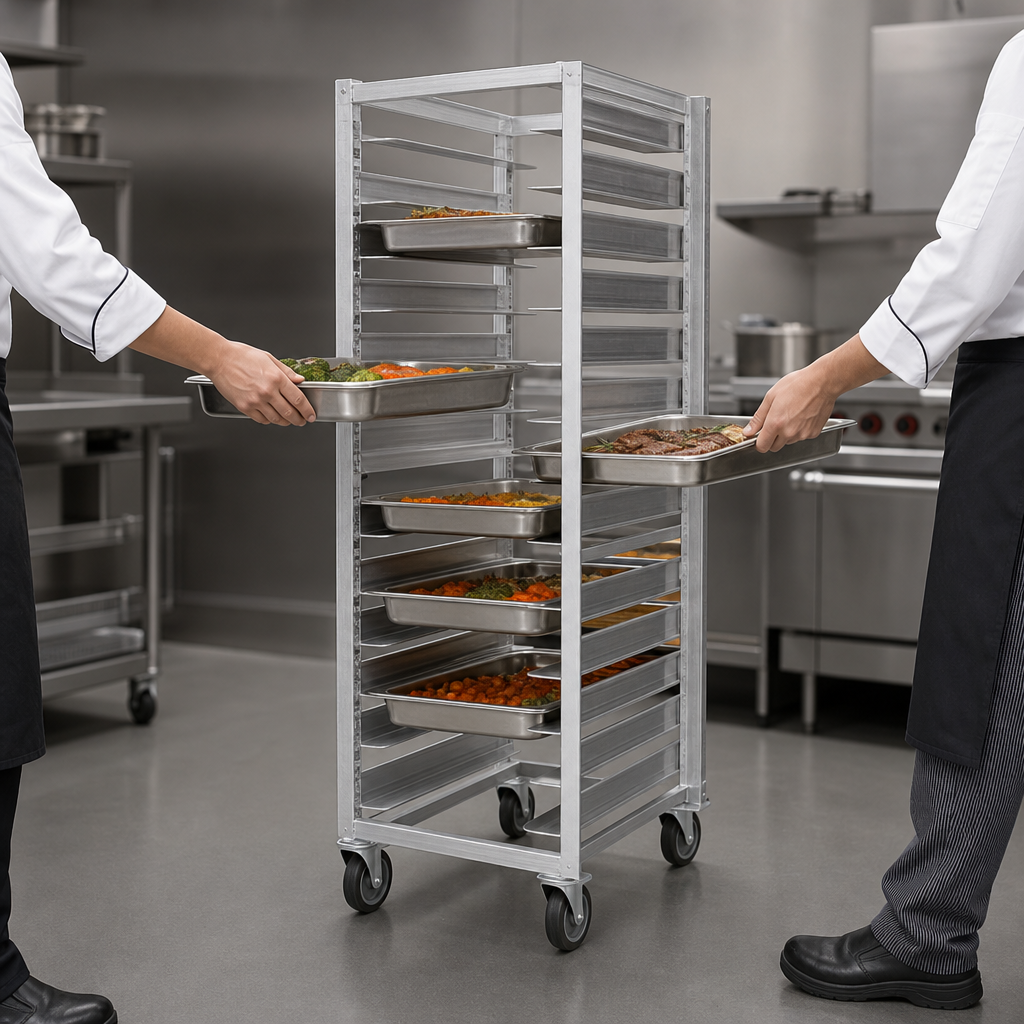

Pass-Thru Design

Can be loaded from one side and unloaded from the other.

Pan Capacity

Accommodates 13 18 x 26-inch pans in the standard configuration.

Aluminum Construction

Uses natural-finish, extruded aluminum with aircraft-riveted construction.

Mobile Base

Includes five-inch swivel casters, with two casters equipped with wheel brakes.

Load Capacity

Rated for 50 lb per slide level and 350 lb per rack.

Temperature Range

Allowable temperature range is -30°F to 160°F.

Frequently Asked Questions

The RD78N is specified for 13 18 x 26-inch pans with its standard 13 slide sets.
Yes. The uprights have keyholes on 1.5-inch centers, and the standard slide spacing is 4.5 inches.
Yes. It can be loaded from one side and unloaded from the other.
The rack is 24.38 inches wide, 26 inches deep, and 69.5 inches high.
The load capacity is 50 lb per slide level and 350 lb per rack.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
