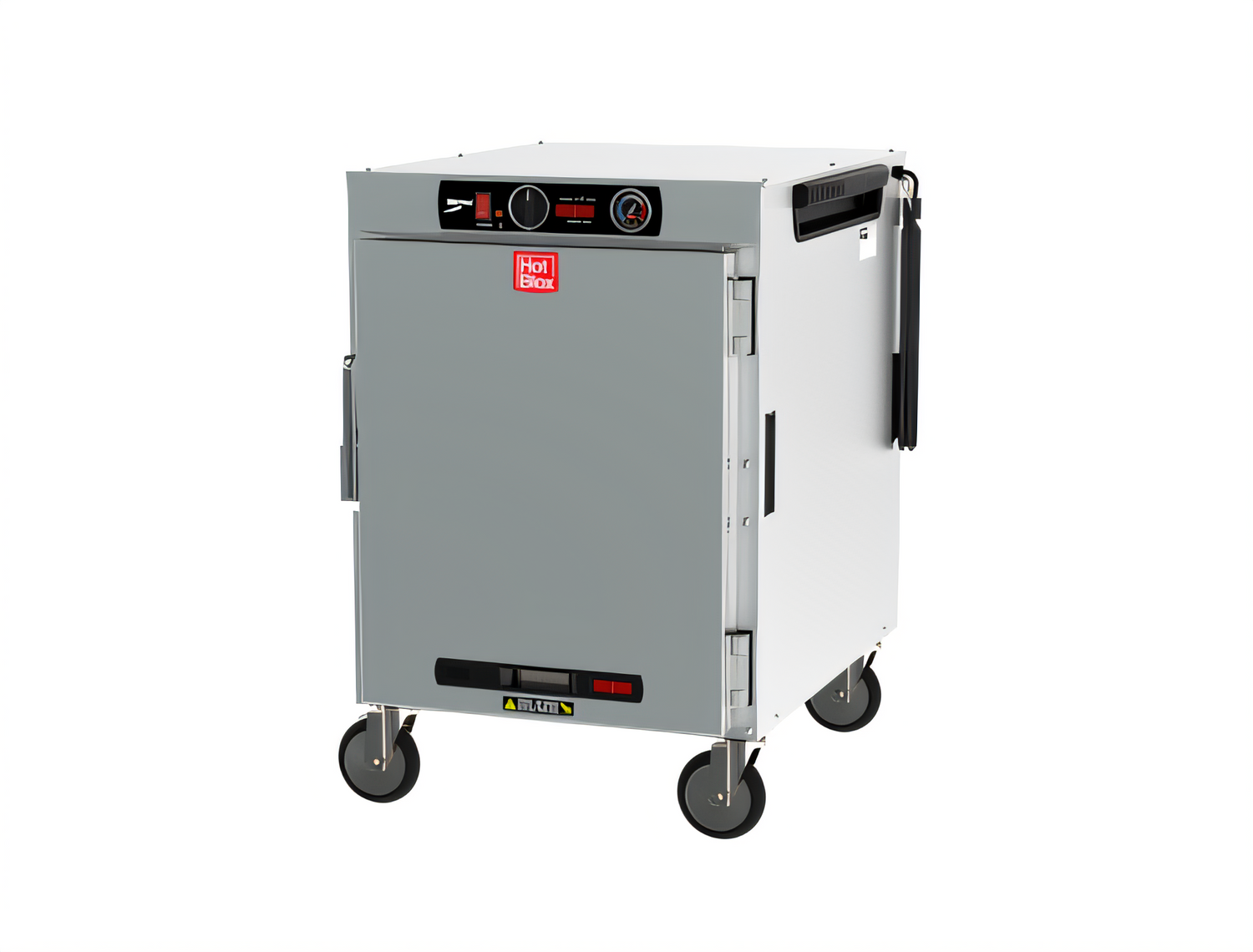

Metro HotBlox™ Wide 8-Pan Pass-Thru Insulated Holding Cabinet, Analog Control, Solid Front Door/Clear Rear Door, Mobile

1/2-Height Configuration, 120V, 875W, NEMA 5-15P

This pass-thru HotBlox cabinet keeps hot food ready from either side while giving you flexible holding for both crispy and moist menu items in one insulated, mobile unit.

  • Pass-thru design with a solid front door and clear rear door for easy loading, service, and visibility.
  • Wide 8-pan format holds 18x26, 12x20/GN, and 13x18 pans.
  • Hybrid convection/radiant heat helps hold crispy or moist foods in the same cabinet.
  • Analog control offers simple, electromechanical operation with an always-on thermometer.
  • Insulated aluminum construction with high-density fiberglass insulation supports energy efficiency and rigidity.
  • 120V, 875W power setup with a NEMA 5-15P cord and mobile 1/2-height configuration.

Overall Dimensions:

25.0"W x 32.2"D x 35.5"H

Product Weight:

157.46 lb

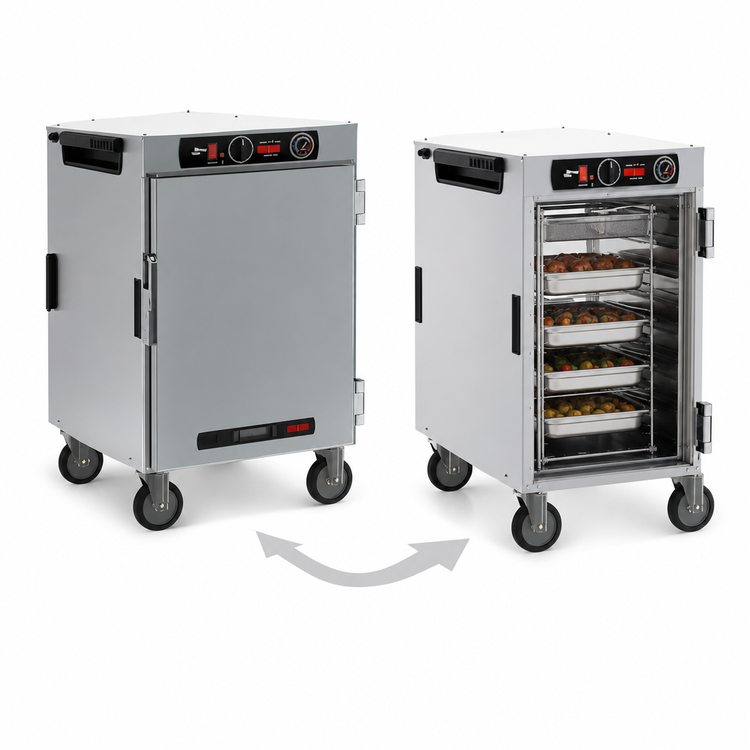

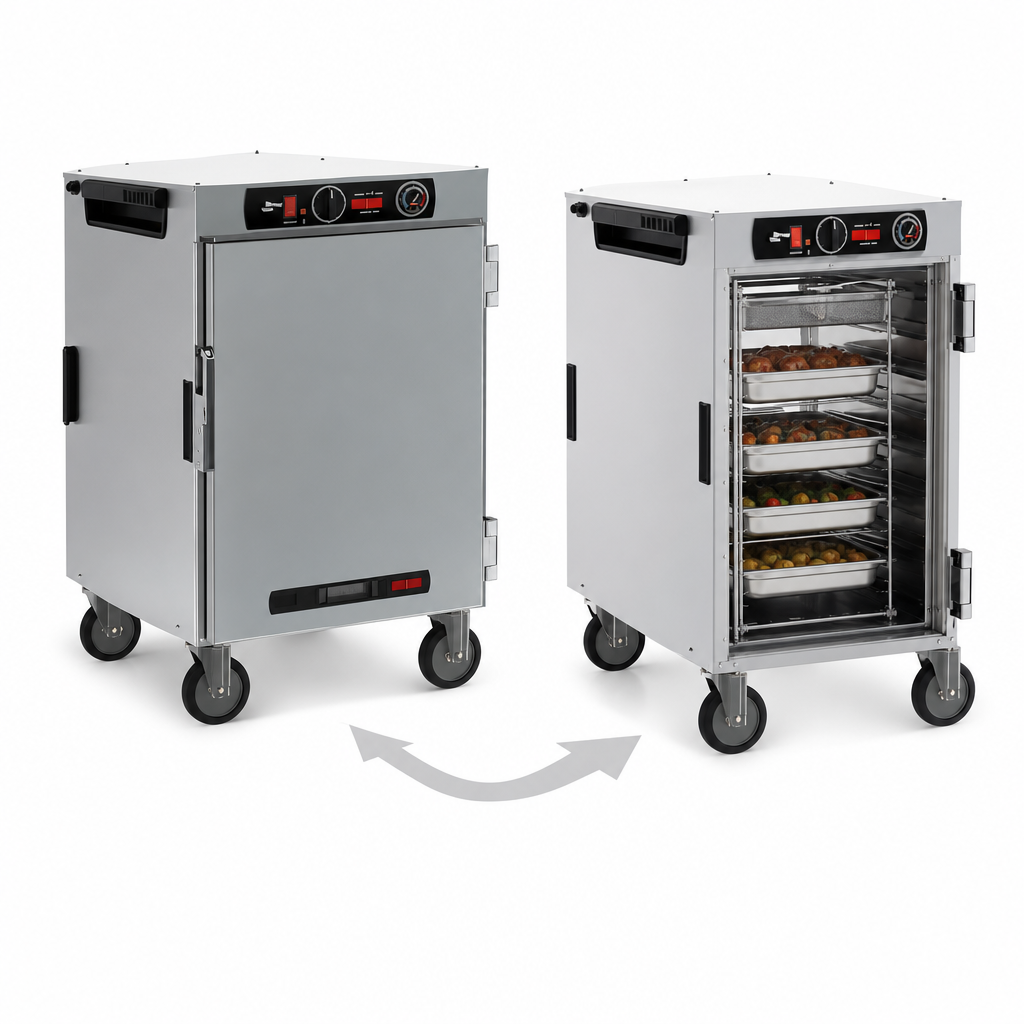

Pass-Thru Door Configuration

Solid insulated front door and clear rear door let you load and serve from opposite sides while keeping contents visible from the rear.

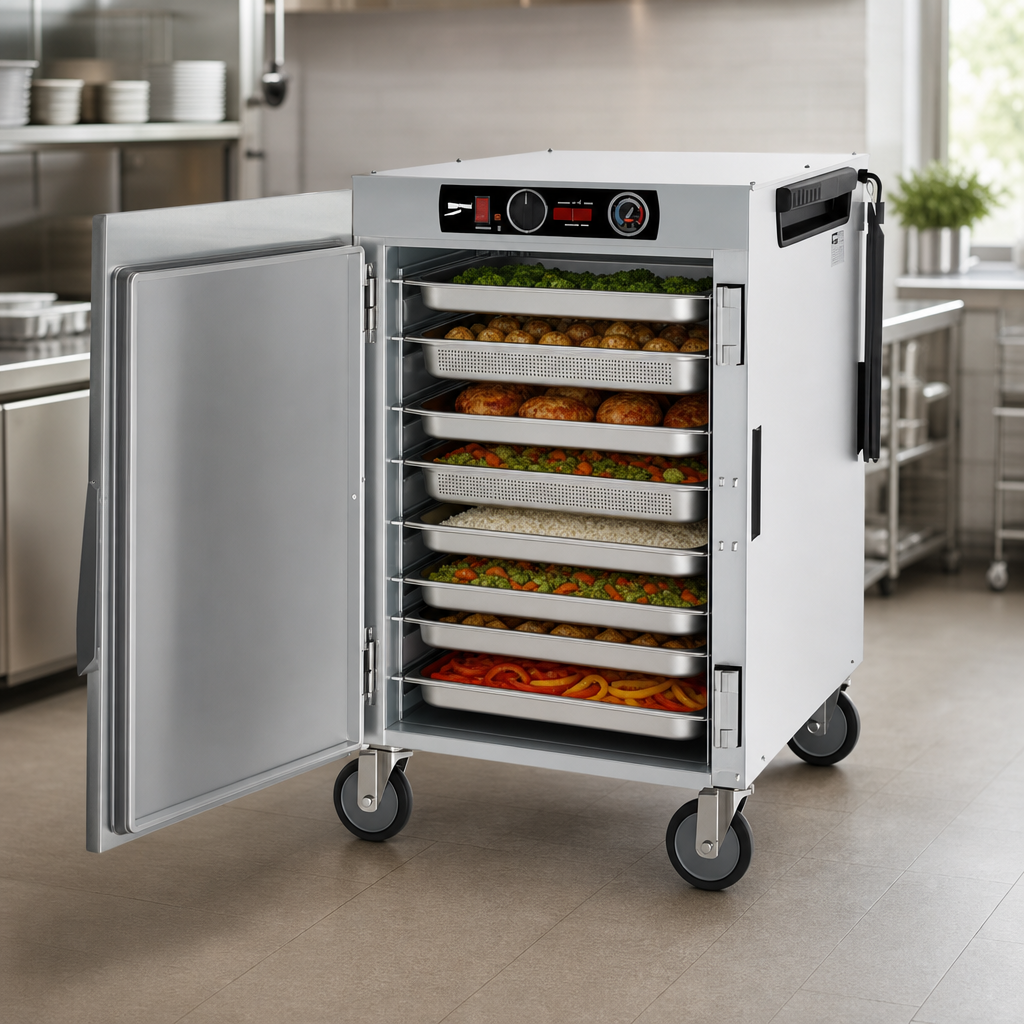

Wide 8-Pan Capacity

The W8 cabinet size is designed to hold 18x26 pans, 12x20/GN pans, and 13x18 pans.

Hybrid Convection/Radiant Heating

Thermostatically controlled heating combines convection air circulation with radiant floor heat to support either crispy or moist holding applications.

Analog Control

Electro-mechanical thermostat control provides simple operation and is described as ideal for transport applications.

Insulated Aluminum Construction

A .063" aluminum body with high-density fiberglass insulation improves cabinet rigidity and helps reduce heat loss.

Humidity Management

Built-in venting helps release humidity, and placing a pan of water on the floor can add moisture when needed.

Mobile 1/2-Height Design

The 1/2-height configuration is supplied with casters for mobility.

Power Connection

Operates on 120V, 60Hz, 875W and includes a 6 ft. cord with a NEMA 5-15P plug.

Type Insulated Holding Cabinet
Style Pass-Thru
Installation Type Freestanding
Controls Analog
Pan Capacity 8 Pans
Temperature Range 90°F to 190°F
Material Aluminum
Voltage 120 Volts
Watts 875 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 25 Inches
Shipping Depth 33 Inches
Shipping Height 36 Inches
Shipping Weight 157.46 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF User manual PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

The wide 8-pan W8 cabinet holds 18x26 pans, 12x20/GN pans, and 13x18 pans.
Yes. It has a solid insulated front door and a clear rear door for pass-thru access.
It uses a hybrid convection/radiant heating system with rear venting for crisp holding, and you can add a pan of water on the floor to introduce moisture.
This model operates on 120V, 60Hz, 875W and comes with a NEMA 5-15P plug.
The cabinet is designed for a holding range of 90°F to 190°F.
Yes. The cabinet has a high-density fiberglass insulated aluminum body, and the solid door is also insulated.
