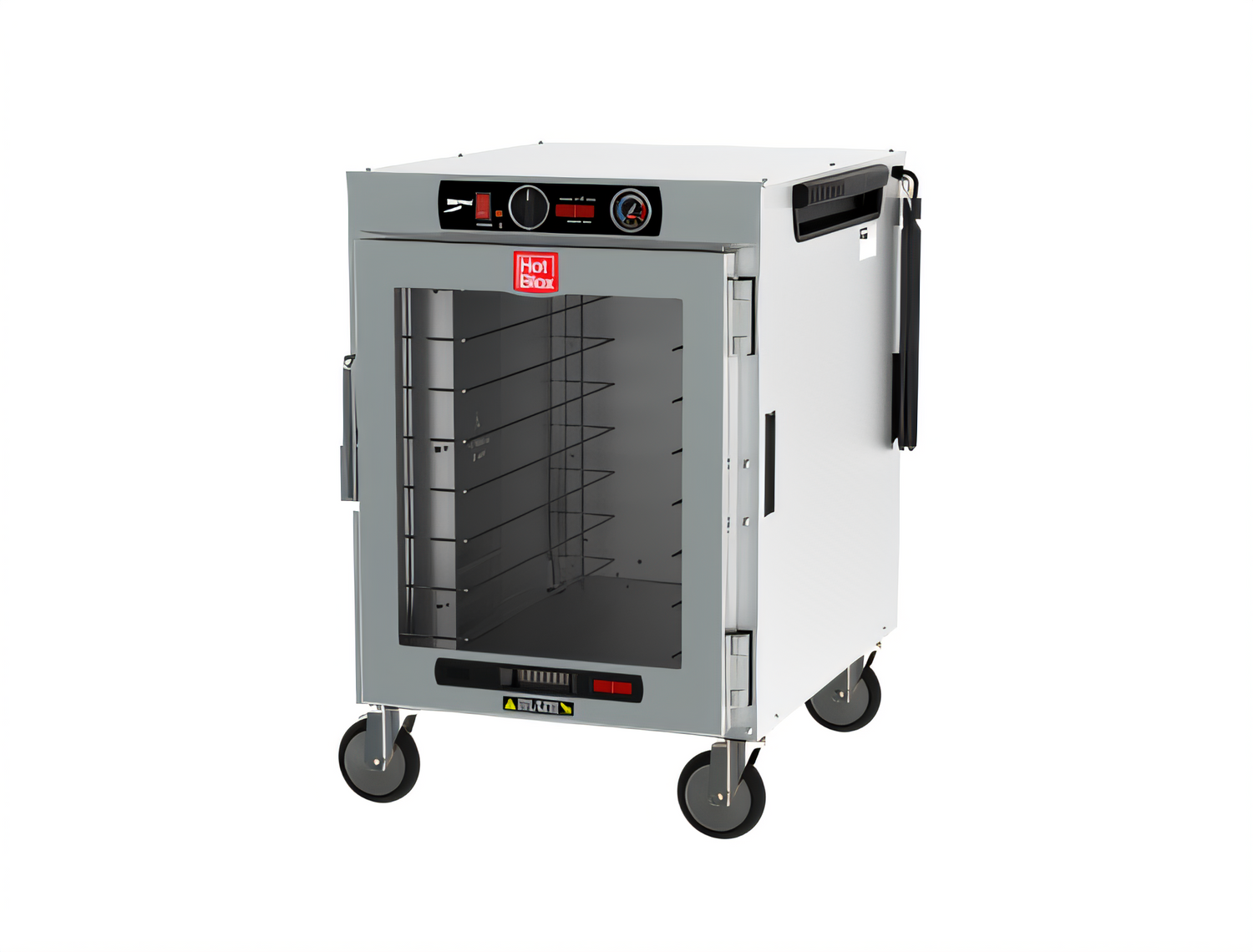

Metro HotBlox™ Wide 8-Pan Pass-Thru Mobile Insulated Holding Cabinet, Clear Front Door and Solid Rear Door, Analog, 120V

SKU: HBCW8-ACPS-M
GTIN: 0-41105-03736-2
$3,258.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro HotBlox™ Wide 8-Pan Pass-Thru Mobile Insulated Holding Cabinet, Clear Front Door and Solid Rear Door, Analog, 120V

875W, 60 Hz, NEMA 5-15P

Keep hot food ready to serve with a space-saving pass-thru cabinet that combines clear visibility, simple analog control, and hybrid convection-radiant heat.

  • Wide 8-pan pass-thru design for flexible hot-food holding and back-of-house service flow.
  • Clear front door and solid rear door help balance visibility, energy efficiency, and rigidity.
  • Analog electro-mechanical control is simple to operate and well suited for transport or mobile use.
  • Hybrid convection-radiant heating helps hold both crisp and moist foods in the same cabinet.
  • Holds 18 x 26, 12 x 20/GN, and 13 x 18 pans.
  • 120V operation with 875W heating, a 6-foot cord, and NEMA 5-15P plug.
  • Aluminum construction with high-density fiberglass insulation for durable heat retention.

Overall Dimensions:

25.0"W x 32.2"D x 35.5"H

Product Weight:

157.46 lb

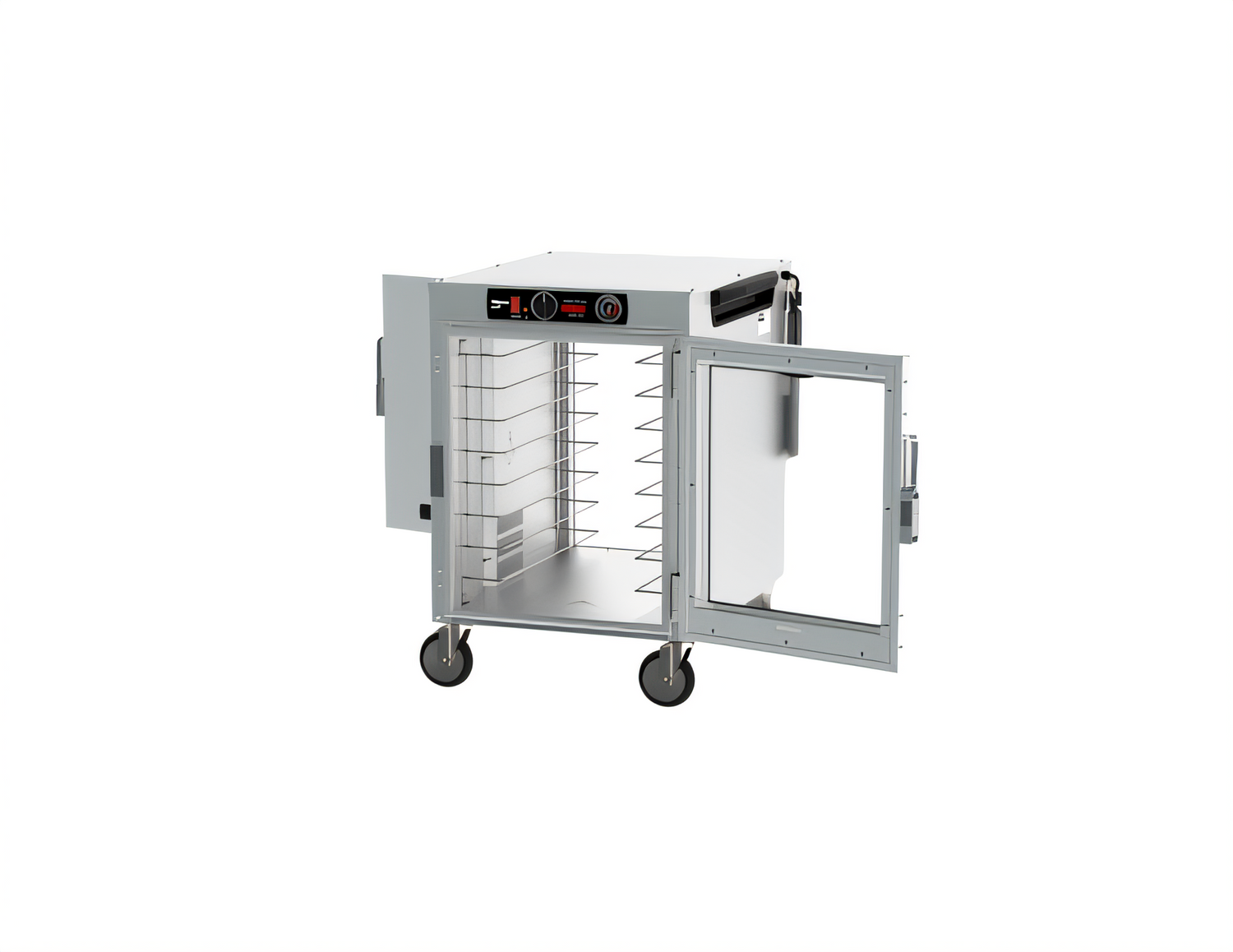

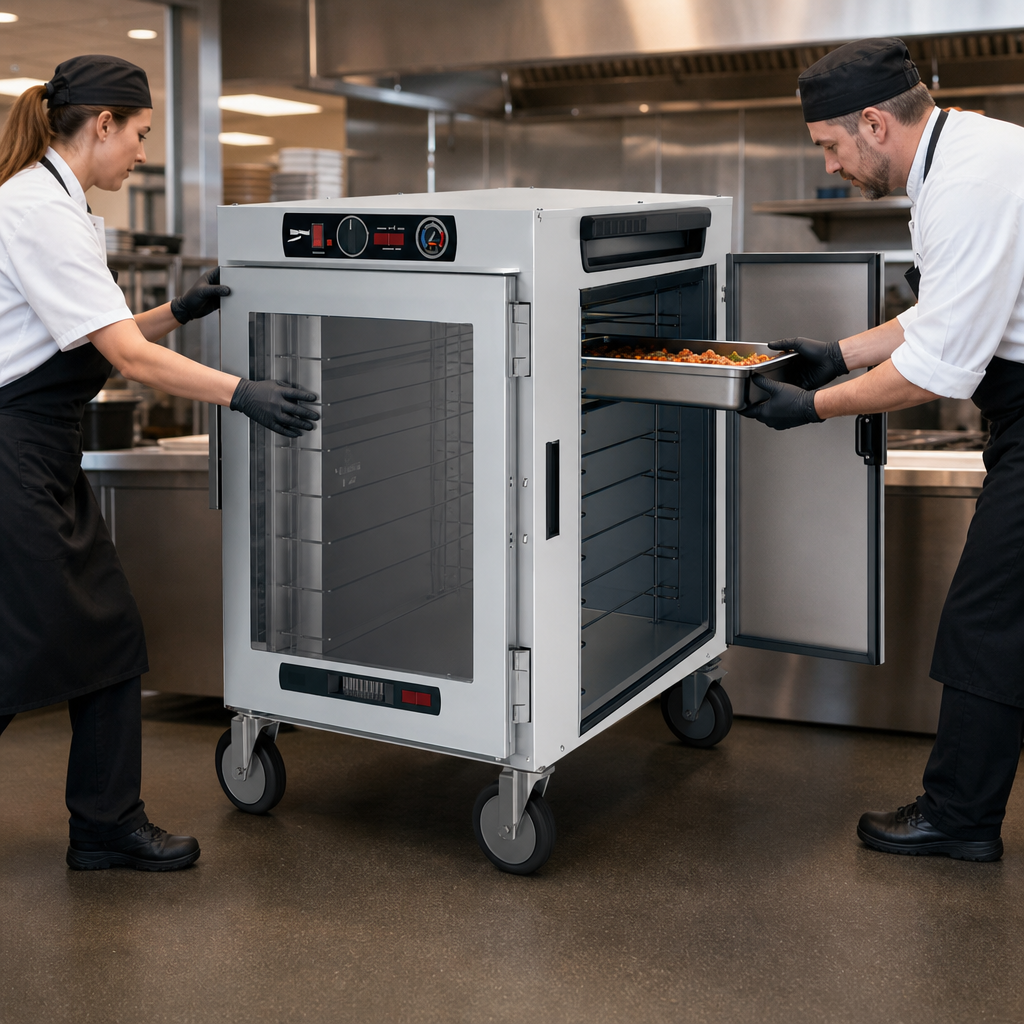

Pass-Thru Door Layout

Clear front and solid rear doors support efficient loading from one side and service from the other.

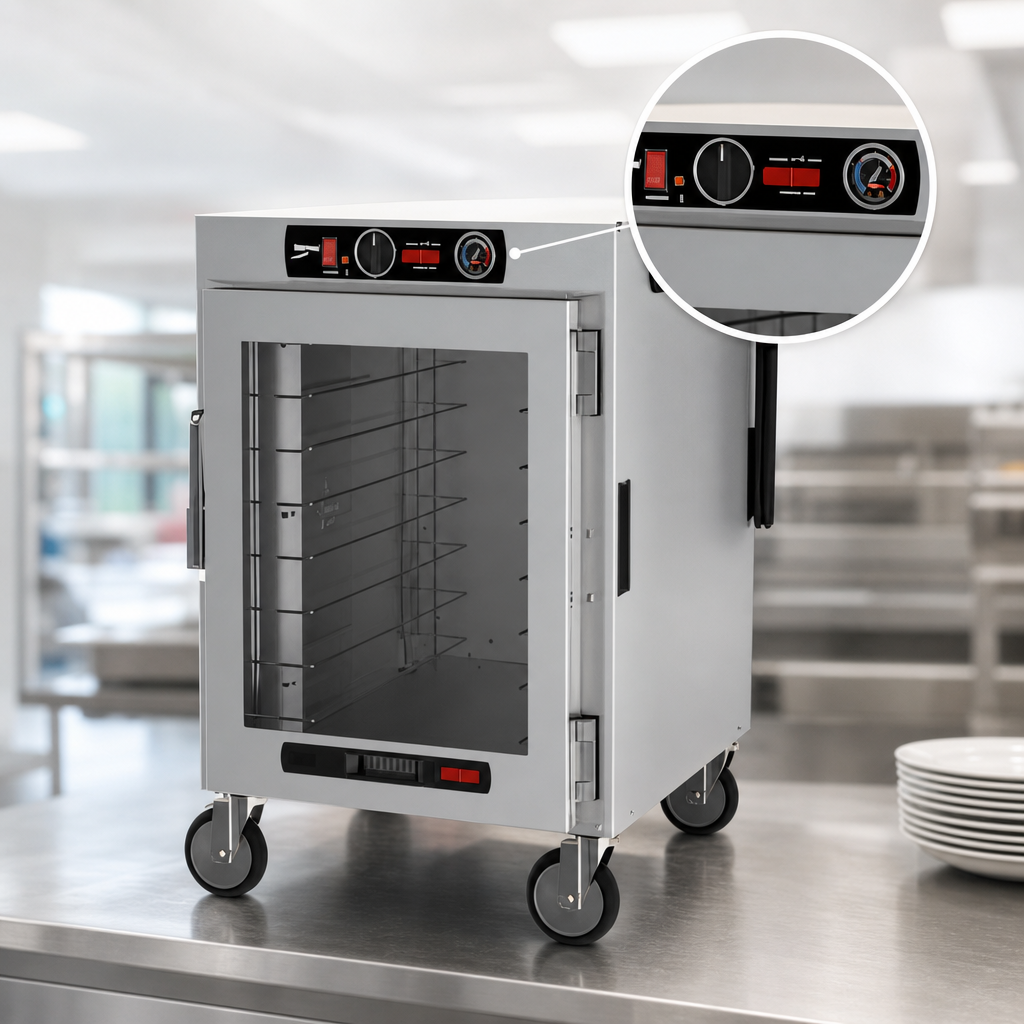

Analog Control

Electro-mechanical thermostat with an always-on thermometer for straightforward temperature management.

Hybrid Convection-Radiant Heating

Combines circulating air and a radiant floor element to help maintain crisp or moist foods.

Humidity Management

Built-in venting releases moisture while the door vent draws in dry replacement air to help control food texture.

Wide 8-Pan Capacity

Configured for wide pan storage and compatible with 18 x 26, 12 x 20/GN, and 13 x 18 pans.

Aluminum Cabinet Construction

.063 inch aluminum body with high-density fiberglass insulation for durability and heat retention.

120V Electrical Connection

Supplied with a 6-foot cord and NEMA 5-15P plug for standard 120V service.

Mobile Format

Designed as a mobile pass-thru holding cabinet for flexible placement and transport-oriented use.

Type Insulated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Controls Analog
Capacity 8 Pans
Pan Size 18 x 26 Inches; 12 x 20 Inches/GN; 13 x 18 Inches
Temperature Range 90°F to 190°F
Material Aluminum
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 875 Watts
Plug Type NEMA 5-15P
Cord Length 6 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 25 Inches
Shipping Depth 33 Inches
Shipping Height 36 Inches
Shipping Weight 157.46 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF User manual PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

It is designed to hold 18 x 26 pans, 12 x 20/GN pans, and 13 x 18 pans.
This unit operates on 120V, 60 Hz, 1-phase power and uses 875W with a NEMA 5-15P plug.
The cabinet operates from 90°F to 190°F.
Yes. The hybrid convection-radiant heating system and built-in venting are designed to help manage either crispy or moist holding applications.
It has a clear front door and a solid rear door in a pass-thru layout.
