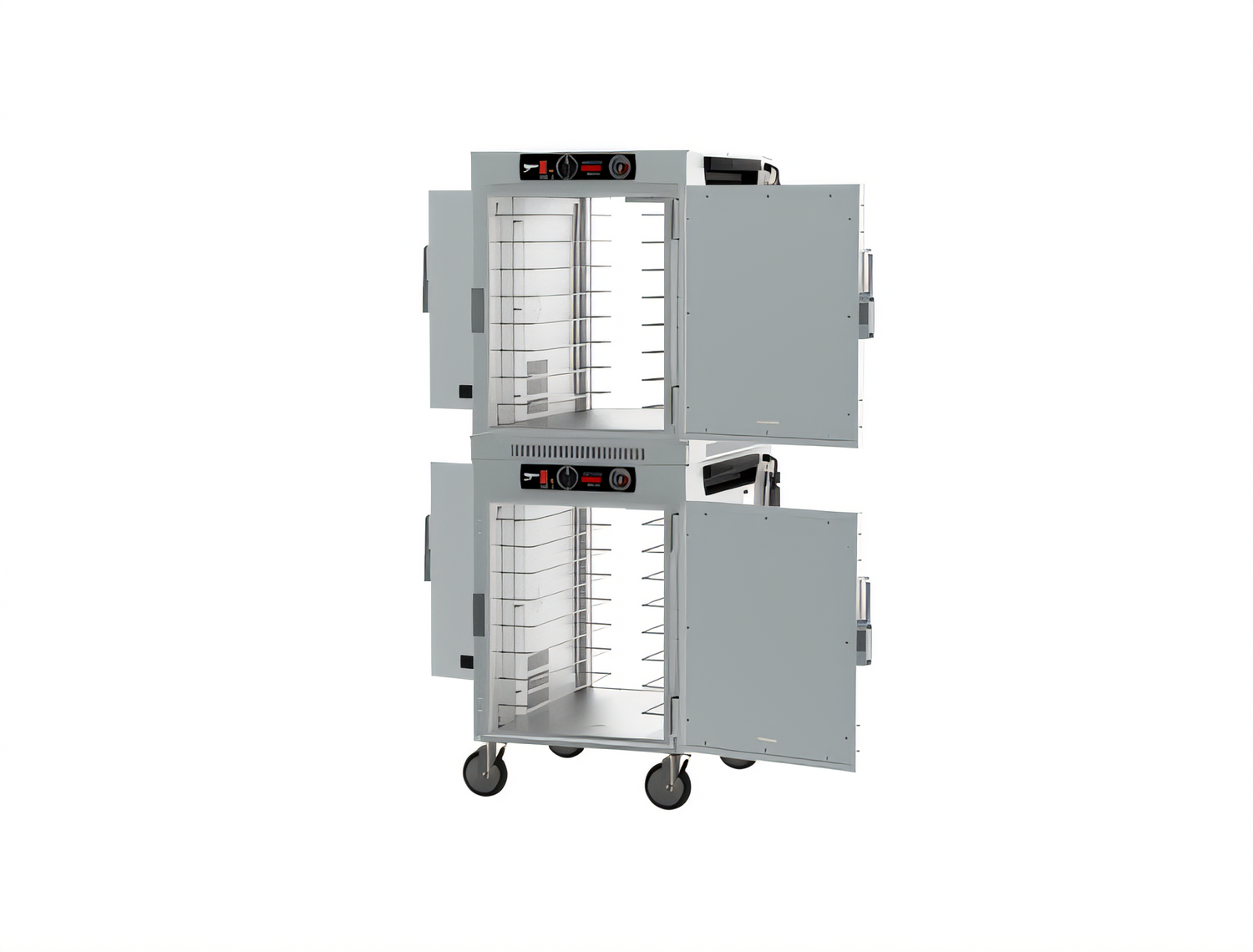

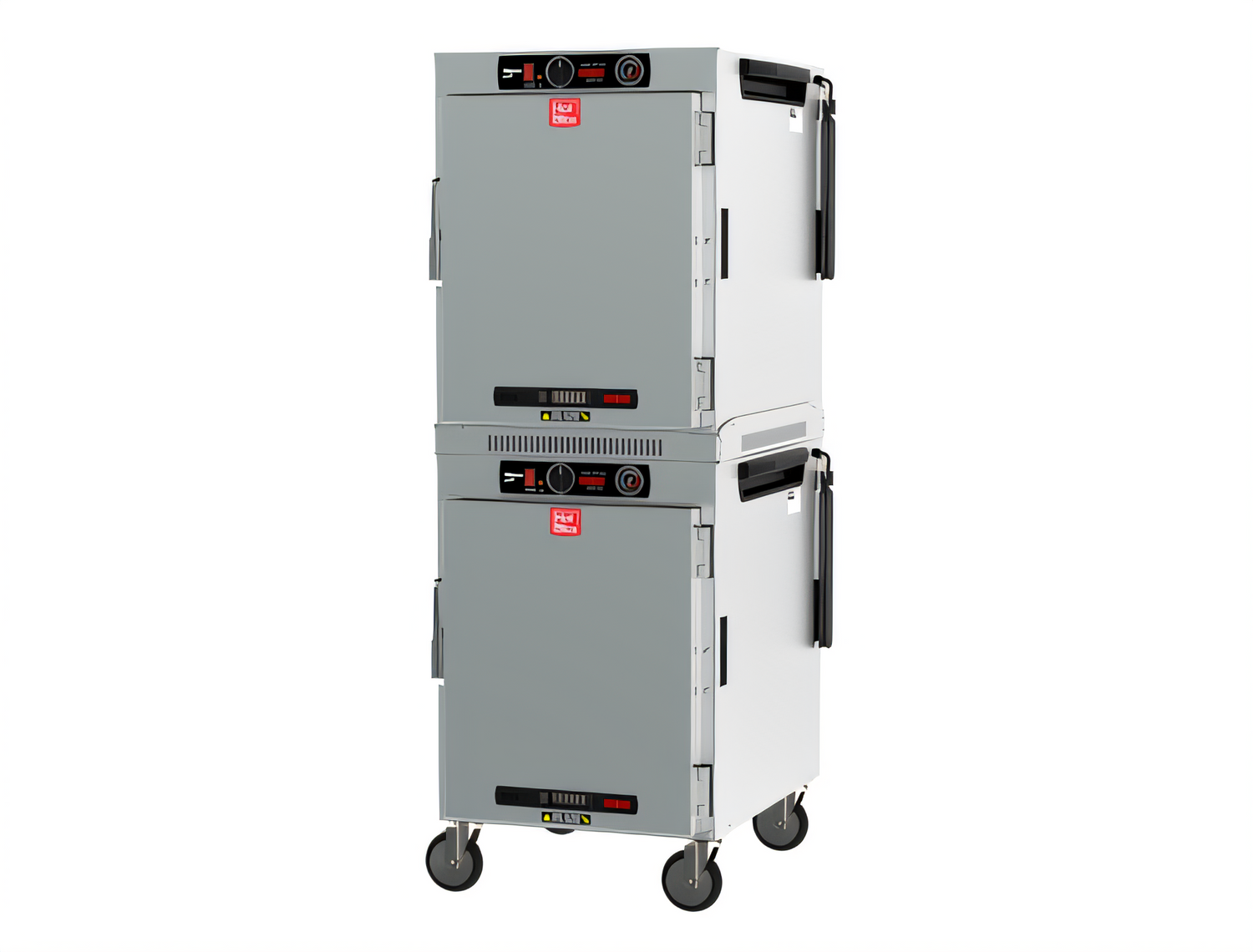

Metro HotBlox™ Wide 16-Pan Dual-Cavity Pass-Thru Insulated Holding Cabinet, Analog, Solid Doors, Mobile

120V, 875W Per Cavity, NEMA 5-15P x2

Keep hot foods ready to serve in a mobile pass-thru cabinet that helps hold both crispy and moist items across two insulated cavities.

  • Mobile dual-cavity pass-thru cabinet with solid front and rear doors.
  • Hybrid convection/radiant heat helps hold both crispy and moist foods.
  • Analog control with an always-on thermometer keeps operation simple.
  • Wide cabinet accommodates 12x20/GN, 18x26, and 13x18 pans.
  • Aluminum body with high-density fiberglass insulation helps retain heat.
  • Two 120V power cords, 875W per cavity, with NEMA 5-15P plugs.

Overall Dimensions:

25.0"W x 32.2"D x 66.7"H

Product Weight:

258.63 lb

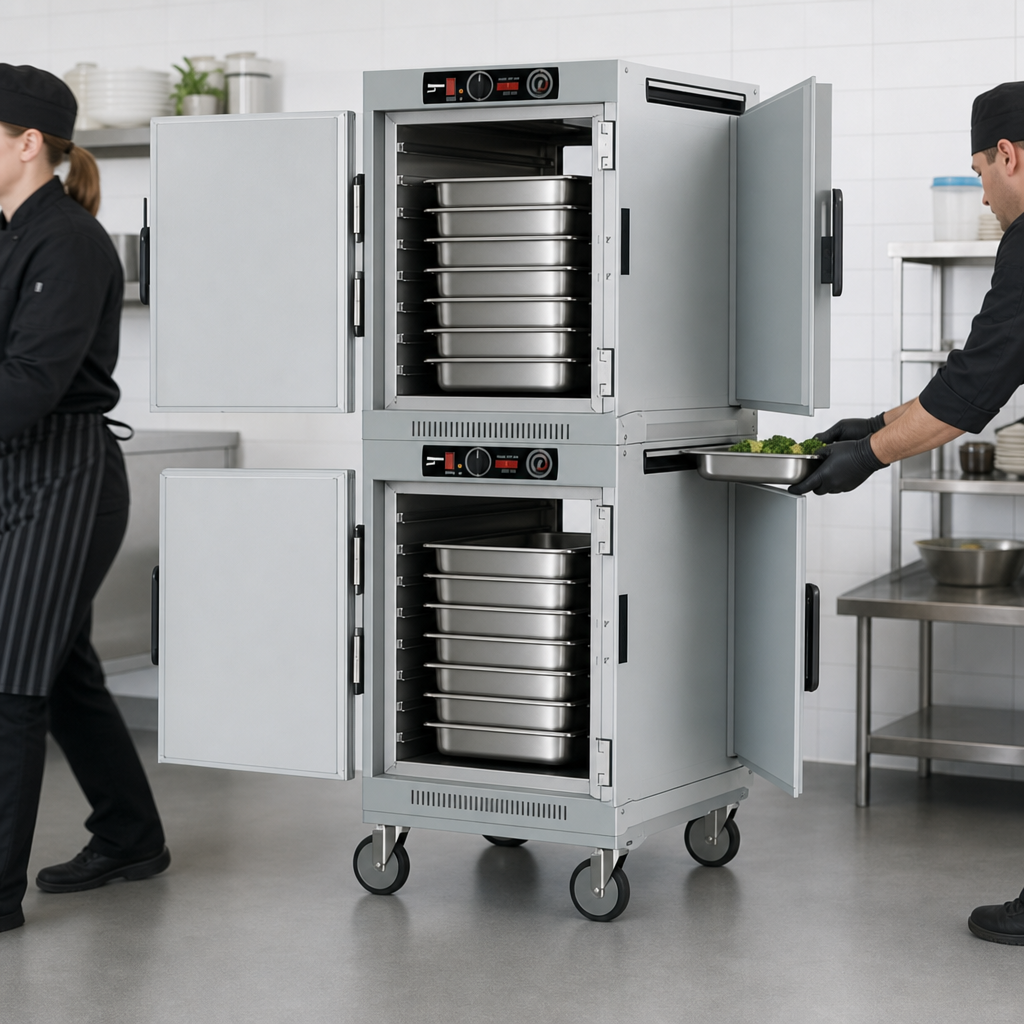

Dual-Cavity Pass-Thru Design

Pass-thru access from both sides supports efficient loading and serving flow.

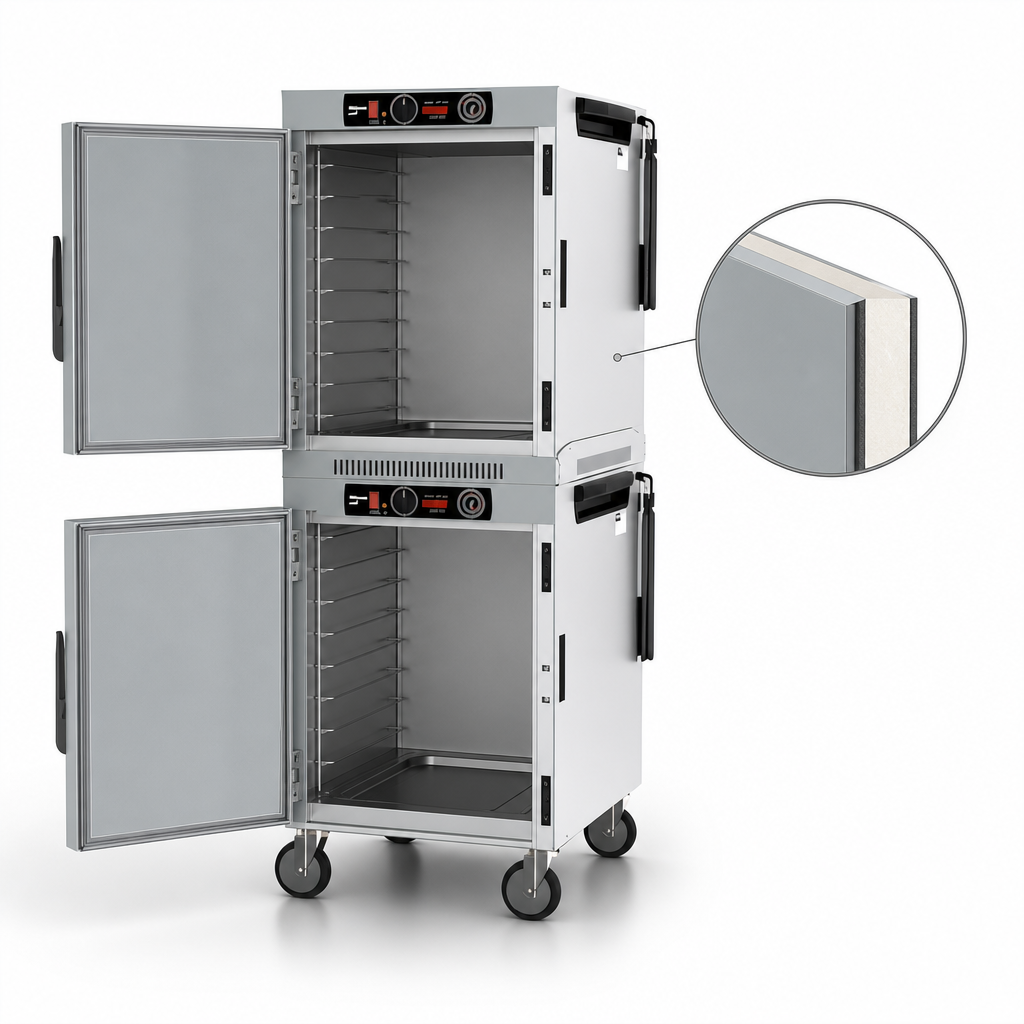

Solid Insulated Doors

Solid front and rear doors improve energy efficiency and cabinet rigidity.

Analog Control

Electro-mechanical thermostat and always-on thermometer provide simple, transport-friendly operation.

Hybrid Convection/Radiant Heat

Thermostatically controlled hybrid heating helps hold foods crisp or moist as needed.

Wide Pan Compatibility

Designed to hold 12x20/GN, 18x26, and 13x18 pans.

Aluminum Construction

.063 in. aluminum body with high-density fiberglass insulation for durable heat retention.

Fresh-Air Intake Vents

Adjustable door vents help manage humidity and support food texture.

Mobile Casters

Dual-cavity cabinets are supplied with casters for mobility.

Power Configuration

Uses two 120V, 60Hz, 875W circuits with 6-foot cords and NEMA 5-15P plugs.

Temperature Range

Holding range is 90°F to 190°F.

Made in USA

The sell sheet notes that the cabinet is made in the USA.

Type Insulated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Controls Analog
Compartments 2
Pan Capacity 16 Pans
Temperature Range 90°F to 190°F
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 875 Watts Per Cavity
Plug Type NEMA 5-15P x2
Cord Length 6 Feet
Material Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 25 Inches
Shipping Depth 33 Inches
Shipping Height 67 Inches
Shipping Weight 258.63 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF User manual PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

It is designed for 12x20/GN pans, 18x26 pans, and 13x18 pans; capacity varies by pan size and slide configuration.
Yes. The hybrid convection/radiant heating system is designed to hold both moist and crispy foods.
The cabinet uses two 120V, 60Hz, 875W circuits with NEMA 5-15P plugs and 6-foot cords.
The holding temperature range is 90°F to 190°F.
Yes. It is a pass-thru cabinet with solid front and rear doors.
Yes. The sell sheet identifies this cabinet as made in the USA.
