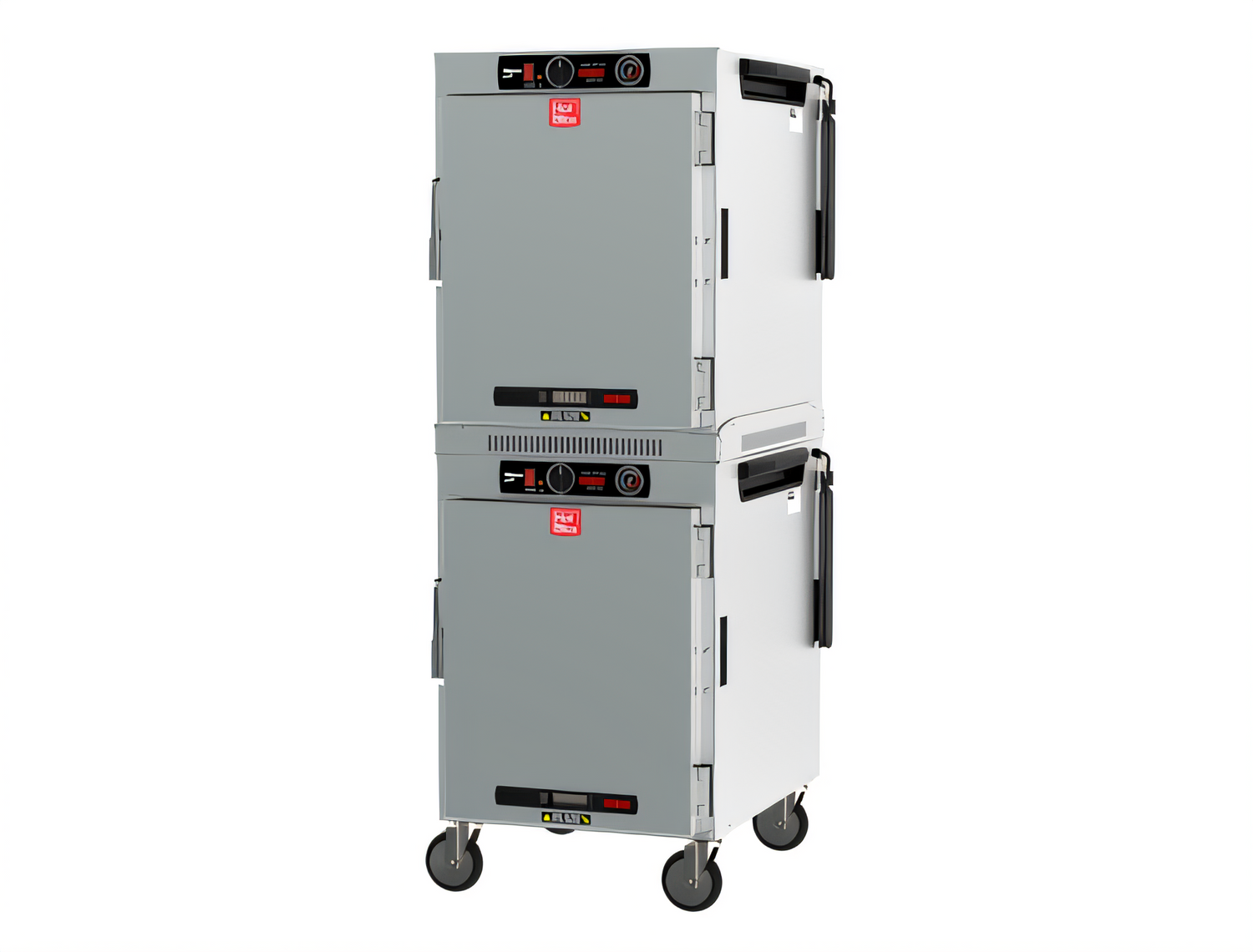

Metro HotBlox™ Wide 16-Pan Pass-Thru Dual-Cavity Mobile Insulated Holding Cabinet, Analog Control

SKU: HBCW16-ASPC-M
GTIN: 0-41105-03716-4
$6,165.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro HotBlox™ Wide 16-Pan Pass-Thru Dual-Cavity Mobile Insulated Holding Cabinet, Analog Control

Solid Front Door / Clear Rear Door, 120V

A space-saving pass-thru holding cabinet that gives you dual-cavity capacity, simple analog control, and front/back access for efficient hot holding.

  • Wide 16-pan dual-cavity format provides more holding capacity in one mobile footprint.

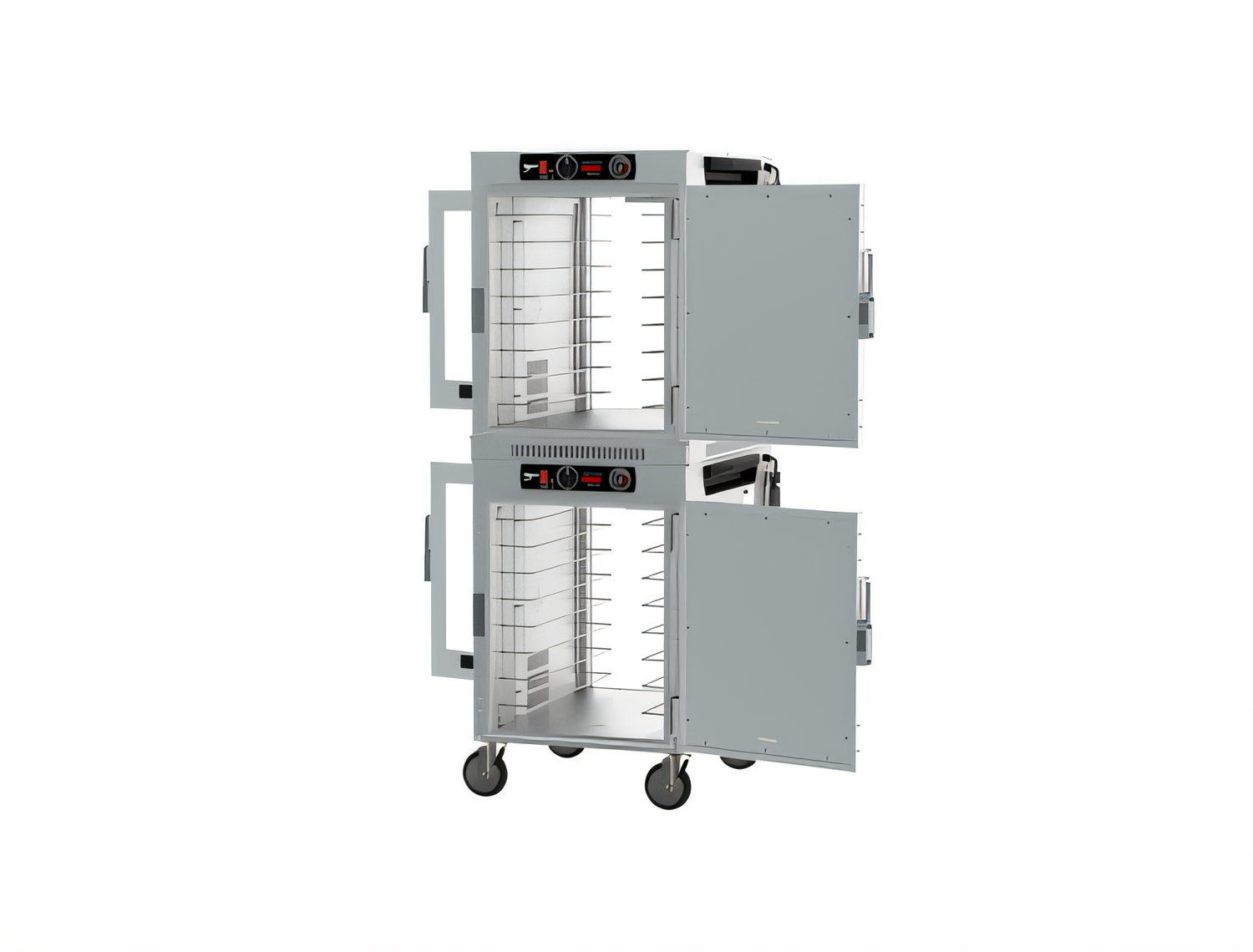

  • Pass-thru layout with a solid front door and clear rear door streamlines loading and product visibility.
  • Analog electro-mechanical control keeps operation simple and dependable.
  • Hybrid convection/radiant heat helps hold both crispy and moist foods.
  • Aluminum body with fiberglass insulation improves heat retention and cabinet rigidity.
  • Dual-cavity units use 120V power with two NEMA 5-15P cords and 5-inch neoprene casters.

Overall Dimensions:

25.0"W x 32.2"D x 66.7"H

Product Weight:

252.67 lb

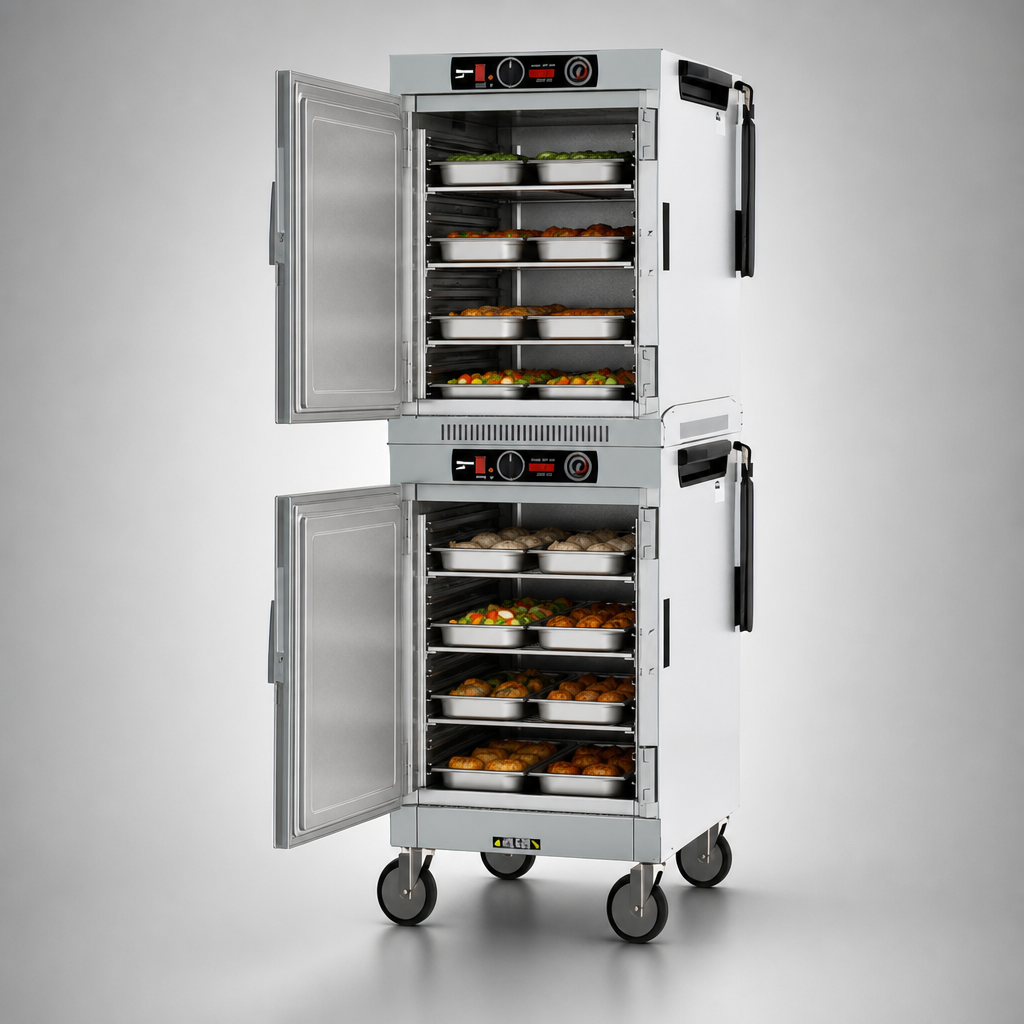

Dual-Cavity Wide Format

Two stacked wide cavities provide 16-pan capacity in a single cabinet footprint.

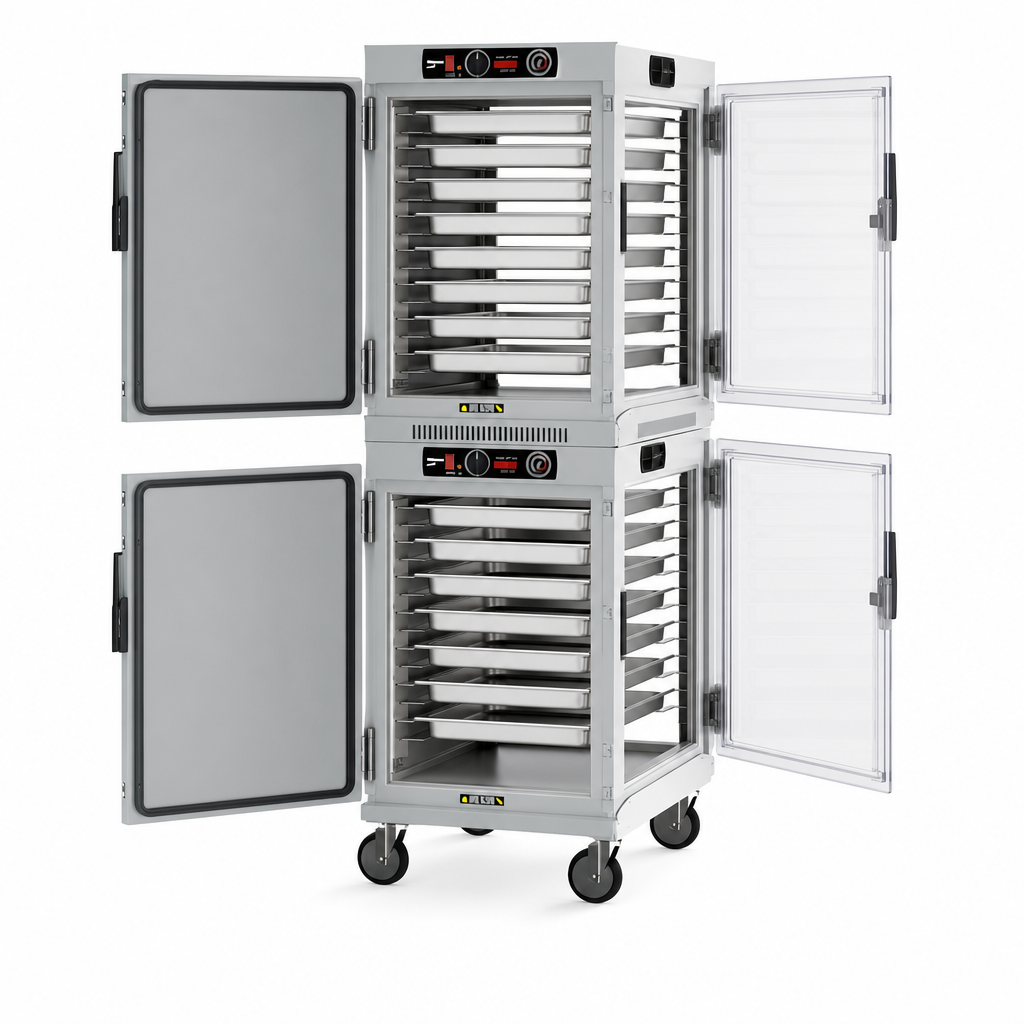

Pass-Thru Door Configuration

Solid insulated front door and clear polycarbonate rear door support workflow from both sides and make contents easy to view.

Analog Control

Electro-mechanical thermostat and always-on thermometer offer straightforward operation for hot-holding applications.

Hybrid Convection/Radiant Heating

A circulating fan, ducted air circulation, and under-floor radiant element help hold crispy or moist foods in the same cabinet.

Insulated Aluminum Construction

.063-inch aluminum body with high-density fiberglass insulation improves heat retention and cabinet rigidity.

Sealing Door Hardware

Magnetic latch, adjustable fresh-air intake vent, and removable high-temperature Santoprene gaskets help maintain a tight seal.

Mobile Base

Dual-cavity cabinets are supplied with 5-inch neoprene casters for easier positioning and transport.

Type Insulated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Controls Analog
Compartments 2
Pan Capacity 16 Pans
Pan Size 12 x 20 x 2.5 GN Pans / 18 x 26 Sheet Pans / 13 x 18 Pans
Temperature Range 90°F to 190°F
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 1.75 kW
Plug Type NEMA 5-15P
Cord Length 6 Feet
Material Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 25 Inches
Shipping Depth 33 Inches
Shipping Height 67 Inches
Shipping Weight 252.67 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF User manual PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

It is designed to hold 12 x 20 x 2.5 GN pans, 18 x 26 sheet pans, and 13 x 18 pans.
Yes. It has a solid front door and a clear rear door for pass-thru access.
It uses 120V, 60Hz, single-phase power. The dual-cavity setup uses two 6-foot cords with NEMA 5-15P plugs and draws 1.75 kW total.
The cabinet maintains temperatures from 90°F to 190°F.
Yes. The hybrid convection/radiant heating system and built-in venting are designed to help hold both crispy and moist foods.
Yes. Dual-cavity cabinets are supplied with 5-inch neoprene casters.
