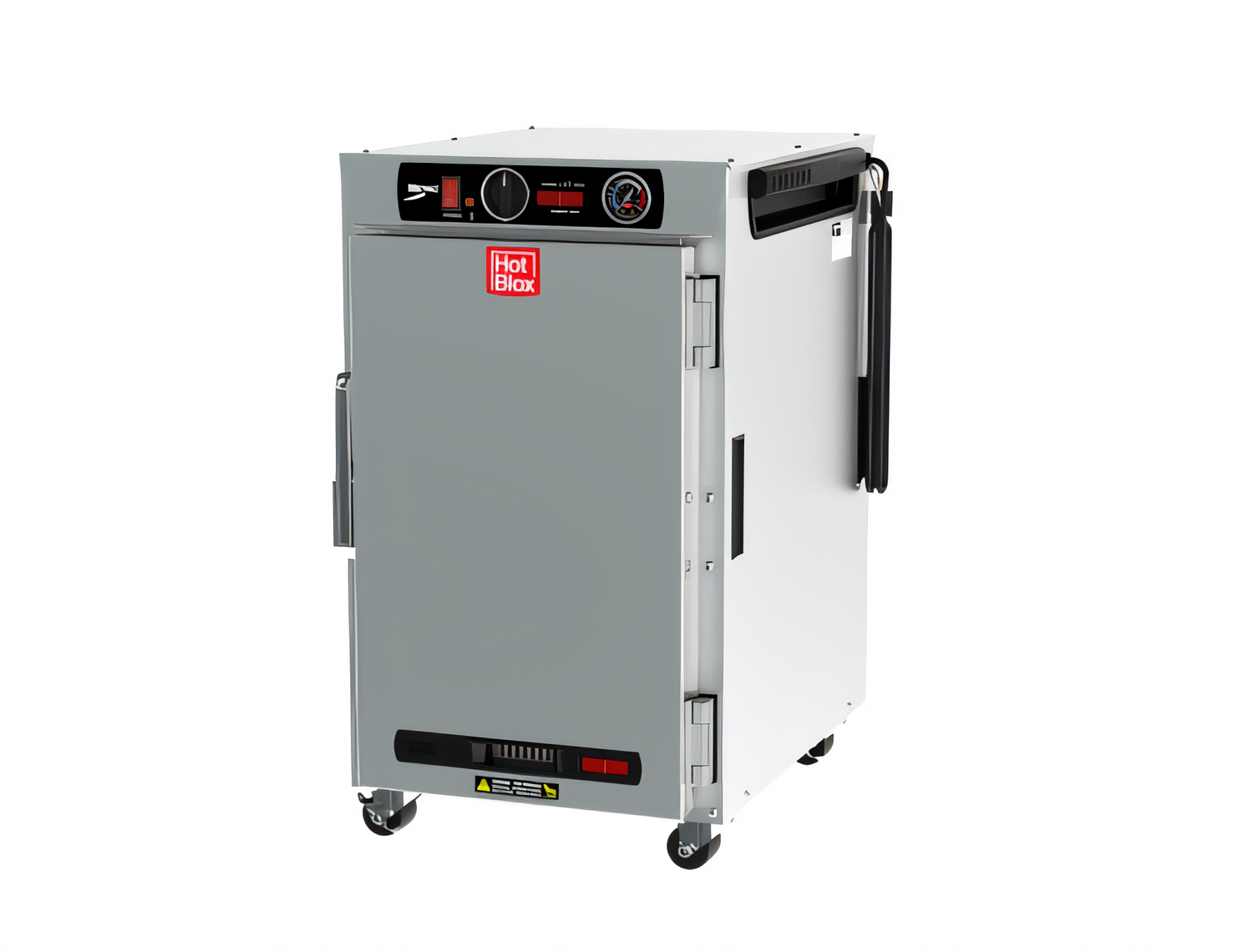

Metro HotBlox™ Narrow 8-Pan Pass-Thru Undercounter Heated Holding Cabinet with Solid Front & Rear Doors

SKU: HBCN8-ASPS-UC
GTIN: 0-41105-03592-4
$2,929.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro HotBlox™ Narrow 8-Pan Pass-Thru Undercounter Heated Holding Cabinet with Solid Front & Rear Doors

Analog Control, 120V, 875W

Keep hot foods ready in tight spaces with this narrow undercounter pass-thru cabinet featuring hybrid convection/radiant heat and simple analog controls.

  • Undercounter pass-thru design supports efficient back-of-house to front-of-house service.
  • Narrow 20-inch footprint fits tight spaces without sacrificing holding capacity.
  • Hybrid convection/radiant heat helps hold both crispy and moist foods.
  • Solid insulated front and rear doors improve energy efficiency and access.
  • Analog thermostat with always-on thermometer offers straightforward operation.
  • Compatible with universal pan sizes, including 12x20/GN and 13x18 pans.
  • 120V, 875W operation with included cord and NEMA 5-15P plug.

Overall Dimensions:

20.0"W x 27.2"D x 31.9"H

Product Weight:

130.31 lb

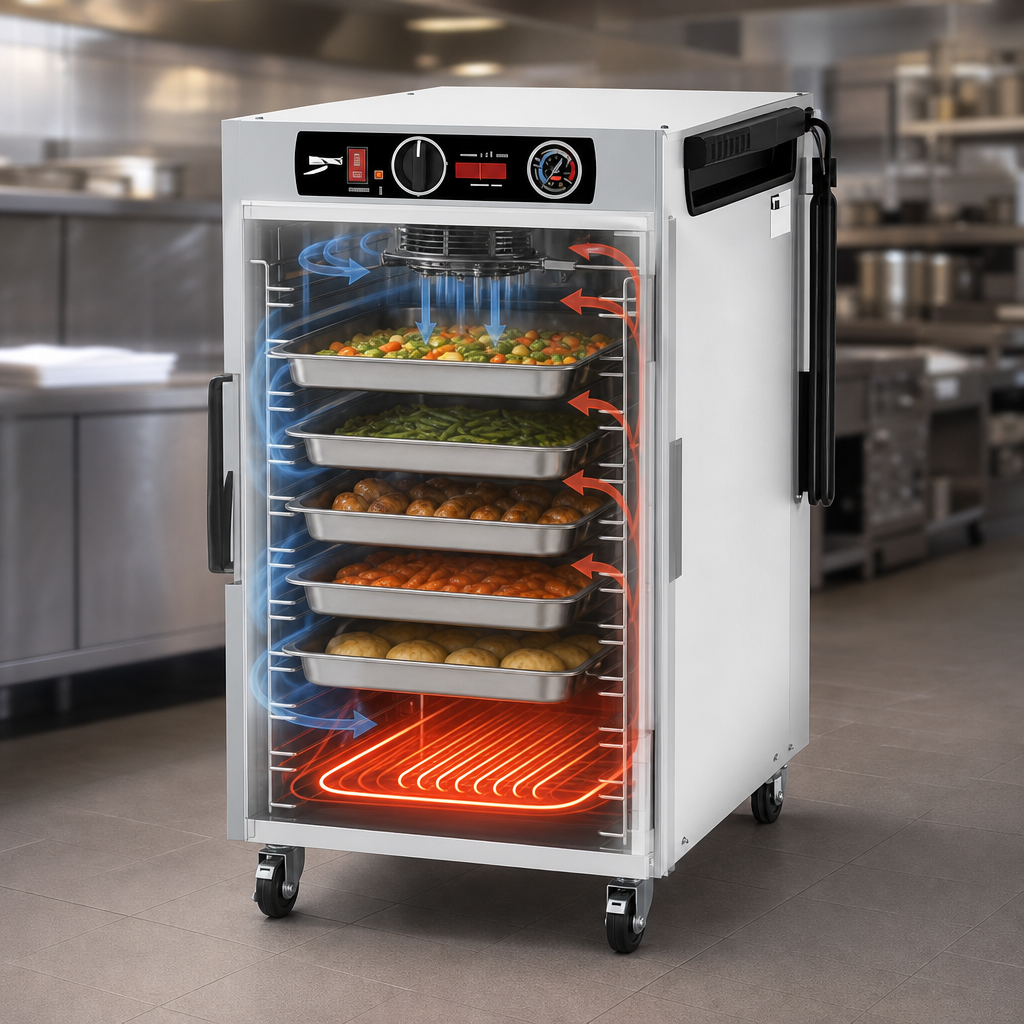

Hybrid Convection/Radiant Heating

Thermostatically controlled system combines a circulating fan, ducted air circulation, a 675W heating element, and a 200W radiant floor element to help maintain food quality.

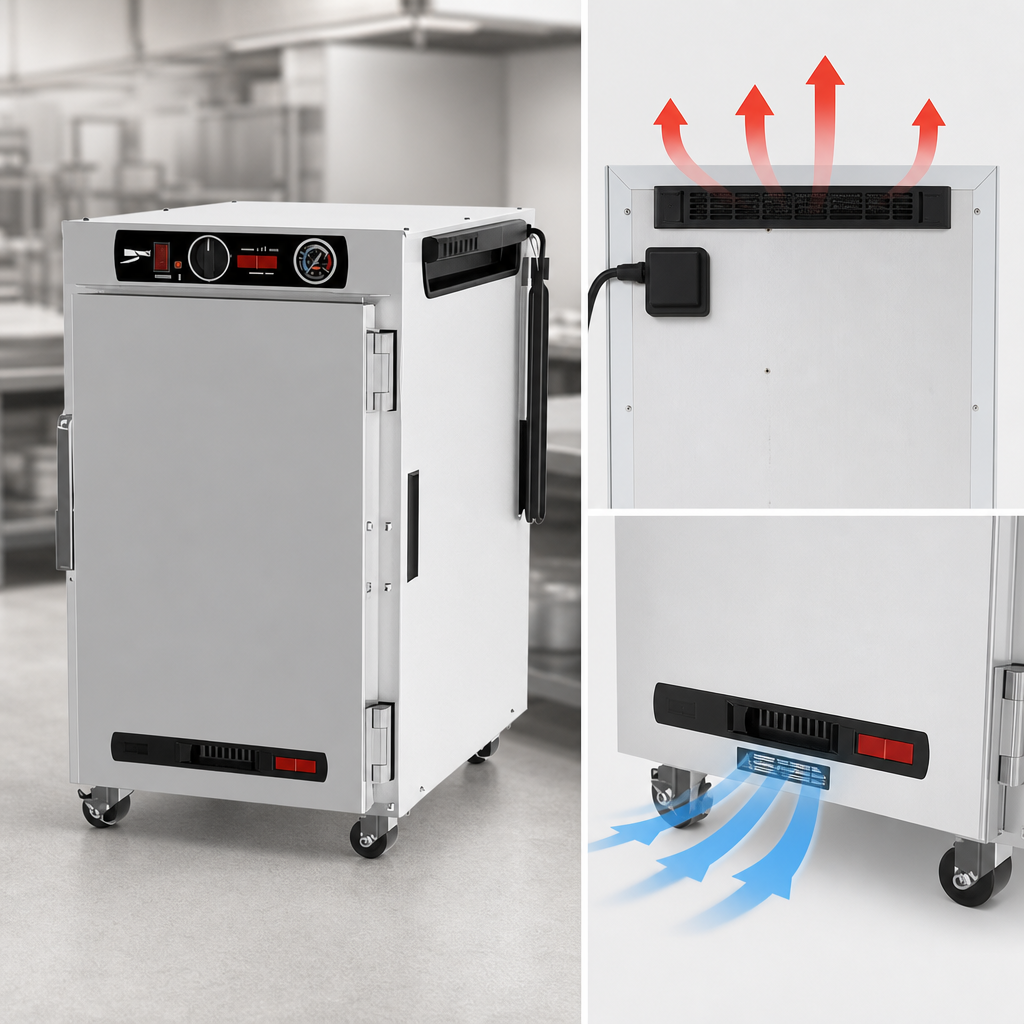

Built-In Humidity Venting

Rear venting releases humidity while the door vent intakes dry replacement air to help support crisp holding results.

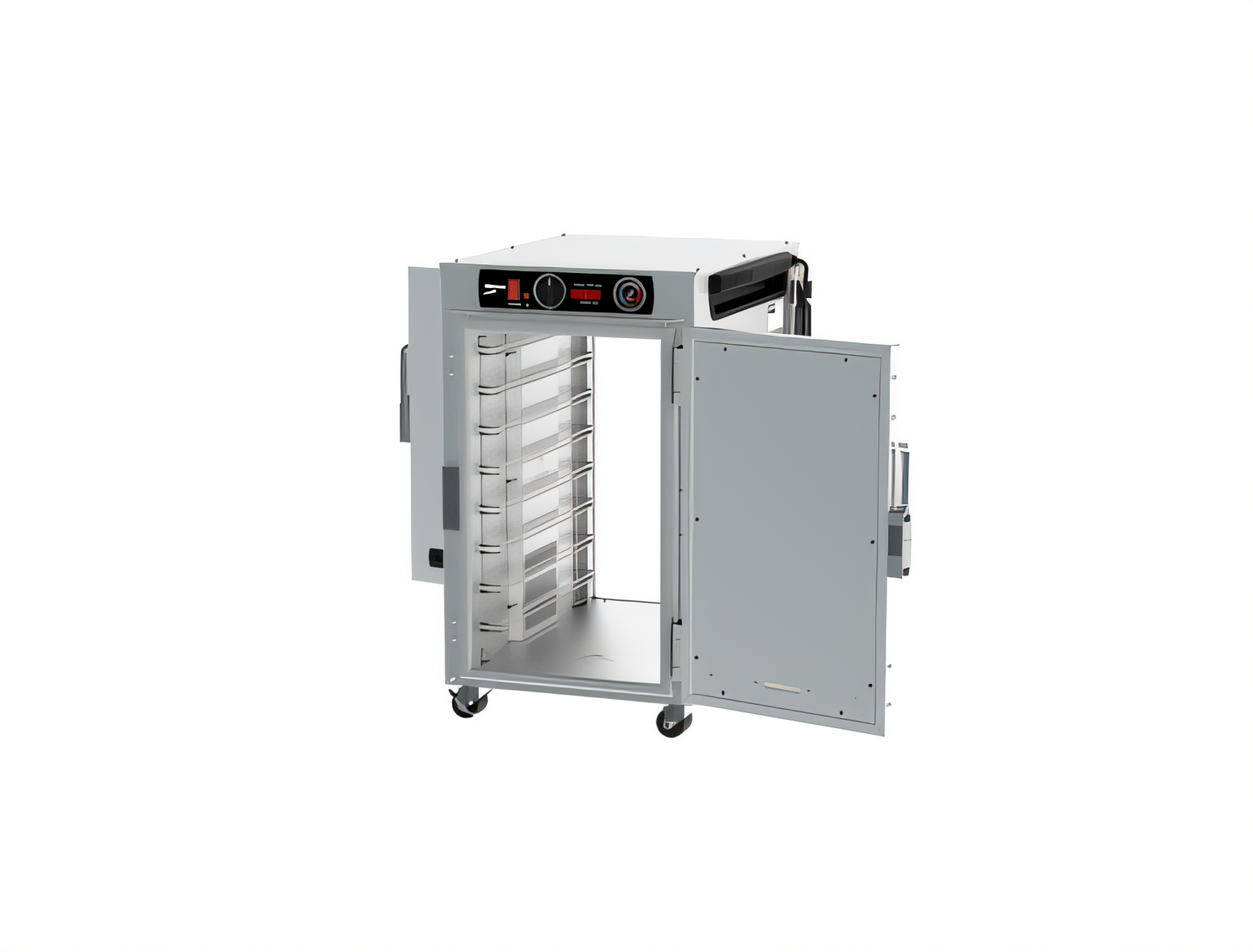

Pass-Thru Solid Door Design

Solid front and rear insulated doors support pass-through service and help improve energy efficiency.

Analog Control Package

Electro-mechanical thermostat and always-on thermometer provide simple, cost-effective temperature control.

Narrow Undercounter Footprint

The compact 20-inch-wide design is built to fit under counters and in narrow service areas.

Universal Pan Compatibility

N8 pass-thru configuration is designed for 12x20/GN and 13x18 pans, with 8-pan capacity for the cabinet family.

Durable Cabinet Construction

.063-inch aluminum body with high-density fiberglass insulation helps provide durability and heat retention.

Easy Electrical Connection

120V operation with a 6-foot cord and NEMA 5-15P plug simplifies installation.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Undercounter
Compartments 1
Pan Size Universal
Pan Capacity 8 Pans
Controls Analog
Material Aluminum
Voltage 120 Volts
Watts 875 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Country of Origin USA
Shipping Width 20 Inches
Shipping Depth 28 Inches
Shipping Height 32 Inches
Shipping Weight 130.31 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF User manual PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

The narrow 8-pan pass-thru cabinet is designed for 12x20/GN and 13x18 pans.
Yes. This model has solid front and rear doors for pass-through access.
It operates on 120V, 60Hz, single-phase power and uses 875 watts with a NEMA 5-15P plug.
Yes. The hybrid convection/radiant heating system and venting are designed to help hold either food style.
This model uses analog controls with an electro-mechanical thermostat and an always-on thermometer.
Maintain 1.5 inches on the sides and back, and at least 1 inch of space under the cabinet to the countertop surface.
