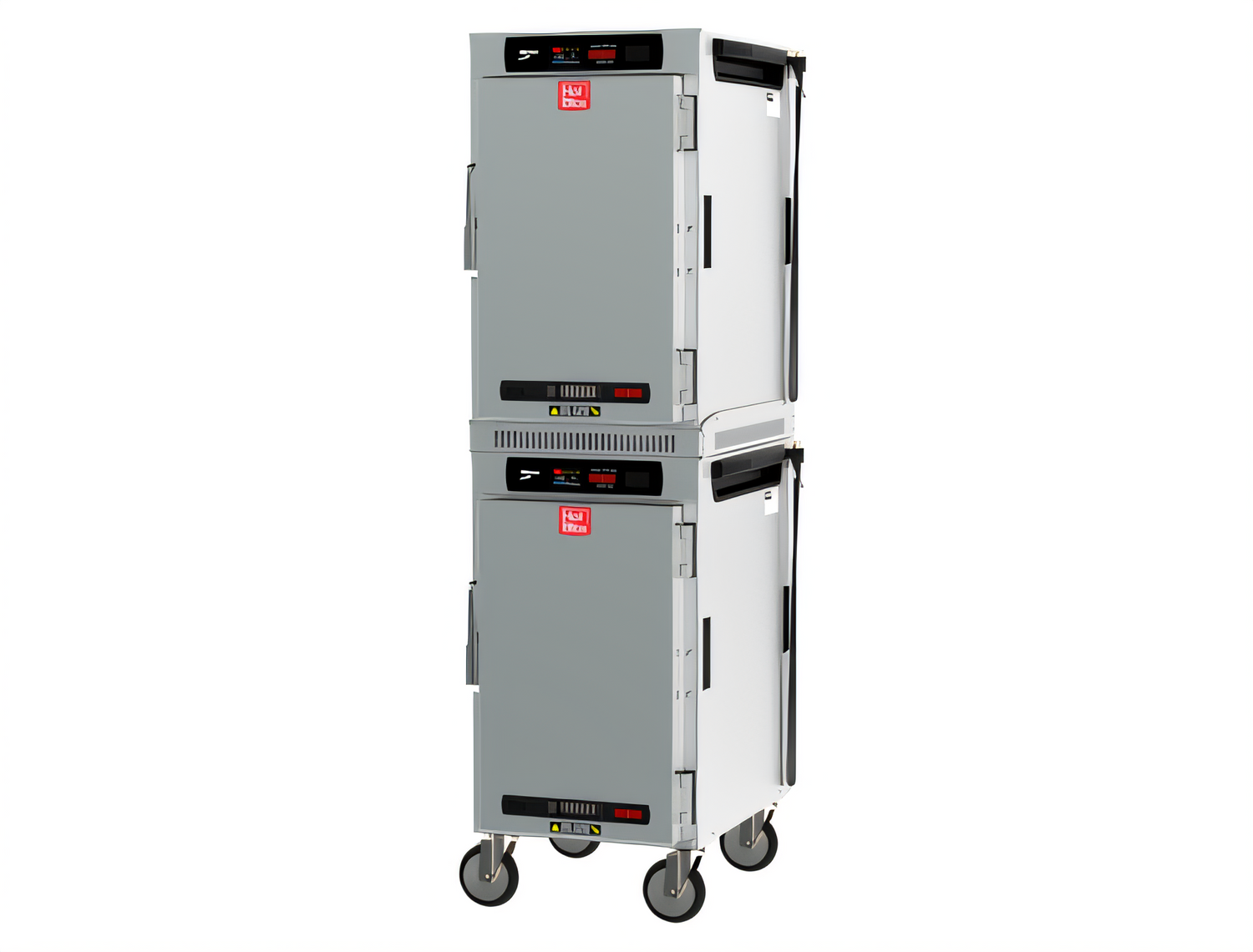

Metro HotBlox Narrow Mobile Pass-Thru Insulated Holding Cabinet, 16 Pan, Dual-Cavity, Digital Touchscreen, Solid Front and Rear Doors

SKU: HBCN16-DSPS-M
GTIN: 0-41105-03664-8
$6,876.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro HotBlox Narrow Mobile Pass-Thru Insulated Holding Cabinet, 16 Pan, Dual-Cavity, Digital Touchscreen, Solid Front and Rear Doors

Narrow Footprint, Mobile Casters, 120V Dual-Cord Operation

Give busy service lines two-sided access to hot food with a narrow, dual-cavity cabinet that balances temperature and humidity for consistent holding.

  • Dual-cavity pass-thru design keeps hot food accessible from both front and rear.
  • Digital touchscreen control displays humidity and supports programmable timers, FIFO, and USB HACCP data logging.
  • Hybrid convection-radiant heat helps hold crispy or moist foods in the same cabinet.
  • Narrow 20-inch footprint and mobile casters fit tighter spaces without sacrificing capacity.
  • Solid insulated doors and aluminum construction support durability and energy efficiency.

Overall Dimensions:

20.0"W x 27.2"D x 66.7"H

Product Weight:

216.33 lb

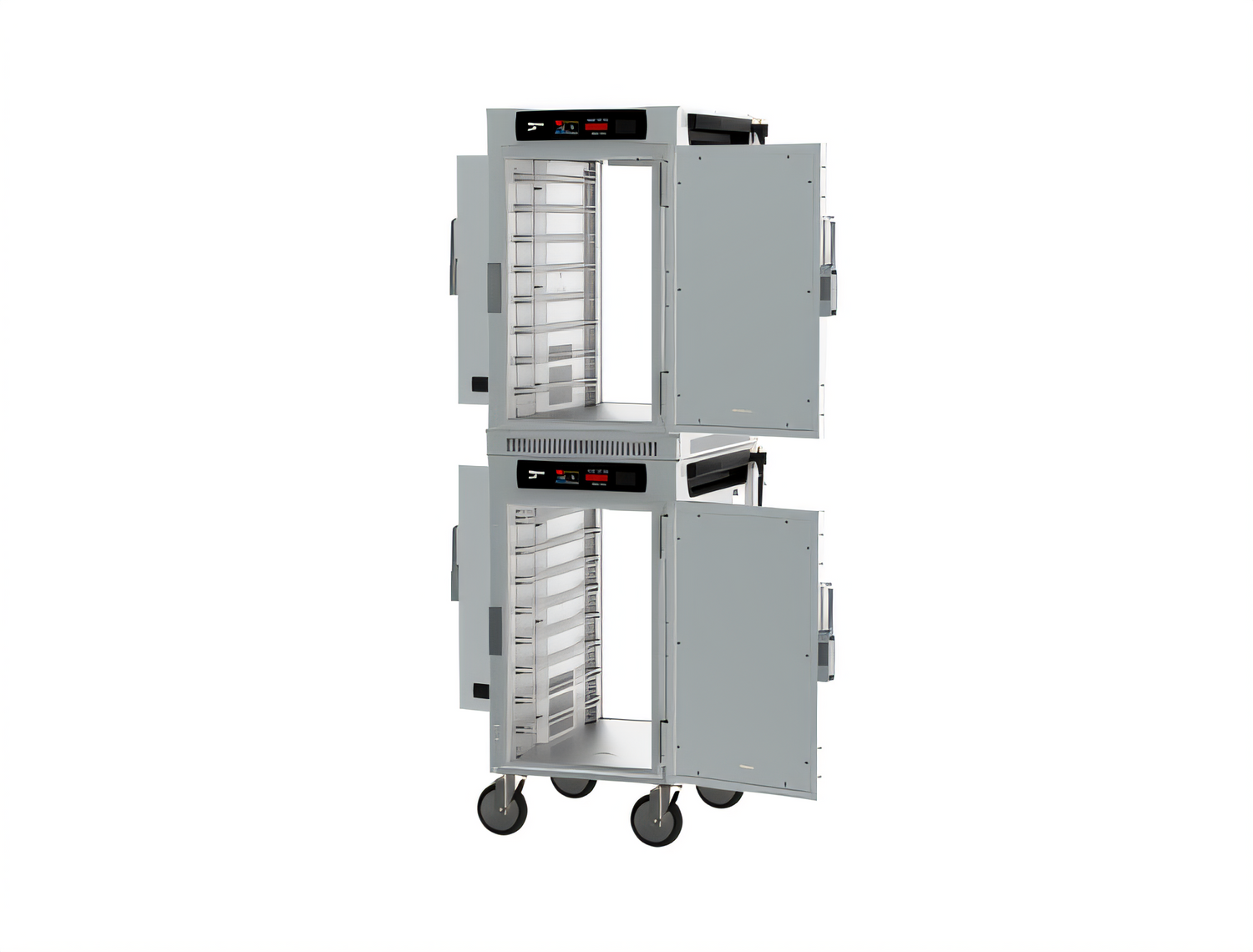

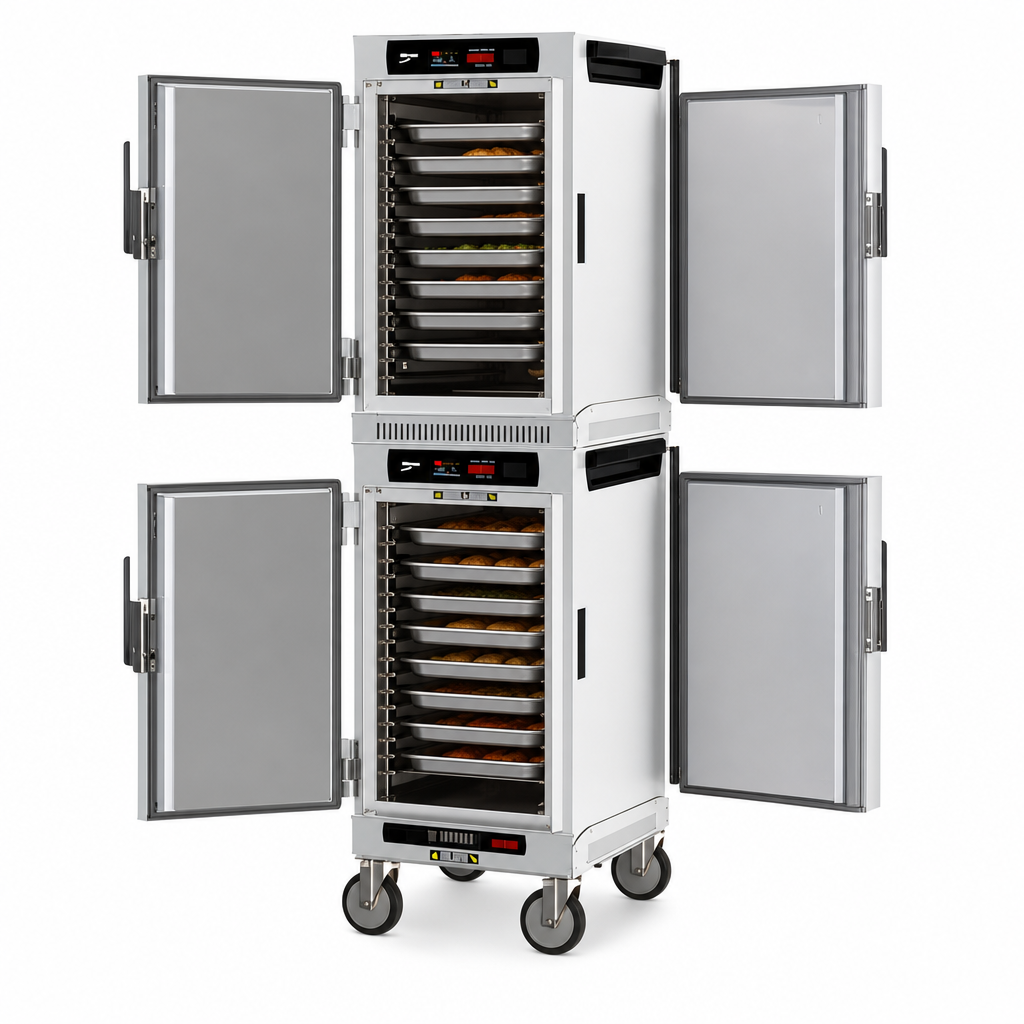

Dual-Cavity Pass-Thru Layout

Two-sided access supports faster loading and service while keeping product organized across two stacked cavities.

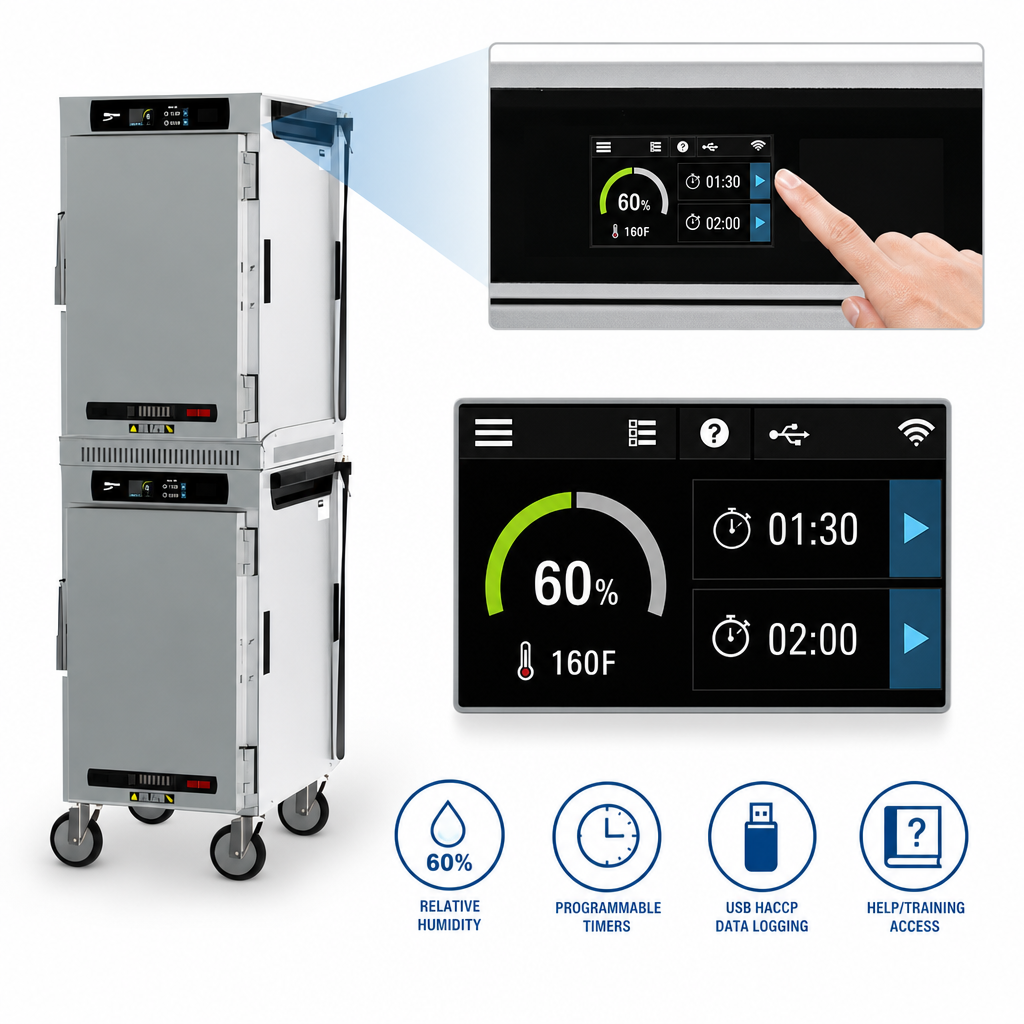

Digital Touchscreen Controller

Displays relative humidity and includes programmable timers, FIFO support, USB HACCP data logging, and help/training access.

Hybrid Convection/Radiant Heating

Uses circulating hot air and radiant floor heat to help hold crisp or moist foods in the same cabinet.

Built-In Humidity Management

Rear venting exhausts moist air while door vents bring in dry replacement air to help maintain food quality.

Solid Insulated Doors

Solid front and rear doors improve rigidity and energy efficiency.

Mobile Casters

Dual-cavity cabinets are supplied with 5-inch neoprene casters for mobility.

Aluminum Body with Fiberglass Insulation

Durable aluminum construction with high-density fiberglass insulation helps retain heat and support commercial use.

Hot Food Holding Range

Designed for hot food holding applications with a temperature range of 90°F to 190°F.

Type Insulated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Compartments 2
Capacity 16 Pans
Controls Digital Touchscreen
Temperature Range 90°F to 190°F
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Watts 1.75 kW
Cord Length 6 Feet
Material Aluminum
Country of Origin USA
Shipping Width 20 Inches
Shipping Depth 28 Inches
Shipping Height 67 Inches
Shipping Weight 216.33 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF User manual PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

The HotBlox line is designed for 12x20/GN and 13x18 pans, with capacity varying by slide configuration.
The digital control displays relative humidity, and the cabinet uses built-in venting; placing a pan of water on the floor can also help add moisture.
This cabinet is designed for a holding range of 90°F to 190°F.
It uses 120V, 60Hz power with 875 watts per cavity, NEMA 5-15P plugs, and dual-cavity units use two power cords.
Yes, the documentation states that it is made in the USA.
