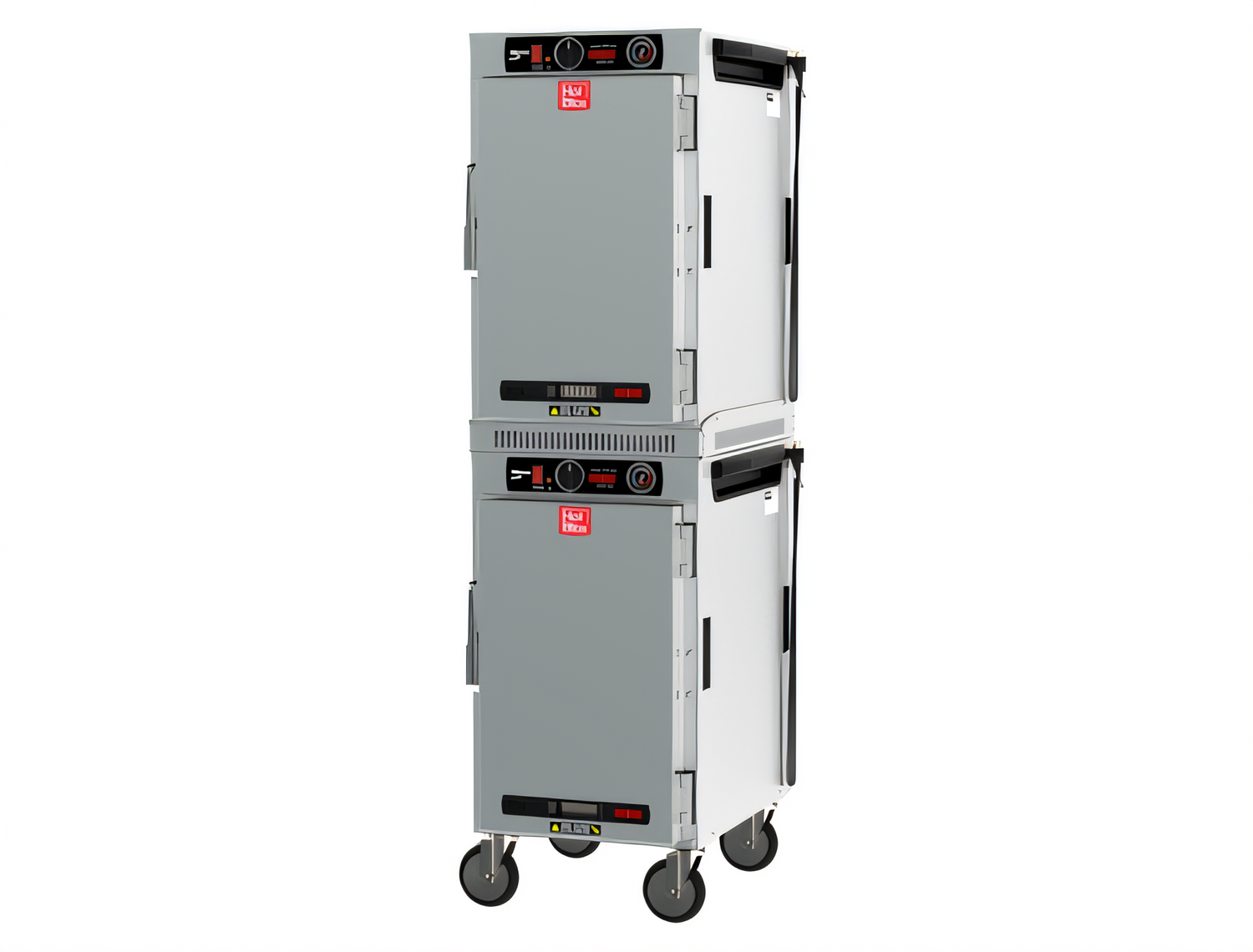

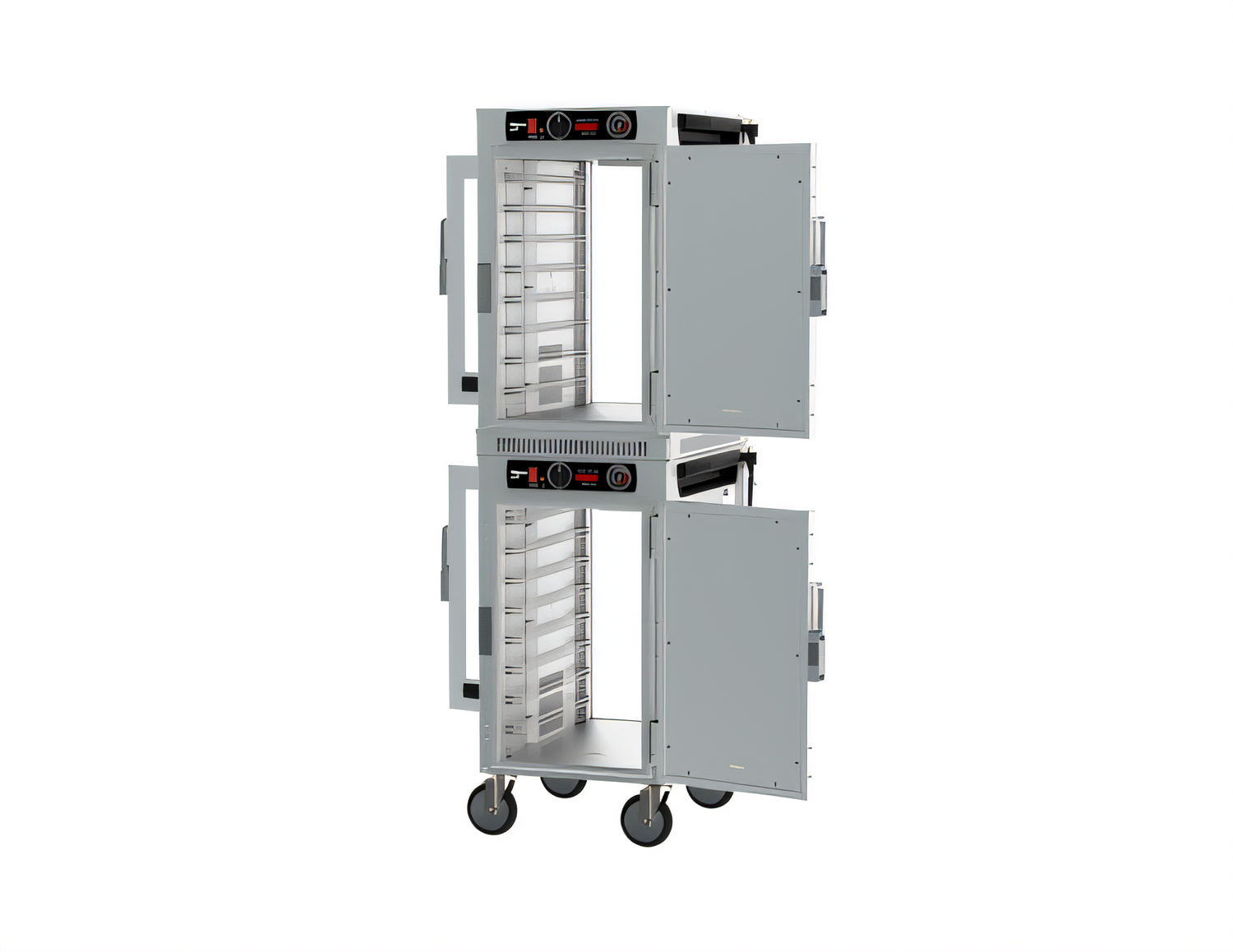

Metro HotBlox™ Narrow Mobile Dual-Cavity Pass-Thru Insulated Holding Cabinet, 16-Pan, Analog, Solid Front / Clear Rear Doors

SKU: HBCN16-ASPC-M
GTIN: 0-41105-03652-5
$5,691.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro HotBlox™ Narrow Mobile Dual-Cavity Pass-Thru Insulated Holding Cabinet, 16-Pan, Analog, Solid Front / Clear Rear Doors

2 x 120V, 60Hz, 1750W total, NEMA 5-15P, Made in USA

Keep hot foods crisp or moist in a compact pass-thru cabinet that uses hybrid convection-radiant heat and dual-door access for efficient loading from either side.

  • Dual-cavity, pass-thru design speeds service with loading access from both the front and rear.
  • Hybrid convection-radiant heating helps hold crispy or moist foods in the same cabinet.
  • Narrow footprint is ideal for tight spaces while still offering 16-pan capacity.
  • Analog controller with an always-on thermometer keeps operation simple and transport-friendly.
  • Mobile caster base makes it easier to move, stage, and reposition the cabinet.
  • Insulated aluminum construction supports durability and better energy efficiency.

Overall Dimensions:

20.0"W x 27.2"D x 66.7"H

Product Weight:

212.35 lb

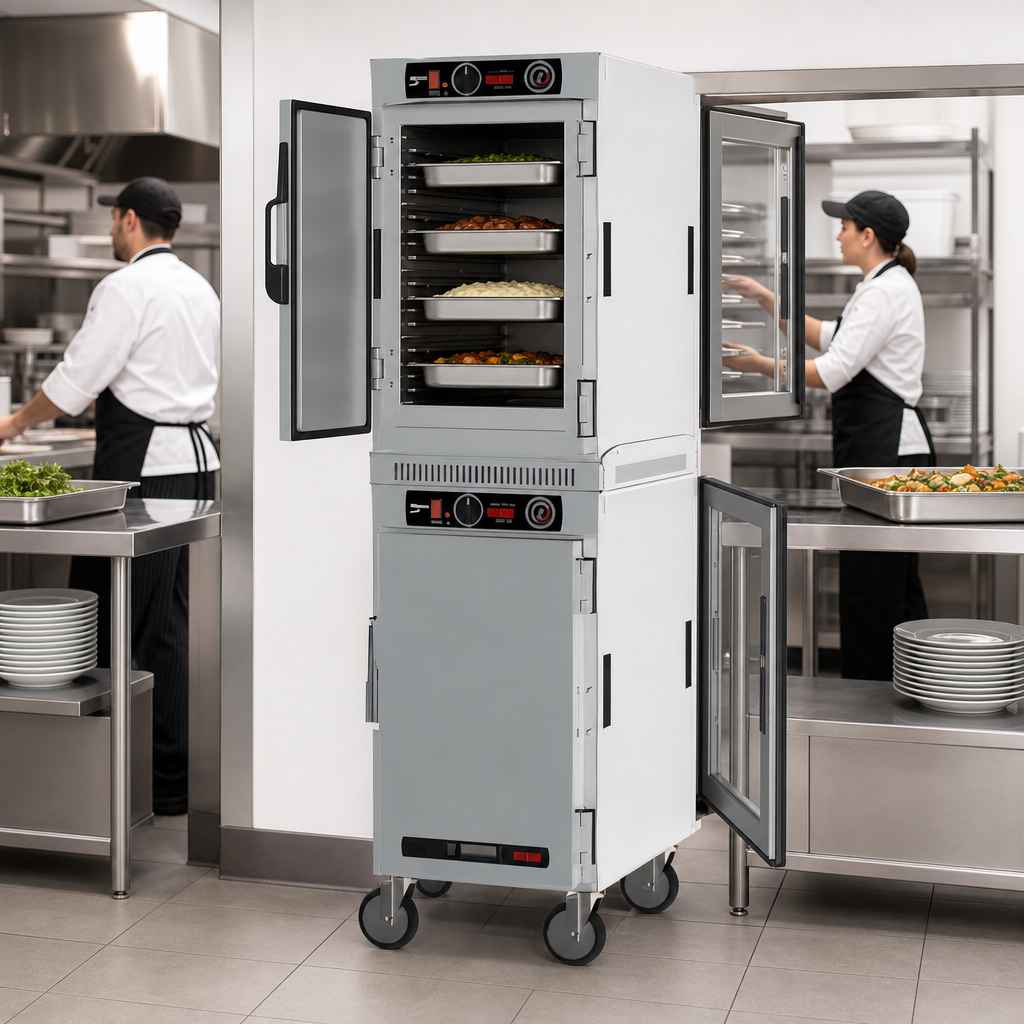

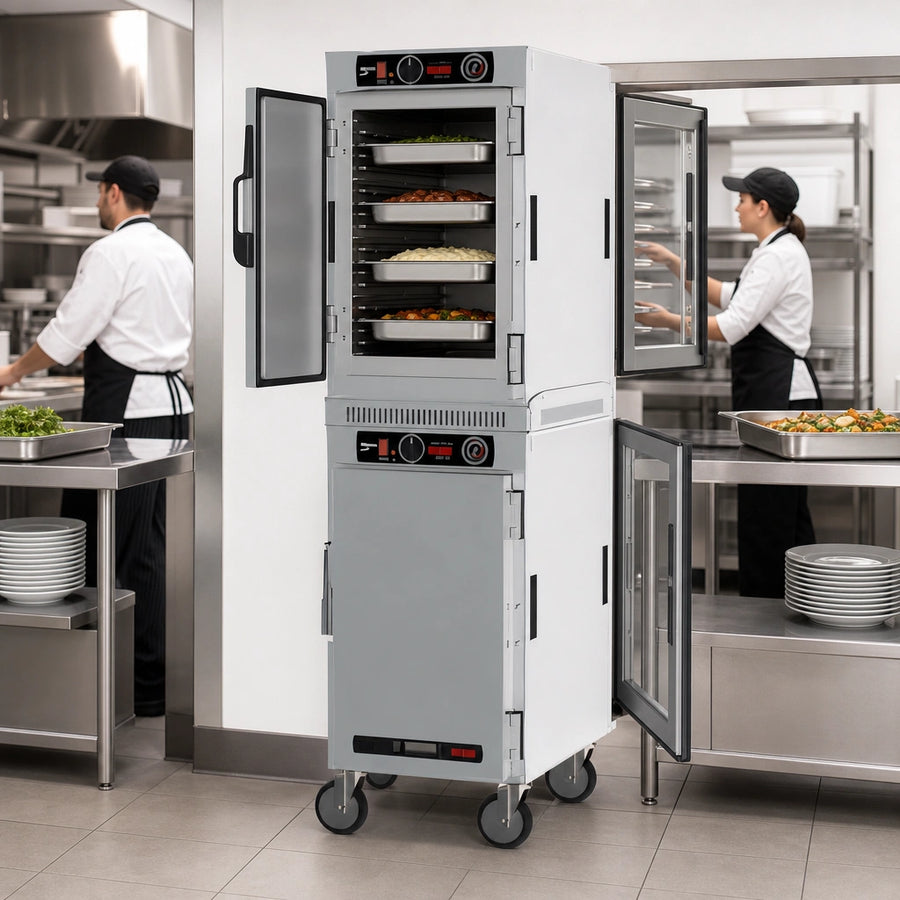

Pass-Thru Access

Front and rear doors make it easier to load, unload, and stage food in high-volume service areas.

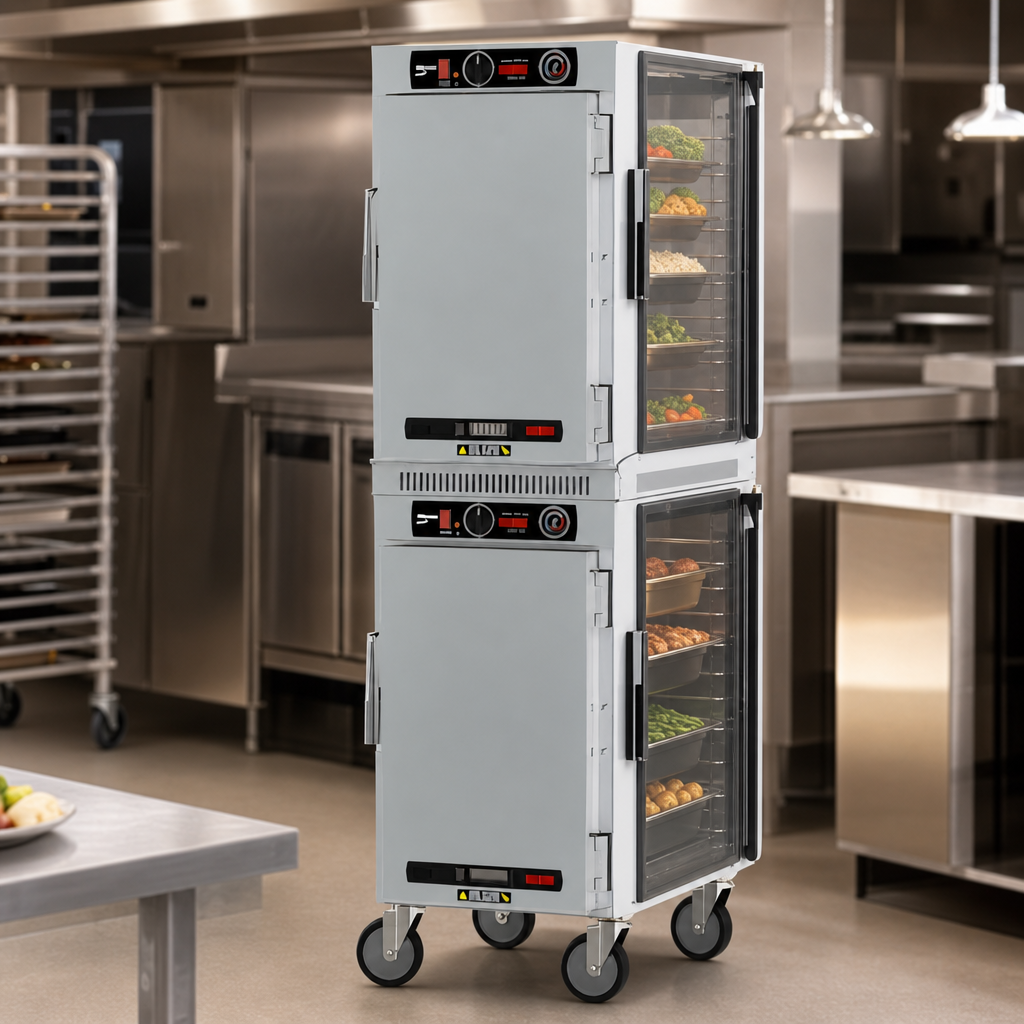

Solid Front / Clear Rear Doors

The solid insulated front door helps retain heat, while the clear rear polycarbonate door lets staff view contents quickly.

Hybrid Convection-Radiant Heating

Combines circulating convection heat with radiant floor heat to help hold both crispy and moist foods.

Humidity Management Venting

Built-in venting releases humidity through the rear vent while the door vent pulls in dry replacement air.

Analog Control

Electro-mechanical thermostat and always-on thermometer provide straightforward temperature control.

Mobile Cabinet Base

Dual-cavity units are supplied with neoprene casters for mobility.

Durable Insulated Construction

Built with a .063-inch aluminum body and high-density fiberglass insulation for strength and heat retention.

Pan Compatibility

Holds 12 x 20/GN and 13 x 18 pans, with dual-cavity capacity suited for higher-volume holding.

Type Insulated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Compartments 2
Pan Capacity 16 Pans
Controls Analog
Temperature Range 90°F to 190°F
Voltage 120 Volts
Watts 1750 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Material Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 28 Inches
Shipping Height 67 Inches
Shipping Weight 212.36 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF User manual PDF Download

Frequently Asked Questions

This dual-cavity model is listed at 16-pan capacity, with support for 12x20/GN and 13x18 pans.
It has a solid insulated front door and a clear rear door for visibility and pass-thru access.
It operates on 120V, 60Hz, single-phase power and uses NEMA 5-15P plugs. The dual-cavity setup totals 1750 watts.
Yes. The dual-cavity cabinet is supplied with neoprene casters for mobility.
The cabinet is designed for a 90°F to 190°F holding range.
This model uses an analog control with an electro-mechanical thermostat and always-on thermometer.
