Metro HotBlox Narrow 16-Pan Dual Cavity Mobile Heated Holding Cabinet, Analog, Solid Doors

Insulated aluminum construction, 120V dual-cord setup, 5-inch casters

A space-saving dual-cavity holding cabinet that keeps food hot and ready in a compact mobile footprint with simple analog controls and insulated solid doors.

  • Dual-cavity narrow design maximizes holding capacity without taking up a wide floor footprint.
  • Analog controls with an always-on thermometer make operation simple and transport-friendly.
  • Solid insulated doors help retain heat and improve cabinet rigidity.
  • Hybrid convection/radiant heating supports both moist and crispy holding applications.
  • Holds full- or half-size steam pans and half-size sheet pans for menu flexibility.
  • Ships mobile with 5-inch casters and two NEMA 5-15P power cords.

Overall Dimensions:

20.0"W x 25.6"D x 66.7"H

Product Weight:

205.22 lb

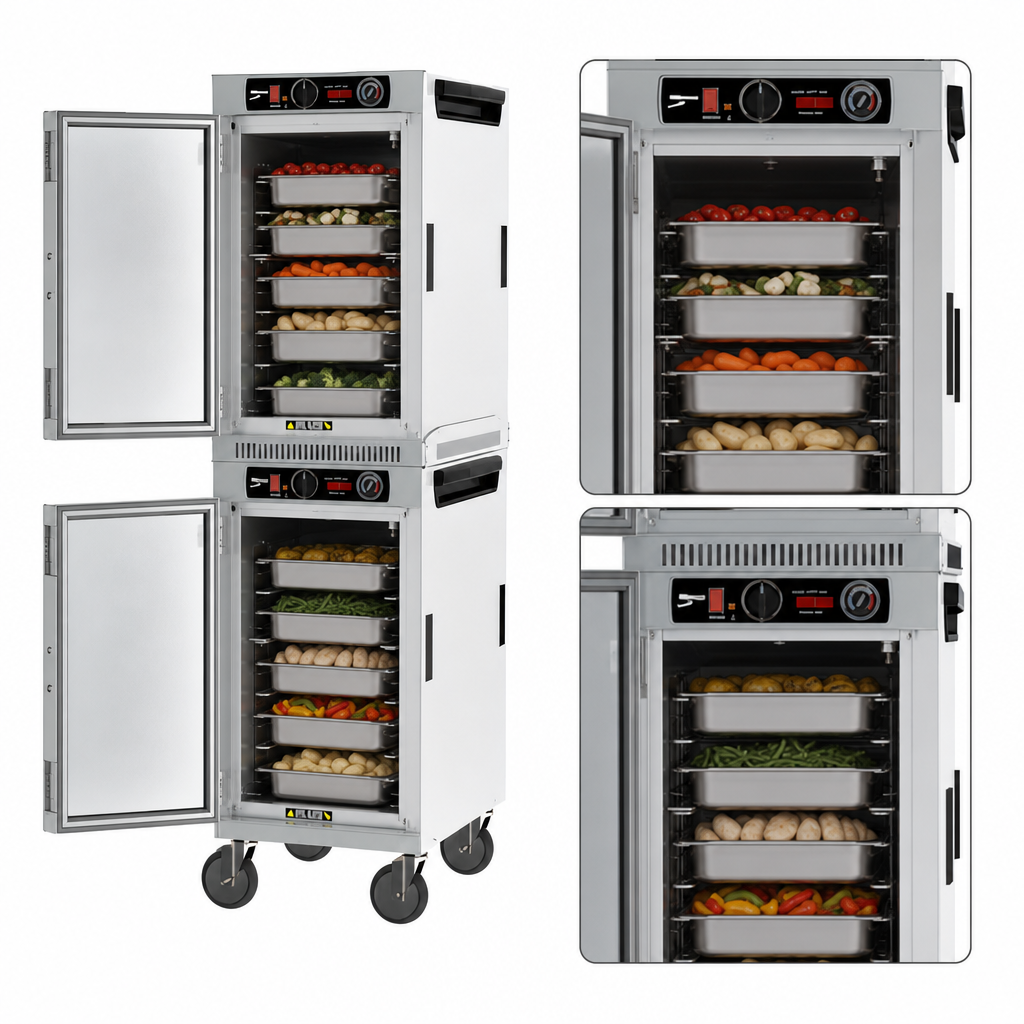

Dual Cavity Stacked Design

Two stacked narrow holding cavities provide added capacity in a compact 20-inch-wide footprint.

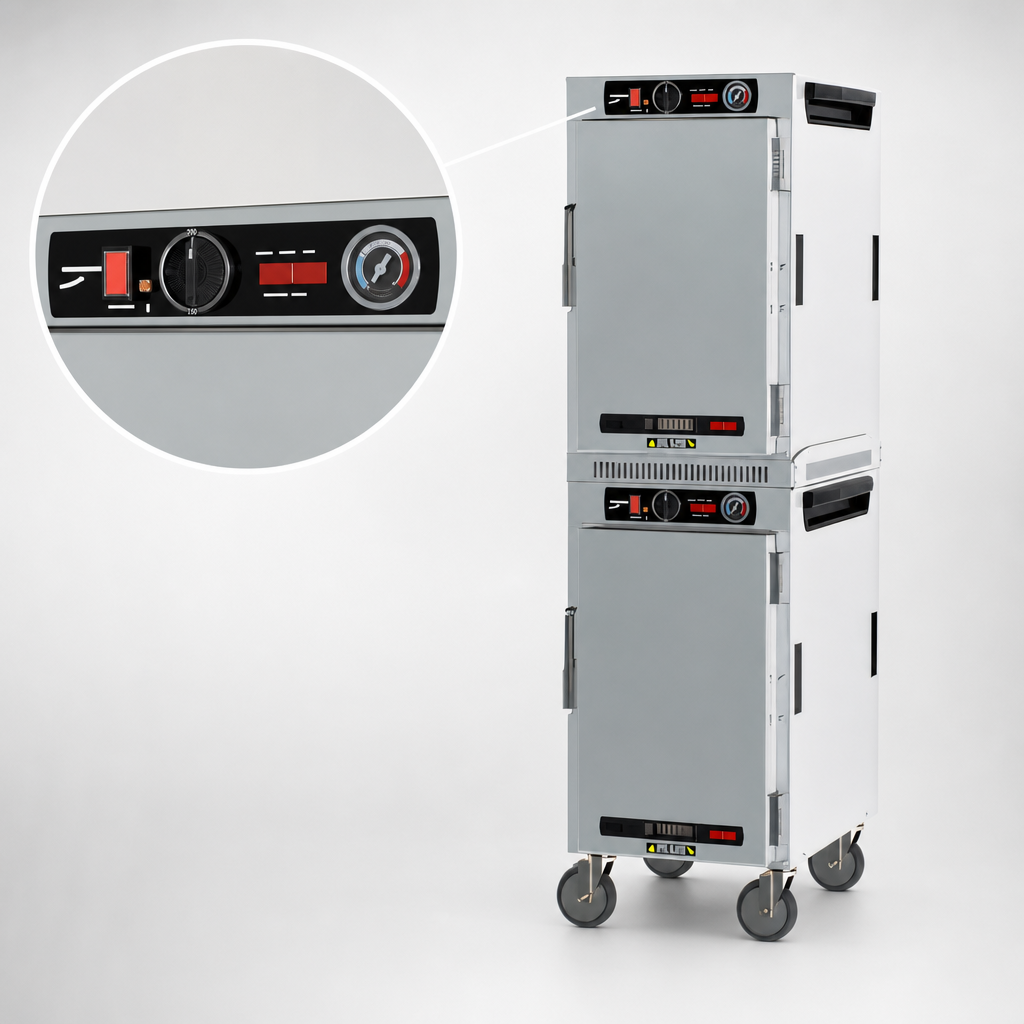

Analog Controls

Electro-mechanical thermostat and always-on thermometer offer simple, cost-effective operation.

Hybrid Convection/Radiant Heating

Uses a 675W heating element, circulating fan, ducted air circulation, and a 200W radiant floor element to help maintain food quality.

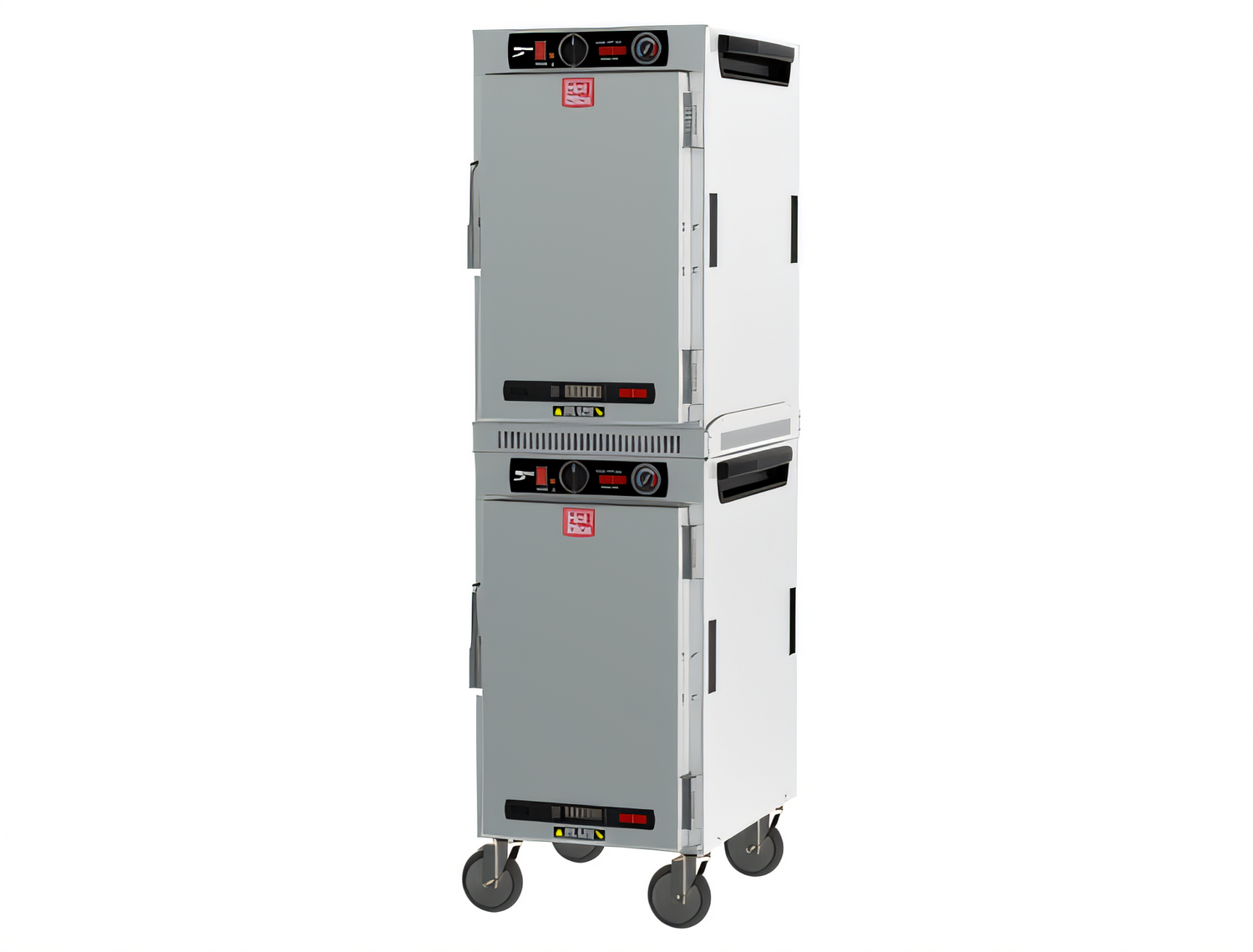

Insulated Solid Doors

Solid .063-inch aluminum doors are insulated with 1-inch fiberglass, include adjustable fresh-air intake vents, and swing 180° with field-reversible hinging.

Humidity Venting

Rear venting and door vent intake help manage moisture; a pan of water can be placed on the floor to add humidity when needed.

Aluminum Cabinet Construction

.063-inch aluminum body with high-density fiberglass insulation supports durable, energy-efficient holding.

Magnetic Door Latch and Gaskets

Flush-mounted chrome-plated magnetic latch and high-temperature cabinet-mounted Santoprene gaskets help maintain a secure seal.

Mobile Casters

5-inch neoprene casters support easy movement for transport and cleaning.

Pan Compatibility

Designed to hold full- or half-size steam pans and half-size sheet pans.

Type Heated Holding Cabinet
Style Dual Cavity
Installation Type Floor Model (With Casters)
Controls Analog
Compartments 2
Pan Size Full-Size Steam Pans, Half-Size Steam Pans, Half-Size Sheet Pans
Capacity 16 Full-Size Sheet Pans / 32 Half-Size Sheet Pans
Material Aluminum
Finish All Aluminum
Voltage 120 Volts
Watts 1.75 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet Each
Temperature Range 90°F to 190°F
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 26 Inches
Shipping Height 67 Inches
Shipping Weight 205.22 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF User manual PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

It has two stacked holding cavities, which increases capacity while keeping the cabinet narrow.
It holds full- or half-size steam pans and half-size sheet pans.
It uses two 120V, 60 Hz, 1-phase, 875W power circuits and comes with two NEMA 5-15P cords.
This model has solid insulated doors.
The cabinet operates from 90°F to 190°F.
Yes. It ships with 5-inch casters for mobility.
