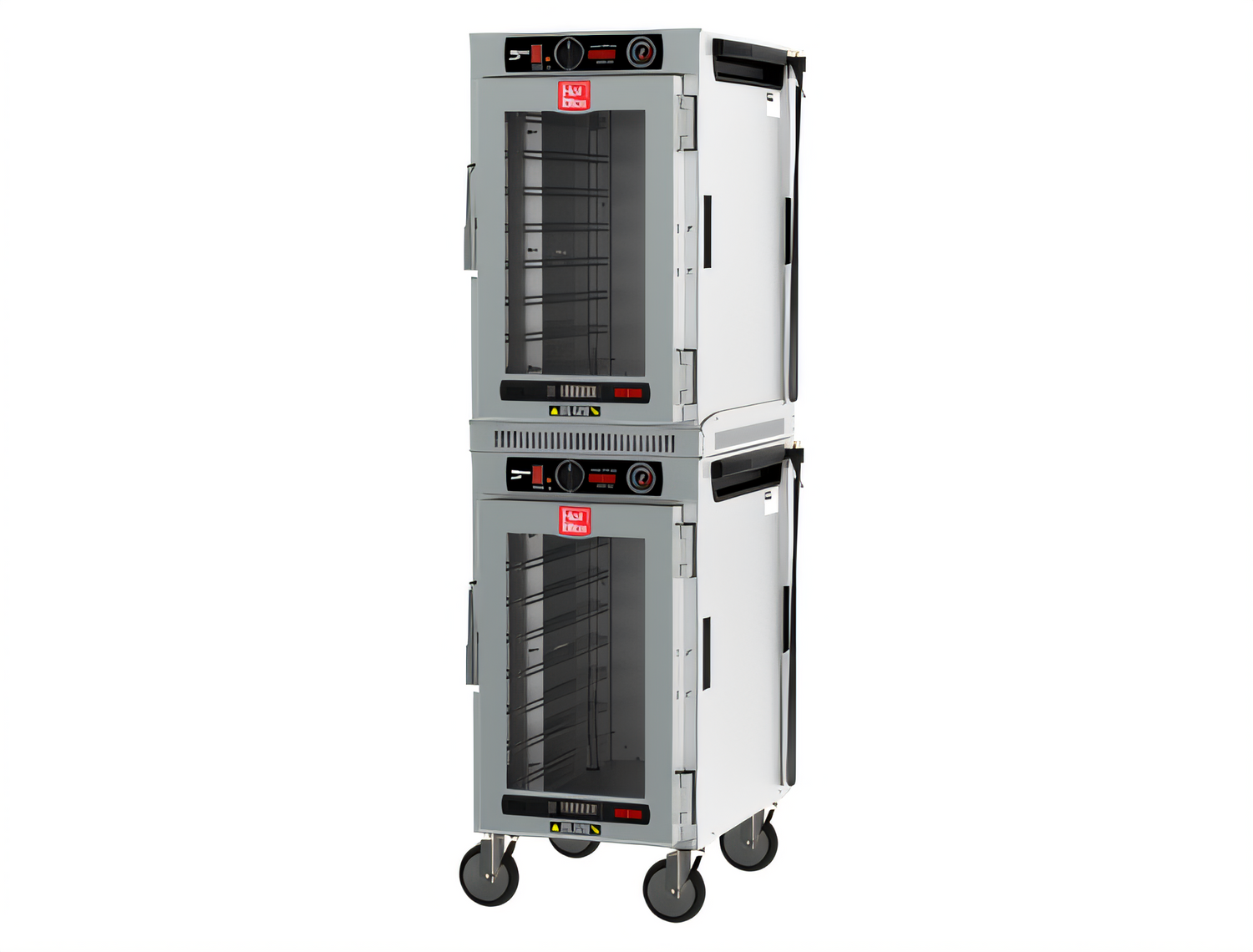

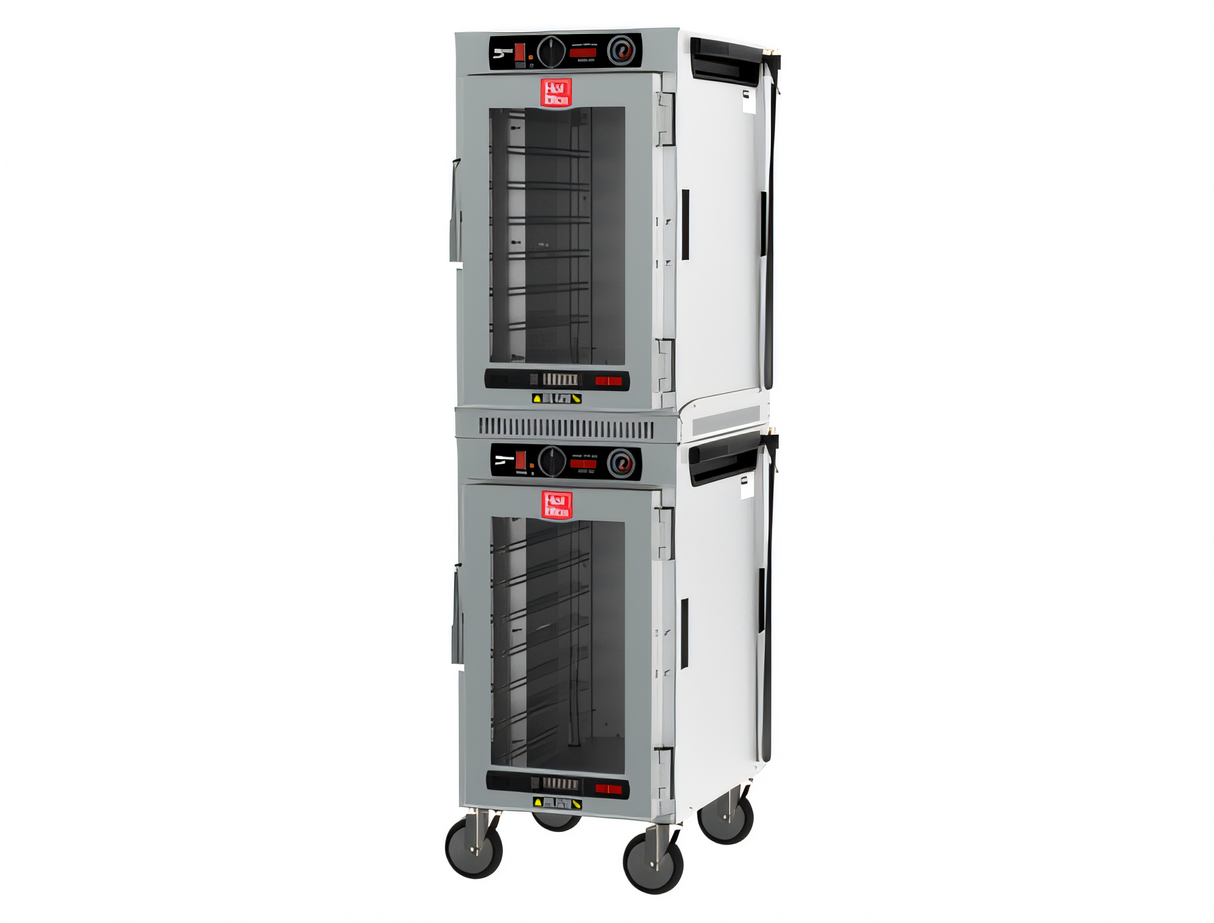

Metro HotBlox Narrow Mobile Dual-Cavity Pass-Thru Insulated Holding Cabinet with Clear Front and Solid Rear Doors

Analog Control, 16-Pan Capacity, 120V

A space-saving pass-thru holding cabinet that keeps hot foods ready on both sides with simple analog operation and a narrow 20-inch footprint.

  • Dual-cavity pass-thru design provides high-capacity holding in a narrow footprint.
  • Clear front door and solid rear door improve visibility while helping retain heat.
  • Hybrid convection and radiant heating helps hold both moist and crispy foods.
  • Analog control is simple to operate and ideal for transport-style use.
  • Supplied with casters for mobility and built in the USA.

Overall Dimensions:

20.0"W x 27.2"D x 66.7"H

Product Weight:

212.35 lb

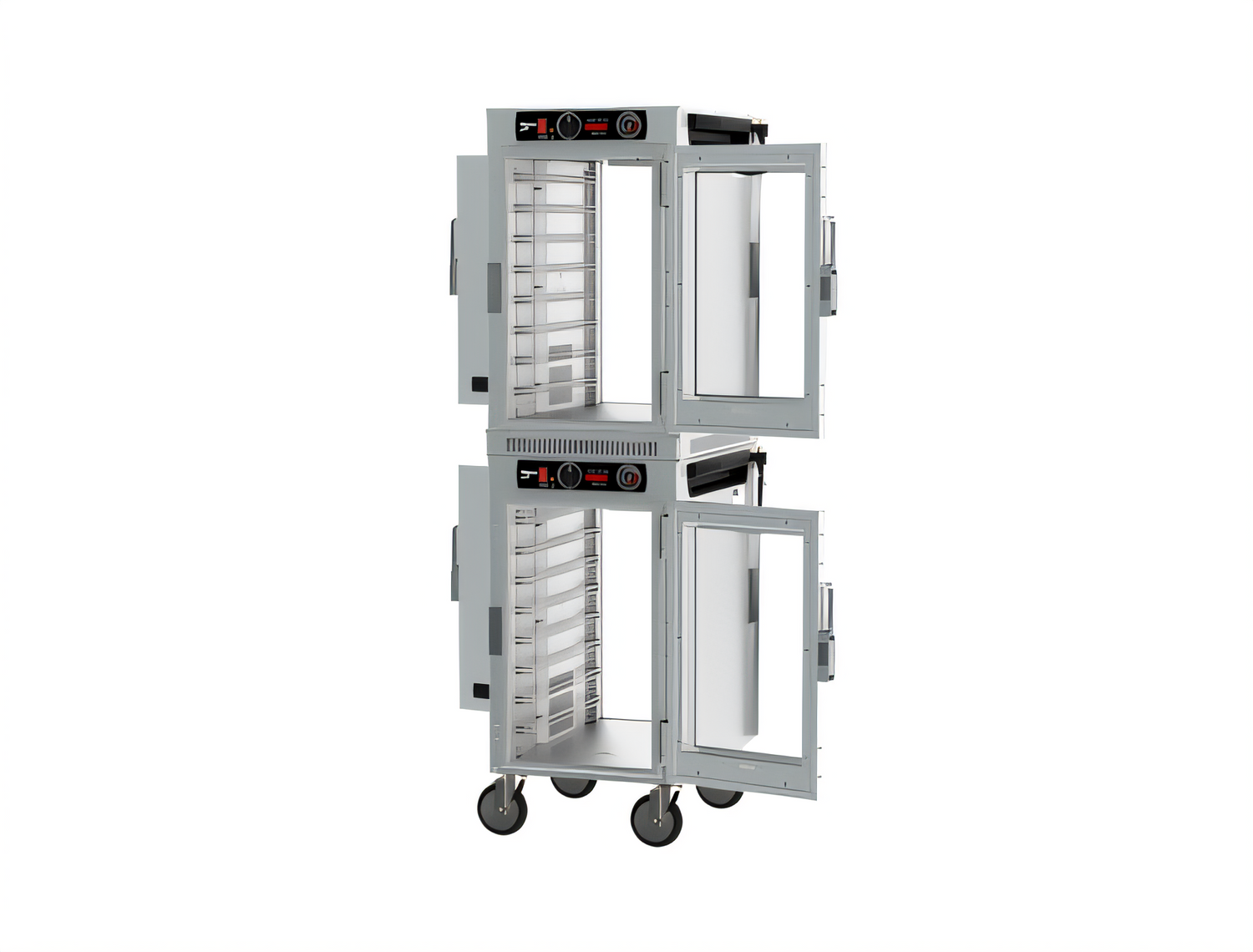

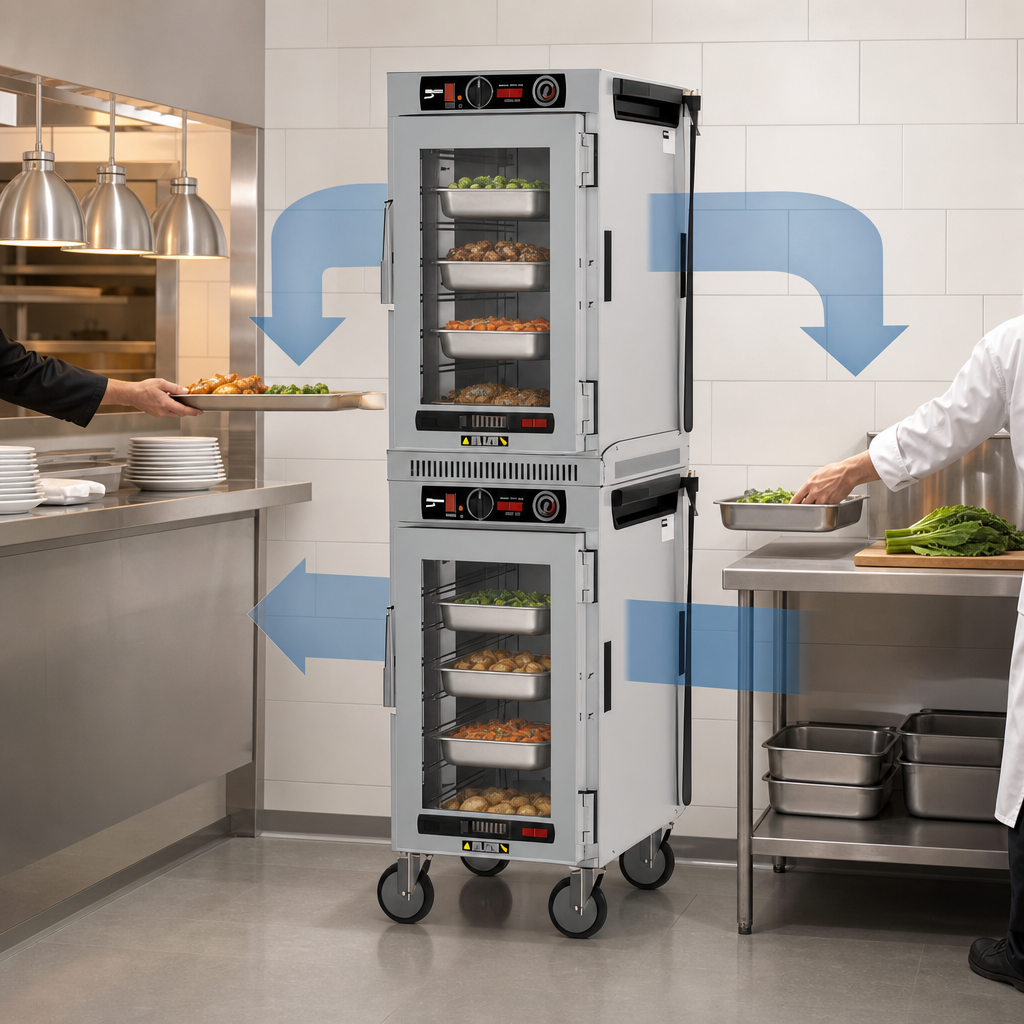

Dual-Cavity Pass-Thru Layout

Two stacked holding cavities support workflow from both sides and maximize vertical space efficiency.

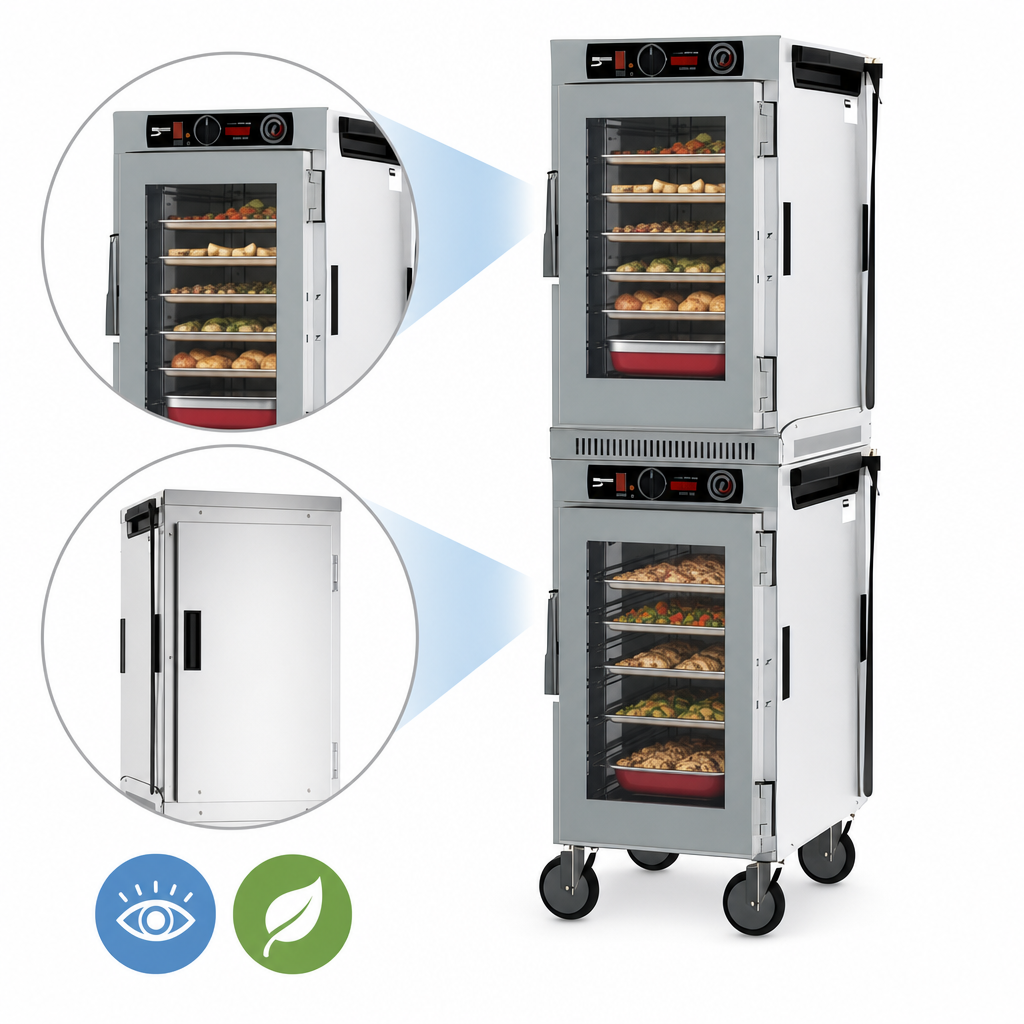

Clear Front / Solid Rear Doors

The clear polycarbonate door lets staff see contents easily, while the solid rear door improves rigidity and energy efficiency.

Hybrid Convection-Radiant Heating

A circulating fan and radiant floor element help maintain either crisp or moist foods in the same cabinet.

Analog Electro-Mechanical Control

Simple analog control with an always-on thermometer is a cost-effective option and well suited to transport applications.

Mobile Caster Base

Dual-cavity cabinets are supplied with 5-inch neoprene casters for easier movement.

Hot Holding Temperature Range

Designed to hold hot food from 90°F to 190°F.

Aluminum Cabinet Construction

The cabinet body is aluminum with high-density fiberglass insulation for efficient heat retention.

Dual Electrical Hookup

Uses two 120V, 60Hz, 1-phase power cords with NEMA 5-15P plugs; total connected load is 1.75 kW.

Type Insulated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model (With Casters)
Compartments 2
Pan Capacity 16 Pans
Controls Analog
Temperature Range 90°F to 190°F
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Watts 1.75 kW
Cord Length 6 Feet
Material Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 28 Inches
Shipping Height 67 Inches
Shipping Weight 212.36 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF User manual PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

It is a narrow, mobile, dual-cavity pass-thru insulated holding cabinet with analog control and clear front / solid rear doors.
This model is described as a 16-pan cabinet. The cut sheet also shows dual-cavity narrow pass-thru capacity of 16/14 for 12x20/GN pans depending on slide configuration.
It uses two 120V, 60Hz, 1-phase circuits with NEMA 5-15P plugs and a total connected load of 1.75 kW.
The holding temperature range is 90°F to 190°F.
Yes. The hybrid convection-radiant heating system and venting are designed to help hold either moist or crispy foods.
The series is designed for 12x20/GN pans and 13x18 pans.
