Metro

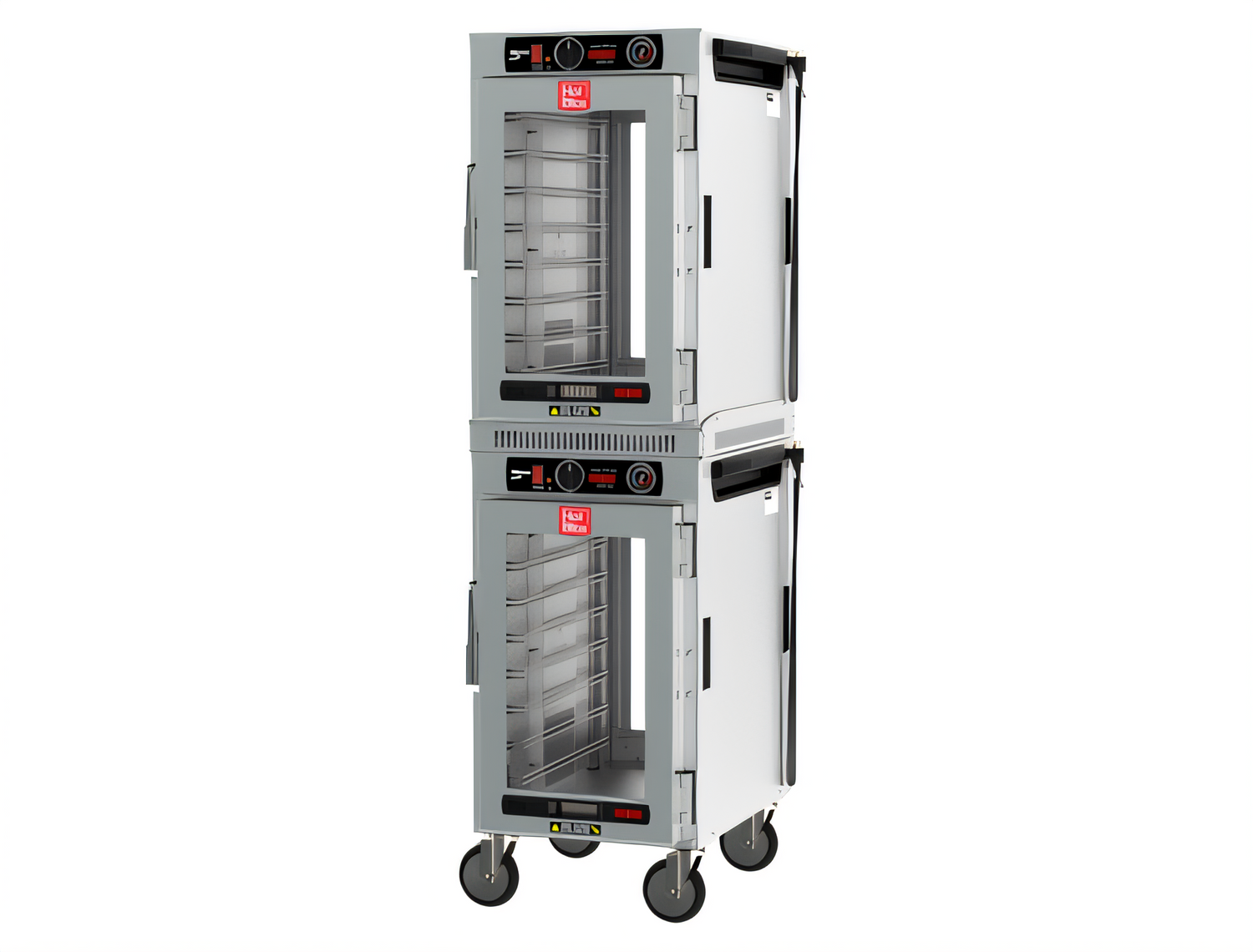

Metro HotBlox Narrow Dual-Cavity Pass-Thru Insulated Holding Cabinet, 16-Pan, Analog, Clear Front & Rear Doors, Mobile

SKU: HBCN16-ACPC-M
GTIN: 0-41105-03636-5
$5,792.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro HotBlox Narrow Dual-Cavity Pass-Thru Insulated Holding Cabinet, 16-Pan, Analog, Clear Front & Rear Doors, Mobile

Narrow 20-Inch Footprint, Clear Pass-Thru Doors, 120V Holding Cabinet

A compact pass-thru holding cabinet that keeps hot foods visible, accessible, and ready to serve in a space-saving mobile design.

  • Holds up to 16 pans in a narrow 20-inch-wide dual-cavity footprint.
  • Clear pass-thru doors let staff access product from both sides while keeping contents visible.
  • Hybrid convection and radiant heat help maintain either crispy or moist foods.
  • Analog control offers simple, reliable operation with an always-on thermometer.
  • Aluminum construction with fiberglass insulation helps retain heat and improve durability.
  • Dual-cavity cabinets are supplied with casters for mobile use in flexible service layouts.

Overall Dimensions:

20.0"W x 27.2"D x 66.7"H

Product Weight:

208.3 lb

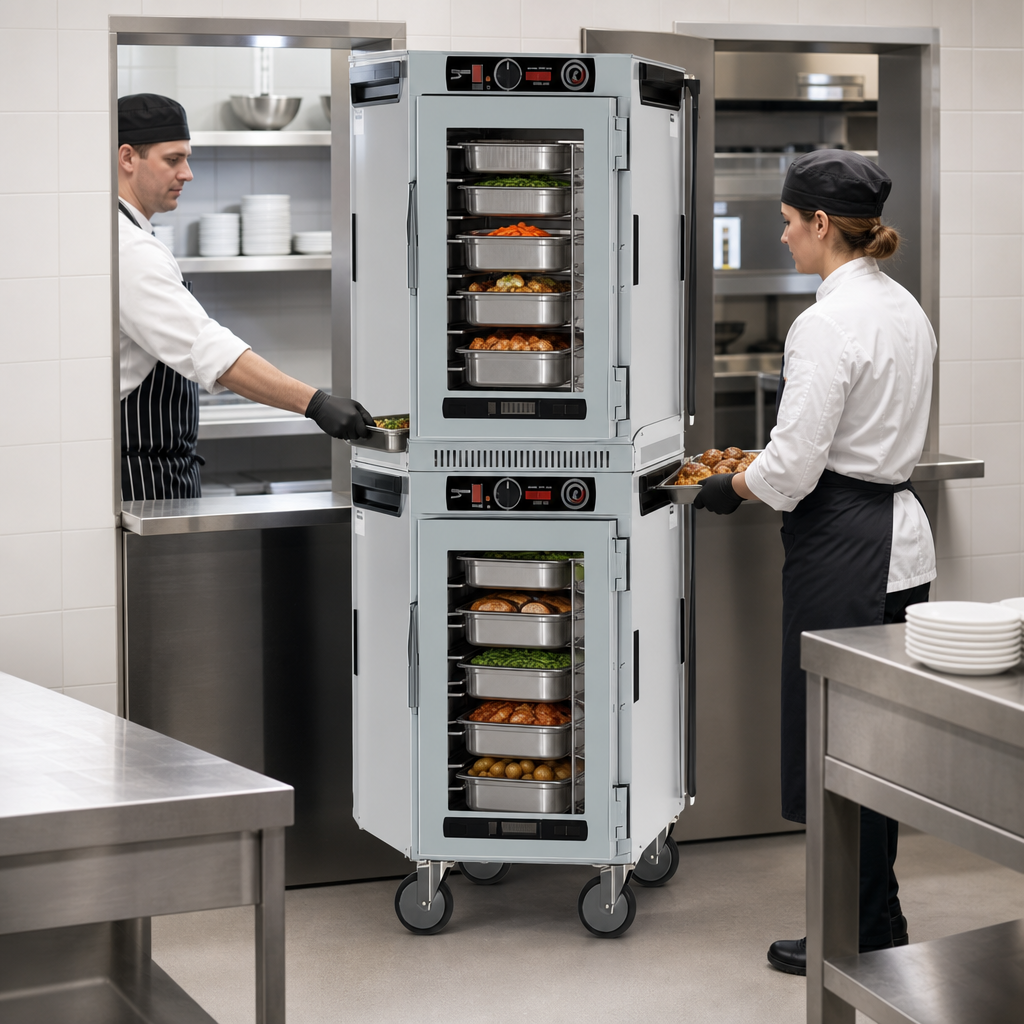

Dual-Cavity Pass-Thru Design

Stacked dual-cavity layout increases holding capacity while supporting access from both front and rear service points.

Dual-Cavity Pass-Thru Design

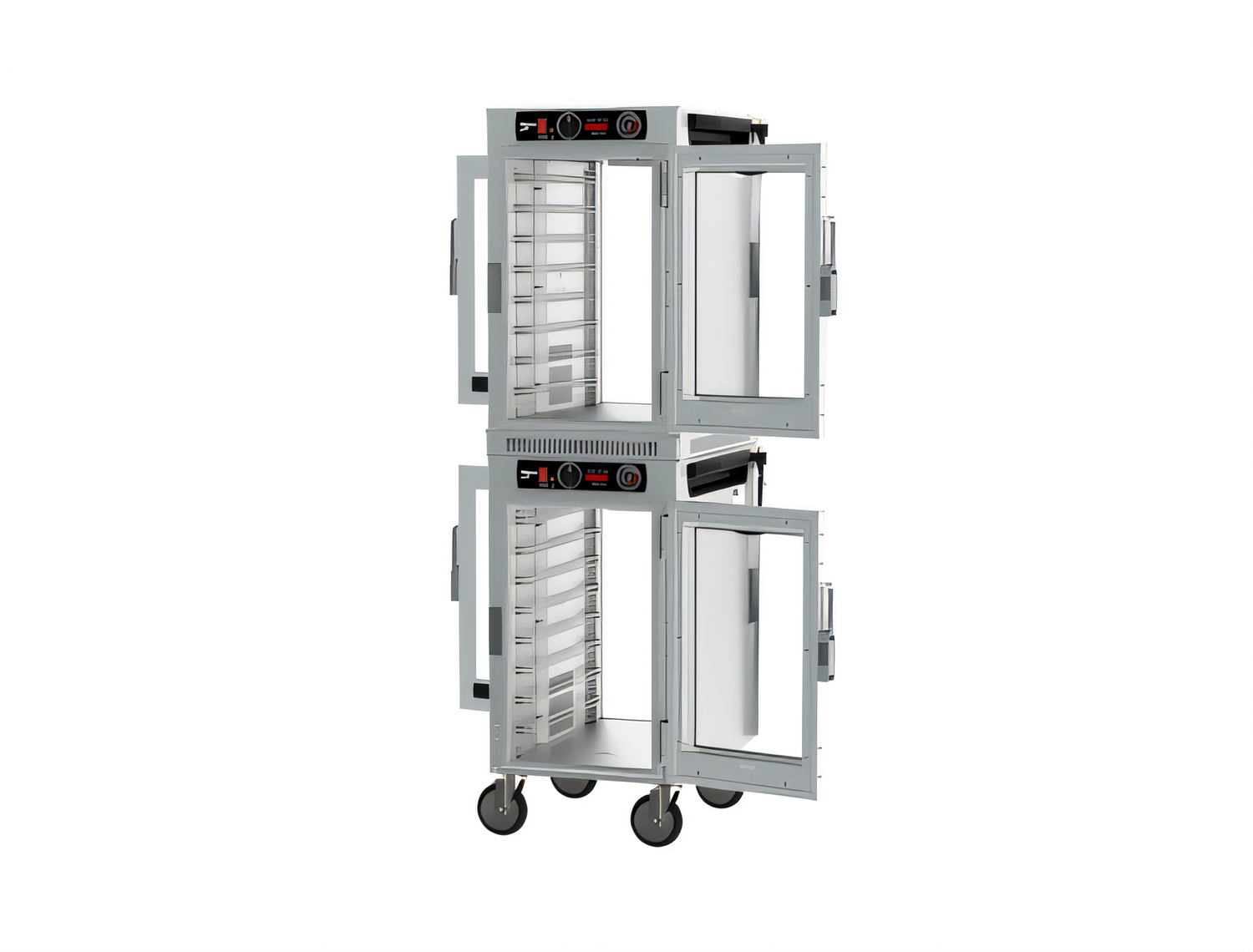

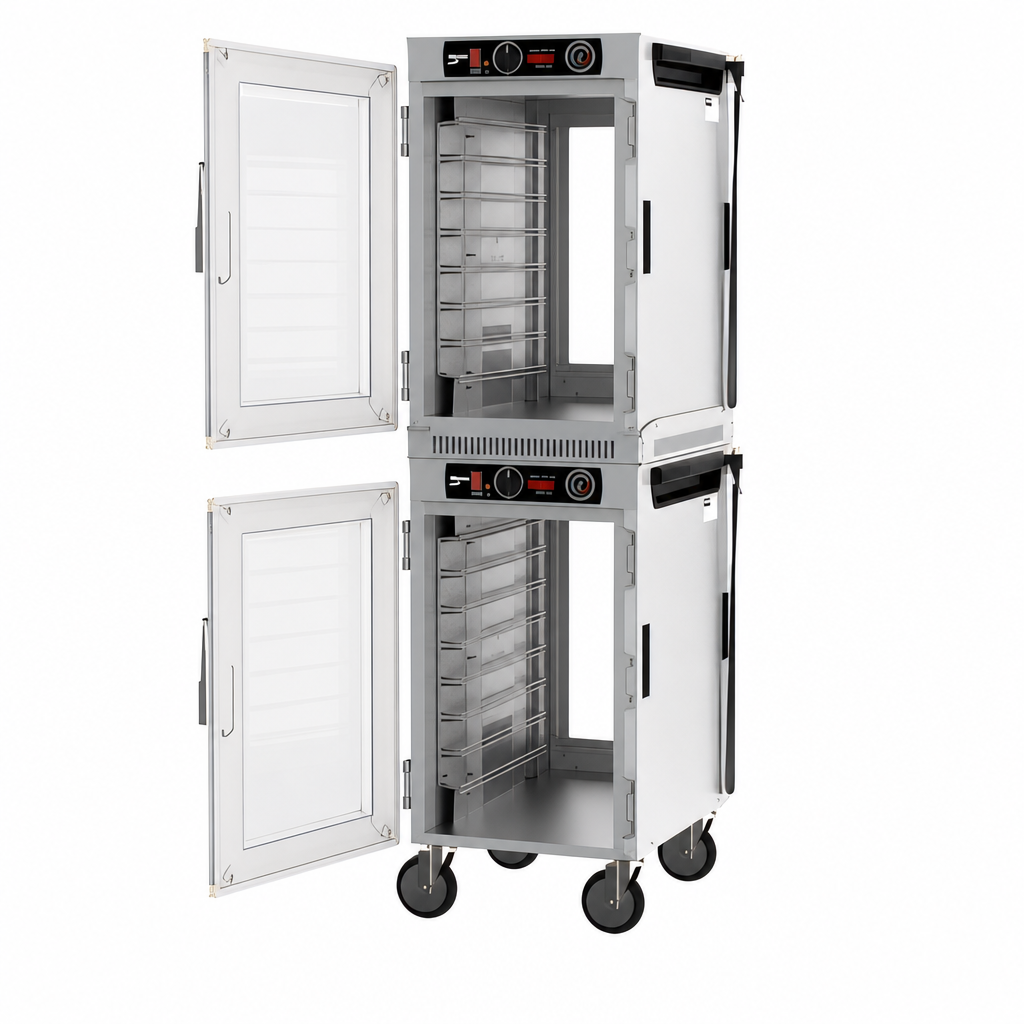

Clear Polycarbonate Doors

Clear front and rear doors let staff see product without opening the cabinet; doors are field reversible, double hinged, and swing 180°.

Clear Polycarbonate Doors

Analog Control

Electro-mechanical thermostat with an always-on thermometer provides straightforward, cost-effective operation.

Hybrid Convection/Radiant Heating

Thermostatically controlled system combines a circulating fan, ducted air circulation, and radiant floor heat to help hold both crispy and moist foods.

Built-In Humidity Venting

Rear venting releases humidity while door vents draw in dry air to help maintain food texture.

Insulated Aluminum Construction

.063-inch aluminum body with high-density fiberglass insulation and high-temperature Santoprene gaskets helps retain heat and improve rigidity.

Mobile Casters

Dual-cavity cabinets are supplied with 5-inch neoprene casters for mobility.

Hot Food Holding Only

Designed for hot food holding applications only.

Type Insulated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Capacity 16 Pans
Controls Analog
Temperature Range 90°F to 190°F
Voltage 120 Volts
Watts 1.75 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Material Aluminum
Country of Origin USA
Shipping Width 20 Inches
Shipping Depth 28 Inches
Shipping Height 67 Inches
Shipping Weight 208.31 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF User manual PDF Download

Frequently Asked Questions

It holds 12x20/GN pans and 13x18 pans.
Yes. It has clear front and rear doors for pass-thru service.
This model uses an analog electro-mechanical thermostat with an always-on thermometer.
It uses 120V, 60Hz, 1-phase power with NEMA 5-15P cords; the dual-cavity unit has two 875W circuits.
Yes. The hybrid convection/radiant heating system and built-in venting help manage humidity for different food types.
Yes. Dual-cavity cabinets are supplied with casters for mobile use.
