Key specifications
- Amps
- 16.7 Amps
- Phase
- 1-Phase
- Dimensions
- 25.8"W × 29.6"D × 42.3"H
- Type
- Heated Holding Cabinet
- Style
- Half-Height
- Installation Type
- Floor Model
Spec sheet
Metro C5 C5E5-CFC-U Half-Height Mobile Heated Holding & Proofing Cabinet, Clear Door, Adjustable Slides, 6 Sheet Pan Capacity
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

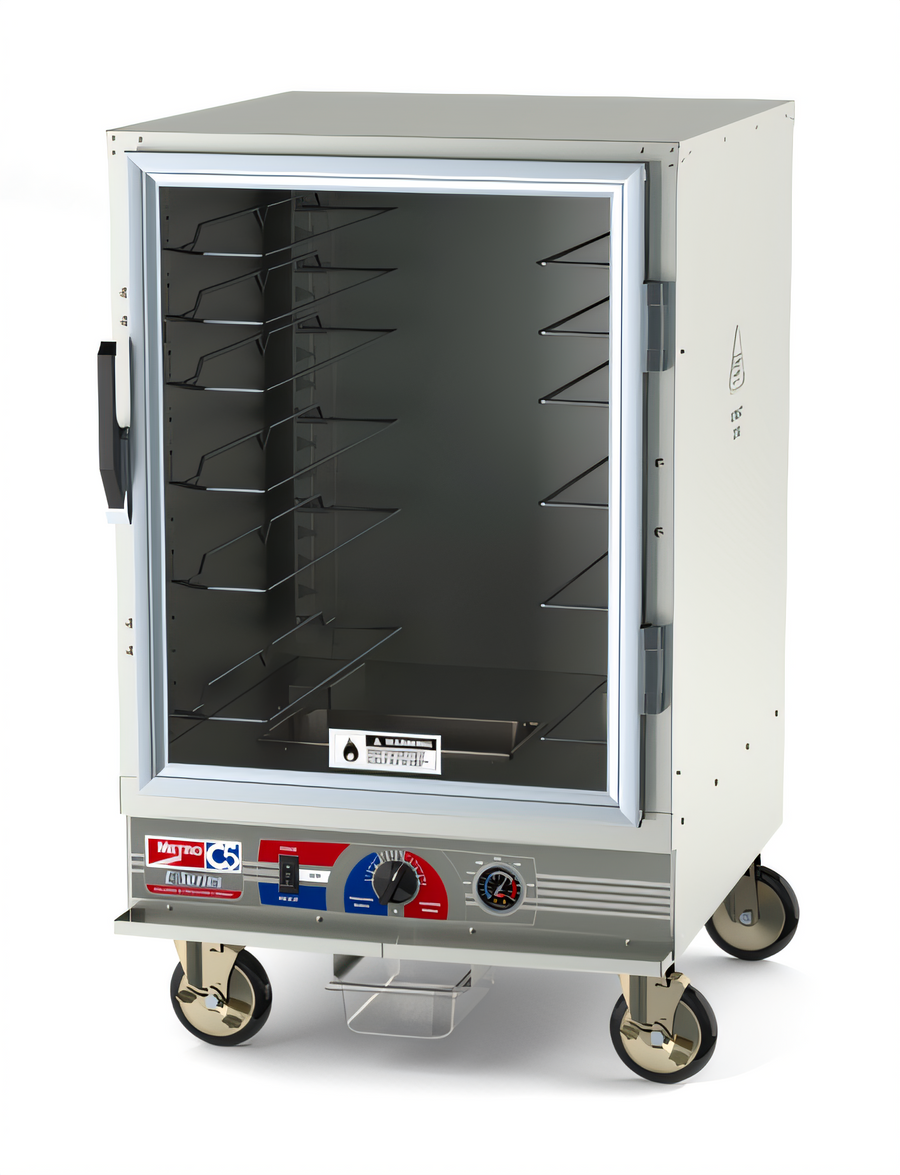

C5E5-CFC-U is a half-height, non-insulated mobile heated holding and proofing cabinet with an aluminum body and a clear door with a polycarbonate window.
Thermostatic control provides an 80°F to 190°F operating range. A switch changes the cabinet between holding and proofing operation, while forced convection circulates heated air.
Adjustable universal wire slides support 18 x 26 inch sheet pans and 12 x 20 inch steam pans. The cabinet has six provided slide pairs, five-inch casters, and a field-reversible door.
- Six 18 x 26 inch sheet pan capacity
- Twelve 12 x 20 x 2.5 inch steam pan capacity
- 120-volt, 2000-watt electrical operation with a NEMA 5-20P plug
Use note: The instructions identify this cabinet for hot food holding applications only and state that it is not a re-thermalizing cabinet.
Overall Dimensions:
25.8"W x 29.6"D x 42.3"HProduct Weight:

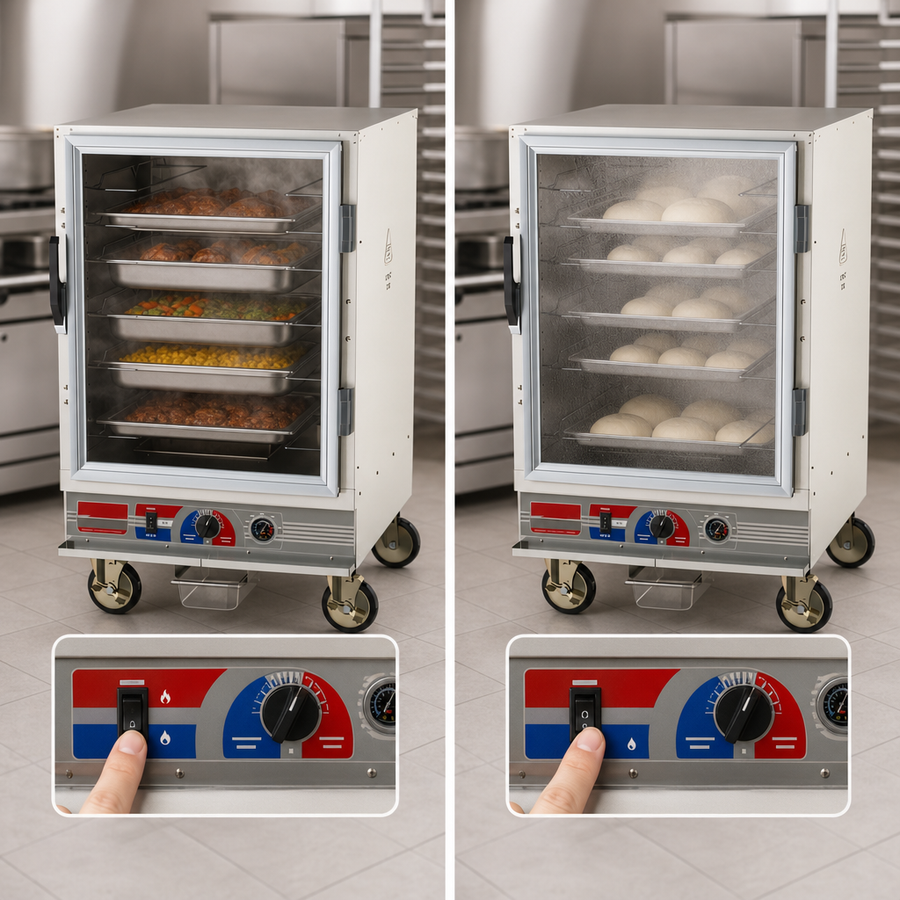

122.0 lbHolding and Proofing Modes
A switch changes the cabinet between holding and proofing operation.

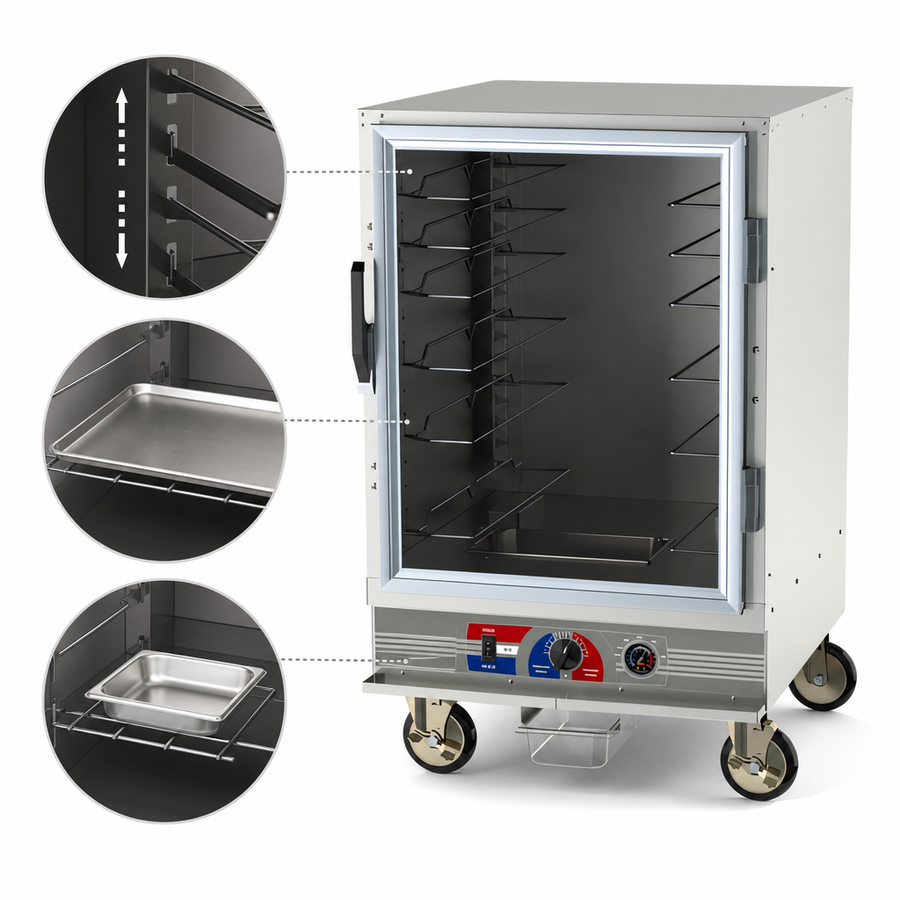

Adjustable Universal Slides
Wire slides adjust on 1.5-inch increments and accommodate multiple pan formats.
Clear Field-Reversible Door
The clear door provides visibility into the cabinet and swings 180 degrees for field reversal.
Thermostatic Temperature Control
Thermostatic control supports an operating range of 80°F to 190°F.
Forced Convection Heating
A blower motor and ducted air system circulate heated air through the cabinet.
Mobile Caster Base
Five-inch casters support mobility, with two casters equipped with brakes.
Bottom-Mounted Controls
The control module is mounted at the bottom of the cabinet.
Aluminum Construction
The cabinet body, base, and interior are aluminum.
