Key specifications

Amps
16.7 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 74.75"H
Type
Holding Cabinet
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Metro SKU: C599-SFC-LPFC GTIN: 0-41105-46822-7

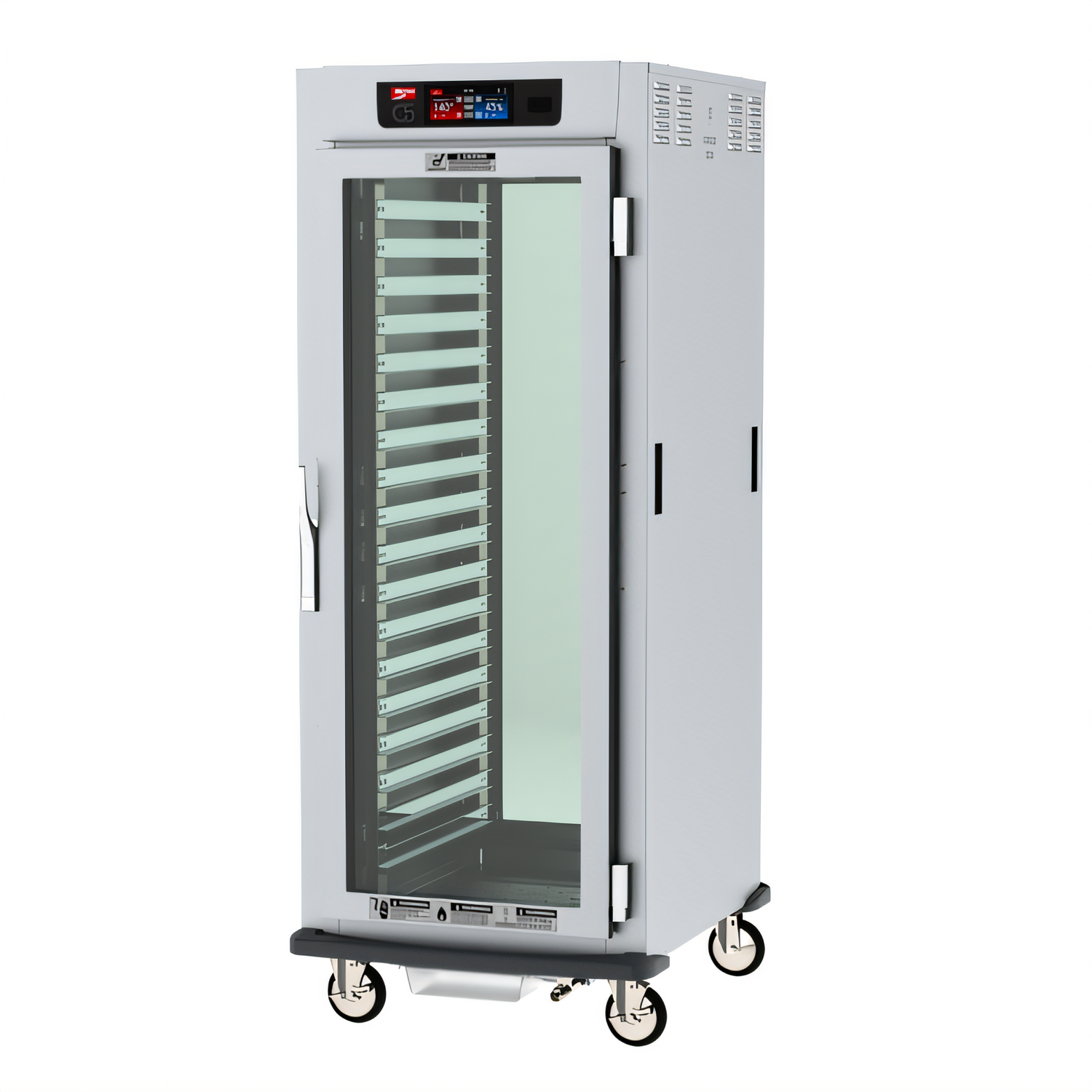

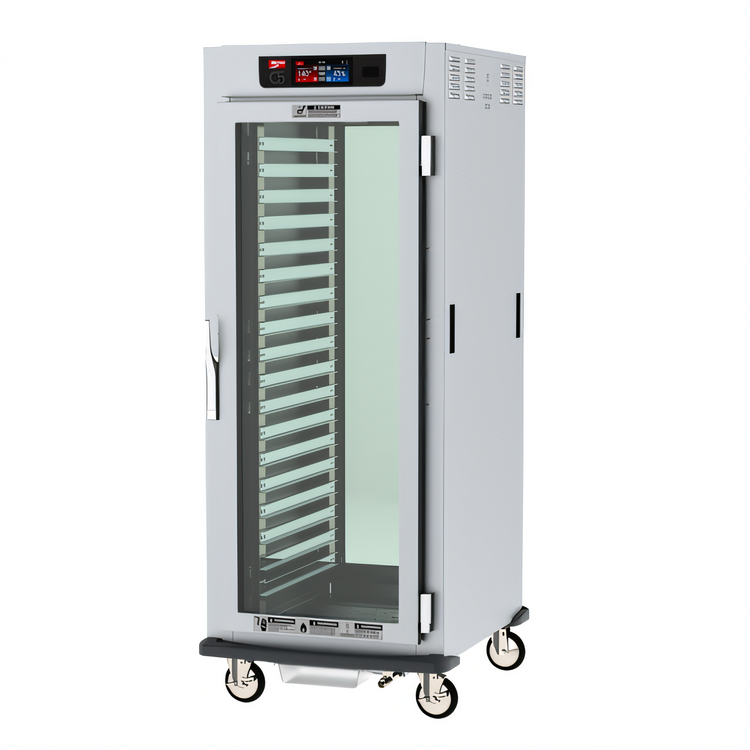

Metro C5 C599-SFC-LPFC 18-Pan Pass-Thru Holding Cabinet

$10,044.00
/each
Estimated to ship in 9–12 business days
Electrical120 V · 1-phase · 60 Hz · 2000 W
Accessories
Included: Metro warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $929/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished Stainless Steel
Interior Finish Stainless Steel
Size Full Height
Door Count 2
Door Type Full Glass
Slide Type Lip Load
Pan Capacity 18 18 in x 26 in Pans
Slide Centers 3 in
Controls 6.8 in Touch Screen
Temperature Range 90°F to 200°F
Water Reservoir Capacity 4 gal
Insulation 2.5 in Fiberglass
Caster Size 5 in
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 7.5 ft

Description

The Metro C5 C599-SFC-LPFC is a full-height, mobile pass-thru holding and proofing cabinet with two glass doors, controlled temperature and actual relative humidity, and a 6.8-inch touch-screen interface.

Its lip-load slide system accommodates 18 18 in x 26 in pans at 3 in centers. The stainless steel cabinet includes 5 in casters and a polymer bumper and drip trough combination.

  • Temperature range from 90°F to 200°F
  • 120 Volts, 2 kW, 16.7 Amps, 60 Hz, single phase
  • NEMA 5-20P plug and 7.5 ft cord
  • Made in USA, NSF, and cULus certified

Overall Dimensions:

30.0"W x 36.38"D x 74.75"H

Product Weight:

400.0 lb

Controlled Temperature and Humidity

Closed-loop controls display cabinet temperature and actual relative humidity, with temperature priority over humidity.

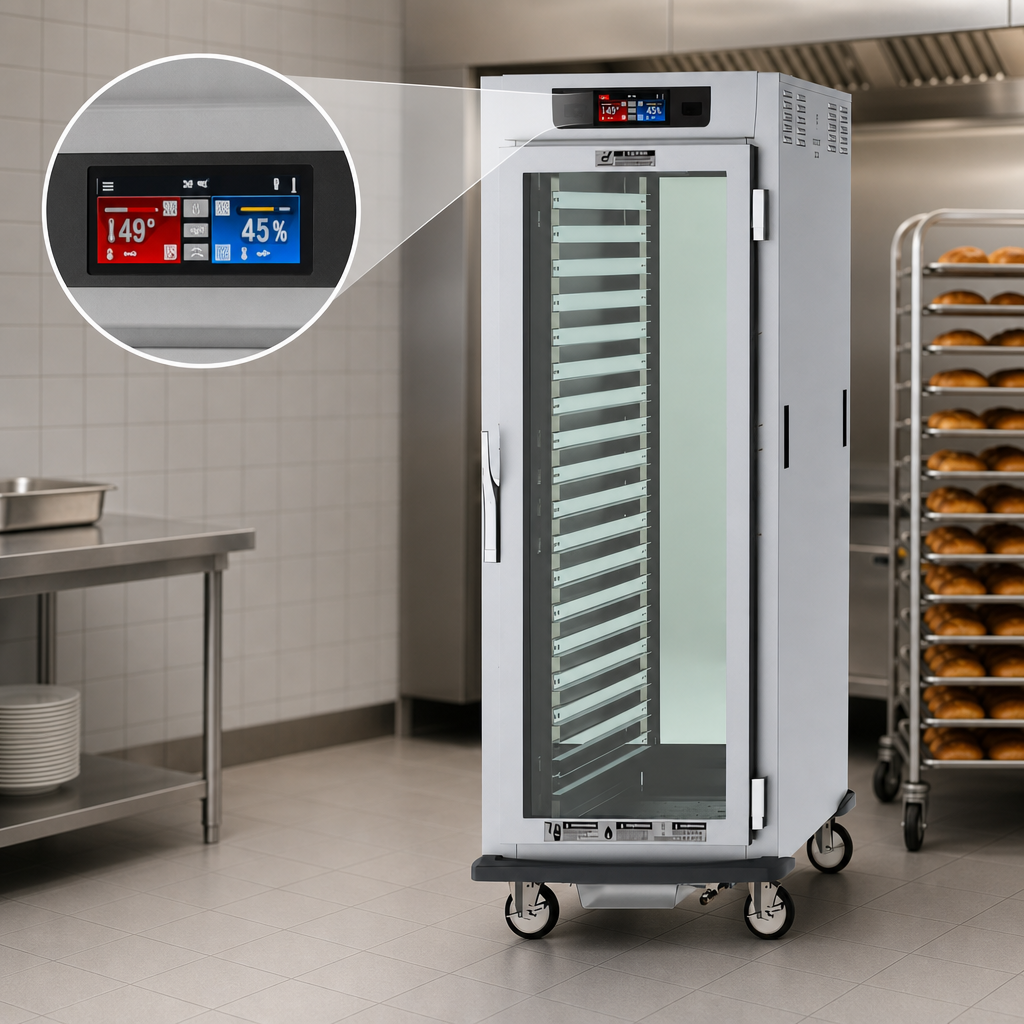

Touch-Screen Controls

The 6.8-inch touch screen provides menu presets, programmable timers, auto-start, alarms, control lock, and temperature-scale selection.

HACCP Data Logging

A USB port supports built-in HACCP data logging and saving or loading customized settings.

Glass Pass-Thru Doors

Two glass doors provide access from both sides of the full-height pass-thru cabinet.

Lip-Load Slides

Lip-load slides accommodate 18 18 in x 26 in pans at fixed 3 in centers.

Mobile Cabinet

The cabinet is mobile and equipped with 5 in casters, a polymer bumper, and a drip trough combination.

Insulated Stainless Steel Construction

The cabinet uses a Type 304 stainless steel exterior and stainless steel interior with full-perimeter insulation.

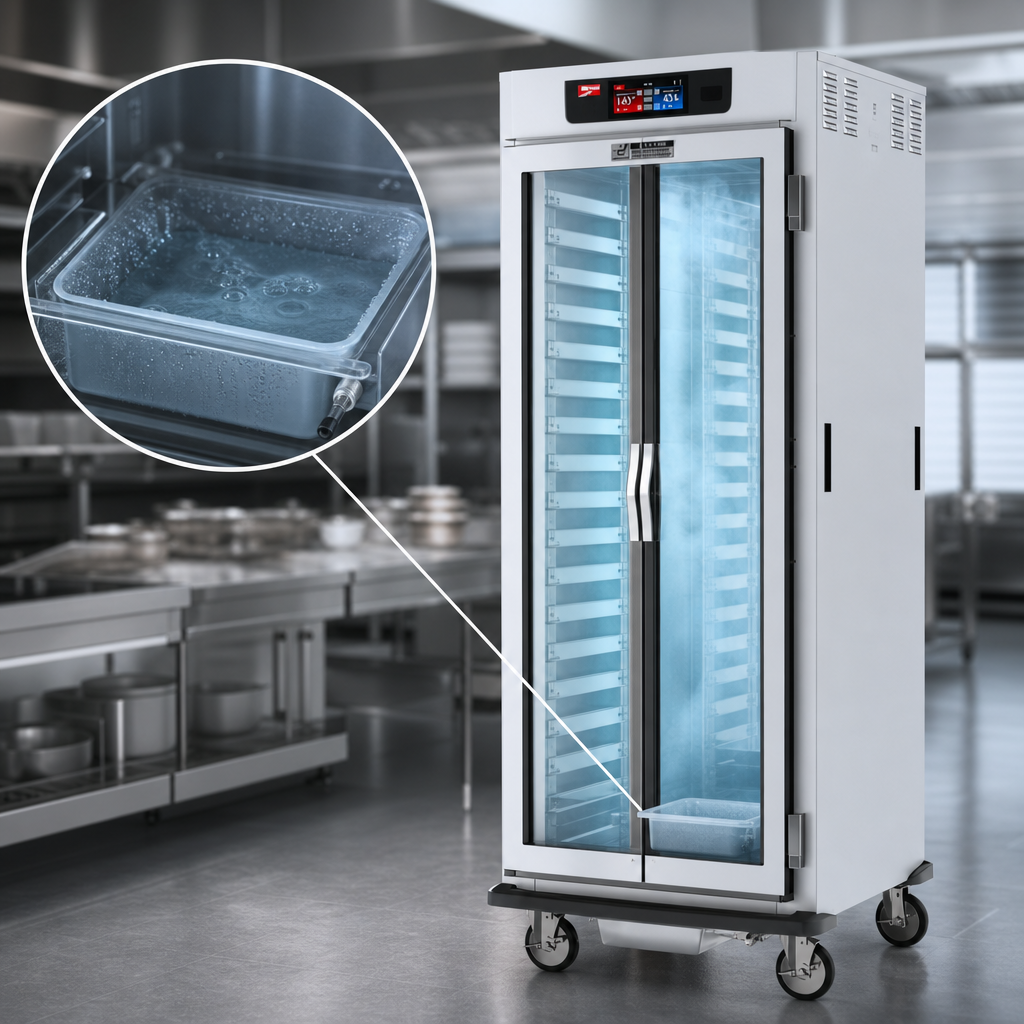

Humidity Reservoir

The humidity system includes a low-water sensor and a 4-gallon water reservoir.

Frequently Asked Questions

The product specification lists capacity for 18 18 in x 26 in pans on lip-load slides.
It has two glass doors in a full-height pass-thru configuration.
It uses 120 Volts, 2 kW, 16.7 Amps, 60 Hz, single-phase power with a NEMA 5-20P plug.
The specified temperature range is 90°F to 200°F.
Yes. The cabinet controls and displays actual relative humidity and uses a water reservoir for humidity generation.
