Key specifications

Amps
16.7 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 44.75"H
Type
Holding Cabinet
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Metro SKU: C595-SFC-UPFC GTIN: 0-41105-46625-4

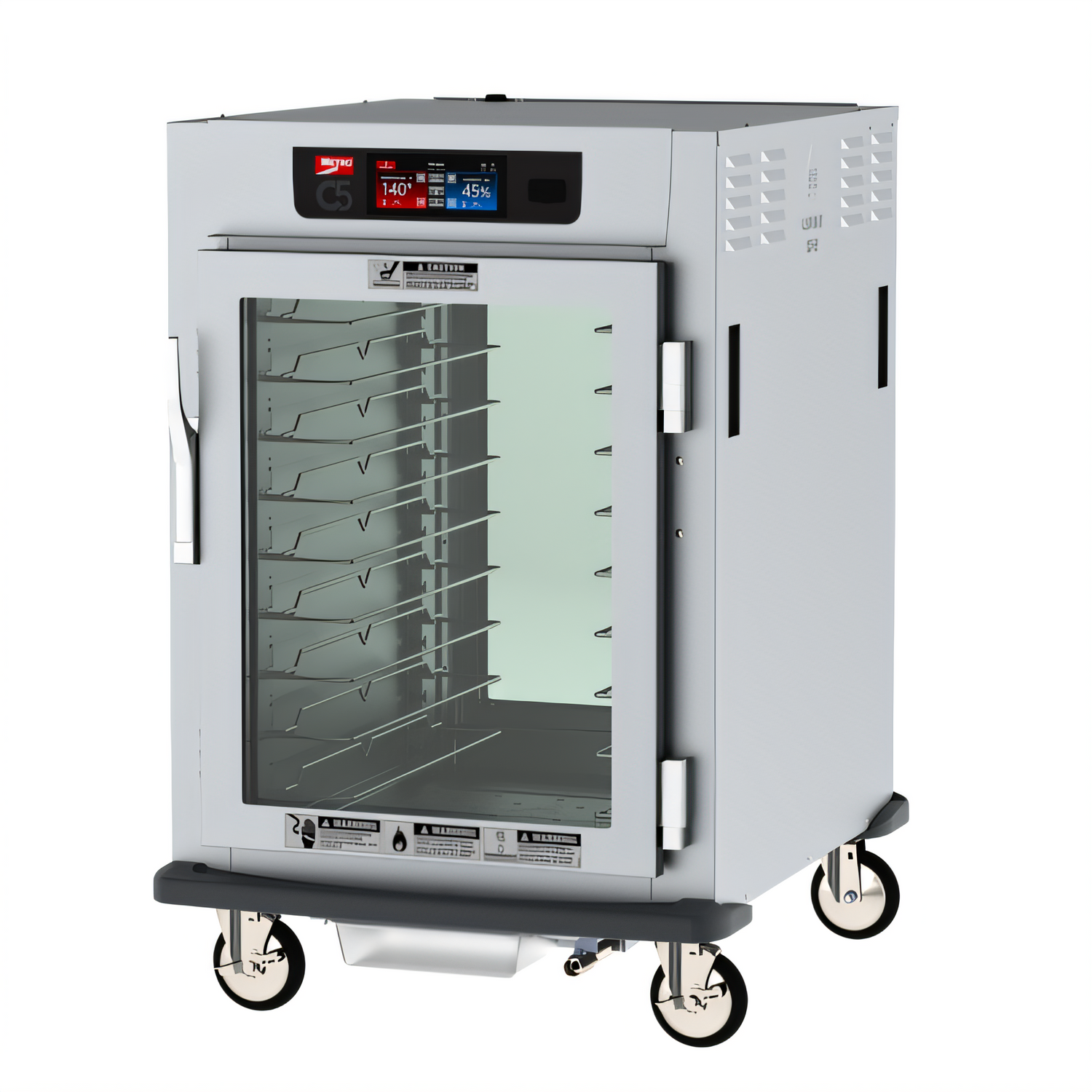

Metro C5 C595-SFC-UPFC 8-Pan Pass-Thru Holding Cabinet

$7,684.00
/each
Estimated to ship in 9–12 business days
Accessories
Included: Metro warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $711/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Interior Finish Stainless Steel
Door Style Full Glass
Door Count 2
Pan Size 18 x 26 Inches; 12 x 20 x 2.5 Inches
Pan Capacity 8 18 x 26-Inch Pans; 16 12 x 20 x 2.5-Inch Pans
Slide Type Universal Wire
Slide Spacing 3 Inches On Center
Slide Adjustment 1.5-Inch Increments
Controls 6.8-Inch Touch Screen
Voltage 120 Volts
Amps 16.7 Amps
Watts 2,000 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 7.5 Feet
Temperature Range 90°F to 200°F
Heater Position Top Mounted
Insulation 2.5-Inch High-Density Fiberglass
Water Reservoir Capacity 4 Gallons
Caster Size 5 Inches
Bumper Type Polymer Bumper and Drip Trough
Energy Efficiency ENERGY STAR

Description

The Metro C5 C595-SFC-UPFC is a mobile, half-height, pass-thru controlled-humidity heated holding and proofing cabinet with two full glass doors and universal wire slides.

A 6.8-inch touch-screen control system displays cabinet temperature and actual relative humidity. The cabinet accommodates 8 18 x 26-inch pans or 16 12 x 20 x 2.5-inch pans.

  • 120-volt electrical configuration with 2,000 watts, 16.7 amps, and a NEMA 5-20P plug.
  • Universal wire slides adjust on 1.5-inch increments and are spaced 3 inches on center.
  • Stainless steel construction, insulation, 5-inch casters, and a polymer bumper and drip trough combination.

Overall Dimensions:

30.0"W x 36.38"D x 44.75"H

Product Weight:

207.0 lb

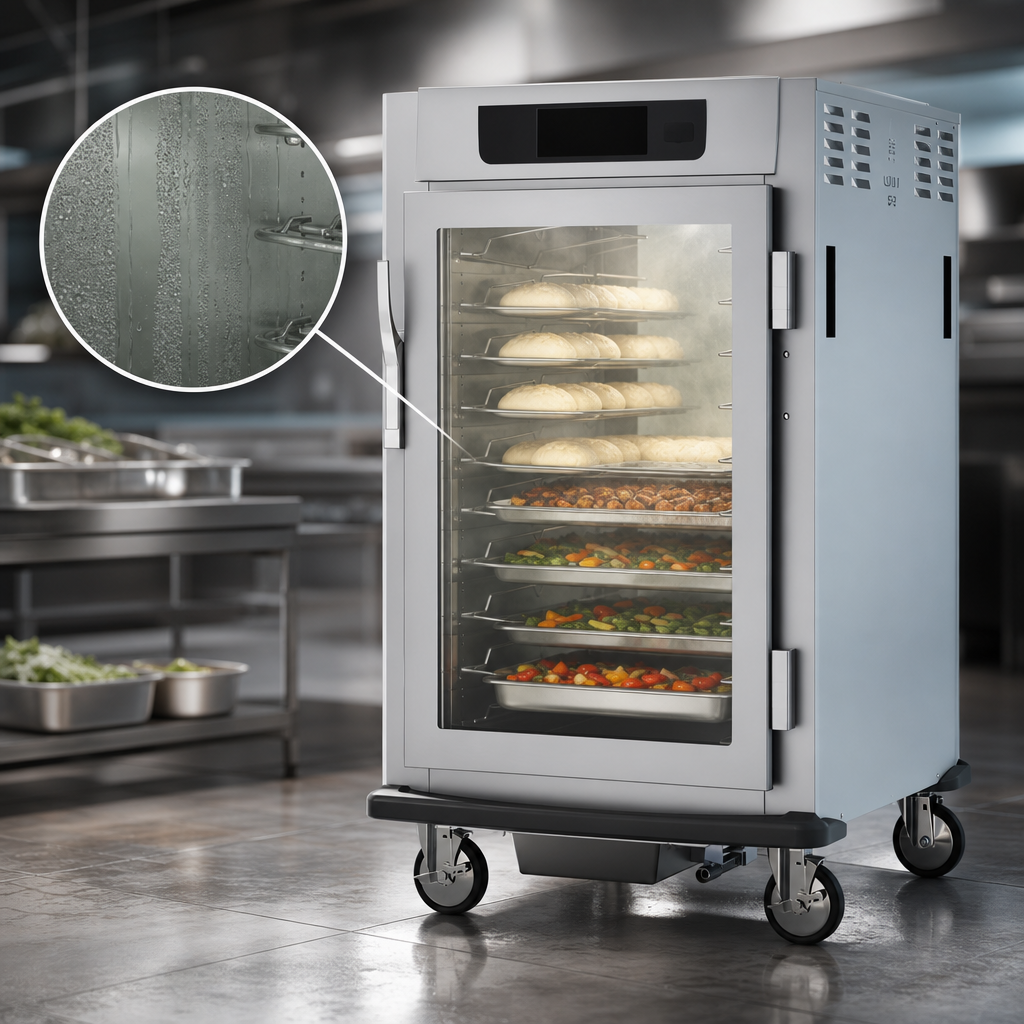

Controlled Humidity

The control system displays actual relative humidity and cabinet temperature with individual control for each.

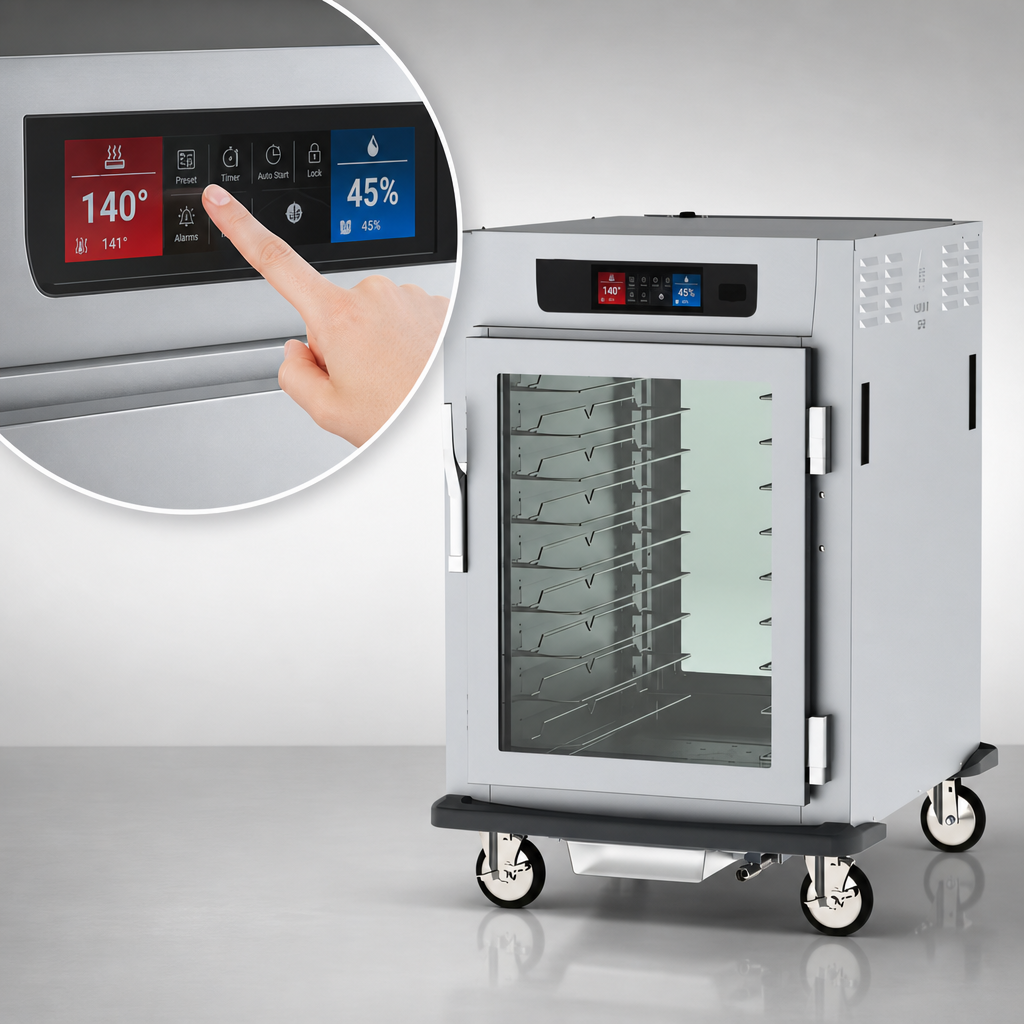

Touch-Screen Controls

The 6.8-inch high-resolution touch screen supports menu presets, programmable timers, auto-start, alarms, control lock, and USB HACCP data logging.

Pass-Thru Full Glass Doors

The cabinet has two glass doors in a pass-thru configuration.

Universal Wire Slides

Universal wire slides accommodate 18 x 26-inch sheet pans and 12 x 20 x 2.5-inch pans, with adjustment on 1.5-inch increments.

Pan Capacity

Capacity is 8 18 x 26-inch pans or 16 12 x 20 x 2.5-inch pans.

Mobile Construction

The cabinet is mobile and uses 5-inch casters.

Stainless Steel Construction

The cabinet uses Type 304 stainless steel with a polished exterior, stainless steel interior, and insulated construction.

Temperature Control

The specified temperature range is 90°F to 200°F.

Frequently Asked Questions

It holds 8 18 x 26-inch pans or 16 12 x 20 x 2.5-inch pans.
The cabinet is 30 inches wide, 36.38 inches deep, and 44.75 inches high. Product weight is 207 pounds.
It requires 120 Volts, 2,000 Watts, 16.7 Amps, 60 Hz, 1-Phase power and uses a NEMA 5-20P plug.
Yes. It has two full glass doors in a pass-thru configuration.
The specified temperature range is 90°F to 200°F.
Yes. The 6.8-inch touch-screen controls display and control actual relative humidity, and the cabinet has a 4-gallon water reservoir.
It is made in the USA.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
