Metro

Metro C5 8 Series Full-Height Pass-Thru Heated Holding Cabinet with Solid Doors and Lip Load Slides, 18 Pan Capacity

SKU: C589L-SFS-LPFS
GTIN: 0-41105-46535-6
$7,532.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

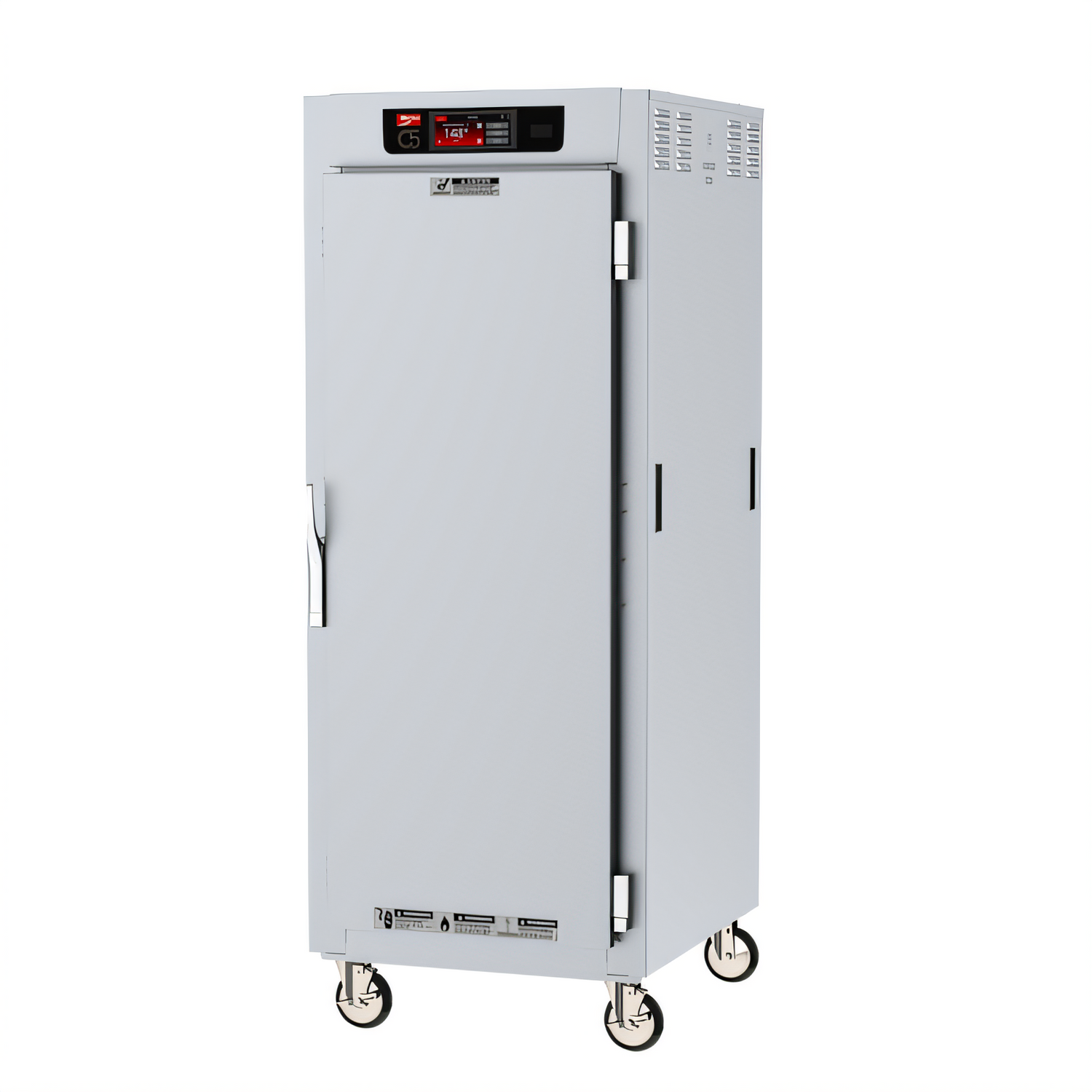

Metro C5 8 Series Full-Height Pass-Thru Heated Holding Cabinet with Solid Doors and Lip Load Slides, 18 Pan Capacity

Mobile, 304 Stainless Steel, Insulated, 120V

Precise touch-screen control and passive humidity help keep hot foods at serving quality for hours in a durable pass-thru cabinet.

  • Touch-screen controls make temperature, humidity, and cabinet settings easy to manage.
  • Passive humidity with an integrated water pan helps preserve food moisture during holding.
  • Full-height pass-thru design with solid doors supports efficient loading and service workflows.
  • Lip-load slides on 3-inch centers maximize 18" x 26" sheet pan capacity.
  • High-density insulation and uniform airflow help maintain even holding conditions.
  • 304 stainless steel construction and 5-inch casters provide durability and mobility.

Overall Dimensions:

29.13"W x 34.63"D x 74.75"H

Product Weight:

385.0 lb

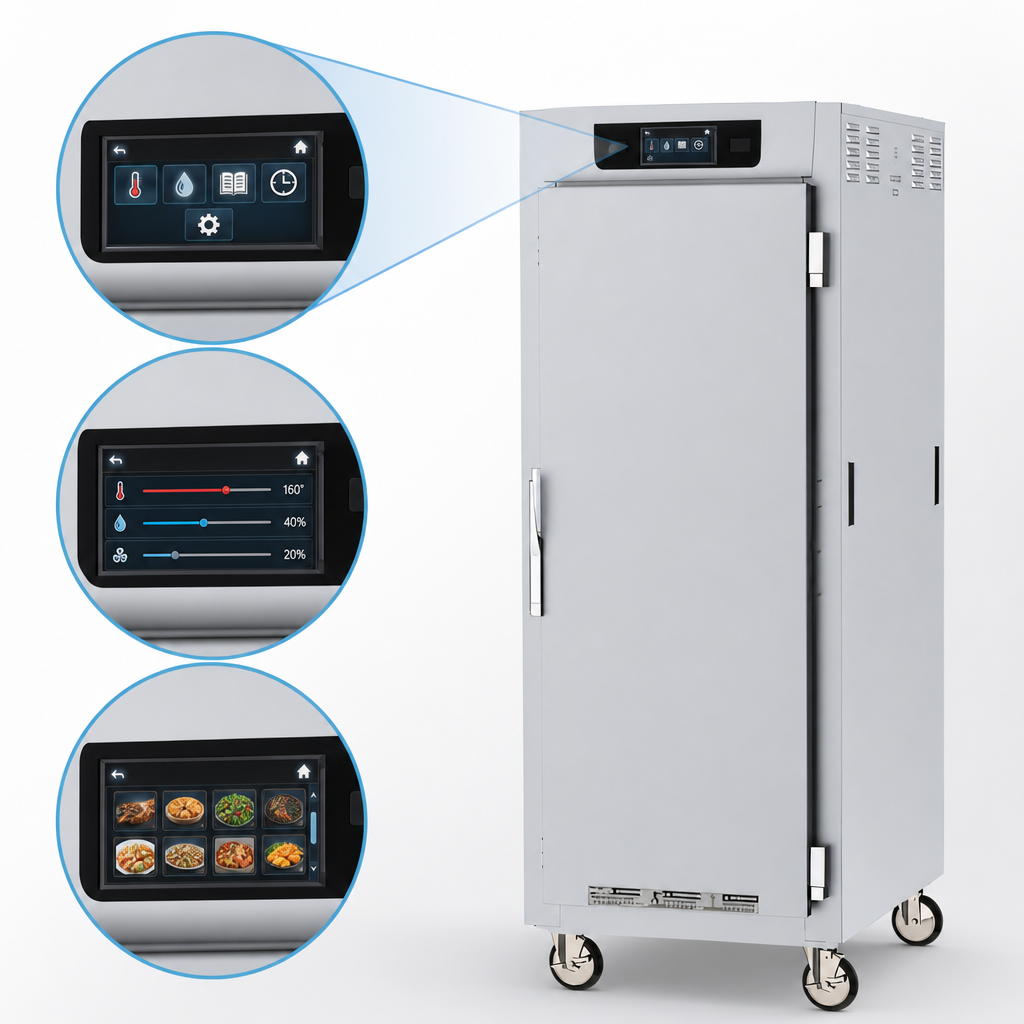

6.8-Inch Touch-Screen Controls

Intuitive control interface for temperature and humidity set points, menu presets, timers, and cabinet settings.

6.8-Inch Touch-Screen Controls

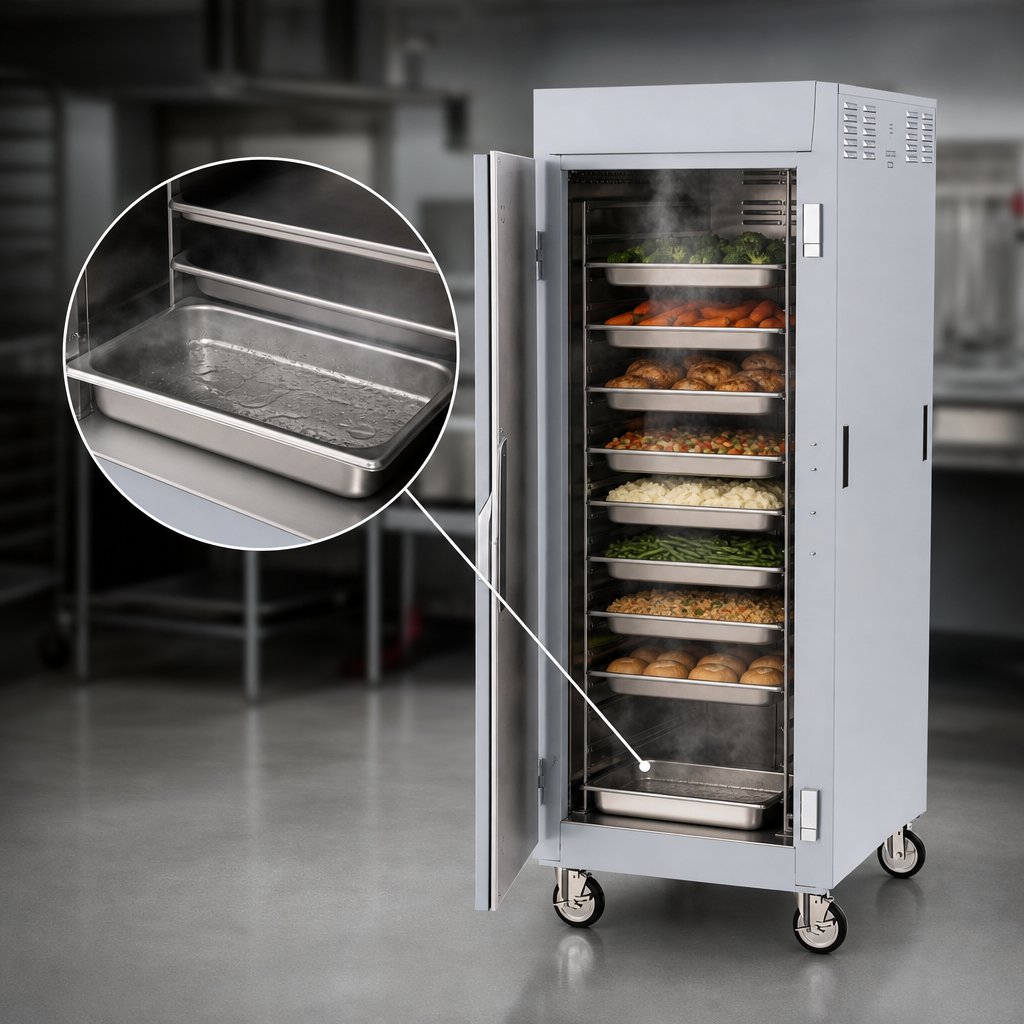

Passive Humidity System

An integrated water pan creates humidity to help maintain food quality during hot holding.

Passive Humidity System

Programmable Timers and Auto-Start

Supports first-in-first-out workflow and daily startup scheduling for more consistent operation.

High-Density Fiberglass Insulation

Helps retain heat and support efficient, uniform holding performance.

Uniform Airflow Design

Promotes even temperature distribution from top to bottom inside the cabinet.

Lip-Load Slides With 3-Inch Centers

Designed to maximize 18" x 26" sheet pan capacity with fixed 3-inch slide spacing.

Full-Height Pass-Thru Cabinet With Solid Doors

Pass-thru access from both sides improves convenience in busy kitchen layouts, while solid doors help retain heat.

304 Stainless Steel Construction and 5-Inch Casters

Durable stainless steel body stands up to commercial use, and casters make the cabinet easier to move.

Type Controlled Temperature Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Capacity 18 Full-Size Sheet Pans
Pan Size 18 x 26 Inches
Controls Touch Screen
Material 304 Stainless Steel
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

It is intended for hot food holding applications only.
The cabinet uses an integrated water pan in the floor duct; filling it with clean warm water adds passive humidity.
It requires 120V power, 60 Hz, single phase, 12 amps, and a NEMA 5-15P plug.
It holds 18 full-size 18" x 26" sheet pans using lip-load slides with 3-inch centers.
It features a 6.8-inch touch-screen interface with presets, timers, and adjustable settings.
Yes, it includes 5-inch casters for easier movement.
