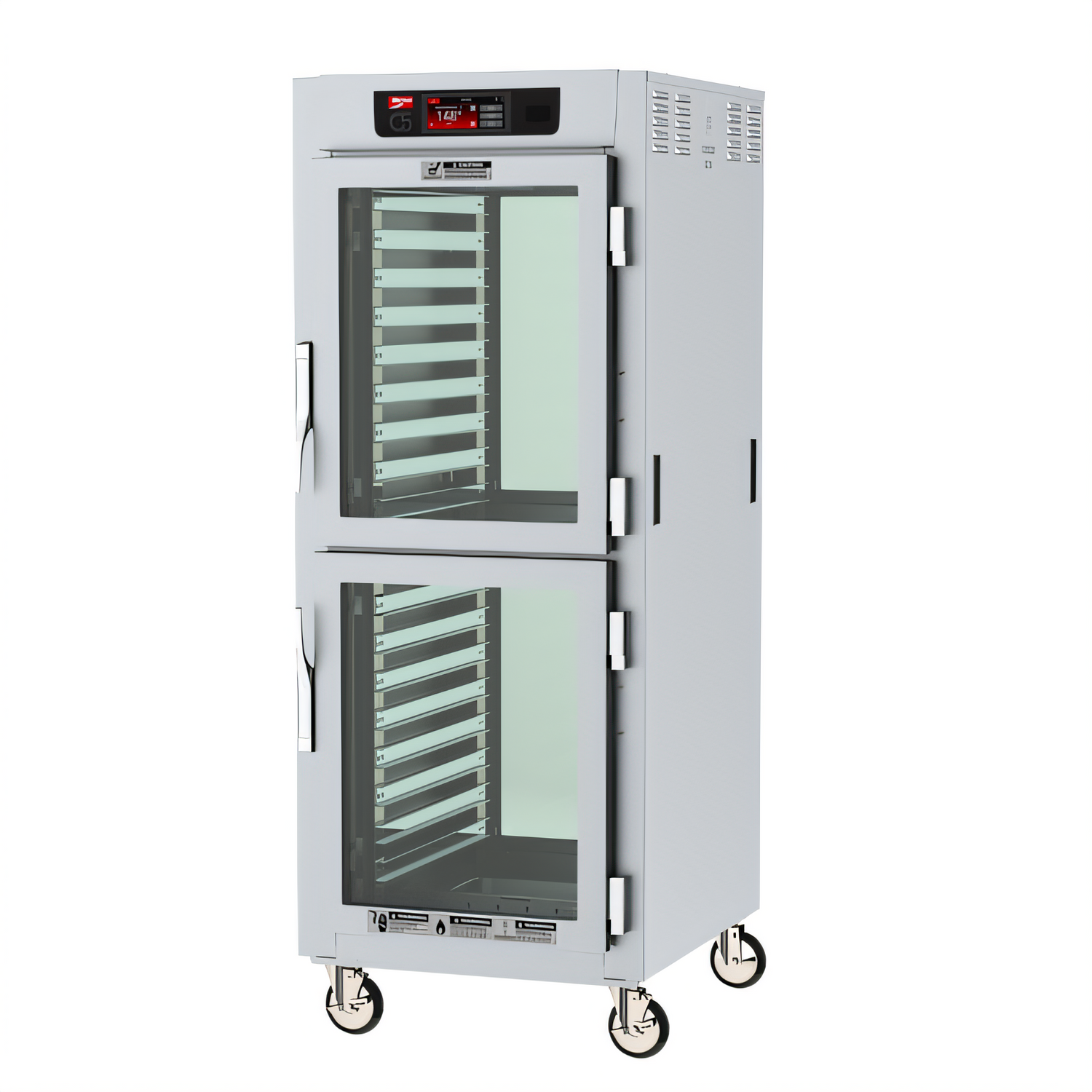

Metro C5 8 Series Full-Height Pass-Thru Controlled Temperature Heated Holding Cabinet with Dutch Double-Pane Tempered Glass Doors

SKU: C589L-SDC-LPDC
GTIN: 0-41105-46510-3
$8,978.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

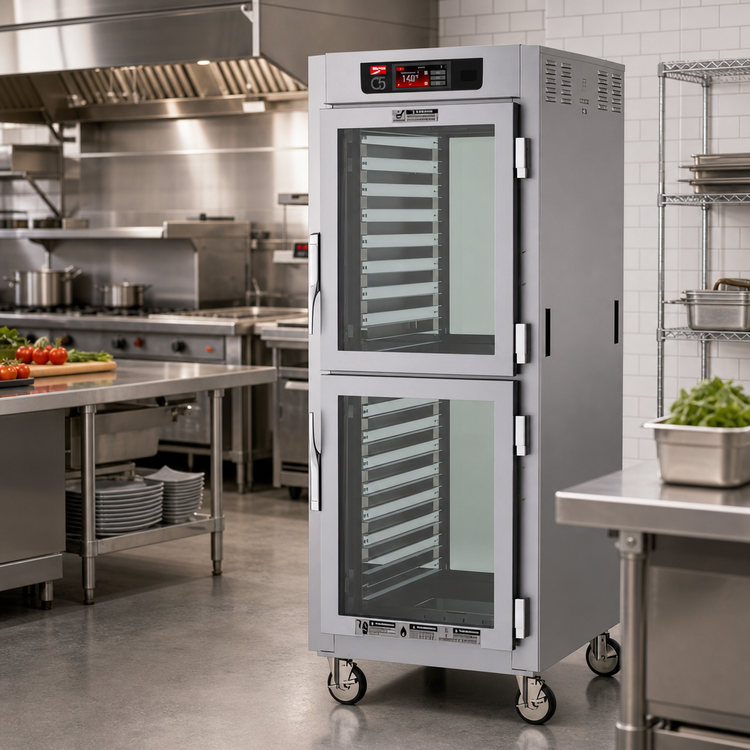

Metro C5 8 Series Full-Height Pass-Thru Controlled Temperature Heated Holding Cabinet with Dutch Double-Pane Tempered Glass Doors

Mobile, Touch-Screen Controls, 17 Full-Size Pan Capacity

Keep food hot, moist, and ready to serve with precise touchscreen control, passive humidity, and insulated pass-thru access.

  • Full-height, pass-thru design with Dutch double-pane tempered glass doors for access from both sides.
  • 6.8-inch touch-screen controls help simplify temperature management, presets, and daily operation.
  • Passive humidity and precise temperature control help maintain food quality and oven-fresh results.
  • Lip-load slides on 3-inch centers hold up to 17 full-size 18 x 26 pans.
  • High-density insulation and airflow design promote uniform holding from top to bottom.
  • Mobile base with 5-inch casters and 304 stainless steel construction supports durability and easy positioning.

Overall Dimensions:

29.13"W x 34.63"D x 74.75"H

Product Weight:

400.0 lb

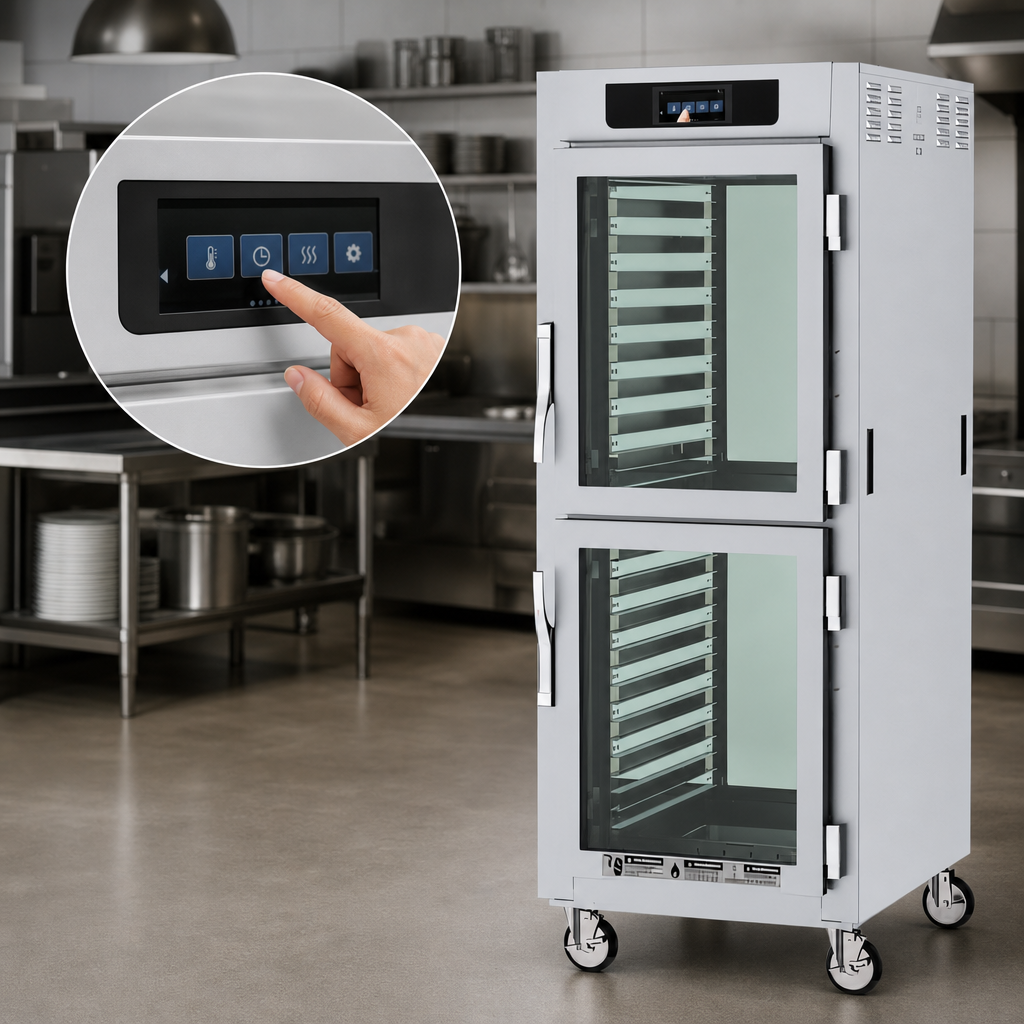

6.8-Inch Touch-Screen Controls

Intuitive touch-screen interface makes it easy to manage holding settings and cabinet operation.

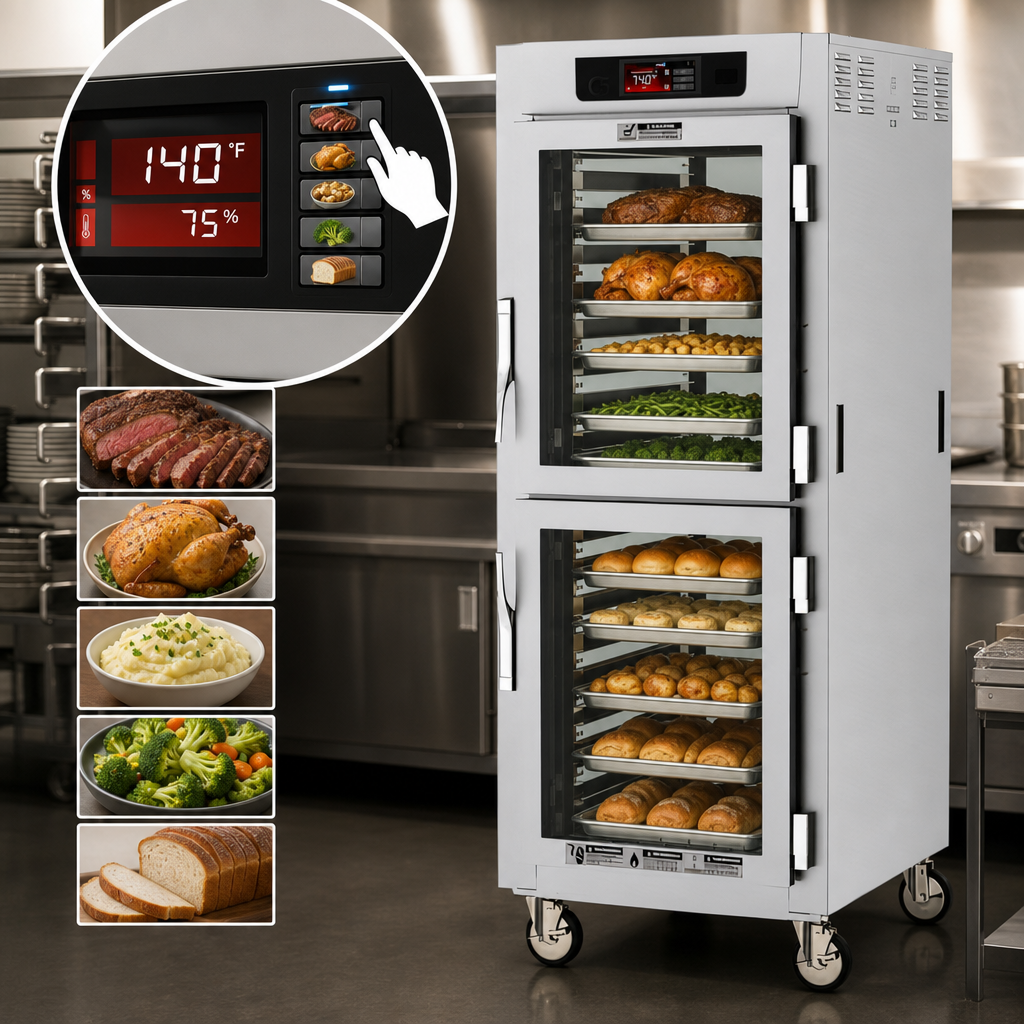

One-Touch Menu Presets

Preset selections for meats, poultry, starches, vegetables, and breads help improve repeatability.

Programmable Timers and Auto-Start

Built-in timers, auto-start, alarms, and HACCP data logging support efficient daily operation.

Passive Humidity System

An integrated water pan helps create humidity to better preserve food texture and quality.

High-Density Insulation and Uniform Airflow

Insulated construction and airflow design help maintain even holding conditions from top to bottom.

Lip-Load Slides on 3-Inch Centers

Fixed 3-inch slide spacing maximizes 18 x 26 sheet pan capacity.

Pass-Thru Dutch Tempered Glass Doors

Double-pane tempered glass doors provide visibility and convenient access from either side.

Mobile with 5-Inch Casters

Casters make the cabinet easier to move for positioning, cleaning, or workflow changes.

304 Stainless Steel Construction

Durable stainless steel construction is built for demanding commercial kitchen use.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Controls Touch Screen
Pan Capacity 17 18 Inch x 26 Inch Pans
Material 304 Stainless Steel
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 75 Inches
Shipping Weight 400 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It is designed for hot food holding applications only.
The cabinet holds up to 17 full-size 18 x 26 pans on fixed 3-inch centers.
Yes. An integrated water pan provides passive humidity to help maintain food quality.
It operates on 120V, 60 Hz, single-phase power and uses 1440 watts, 12 amps, with a NEMA 5-15P plug.
The series offers universal slides for flexibility or lip-load slides to maximize 18 x 26 sheet pan capacity.
