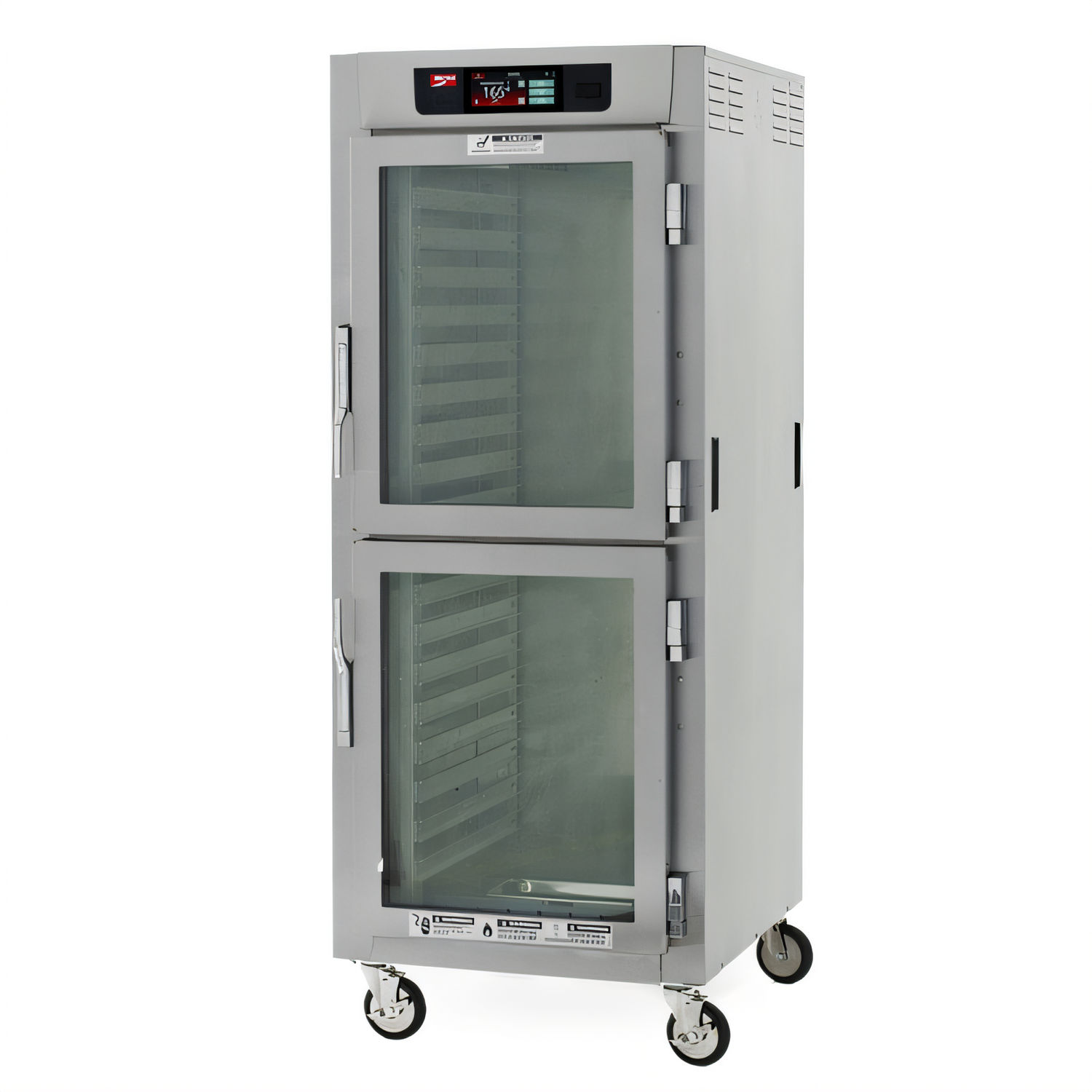

Metro C5 8 Series Full-Height Pass-Thru Controlled Temperature Holding Cabinet with Dutch Doors, 17 Pan Capacity, 120V

Mobile, insulated, 304 stainless steel cabinet with touch-screen controls and 5-inch casters

Keep hot food evenly held and ready to serve with precise touch-screen control, passive humidity, and a full-height pass-thru design.

  • 6.8-inch touch-screen controls with menu presets, timers, auto-start, alarms, and HACCP data logging.
  • Insulated cabinet with precise temperature control, passive humidity, and unique airflow for even holding from top to bottom.
  • Full-height pass-thru layout supports efficient loading and unloading in high-volume kitchens.
  • Dutch door setup includes one double-pane tempered glass door and one solid door for visibility and access.
  • Lip-load slides on 3-inch centers hold 17 full-size 18 x 26 pans.
  • 304 stainless steel construction and 5-inch casters provide durability and easy mobility.

Overall Dimensions:

29.13"W x 34.63"D x 74.75"H

Product Weight:

435.0 lb

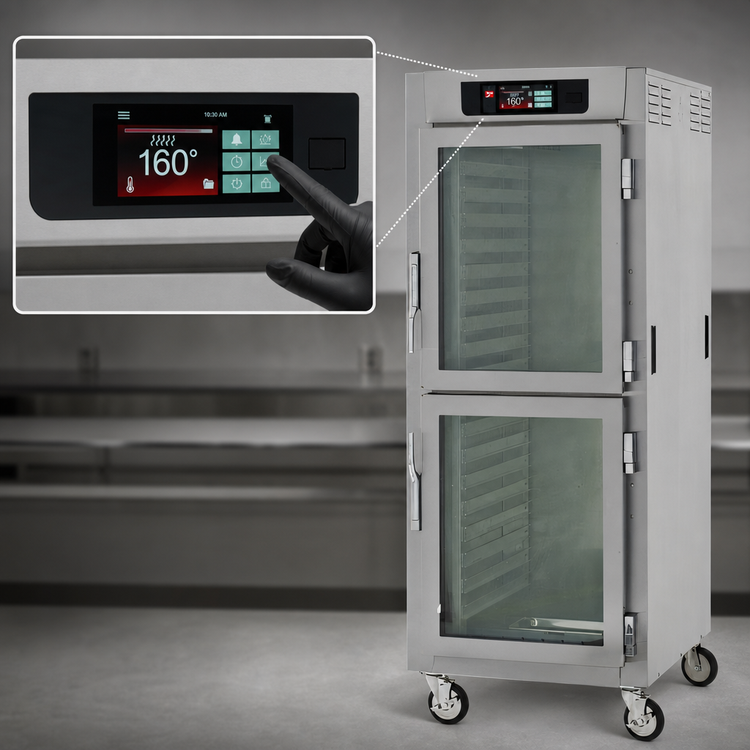

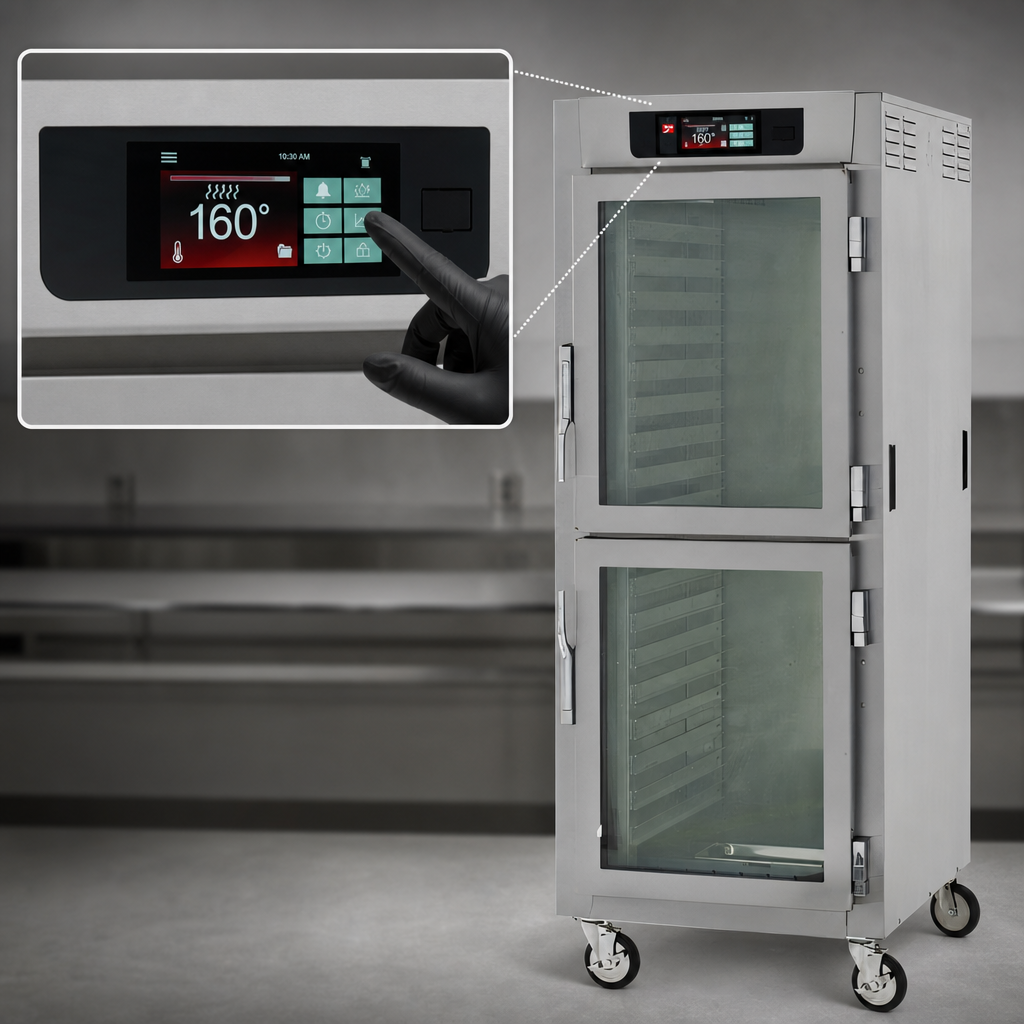

6.8-Inch Touch-Screen Controls

Intuitive digital controls provide menu presets, timers, auto-start, alarms, and HACCP data logging.

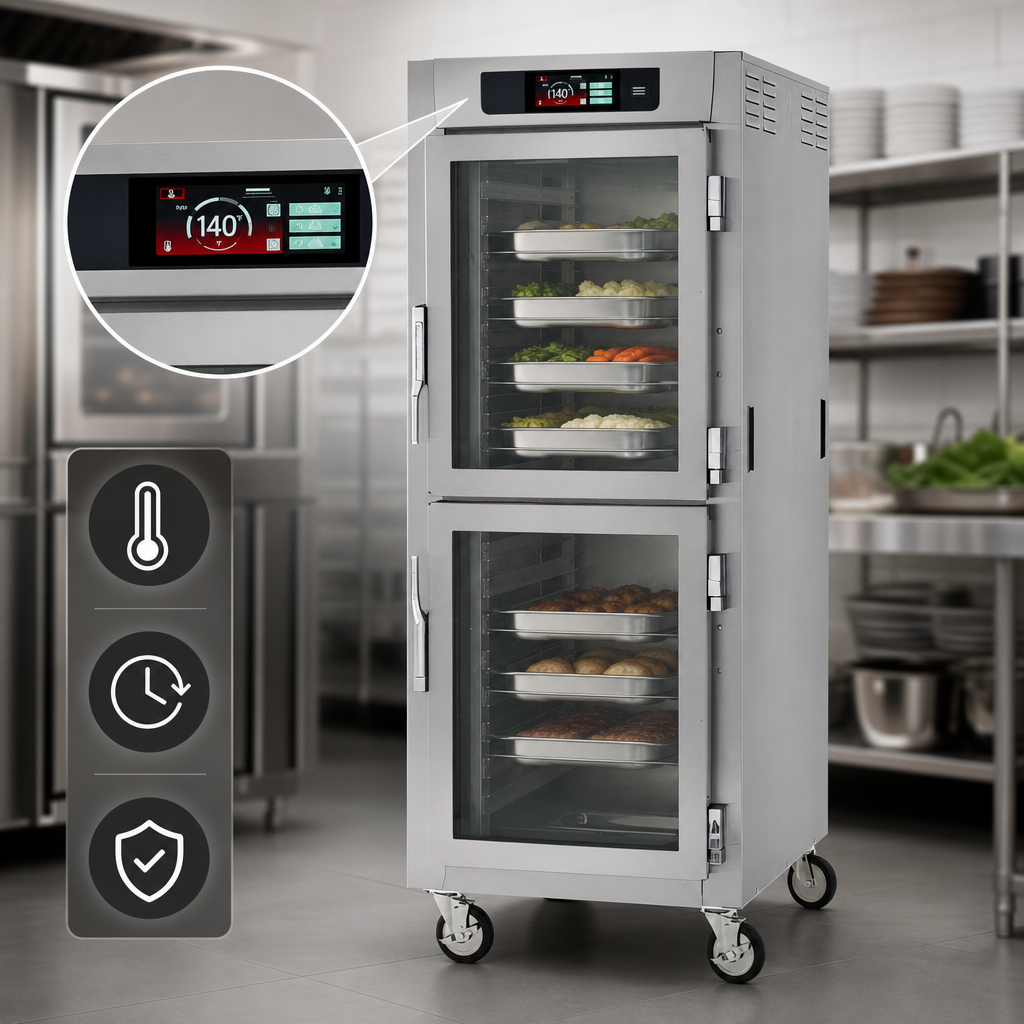

Precise Temperature Control

Designed to maintain consistent holding temperatures for extended periods.

Passive Humidity System

Integrated water pan helps create humidity to protect food texture and quality.

High-Density Insulation

Fiberglass insulation helps retain heat and improve cabinet efficiency.

Full-Height Pass-Thru Design

Pass-thru access supports faster workflow and easier service from both sides.

Dutch Door Configuration

Includes one Dutch double-pane tempered glass door and one Dutch solid door.

Lip-Load Slide System

3-inch slide centers maximize capacity for 18 x 26 sheet pans.

Mobile Stainless Steel Build

304 stainless steel construction and 5-inch casters support durability and repositioning.

Type Controlled Temperature Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Controls Digital Touch Screen
Pan Capacity 17 Full-Size Sheet Pans
Pan Size 18 Inches x 26 Inches
Material 304 Stainless Steel
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 75 Inches
Shipping Weight 435 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It holds 17 full-size 18 x 26-inch sheet pans on lip-load slides with 3-inch centers.
Yes. It uses an integrated water pan to provide passive humidity.
It includes one Dutch double-pane tempered glass door and one Dutch solid door.
It requires 120 Volts, 60 Hz, single-phase power, 16.7 amps, and 2,000 watts with a NEMA 5-20P plug.
Yes. It is mounted on 5-inch casters for mobility.
