Metro

Metro C5 6 Series Mobile Full Height Pass-Thru Heated Holding Cabinet, Solid Doors, 35 Full-Size Sheet Pan Capacity, 120V

SKU: C569L-SFS-LPFS
GTIN: 0-41105-46144-0
$6,920.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

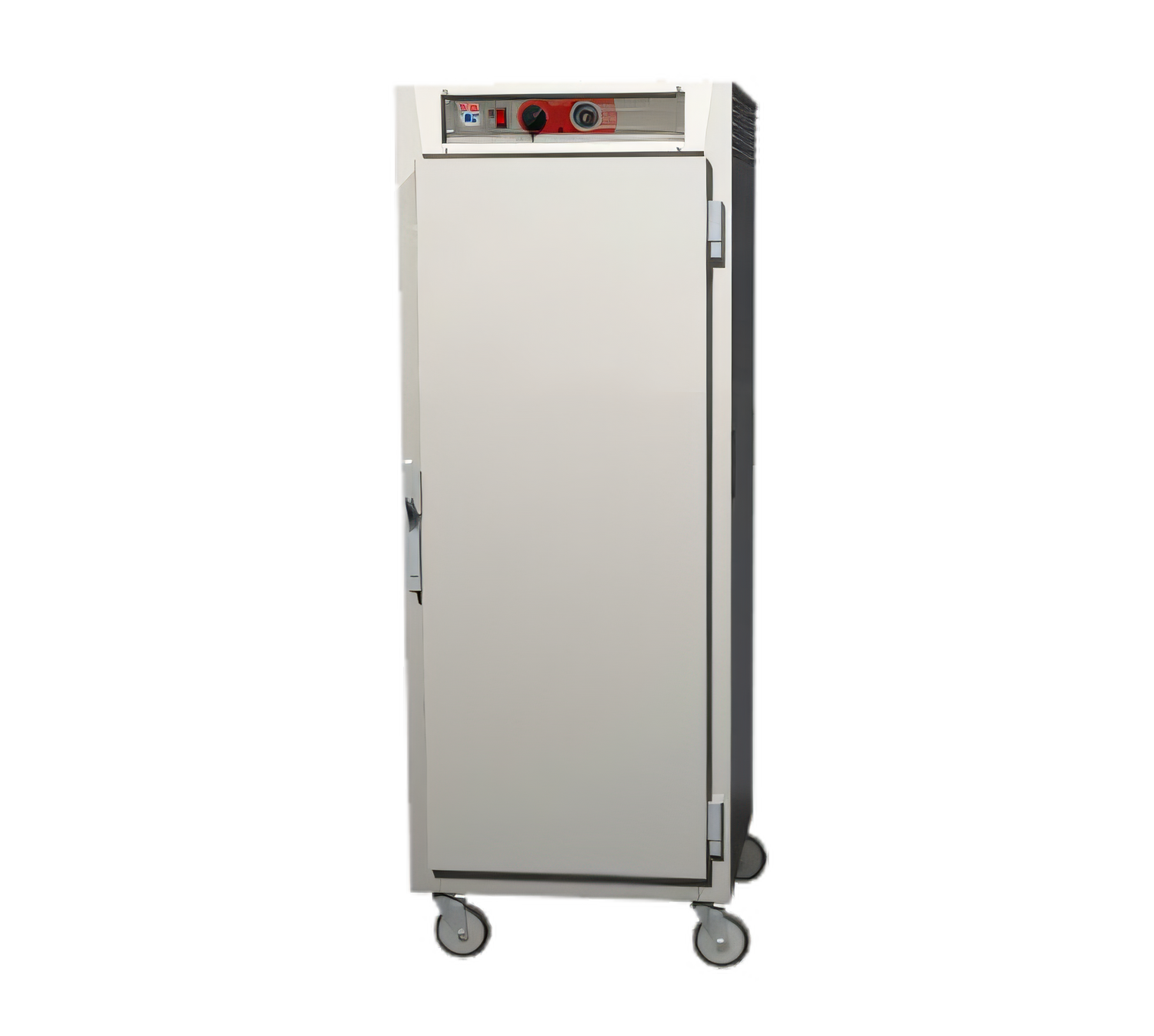

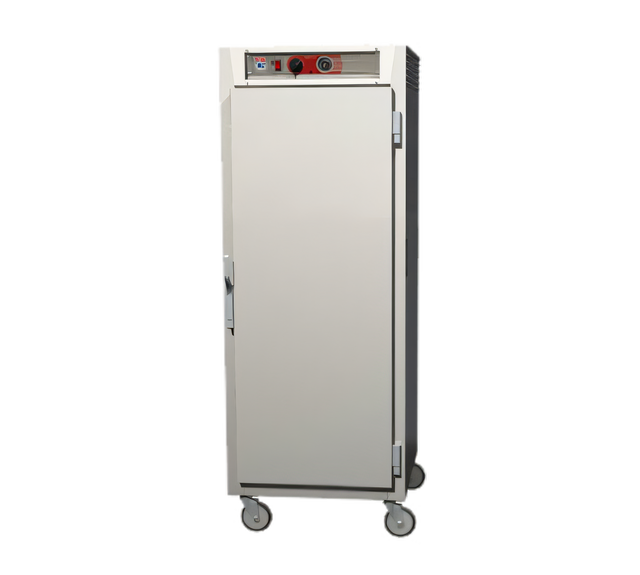

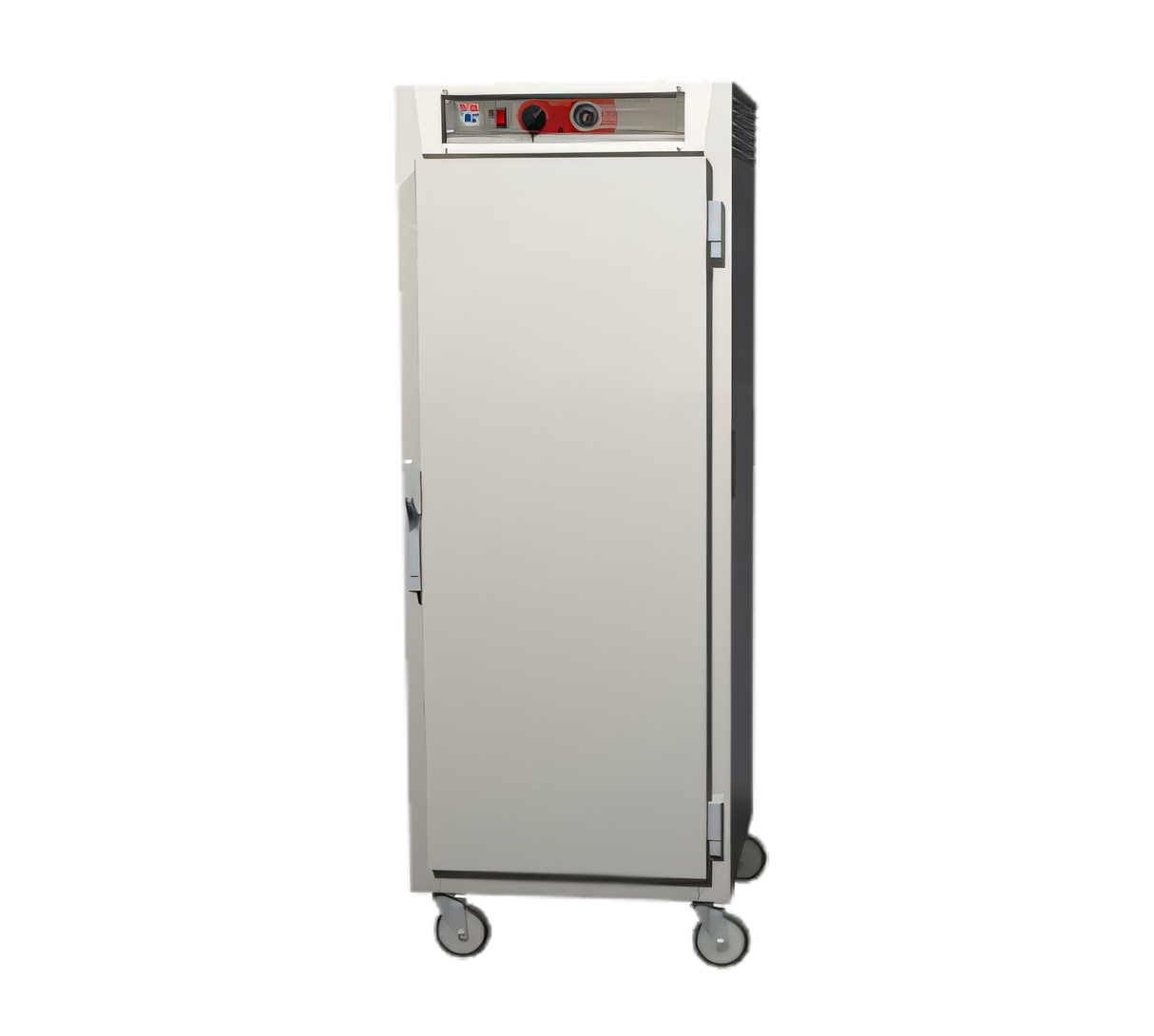

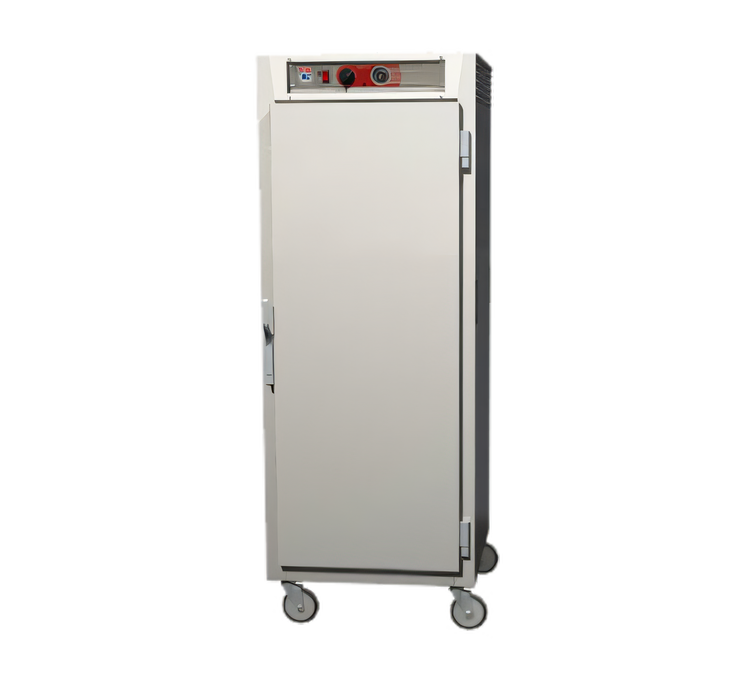

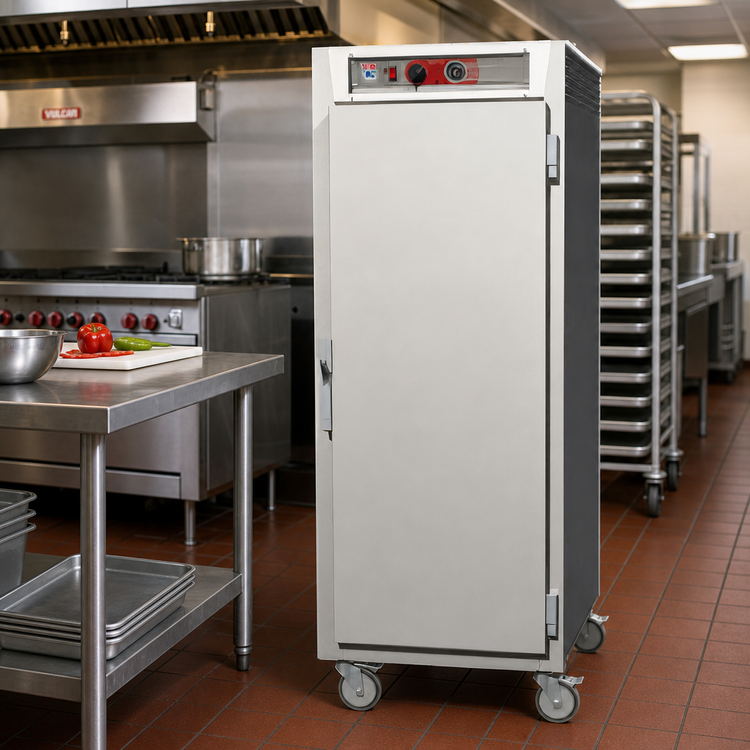

Metro C5 6 Series Mobile Full Height Pass-Thru Heated Holding Cabinet, Solid Doors, 35 Full-Size Sheet Pan Capacity, 120V

Insulated 304 Stainless Steel Cabinet with Top-Mounted Controls and Analog Thermometer

Built for high-volume hot holding, this pass-thru cabinet keeps food ready to serve with even ducted heat, easy two-sided access, and mobile convenience.

  • Full-height pass-thru design with solid front and rear doors supports efficient loading from either side.
  • Holds up to 35 full-size 18 x 26 sheet pans on lip-load wire slides.
  • Adjustable thermostat range from 70°F to 200°F for hot holding applications.
  • Ducted heating system helps distribute heat evenly throughout the cabinet.
  • Top-mounted controls and analog thermometer make operation and monitoring simple.
  • 304 stainless steel construction and insulation support durability and heat retention.
  • Mobile 5-inch casters, including 2 with brakes, make repositioning easy.

Overall Dimensions:

29.13"W x 34.63"D x 74.75"H

Product Weight:

385.0 lb

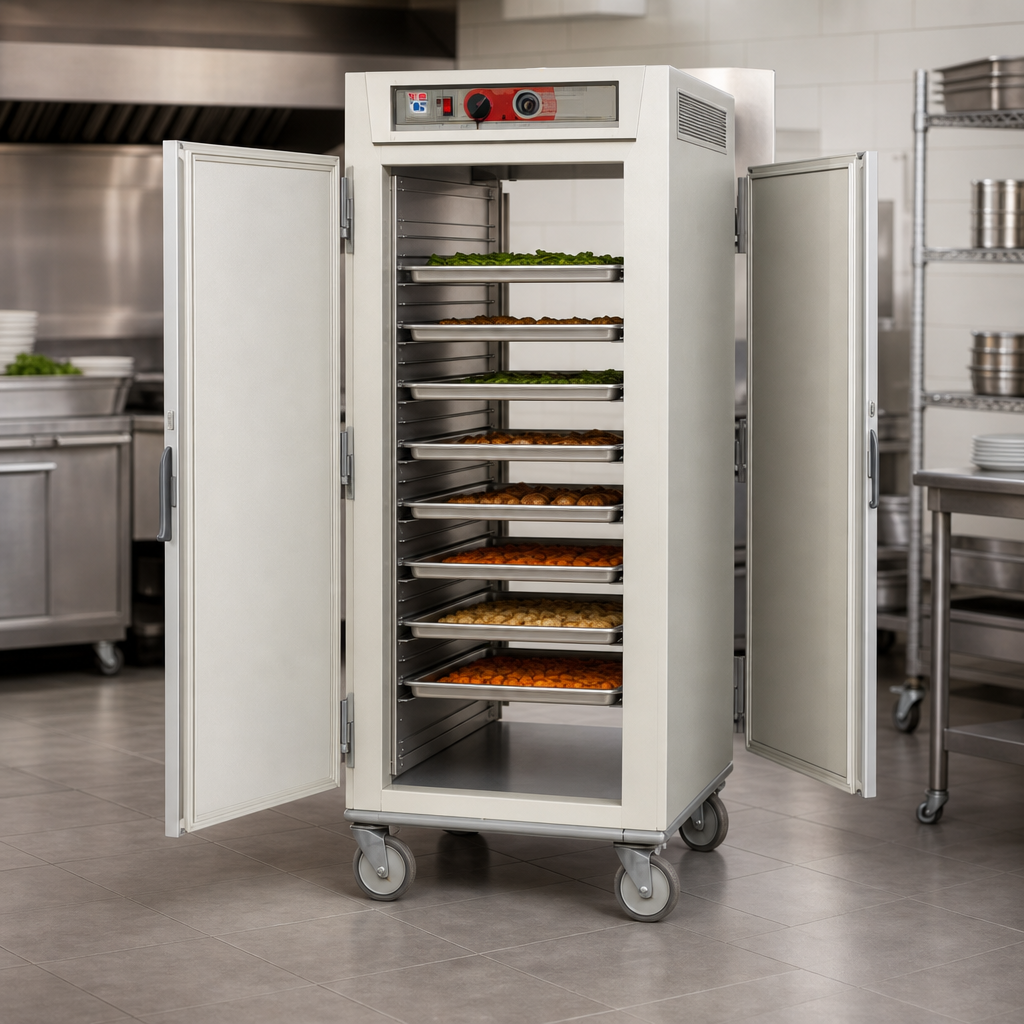

Pass-Thru Access

Solid doors on both the front and rear provide convenient two-sided access for loading and unloading.

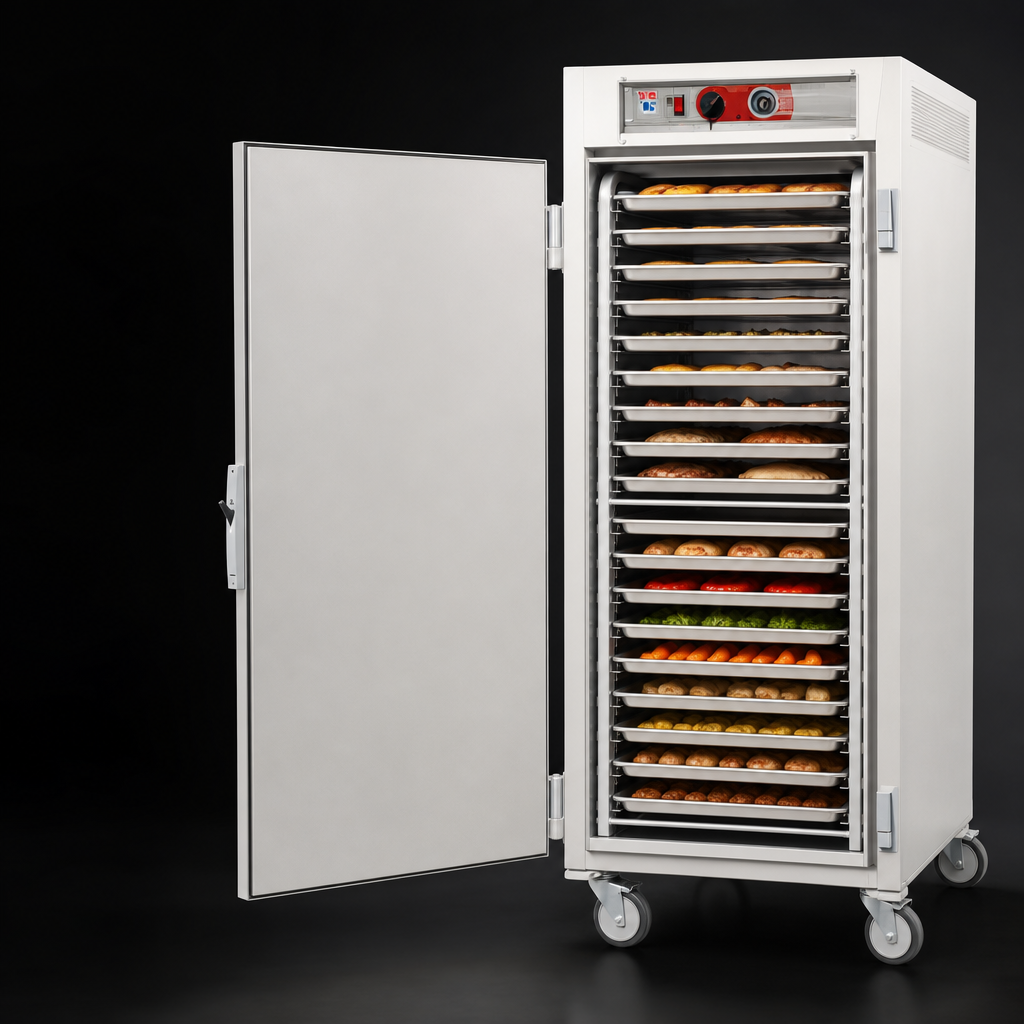

High Pan Capacity

Holds up to 35 full-size 18 x 26 sheet pans for high-volume holding.

Lip-Load Wire Slides

1-1/2-inch wire slides support quick loading and unloading of sheet pans.

Ducted Heating System

Designed to circulate heat evenly through the cabinet for consistent holding performance.

Adjustable Temperature Control

Thermostat is adjustable from 70°F to 200°F for hot food holding.

Top-Mounted Controls and Analog Thermometer

Easy-to-reach control area with a built-in dial thermometer for quick temperature checks.

Mobile Base

5-inch casters, with 2 brakes, make the cabinet easy to move and secure in place.

Insulated Stainless Steel Construction

Insulated cabinet body with 304 stainless steel construction supports heat retention and durability.

Humidity Support

The floor duct and water pan can be used to add humidity when desired.

Field-Reversible Doors

Doors can be reversed in the field to suit the installation layout.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Pan Capacity 35 Full-Size 18 x 26 Sheet Pans
Pan Size 18 x 26 Inches
Controls Thermostat
Temperature Range 70°F to 200°F
Material 304 Stainless Steel
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 75 Inches
Shipping Weight 385 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It holds up to 35 full-size 18 x 26 sheet pans.
The thermostat is adjustable from 70°F to 200°F.
Yes, it has solid doors on the front and rear for pass-thru access.
It requires 120V, 60Hz, 1-phase power, draws 12 amps, and uses a NEMA 5-15P plug.
Yes, the doors can be reversed in the field to suit the installation layout.
No. It is for hot food holding only, and food should already be at the proper temperature before being placed inside.
