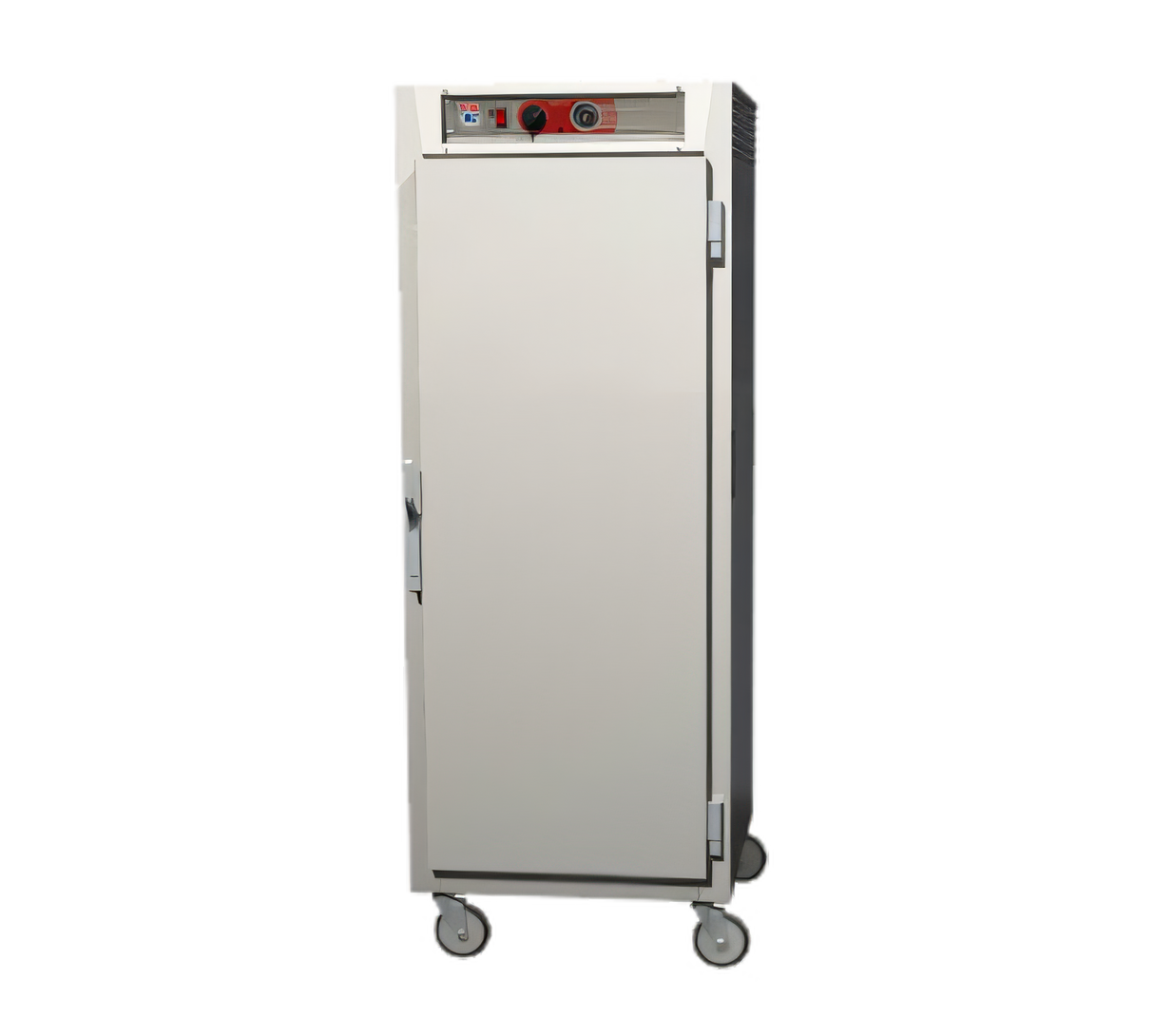

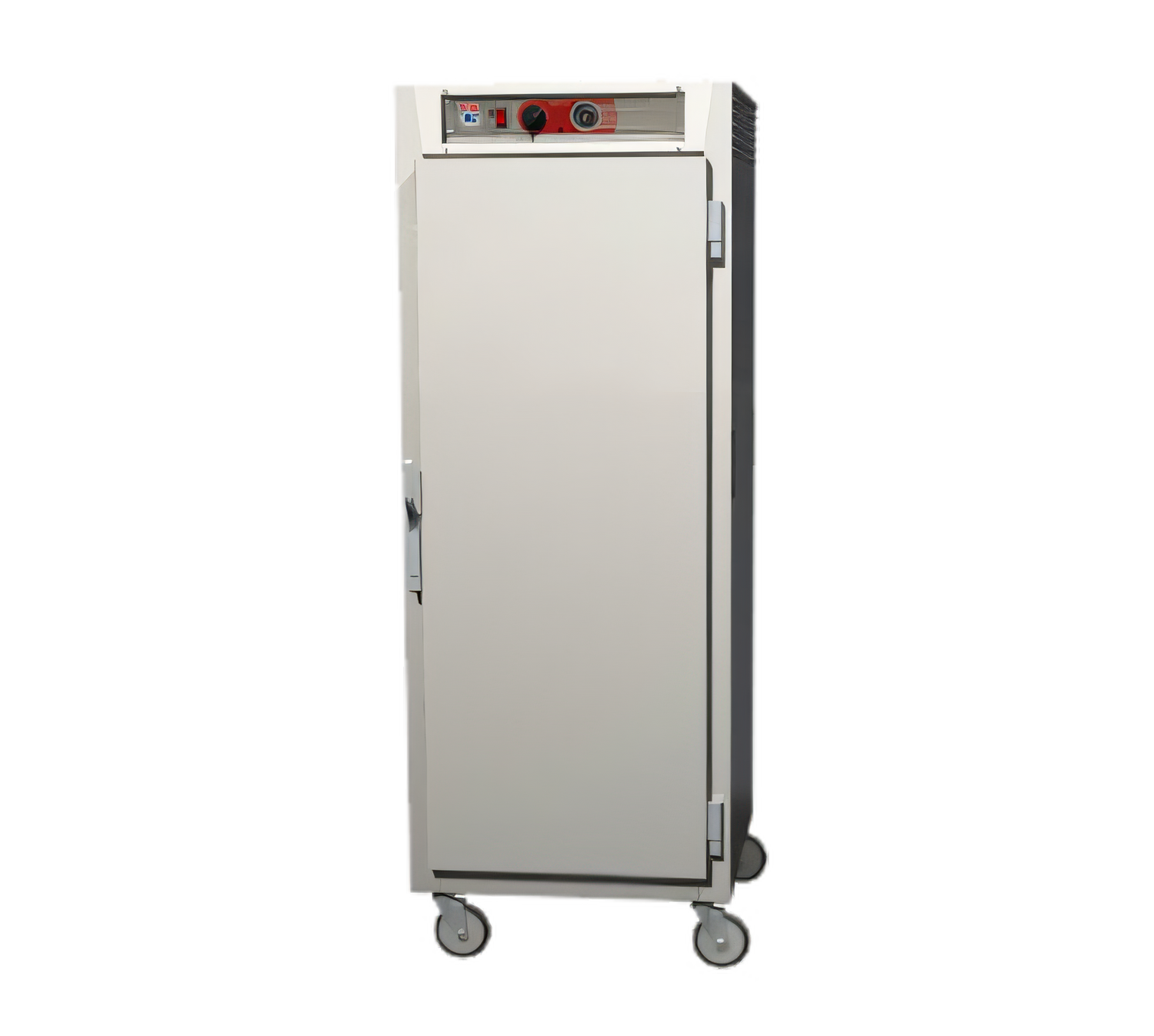

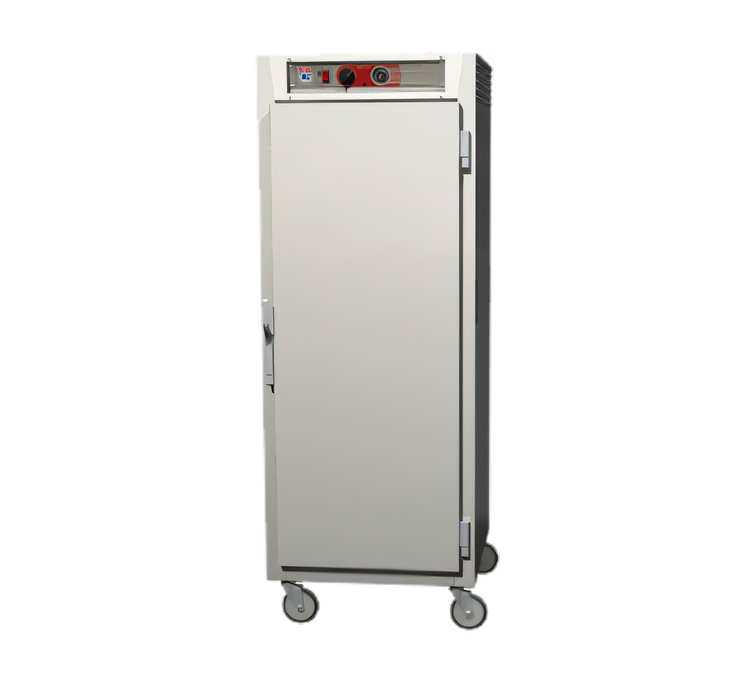

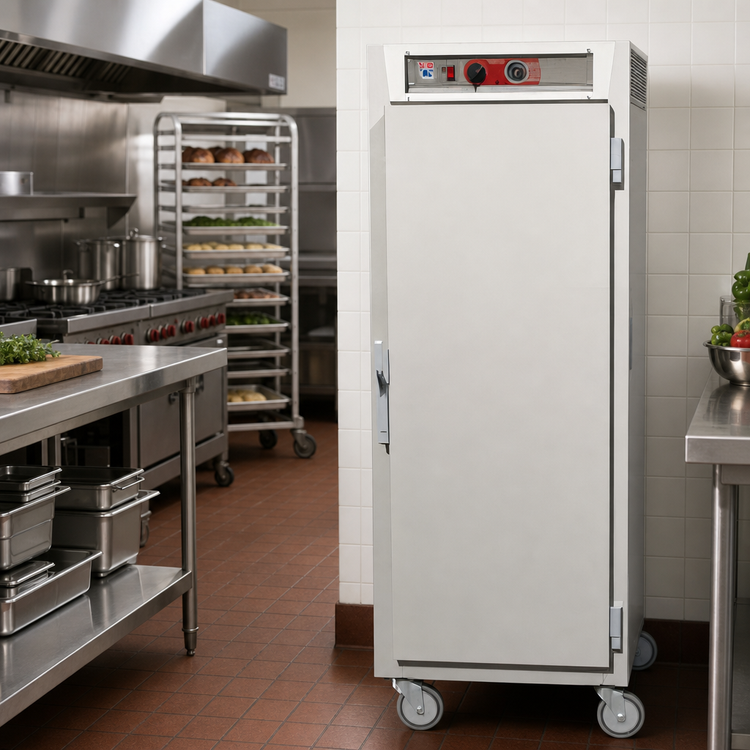

Metro C5 6 Series Mobile Full-Height Pass-Thru Heated Holding Cabinet, Combination Doors, 35-Pan Capacity, 120V

SKU: C569L-SFS-LPFC
GTIN: 0-41105-46143-3
$7,487.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro C5 6 Series Mobile Full-Height Pass-Thru Heated Holding Cabinet, Combination Doors, 35-Pan Capacity, 120V

Insulated 304 stainless steel cabinet with top-mount controls and analog thermometer.

Built for busy service lines, this full-height pass-thru cabinet keeps hot food organized, accessible, and ready to serve.

  • Full-height pass-thru design supports loading and unloading from both sides.
  • Combination door setup includes one solid door and one double-pane tempered glass door.
  • Holds up to 35 full-size 18 x 26 pans on lip-load wire slides.
  • Adjustable thermostat ranges from 70°F to 200°F for hot holding.
  • Top-mount controls and analog thermometer make temperature checks easy.
  • 304 stainless steel construction with 5-inch casters, including 2 with brakes, adds durability and mobility.

Overall Dimensions:

29.13"W x 34.63"D x 74.75"H

Product Weight:

435.0 lb

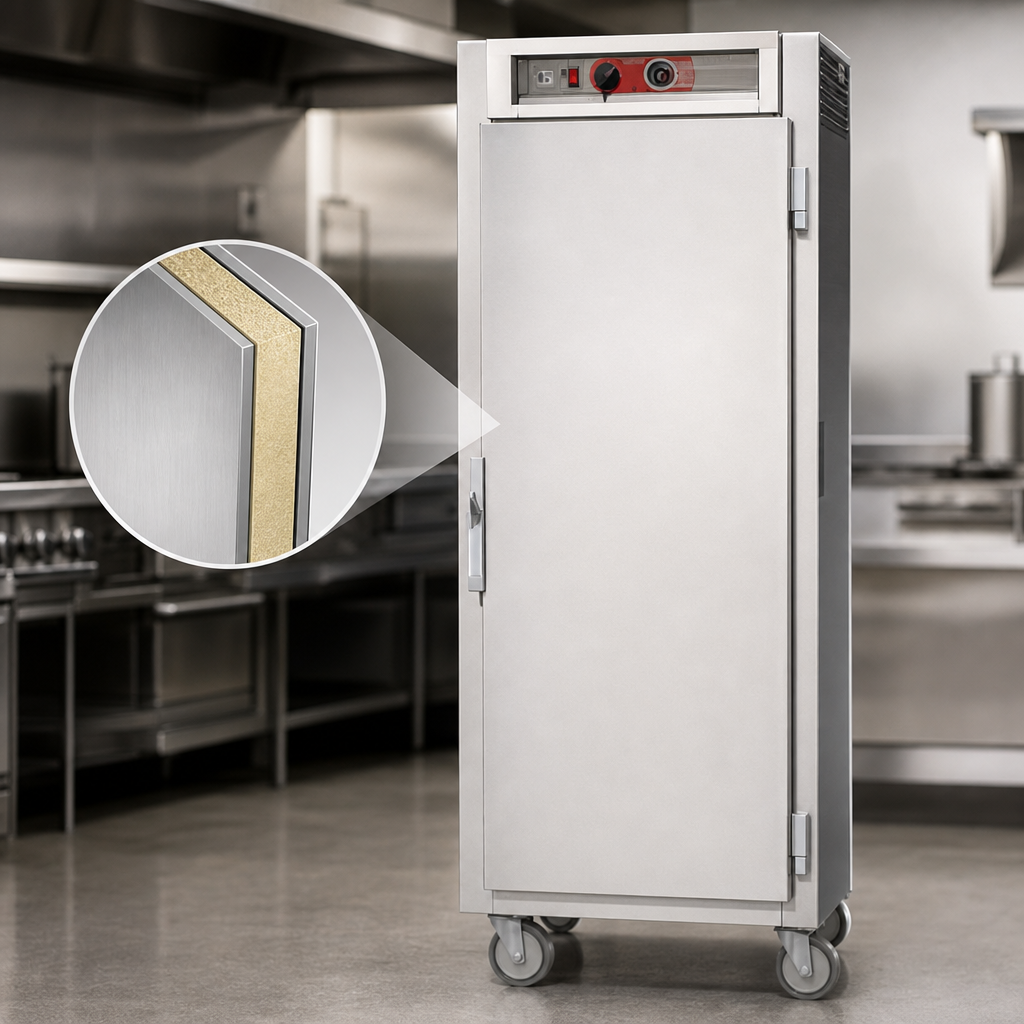

Insulated 304 Stainless Steel Construction

Helps retain heat while providing a durable, easy-to-clean cabinet body.

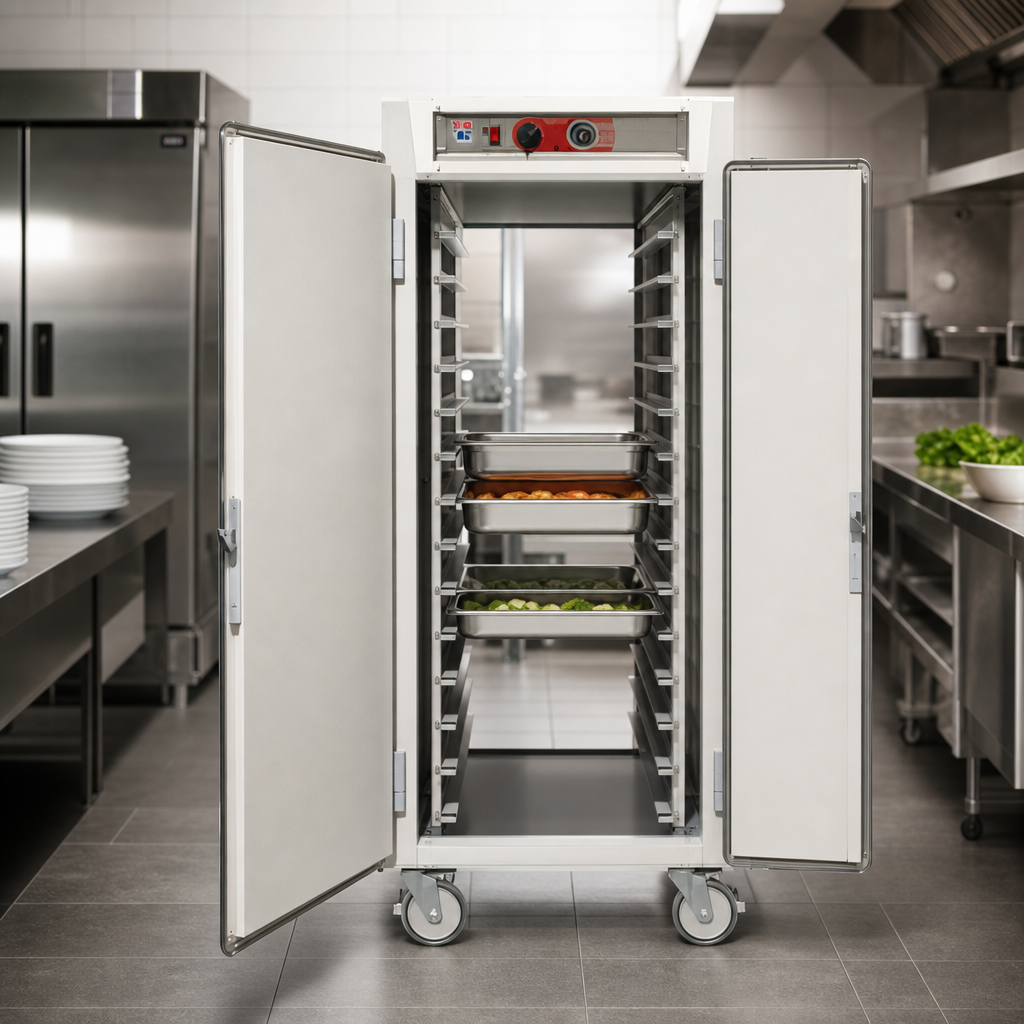

Pass-Thru Access

Front and rear doors make it easier to load, unload, and move product through the kitchen.

Combination Door Set

Includes one solid door and one double-pane tempered glass door for a balance of heat retention and visibility.

Top-Mount Controls and Analog Thermometer

The control panel is positioned at the top for quick access, with an analog thermometer for easy temperature monitoring.

Ducted Heating System

Designed to distribute heat evenly throughout the cabinet; the floor duct can accommodate a water pan for added humidity.

35-Pan Lip-Load Capacity

Configured to hold up to 35 full-size 18 x 26 pans on 1-1/2 inch wire slides.

Mobile Casters

5-inch casters make repositioning easy, and two casters include brakes for stability when parked.

Field-Reversible Doors

Doors can be reversed on site to fit the installation layout.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Pan Capacity 35 Full-Size 18 Inch x 26 Inch Pans
Slide Centers Fixed On 3 Inches
Temperature Range 70°F to 200°F
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 75 Inches
Shipping Weight 435 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The thermostat is adjustable from 70°F to 200°F.
It holds up to 35 full-size 18 x 26 pans on lip-load slides.
Yes. It has front and rear doors for pass-through loading.
It requires 120V, 60Hz, single-phase power at 12 amps with a NEMA 5-15P plug.
Yes. The floor duct uses a water pan, and adding clean warm water can help create humid holding conditions.
Yes. The doors are field reversible. On pass-thru units with clear doors, the front and rear doors must hinge on opposite sides.
