Metro C5 6 Series Insulated Full-Height Mobile Pass-Thru Heated Holding Cabinet with Combination Glass and Solid Doors

SKU: C569L-SFC-UPFS
GTIN: 0-41105-46139-6
$7,582.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro C5 6 Series Insulated Full-Height Mobile Pass-Thru Heated Holding Cabinet with Combination Glass and Solid Doors

120V, 1440W, 12 Amps, 304 Stainless Steel

Built for busy kitchens, this insulated pass-thru cabinet keeps hot food ready for service with even ducted heat, adjustable universal slides, and easy mobility.

  • Full-height pass-thru design with one tempered double-pane glass door and one solid door for visibility and heat retention.
  • Adjustable universal wire slides hold 18 sheet pans or 34 hotel pans.
  • Ducted heating system and thermostat control maintain holding temperatures from 70°F to 200°F.
  • 304 stainless steel, insulated construction is durable and easy to clean.
  • 5-inch casters, including 2 with brakes, make the cabinet easy to move and secure.
  • Water pan and floor duct can add moisture to help maintain food quality during holding.

Overall Dimensions:

29.13"W x 34.63"D x 74.75"H

Product Weight:

435.0 lb

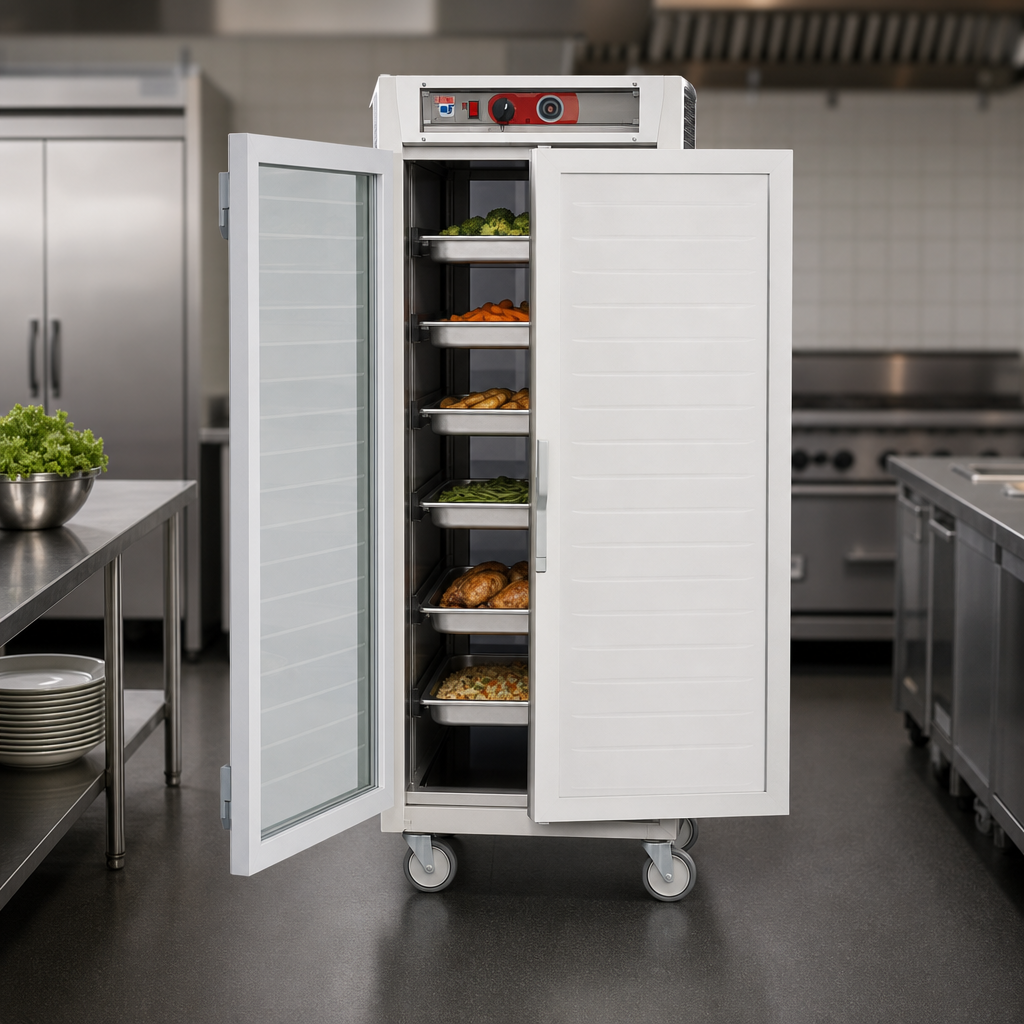

Combination Pass-Thru Doors

One tempered double-pane glass door and one solid door provide visibility on one side and better heat retention on the other.

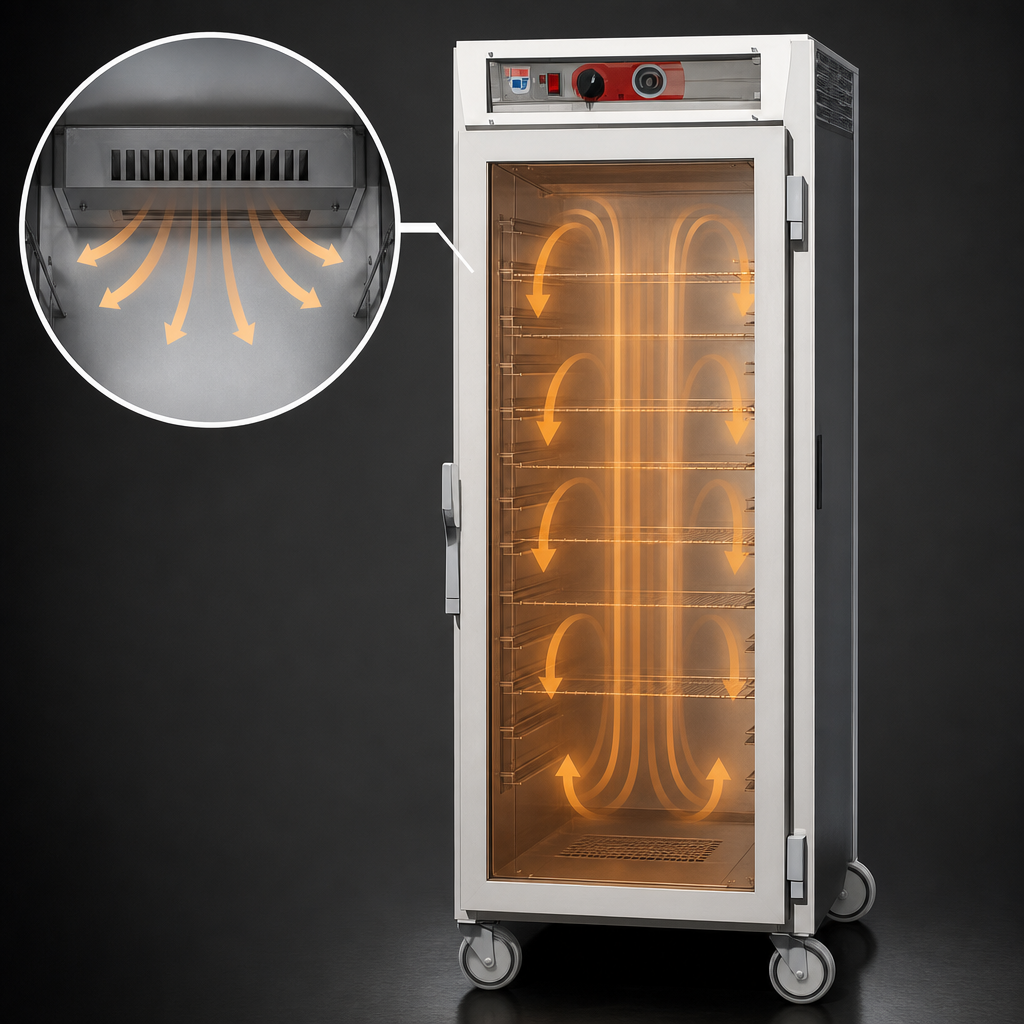

Ducted Heating System

Designed to distribute heat evenly throughout the cabinet for more consistent holding performance.

Adjustable Universal Wire Slides

1-1/2-inch slide centers support flexible pan loading for 18 x 26-inch sheet pans or 12 x 20 x 2-1/2-inch hotel pans.

Top-Mounted Controls and Dial Thermometer

Top-mounted thermostat control and analog thermometer make temperature adjustment and monitoring easy.

Humidity Capability

A floor duct and water pan can be used to add moisture; the water pan holds about 1 quart (1 liter).

Mobile Design

5-inch casters with 2 brakes make the cabinet easy to move and secure in place.

Insulated 304 Stainless Steel Construction

Durable insulated stainless steel build supports heat retention and easy cleaning in commercial kitchens.

Field-Reversible Doors

Doors can be reversed in the field for installation flexibility.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model (With Casters)
Material 304 Stainless Steel
Controls Top Mounted
Temperature Range 70 Degrees F to 200 Degrees F
Pan Capacity 18 18-Inch x 26-Inch Sheet Pans or 34 12-Inch x 20-Inch x 2-1/2-Inch Hotel Pans
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 75 Inches
Shipping Weight 435 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It holds (18) 18-inch x 26-inch sheet pans or (34) 12-inch x 20-inch x 2-1/2-inch hotel pans with the universal wire slides.
The thermostat is adjustable from 70°F to 200°F.
Yes. The floor duct includes a water pan that can be filled with clean warm potable water; capacity is about 1 quart (1 liter).
No. It is for hot food holding only, and food should be hot before being placed in the cabinet.
It is rated 120V, 60Hz, single-phase, 1440W, 12 amps, with a NEMA 5-15P plug.
Yes. The doors are field reversible; on pass-thru cabinets with clear doors, the front and rear doors must be hinged from opposite sides.
