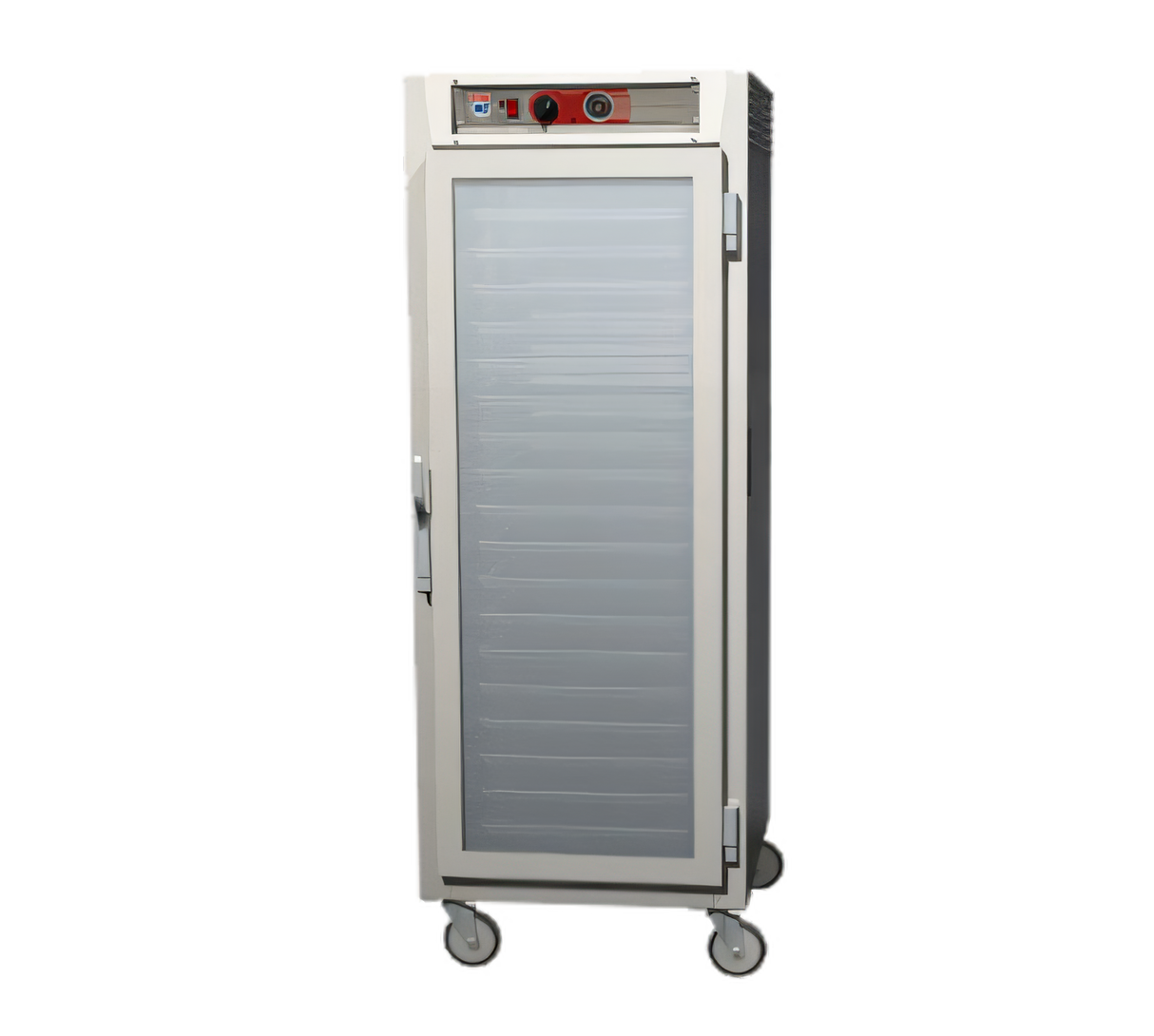

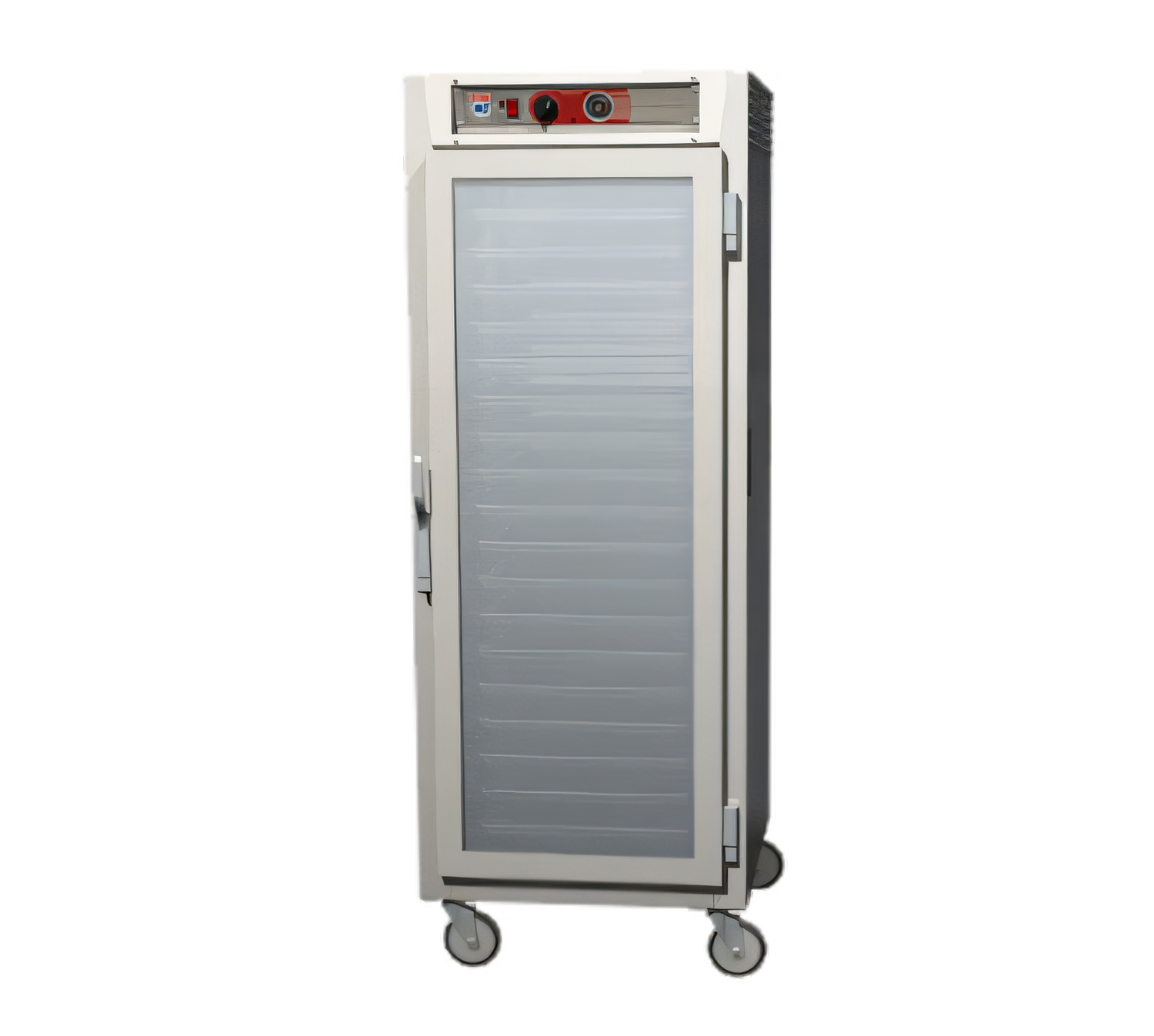

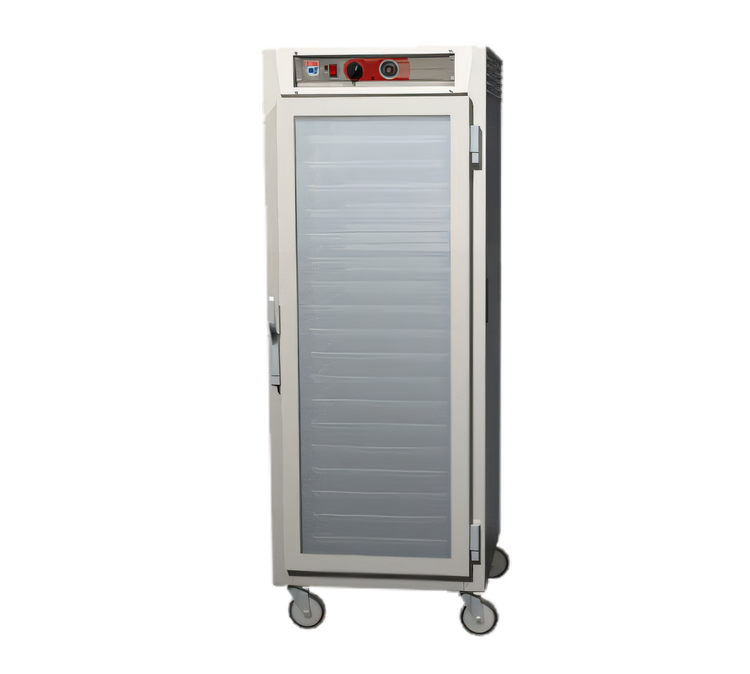

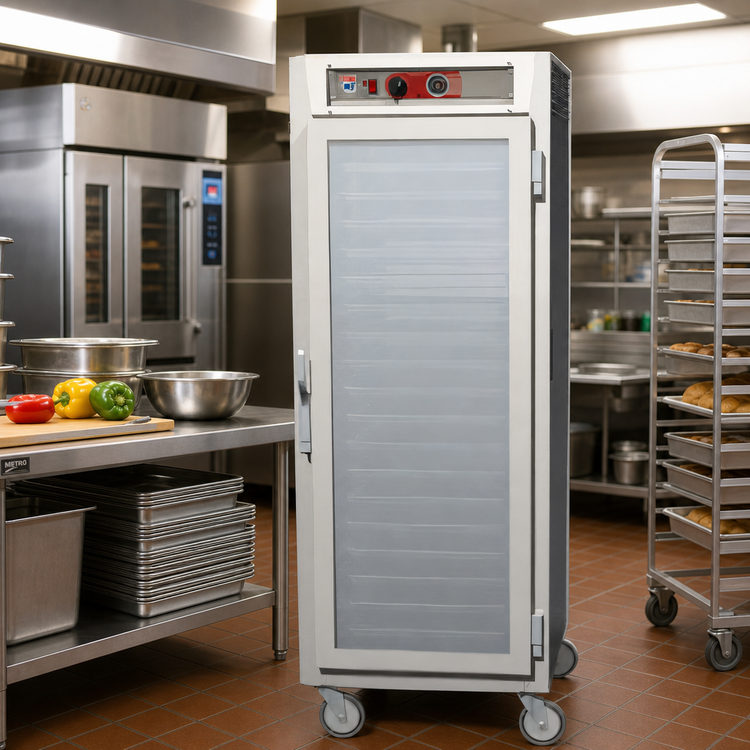

Metro C5 6 Series Mobile Full-Height Pass-Thru Heated Holding Cabinet with Combination Doors, 35-Pan Capacity, 120V

Lip-Load Slides, 304 Stainless Steel, 1.44 kW

Keep hot food ready to serve with a mobile pass-thru cabinet that delivers 35-pan capacity, even ducted heat, and durable 304 stainless steel construction.

  • Full-height, pass-thru design streamlines loading and unloading from both sides.
  • Combination door set includes one double-pane tempered glass door and one solid door.
  • Holds up to 35 full-size 18" x 26" pans on fixed lip-load wire slides.
  • Thermostatic control ranges from 70°F to 200°F with an analog thermometer for quick checks.
  • Ducted heating system helps distribute heat evenly throughout the cabinet.
  • 5" casters, including 2 with brakes, make the cabinet easy to move and secure.
  • Floor duct water pan can be filled to add humidity when needed.

Overall Dimensions:

29.13"W x 32.63"D x 74.75"H

Product Weight:

435.0 lb

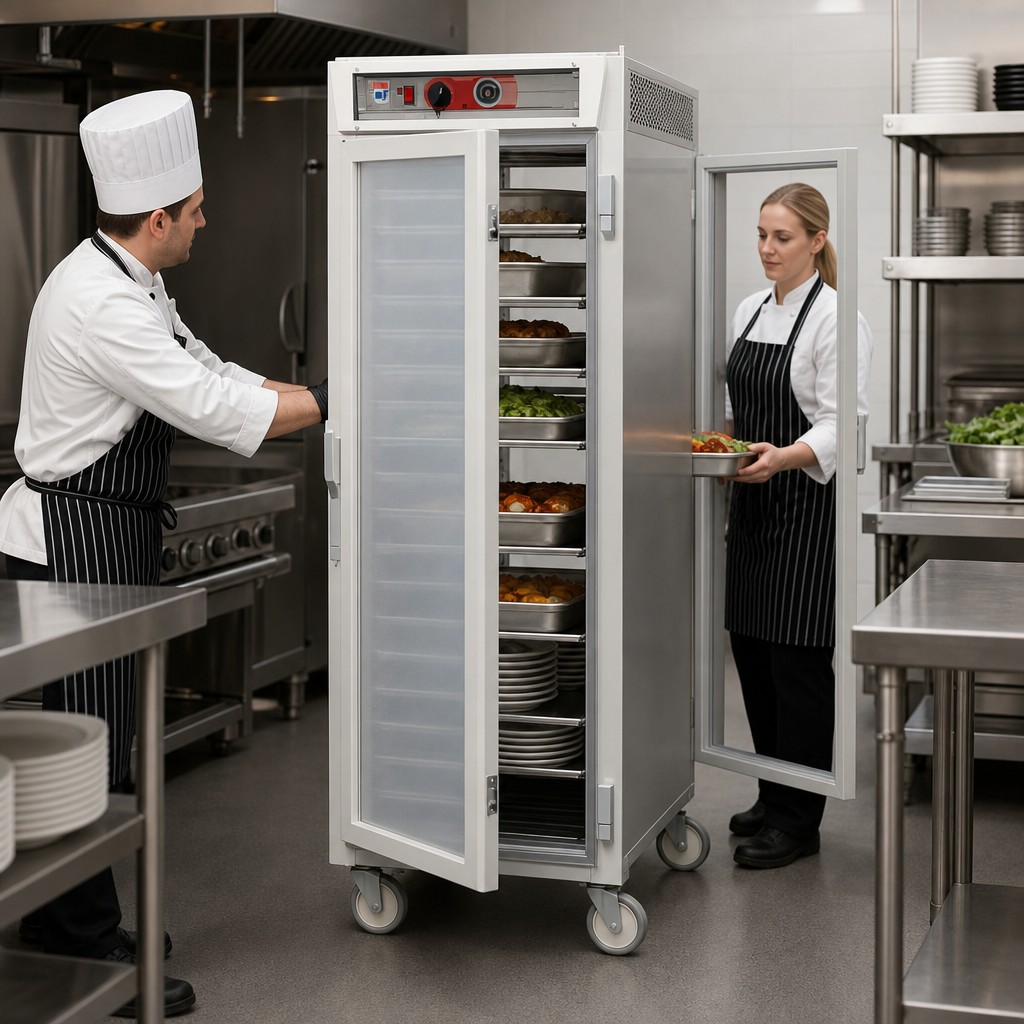

Pass-Thru Access

Front and rear access supports efficient workflow in busy service areas.

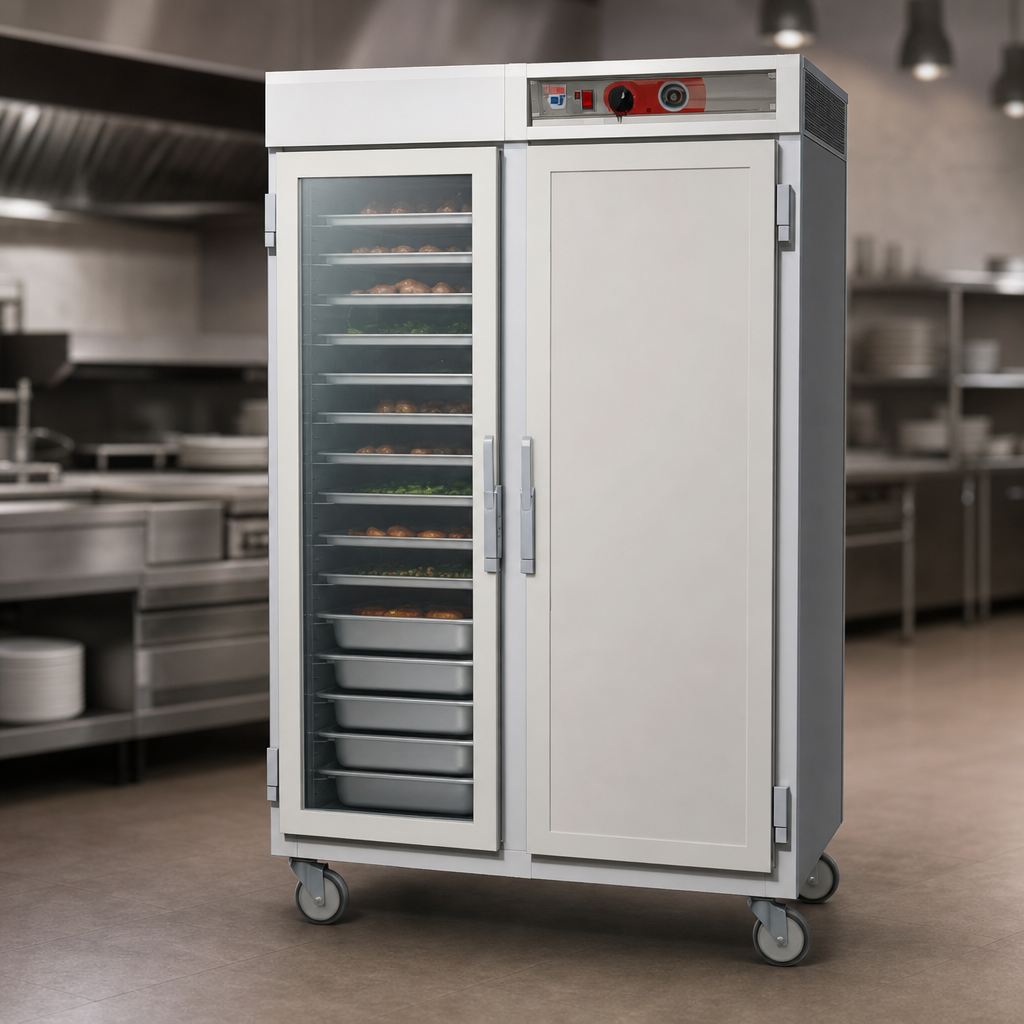

Combination Door Set

One double-pane tempered glass door and one solid door help balance product visibility and heat retention.

35-Pan Capacity

Holds up to 35 full-size 18" x 26" sheet pans on lip-load fixed wire slides.

Ducted Heating System

Designed to distribute heated air evenly through the cabinet.

Thermostatic Temperature Control

Adjustable 70°F to 200°F holding range for temperature flexibility.

Top-Mount Controls and Analog Thermometer

Conveniently placed controls and a built-in thermometer simplify monitoring.

304 Stainless Steel Construction

Durable stainless steel build supports long-term commercial use and cleanup.

Mobile Casters

Five-inch casters with two brakes allow easy repositioning and stable placement.

Humidity-Ready Water Pan

Floor duct water pan can be filled with clean warm water to add humidity during holding.

Field-Reversible Doors

Doors can be reversed in the field to fit kitchen layouts; pass-thru clear doors must hinge on opposite sides.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Controls Thermostatic
Temperature Range 70°F to 200°F
Pan Capacity 35 Pans
Pan Size 18 x 26 Inches
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Shipping Width 30 Inches
Shipping Depth 33 Inches
Shipping Height 75 Inches
Shipping Weight 435 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It is for hot food holding only and is not a re-thermalizing cabinet.
It holds up to 35 full-size 18" x 26" pans.
The thermostat adjusts from 70°F to 200°F. The manual notes a typical preheat setting of 6 or 7 yields about 150°F to 170°F after 45 to 60 minutes.
Yes. The floor duct water pan can be filled with clean warm water, and its capacity is about 1 quart (1 liter).
It uses 120V, 60 Hz, 1-phase power, 1440 watts, 12 amps, and a NEMA 5-15P plug.
Yes, the doors are field reversible. On pass-thru cabinets with clear doors, the front and rear doors must hinge on opposite sides.
