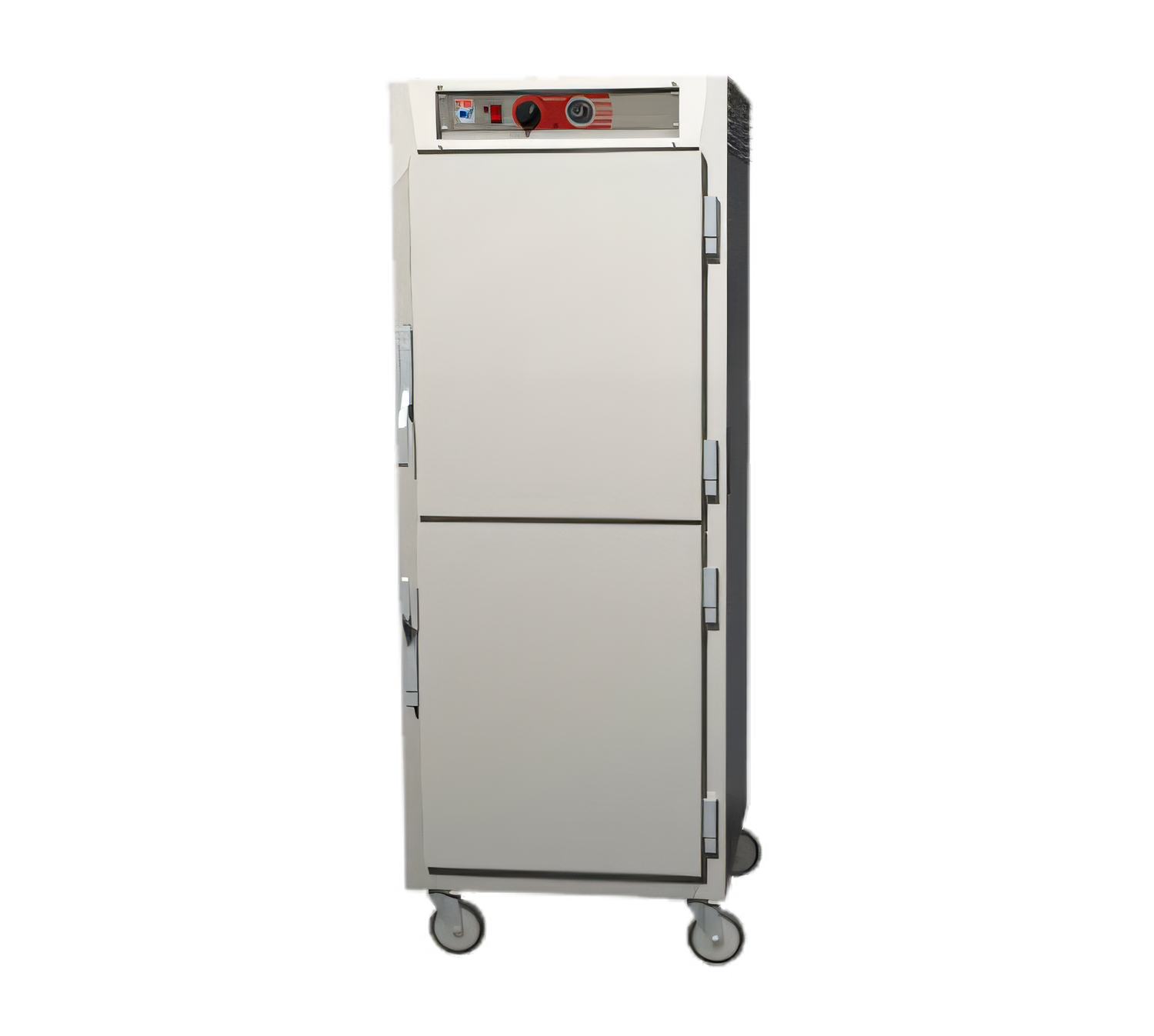

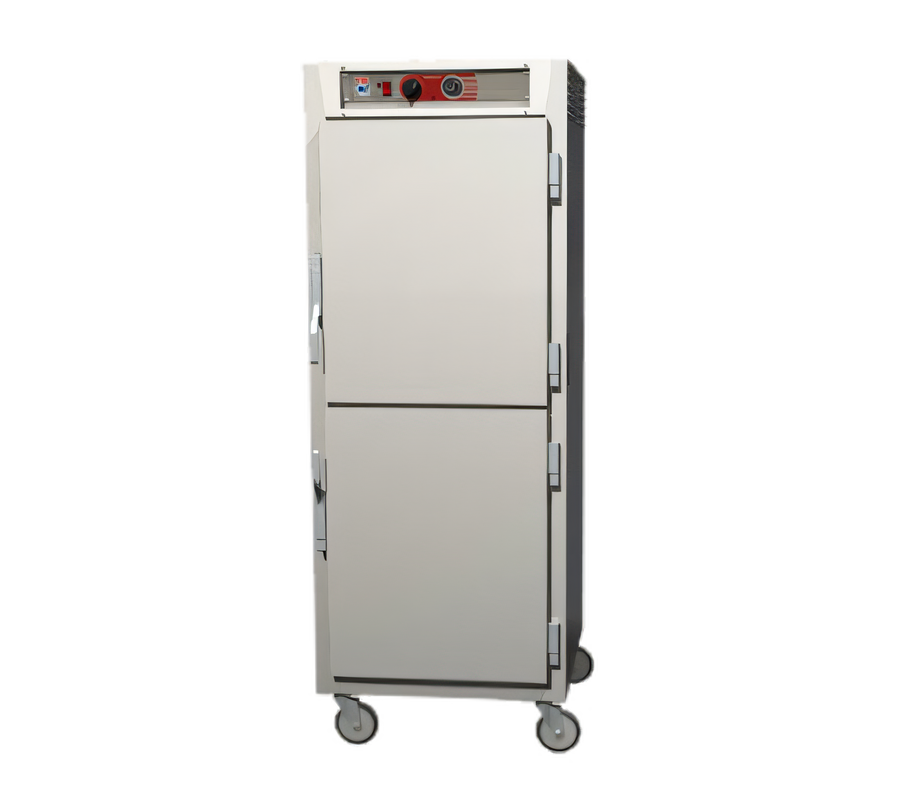

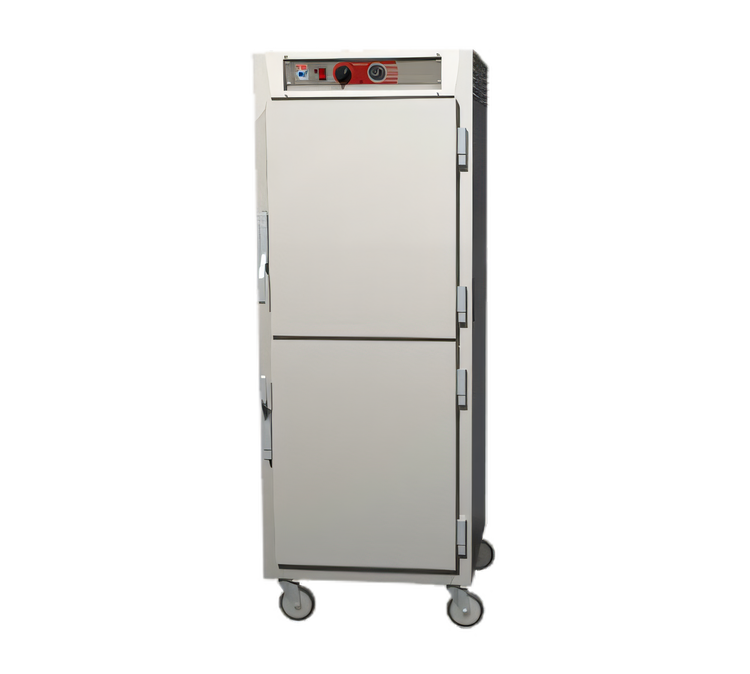

Metro C5 6 Series Full-Height Pass-Thru Heated Holding Cabinet with Solid Dutch Doors and Lip-Load Slides

SKU: C569L-SDS-LPDS
GTIN: 0-41105-46126-6
$7,109.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro C5 6 Series Full-Height Pass-Thru Heated Holding Cabinet with Solid Dutch Doors and Lip-Load Slides

Mobile 120V Model with Top-Mount Controls, Analog Thermometer, and 34-Pan Capacity

Keep hot food ready to serve with even ducted heat, pass-thru access, and a large 34-pan capacity in a mobile stainless steel cabinet.

  • Full-height pass-thru design with solid Dutch doors on both sides for easy loading and service access.
  • Holds up to 34 full-size 18 x 26-inch pans on fixed lip-load wire slides.
  • 120V, 60Hz, single-phase operation with 1.44 kW draw and a standard NEMA 5-15P plug.
  • Top-mounted controls and an analog thermometer make temperature monitoring simple.
  • Insulated 304 stainless steel construction helps retain heat and withstand busy kitchen use.
  • 5-inch casters, including two with brakes, make the cabinet easy to move and secure.
  • Water pan and floor duct support added humidity to help prevent food from drying out.

Overall Dimensions:

29.13"W x 34.63"D x 74.75"H

Product Weight:

390.0 lb

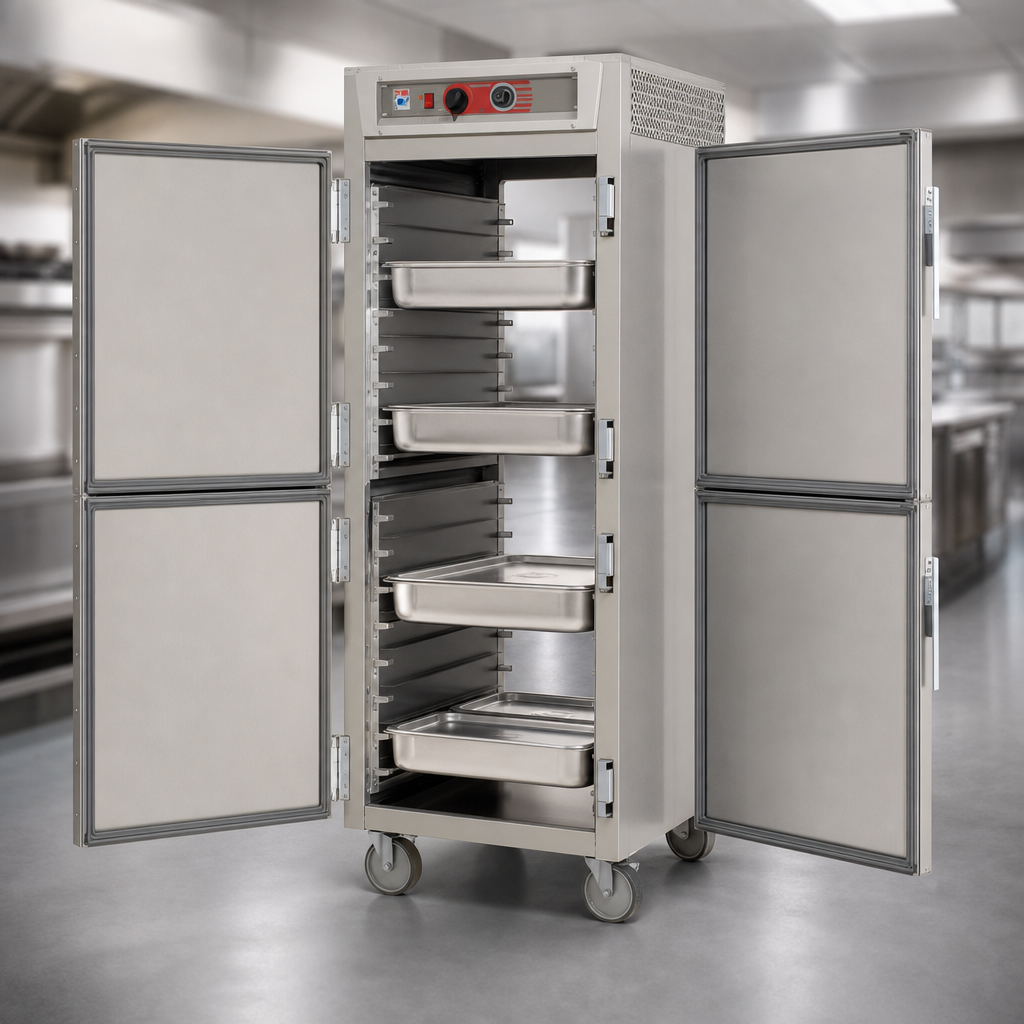

Pass-Thru Access

Front and rear doors allow loading and retrieval from either side of the cabinet.

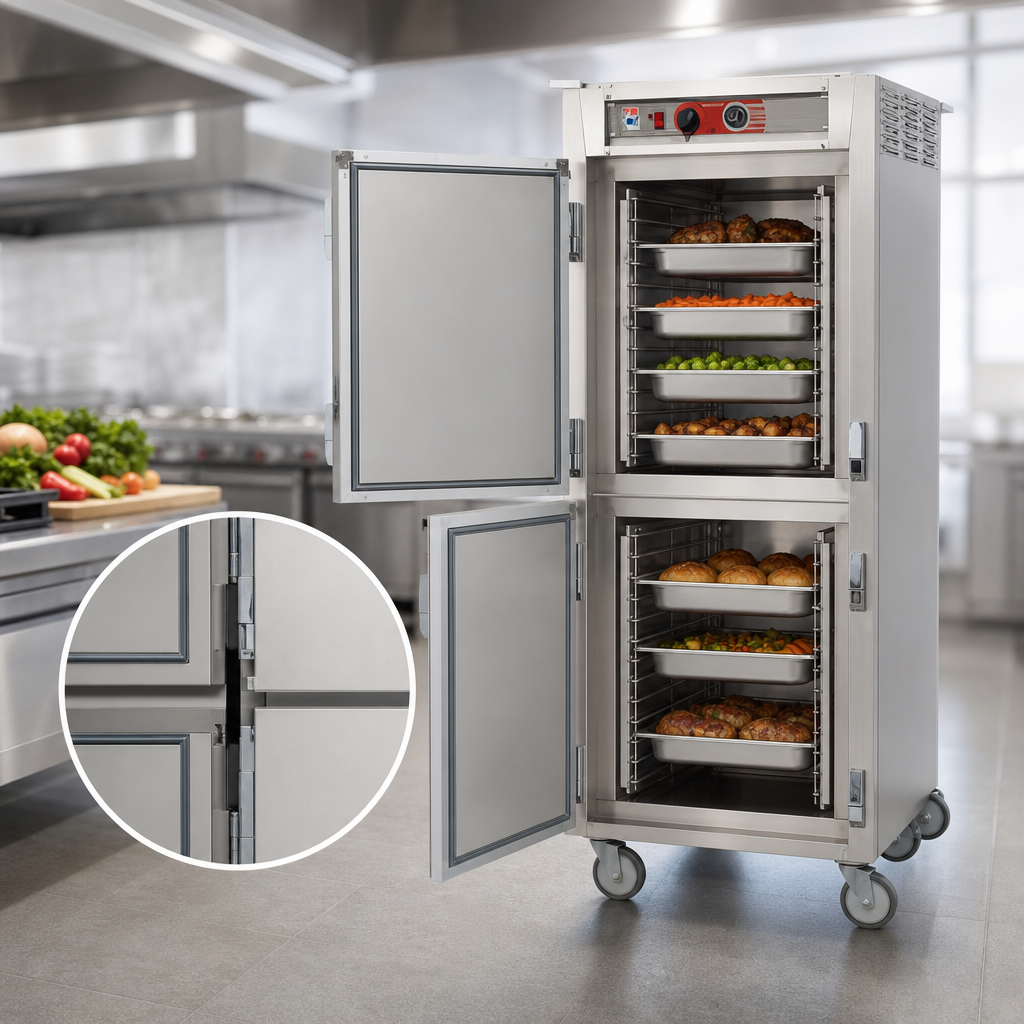

Solid Dutch Doors

Dutch door configuration helps limit heat loss while providing convenient access to the cabinet interior.

Ducted Heating System

Designed to distribute heat more evenly throughout the cabinet for consistent holding.

Top-Mount Controls

Raised control placement keeps operation and temperature adjustments easy to reach.

Analog Thermometer

Provides a quick visual temperature check of the cabinet interior.

Lip-Load Slide Capacity

Fixed lip-load slides hold up to 34 full-size 18 x 26-inch pans on 1-1/2-inch wire slides.

Insulated Stainless Steel Construction

304 stainless steel cabinet construction with insulation helps retain temperature and support durability.

Mobile Base

Mounted on 5-inch casters, with two brakes for added stability during use.

Humidity Support

The floor duct and water pan can be used to add humidity; the pan holds about 1 quart (1 liter) of water.

Field-Reversible Doors

Doors can be reversed in the field for installation flexibility.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model (With Casters)
Material 304 Stainless Steel
Controls Thermostatic
Temperature Range 70° to 200°F
Pan Capacity 34 Full-Size Sheet Pans
Pan Size 18 x 26 Inches
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 75 Inches
Shipping Weight 390 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The thermostat adjusts from 70°F to 200°F.
It holds up to 34 full-size 18 x 26-inch pans on lip-load slides.
Yes. It has solid Dutch doors on both the front and rear for pass-thru access.
It operates on 120V, 60Hz, single-phase power, draws 12 amps, and uses a NEMA 5-15P plug.
Yes. The floor duct and water pan can be used to add humidity; the pan holds about 1 quart (1 liter) of water.
Yes. It has 5-inch casters, with two casters equipped with brakes.
