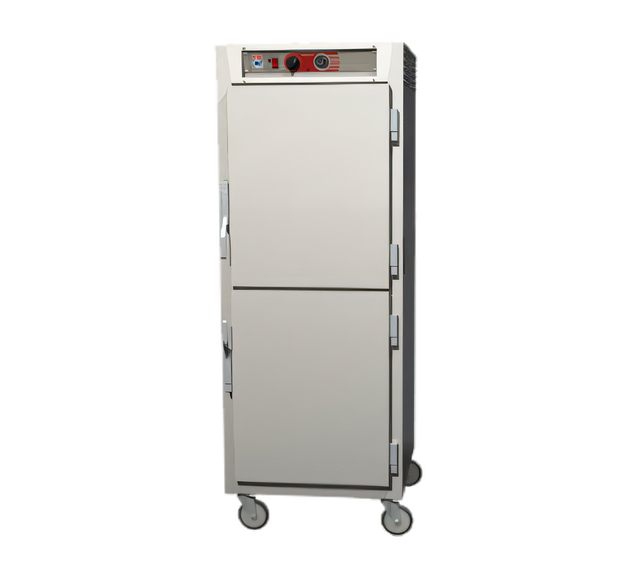

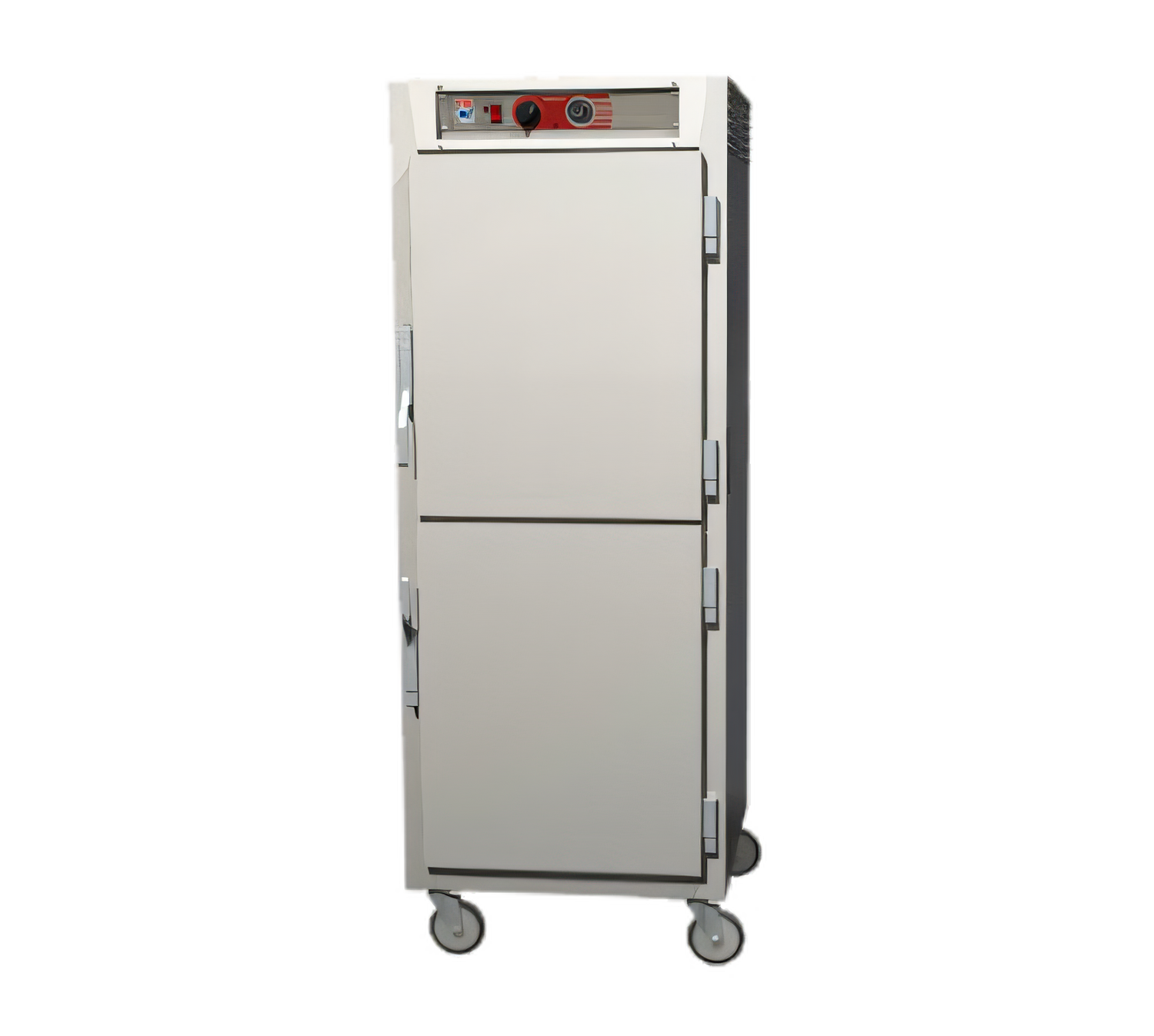

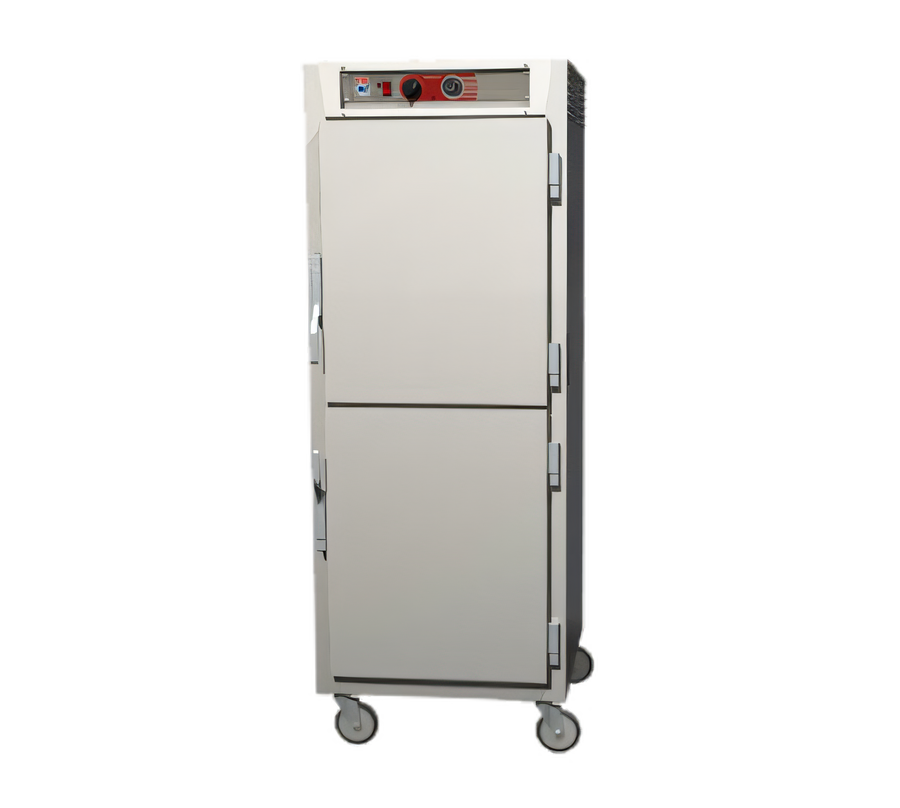

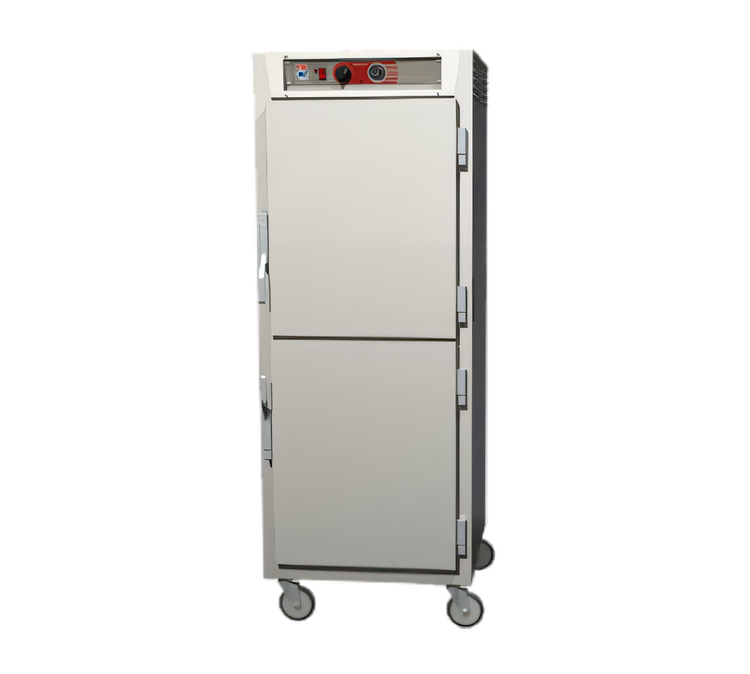

Metro C5 6 Series Full-Height Pass-Thru Heated Holding Cabinet with One Solid Dutch Door and One Double-Pane Tempered Glass Dutch Door, 120V

Mobile, insulated, 34-pan capacity, 70°F to 200°F

An insulated, pass-thru holding cabinet that keeps hot foods ready to serve with even ducted heat and easy loading from both sides.

  • Full-height pass-thru design allows loading and access from both sides of the cabinet.
  • Insulated 304 stainless steel construction helps retain heat and stand up to daily kitchen use.
  • Holds up to 34 full-size 18" x 26" pans on fixed lip-load wire slides.
  • Top-mounted controls and an analog thermometer make temperature adjustment and monitoring easy.
  • Thermostat range from 70°F to 200°F supports a wide variety of hot holding applications.
  • Mobile base with 5" casters, including 2 with brakes, makes repositioning simple.
  • Water pan capability supports added humidity when needed for holding food quality.

Overall Dimensions:

29.13"W x 32.63"D x 74.75"H

Product Weight:

430.0 lb

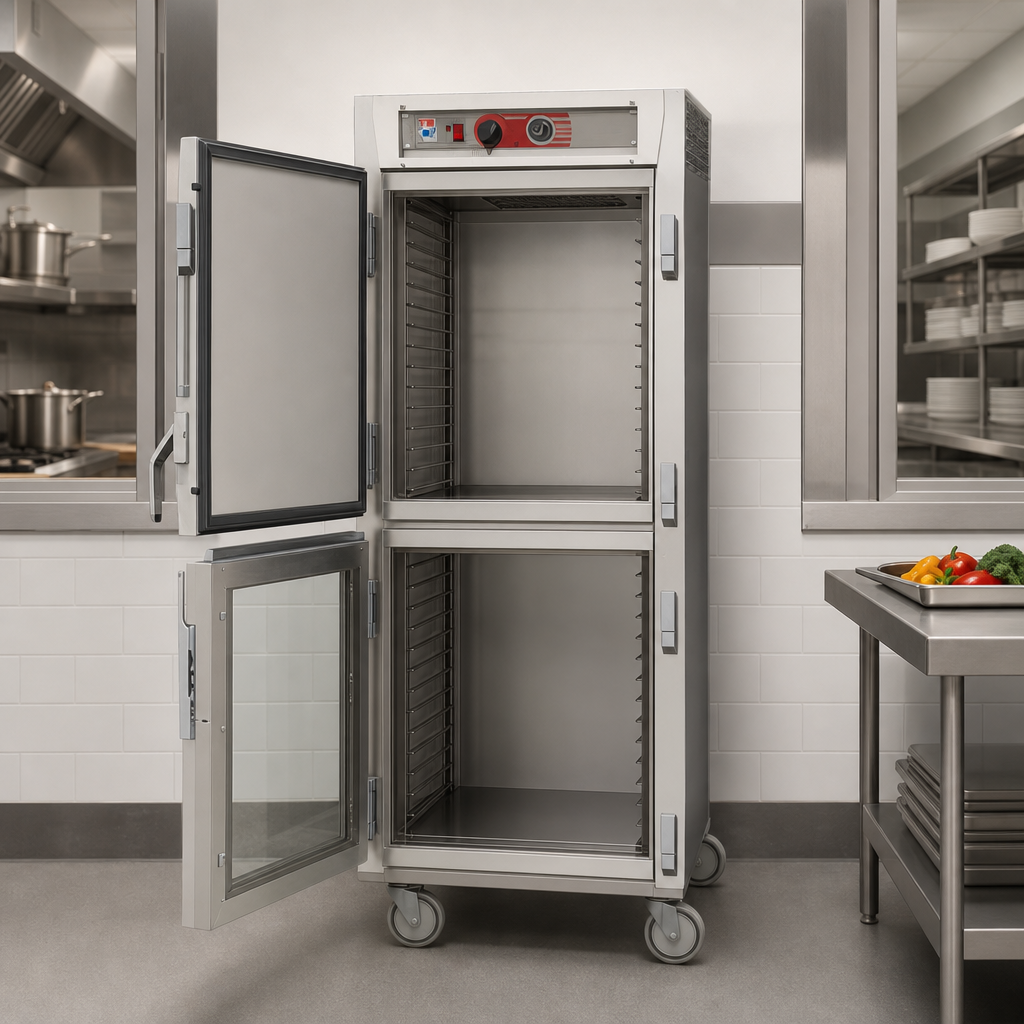

Pass-Thru Dutch Door Design

One solid Dutch door and one double-pane tempered glass Dutch door provide access from both sides and visibility into the cabinet.

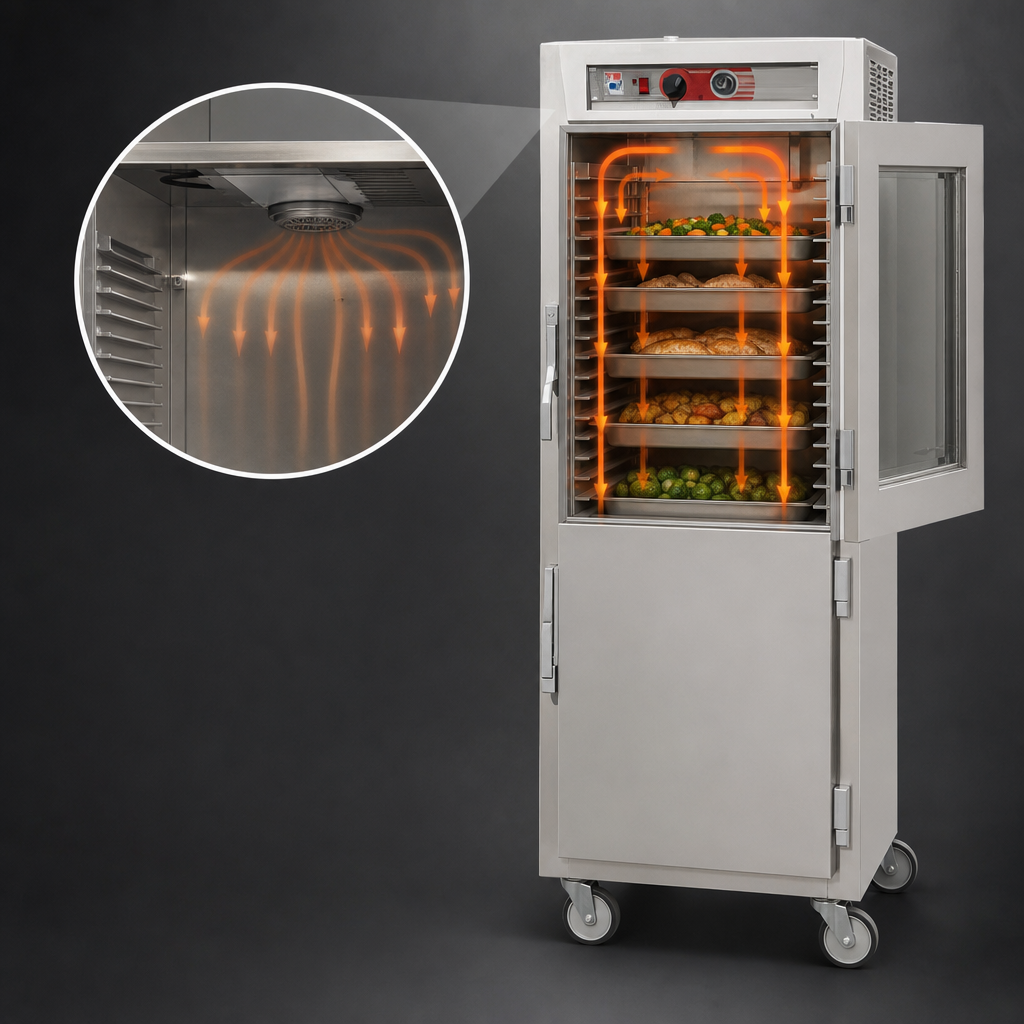

Ducted Heating System

Helps distribute heat evenly throughout the cabinet for consistent holding performance.

Top-Mounted Controls

Controls are positioned at the top of the cabinet for convenient access, along with an analog thermometer for quick temperature checks.

Fixed Lip-Load Slides

Designed to hold full-size pans on lip-load wire slides for organized, efficient loading.

Mobile Caster Base

5" casters make the cabinet easier to move, and 2 casters include brakes for stability when parked.

Stainless Steel Construction

Built with 304 stainless steel for durability and easier cleaning in commercial kitchens.

Humidity Support

A water pan in the floor duct can be used to add humidity when needed for hot holding applications.

Type Heated Holding Cabinet
Style Pass Thru
Installation Type Floor Model (Mobile)
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Pan Capacity 34 Full-Size Sheet Pans
Pan Size 18 x 26 Inches
Controls Manual Thermostat
Temperature Range 70°F to 200°F
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 33 Inches
Shipping Height 75 Inches
Shipping Weight 430 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Yes. The documentation states it is for hot food holding applications only and is not a re-thermalizing cabinet.
This model is 120V, 60 Hz, single-phase, draws 12 amps, and uses a NEMA 5-15P plug.
It has a capacity of 34 full-size 18" x 26" pans.
Yes. The floor duct includes a water pan that can be filled with clean warm potable water to add humidity.
Yes. The doors are field reversible. For pass-thru cabinets with clear doors, the front and back doors must be hinged on opposite sides.
The thermostat range is 70°F to 200°F.
