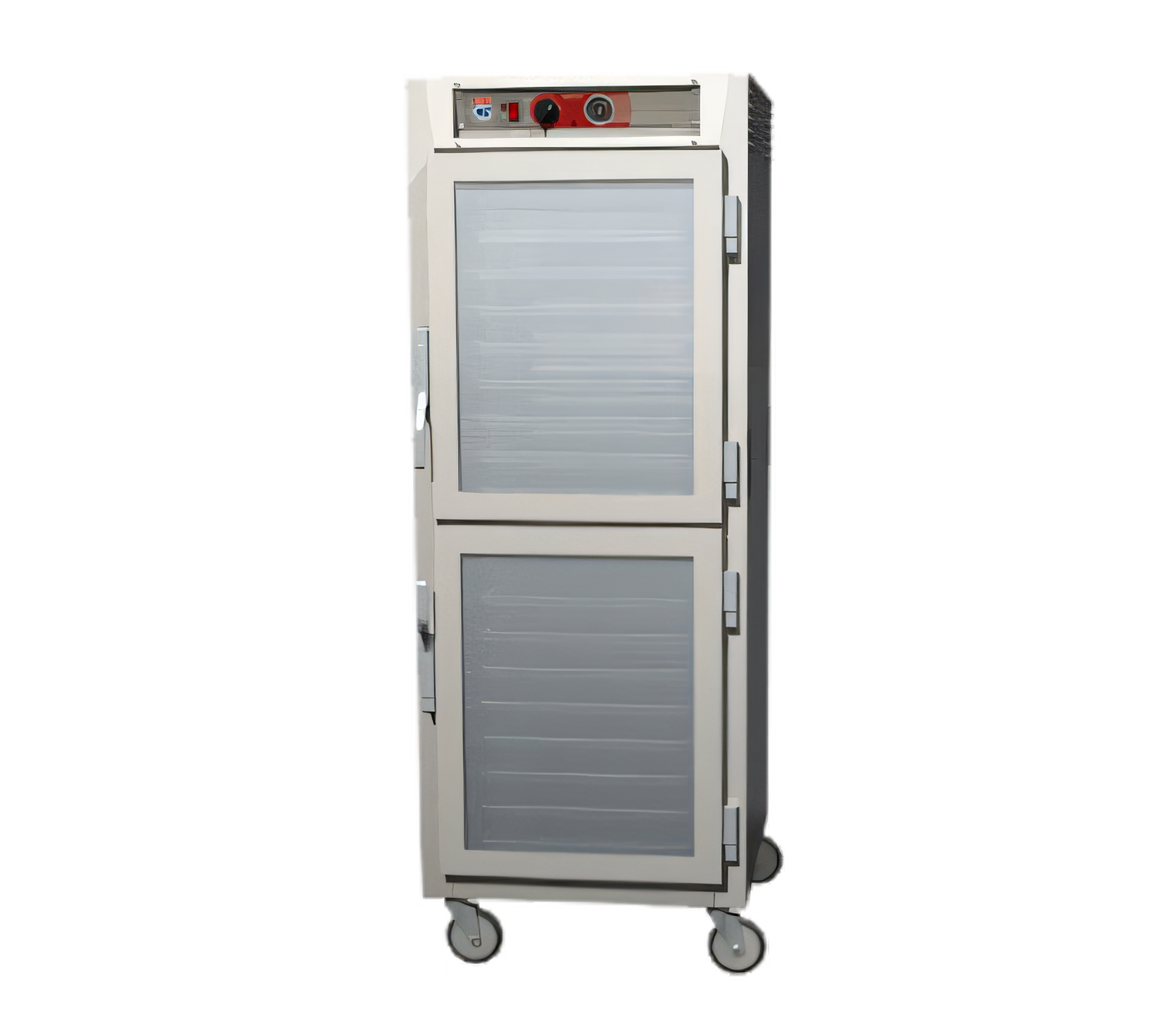

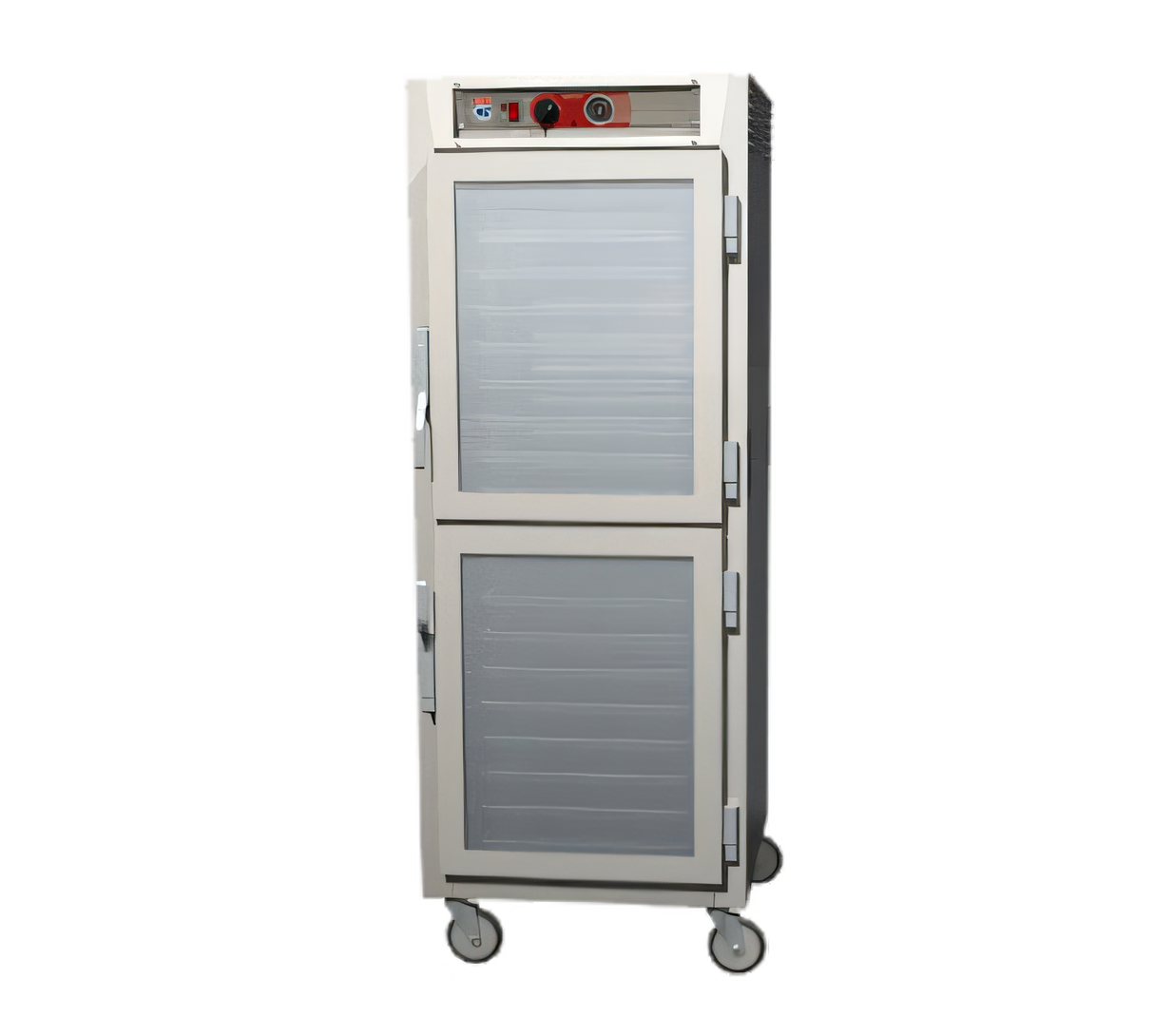

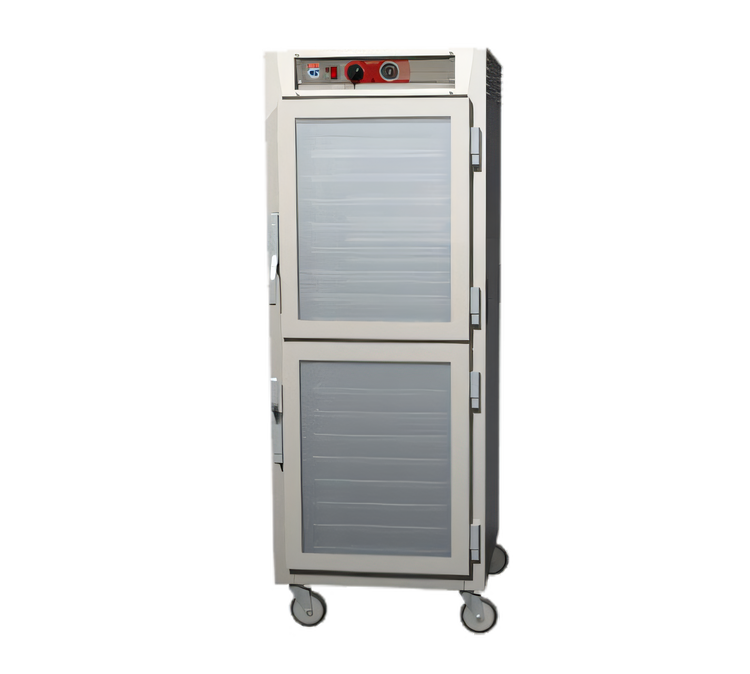

Metro C5 6 Series Mobile Full-Height Pass-Thru Heated Holding Cabinet with Dutch Double-Pane Tempered Glass and Solid Doors, Universal Slides, 120V

SKU: C569L-SDC-UPDS
GTIN: 0-41105-46122-8
$7,771.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro C5 6 Series Mobile Full-Height Pass-Thru Heated Holding Cabinet with Dutch Double-Pane Tempered Glass and Solid Doors, Universal Slides, 120V

304 Stainless Steel, Top-Mount Controls, 17 Sheet Pan / 32 Hotel Pan Capacity

Built for hot-food holding, this full-height pass-thru cabinet combines even ducted heating, Dutch doors, and mobile stainless construction for efficient back-of-house service.

  • Full-height, pass-thru design supports two-sided loading and faster kitchen workflow.
  • Universal wire slides hold 17 18 x 26 sheet pans or 32 12 x 20 x 2-1/2 hotel pans.
  • Adjustable thermostat ranges from 70°F to 200°F with a top-mounted control panel and analog thermometer.
  • Ducted heating and insulated construction help maintain even cabinet temperatures.
  • 304 stainless steel body and 5" casters, including 2 with brakes, provide durability and mobility.
  • Water pan in the floor duct can add humidity to help protect food quality during holding.

Overall Dimensions:

29.13"W x 34.63"D x 74.75"H

Product Weight:

435.0 lb

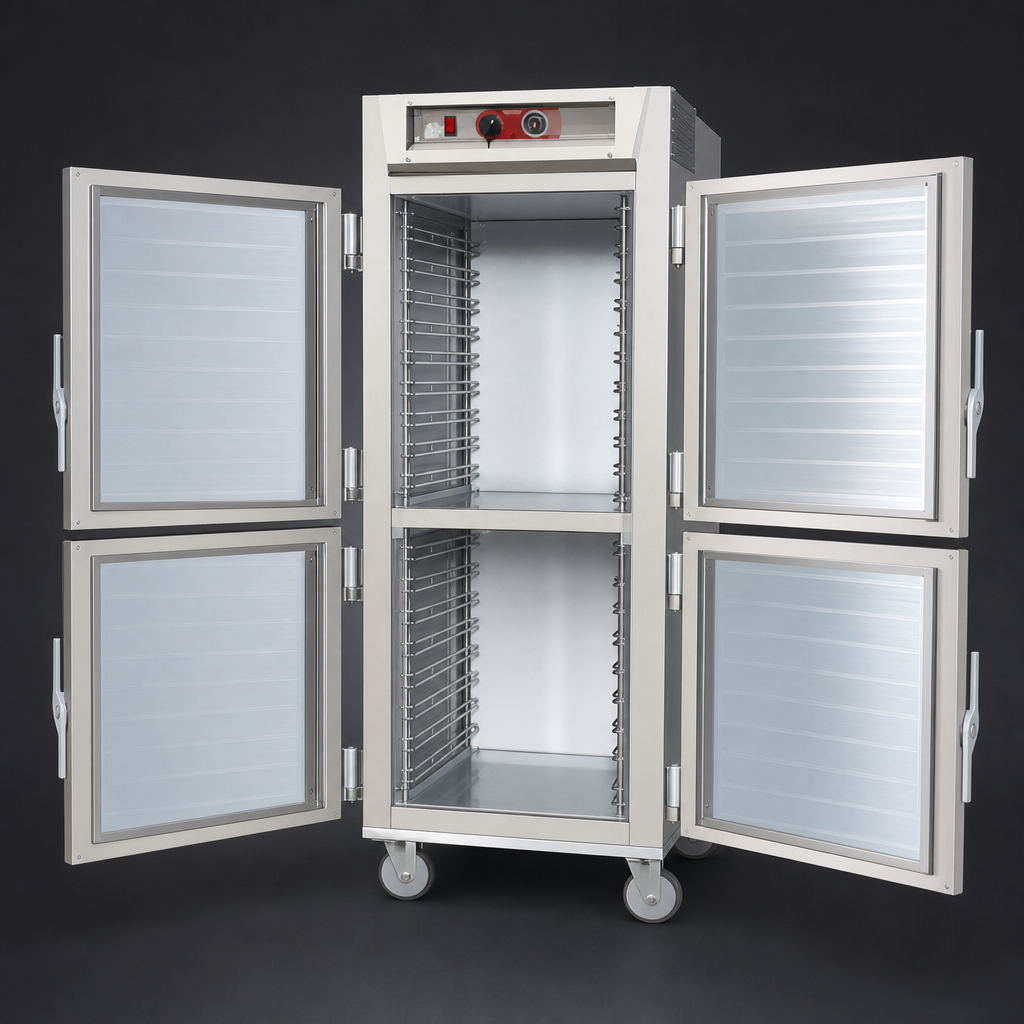

Pass-Thru Dutch Door Design

Front and rear Dutch-style doors make it easy to load and unload from either side of the cabinet.

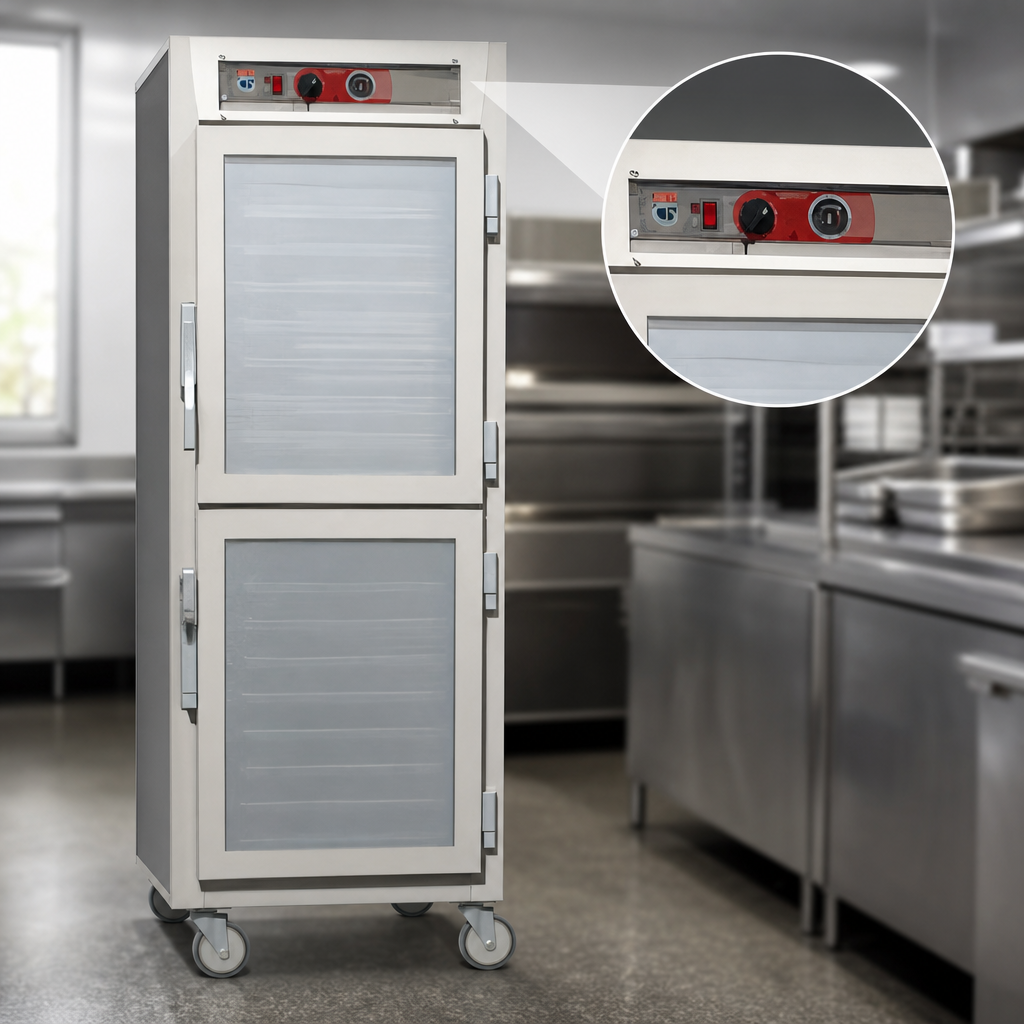

Top-Mounted Control Panel

Power switch, thermostat, and analog thermometer are positioned at the top for quick visibility and access.

Ducted Heating System

Designed to distribute heat evenly throughout the cabinet for more consistent hot holding.

Adjustable Temperature Control

Thermostat is adjustable from 70°F to 200°F for a wide range of holding needs.

Universal Adjustable Wire Slides

1-1/2" adjustable wire slides support 17 sheet pans or 32 hotel pans.

Humidity Water Pan

The floor duct includes a water pan that can be filled with clean warm potable water; capacity is about 1 quart (1 liter).

Mobile Stainless Steel Construction

Built from 304 stainless steel and mounted on 5" casters, with 2 casters equipped with brakes.

Insulated Cabinet Body

Insulated construction helps retain heat and support consistent holding performance.

Field-Reversible Doors

Doors can be reversed in the field for installation flexibility.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model (With Casters)
Material 304 Stainless Steel
Controls Analog
Temperature Range 70°F to 200°F
Pan Capacity 17 Sheet Pans or 32 Hotel Pans
Pan Size 18 x 26 Inches or 12 x 20 x 2-1/2 Inches
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It is for hot food holding applications only and is not a re-thermalizing cabinet.
It holds 17 18 x 26 sheet pans or 32 12 x 20 x 2-1/2 hotel pans with the universal wire slide setup.
The thermostat is adjustable from 70°F to 200°F.
Yes. The floor duct includes a water pan that can be filled with clean warm potable water, with a capacity of about 1 quart (1 liter).
This model operates on 120V, 60Hz, 1-phase power, draws 12 amps, uses 1440 watts, and includes a NEMA 5-15P plug.
Yes, the doors are field reversible for installation flexibility.
