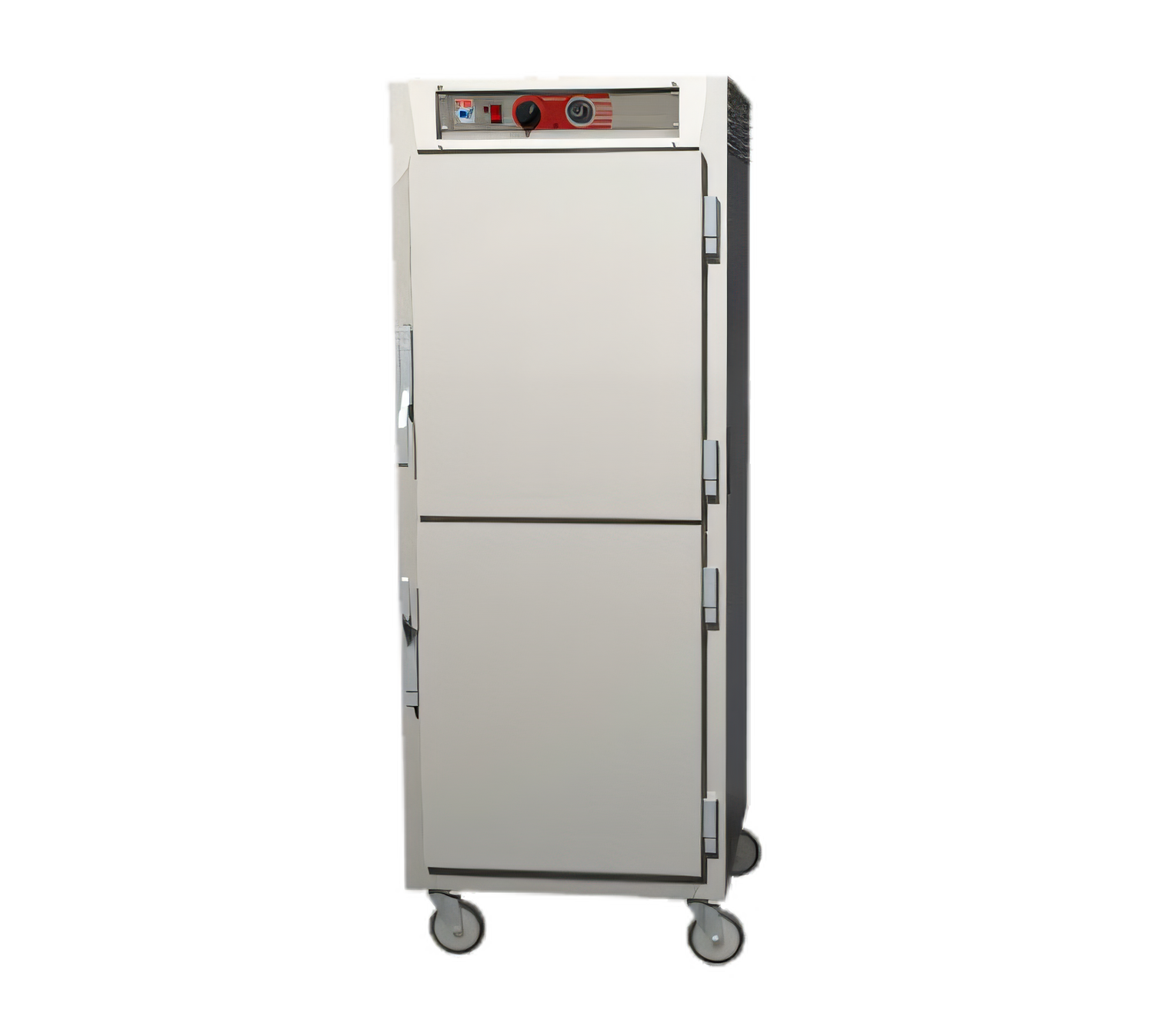

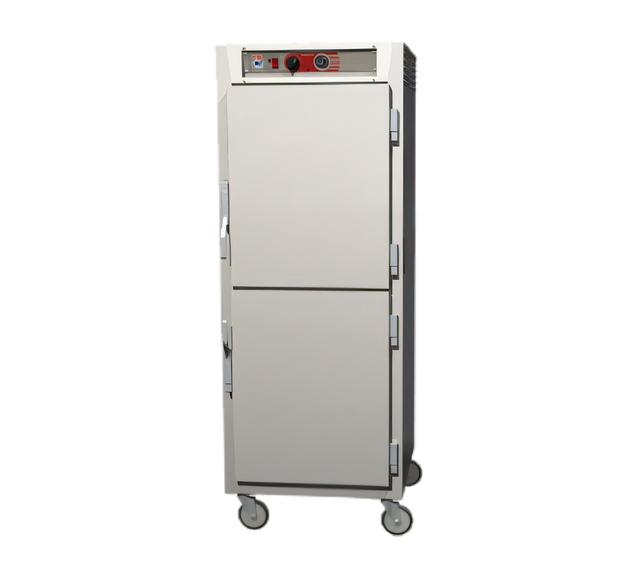

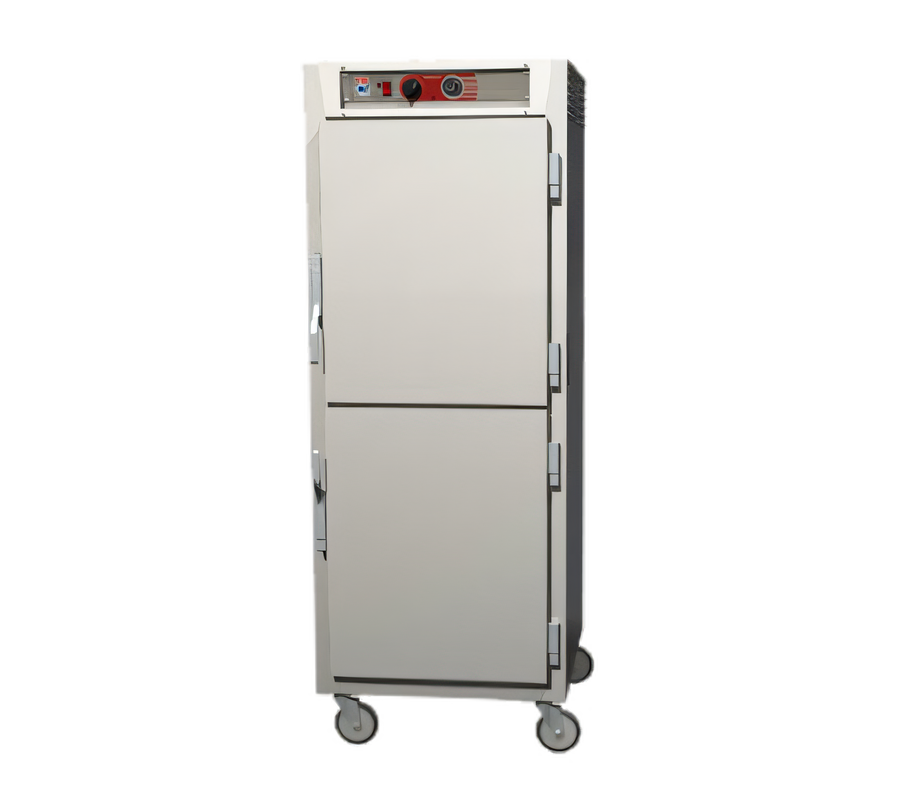

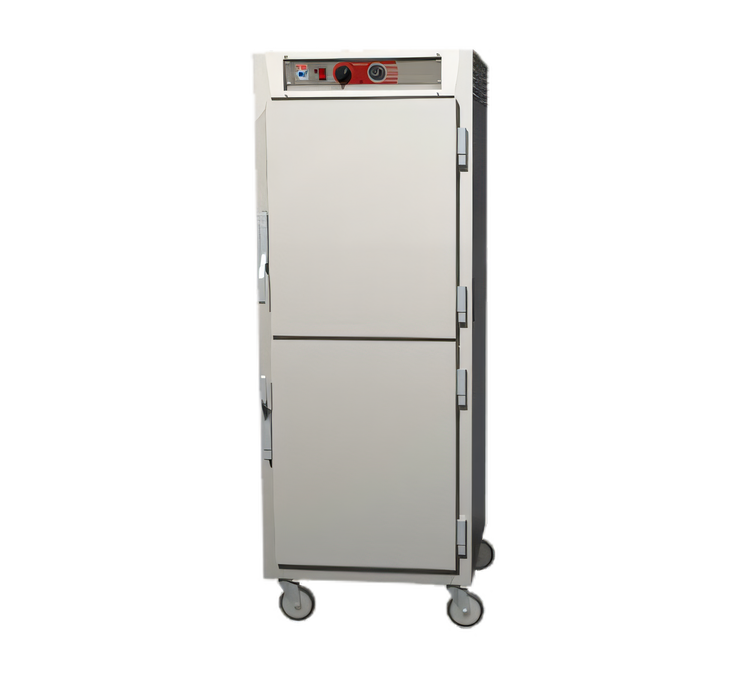

Metro C5 6 Series Insulated Full-Height Pass-Thru Heated Holding Cabinet, Mobile, 34-Pan Capacity

Solid Dutch and double-pane tempered glass Dutch doors; top-mounted controls

This mobile, insulated pass-thru cabinet keeps hot food ready for service with dual-door access, precise thermostatic control, and capacity for 34 full-size pans.

  • Full-height pass-thru design supports fast loading and service from either side of the cabinet.
  • Holds up to 34 full-size 18" x 26" pans on fixed lip-load wire slides.
  • Solid Dutch and double-pane tempered glass Dutch doors help retain heat while offering visibility on one side.
  • Top-mounted controls with an analog thermometer and a 70°F to 200°F thermostat range make temperature management straightforward.
  • Ducted heating and the floor duct/water pan system help distribute heat evenly and can add humidity when needed.
  • 304 stainless steel construction and insulation improve durability and heat retention.
  • 5" casters, including 2 with brakes, make the cabinet easy to move and secure in place.

Overall Dimensions:

29.13"W x 32.63"D x 74.75"H

Product Weight:

430.0 lb

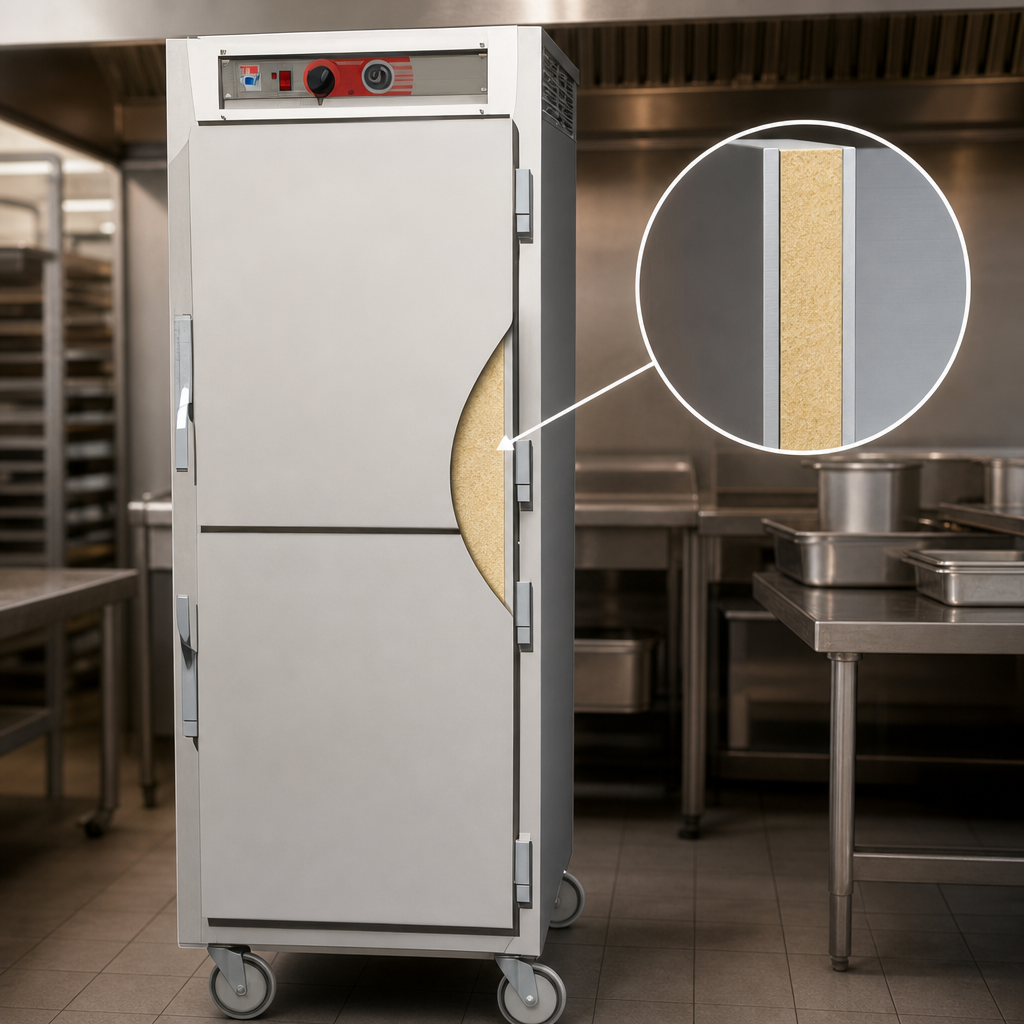

Insulated Cabinet

Insulated construction helps reduce heat loss and improve holding efficiency.

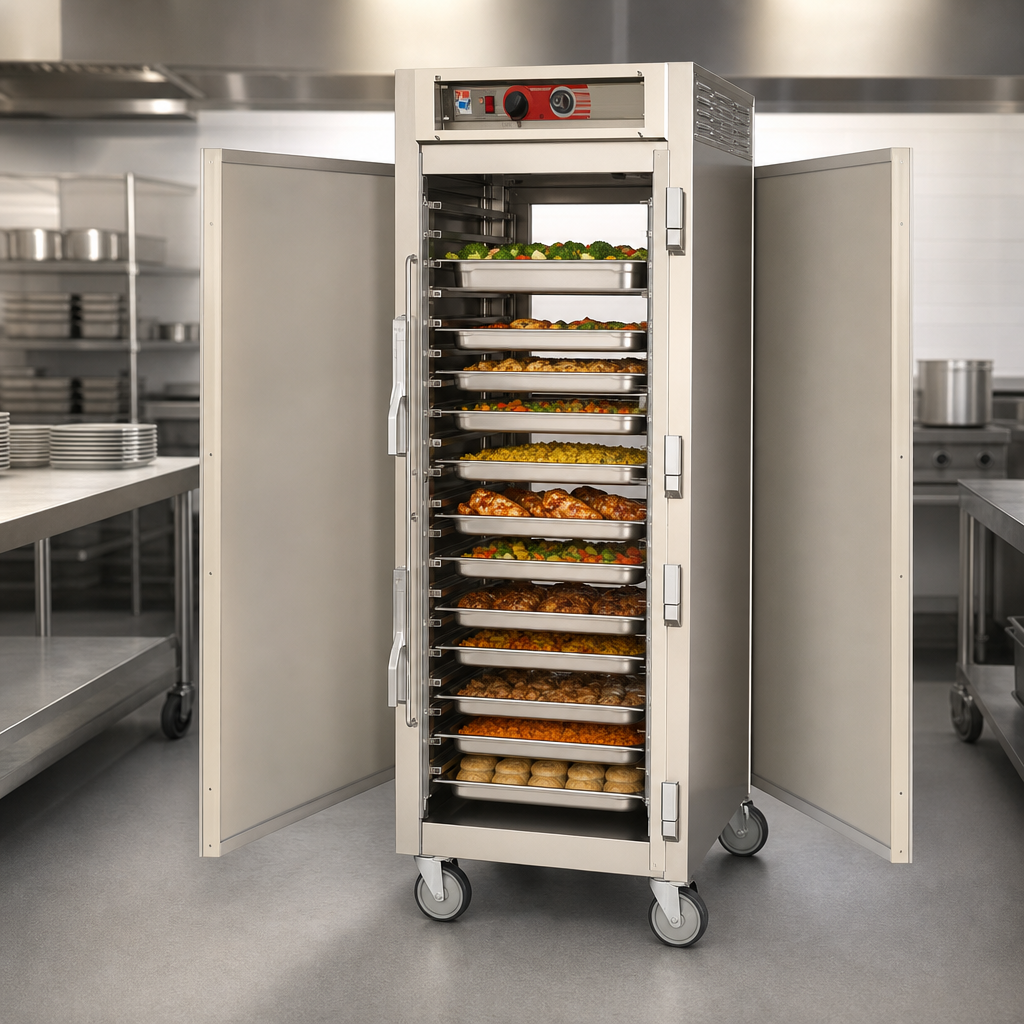

Pass-Thru Design

Front and rear access streamlines hot food loading and unloading.

Dutch Door Configuration

Includes a solid Dutch door set and a double-pane tempered glass Dutch door set; doors are field reversible.

34-Pan Lip-Load Slide System

1-1/2" wire slides on fixed 3" centers hold up to 34 full-size 18" x 26" pans.

Top-Mounted Analog Controls

Controls are positioned on the top of the cabinet and include an analog thermometer for easy temperature checks.

Ducted Heating System

Engineered to distribute heat evenly throughout the cabinet for consistent holding.

Humidity Support

A floor duct and water pan allow the cabinet to add moisture during holding; water pan capacity is about one quart.

304 Stainless Steel Construction

Durable stainless steel build designed for commercial kitchen use.

Mobile Casters

5-inch casters, with 2 brakes, make movement and positioning easier.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Controls Analog Thermostat
Temperature Range 70°F to 200°F
Pan Capacity 34 Pans
Pan Size 18 Inches x 26 Inches
Voltage 120 Volts
Amps 16 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Material 304 Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 33 Inches
Shipping Height 75 Inches
Shipping Weight 430 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The thermostat is adjustable from 70°F to 200°F.
It holds up to 34 full-size 18" x 26" pans on lip-load slides.
No. It is for hot food holding only, and food should already be at the proper temperature before being placed inside.
Yes. The floor duct and water pan can be used with clean potable water to add humidity during holding; the water pan holds about one quart.
It requires 120V, 60Hz, single-phase power, 2000 watts, 16 amps, with a NEMA 5-20P plug.
Yes. It has 5-inch casters, including 2 casters with brakes.
