Metro C5 6 Series Mobile Half-Height Pass-Thru Heated Holding Cabinet with Solid Doors, 17-Pan Capacity, 120V

SKU: C565L-SFS-LPFS
GTIN: 0-41105-45875-4
$5,502.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

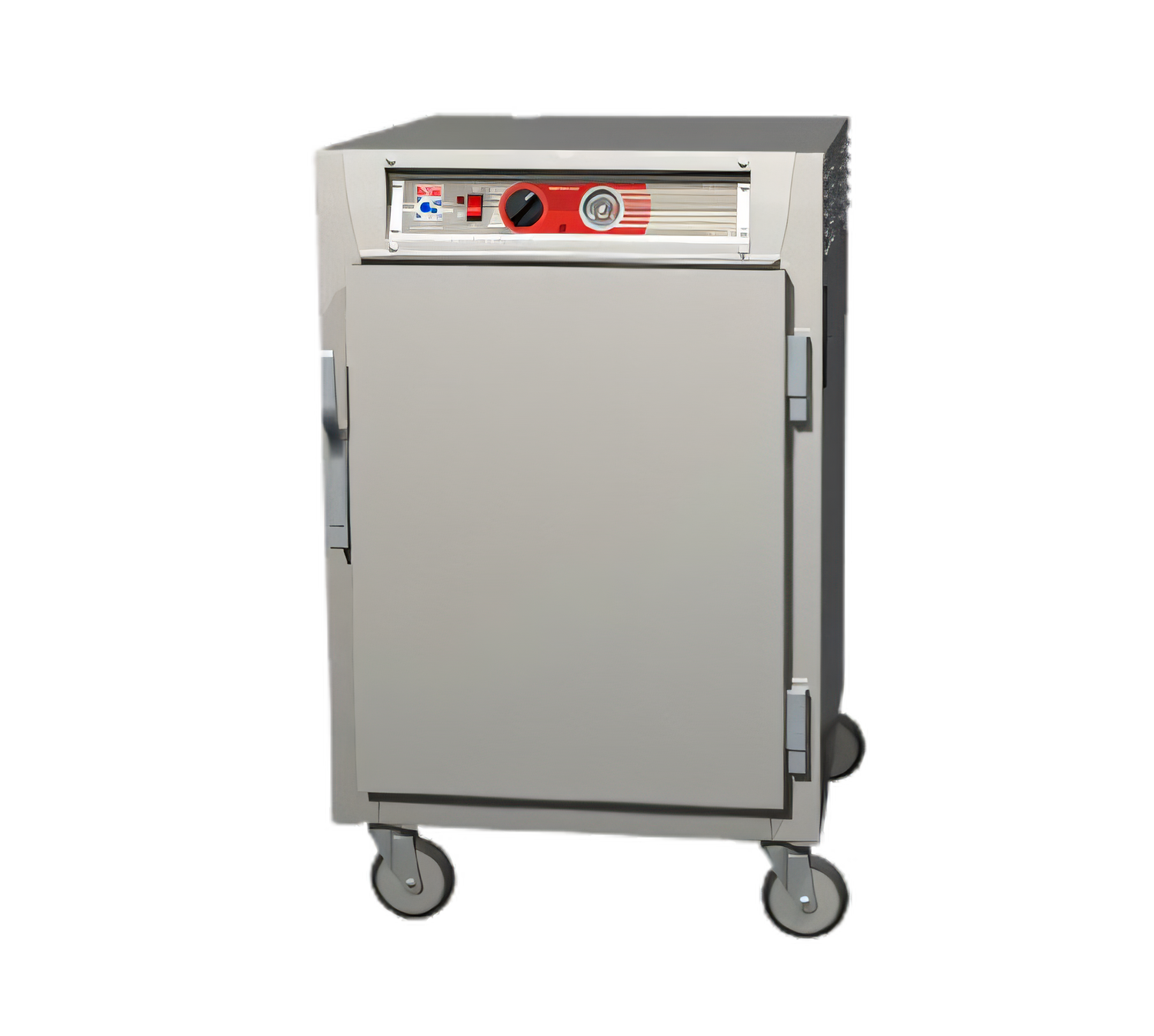

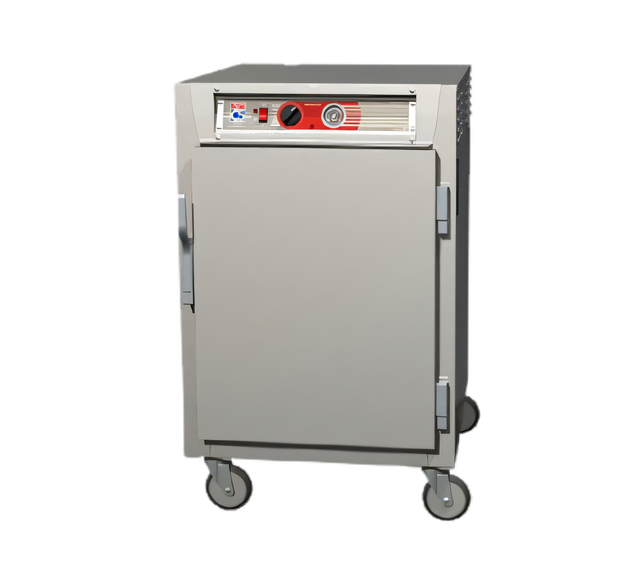

Metro C5 6 Series Mobile Half-Height Pass-Thru Heated Holding Cabinet with Solid Doors, 17-Pan Capacity, 120V

Insulated 304 Stainless Steel, Top-Mount Controls, Analog Thermometer, 1.44 kW

Keep hot foods at safe serving temperatures with a durable, mobile pass-thru holding cabinet designed for fast loading, even heat distribution, and easy temperature control.

  • Half-height, pass-thru design allows access from both the front and rear for faster service.
  • Insulated 304 stainless steel construction supports heat retention and long-term durability.
  • Fixed lip-load slides hold 17 full-size 18 x 26 in. sheet pans.
  • Thermostatic control adjusts from 70°F to 200°F with a built-in analog thermometer.
  • 5 in. casters, including 2 with brakes, make the cabinet easy to position and secure.
  • Water pan capability can add humidity to help keep foods from drying out.
  • 120V, 60 Hz, single-phase electrical package with NEMA 5-15P plug.

Overall Dimensions:

29.13"W x 34.63"D x 44.75"H

Product Weight:

165.0 lb

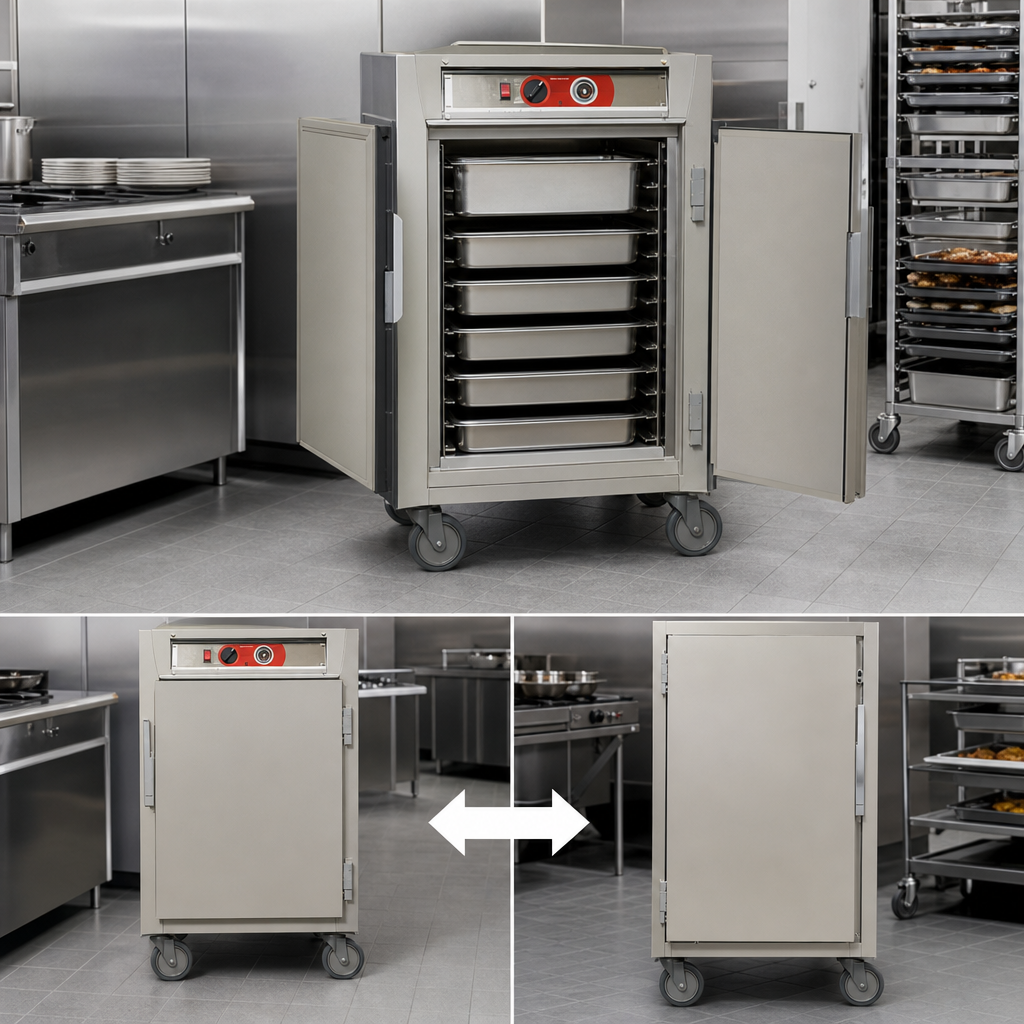

Pass-Thru Half-Height Cabinet

Front and rear solid doors provide access from both sides, and the doors are field reversible for layout flexibility.

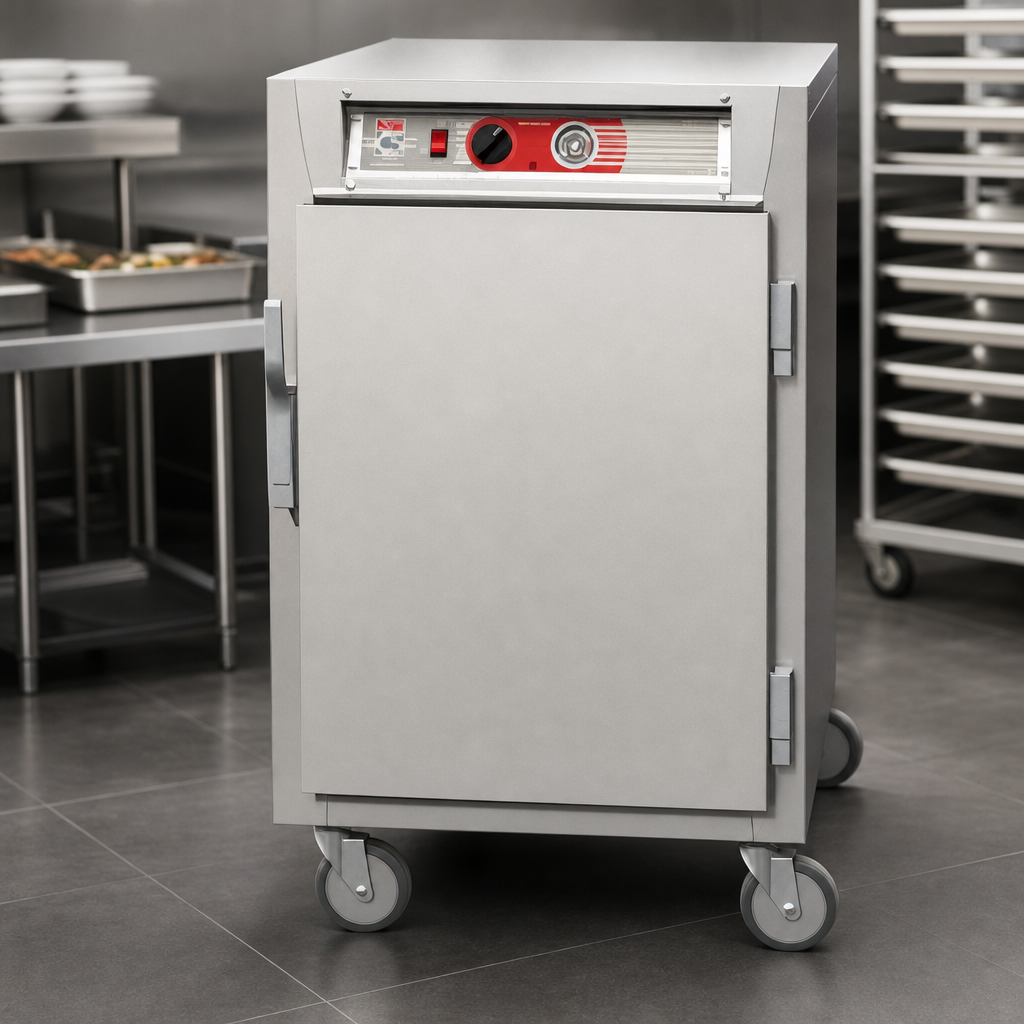

Insulated 304 Stainless Steel Construction

Durable stainless steel cabinet construction with insulation helps retain heat and support heavy-duty commercial use.

Fixed Lip-Load Pan Slides

Configured for 17 full-size 18 x 26 in. sheet pans with fixed lip-load slides and 3 in. slide centers.

Top-Mount Controls

Convenient top-mounted controls include a thermostat and an analog dial thermometer for easy monitoring.

Adjustable Holding Temperature

The thermostat provides a holding range from 70°F to 200°F.

Ducted Heating System

The floor duct helps distribute heat more evenly throughout the cabinet.

Humidity Capability

A water pan in the floor duct can be filled with about 1 quart of water when extra humidity is desired.

Mobile Caster Base

5 in. casters, including 2 with brakes, make the cabinet easy to move and secure in place.

120V Electrical Package

Operates on 120V, 60 Hz, single-phase power with 12 amps and a NEMA 5-15P plug.

Type Controlled Temperature Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Pan Capacity 17 Full-Size 18 x 26 in. Sheet Pans
Controls Thermostatic
Temperature Range 70°F to 200°F
Material 304 Stainless Steel
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 45 Inches
Shipping Weight 165 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

No. It is for hot food holding only, and food should already be at the appropriate serving temperature before being placed in the cabinet.
It holds 17 full-size 18 x 26 in. sheet pans.
The thermostat is adjustable from 70°F to 200°F.
It requires 120V, 60 Hz, single-phase power, draws 12 amps, and uses a NEMA 5-15P plug.
Yes. A water pan in the floor duct can be filled with about 1 quart of water for added humidity.
Yes. The manual states that C5 doors are field reversible.
