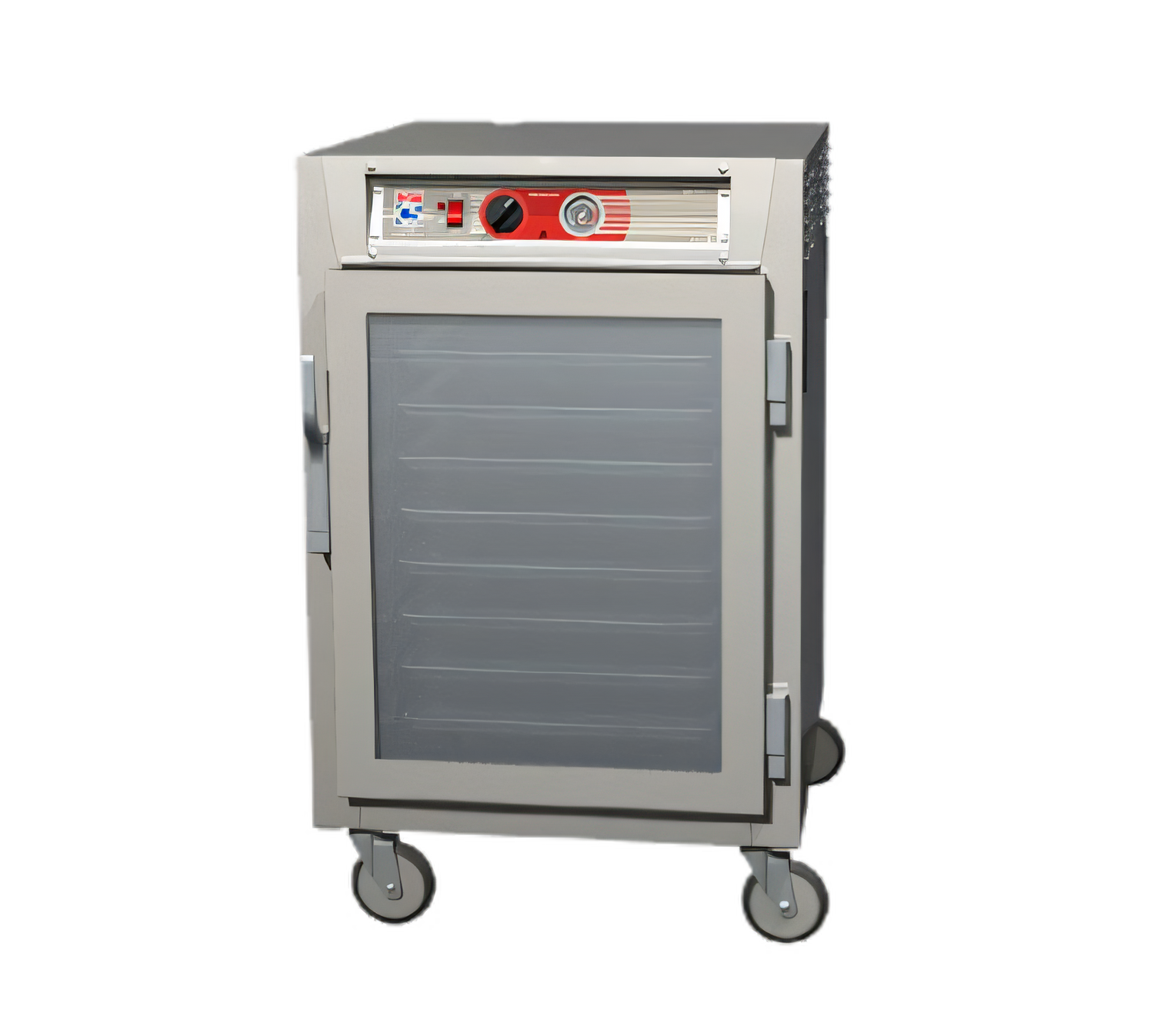

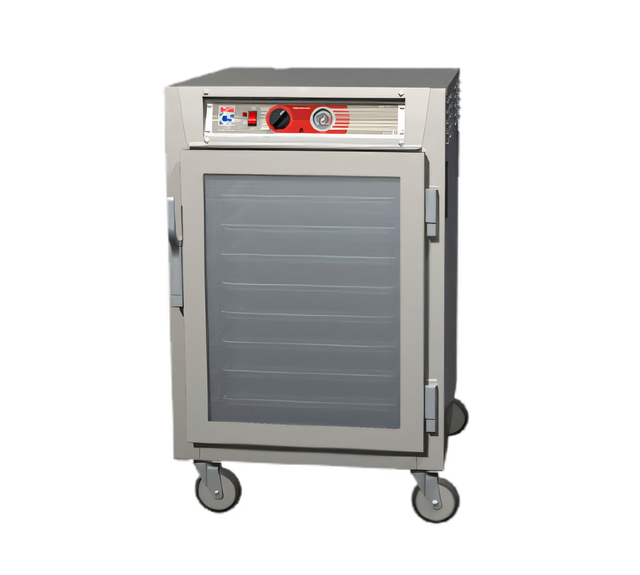

Metro C5 6 Series Mobile Half-Height Pass-Thru Heated Holding Cabinet with 1 Tempered Double-Pane Glass Door and 1 Solid Door, 120V

SKU: C565L-SFC-UPFS
GTIN: 0-41105-45871-6
$5,881.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro C5 6 Series Mobile Half-Height Pass-Thru Heated Holding Cabinet with 1 Tempered Double-Pane Glass Door and 1 Solid Door, 120V

Universal wire slides, 8 full-size sheet pan or 16 hotel pan capacity, 304 stainless steel

Keep hot foods ready for service in a mobile, insulated pass-thru cabinet with adjustable heat control, flexible pan storage, and easy-roll casters.

  • Half-height, insulated pass-thru design supports fast loading and unloading from both sides.
  • Combination door setup includes one tempered double-pane glass door and one solid door.
  • Top-mounted controls, analog thermometer, and a 70°F to 200°F thermostat make temperature management straightforward.
  • Universal wire slides adjust on 1-1/2-inch centers and hold 8 full-size sheet pans or 16 hotel pans.
  • 5-inch casters, including two with brakes, make the cabinet easy to move and secure.
  • 304 stainless steel construction and standard 120V / 1-phase electrical service help fit common kitchen setups.

Overall Dimensions:

29.13"W x 34.63"D x 44.75"H

Product Weight:

218.0 lb

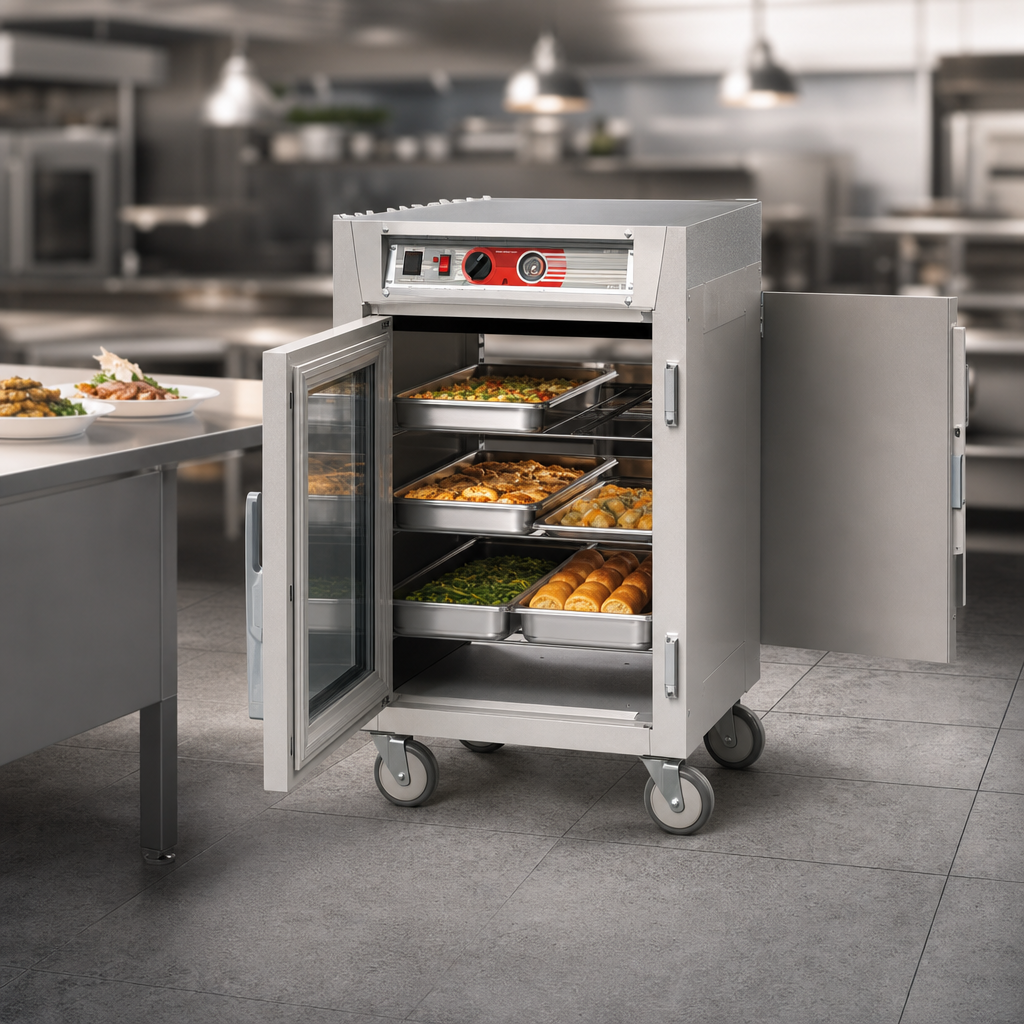

Pass-Thru Cabinet Design

Front and rear access makes it easier to load, unload, and stage hot food during busy service.

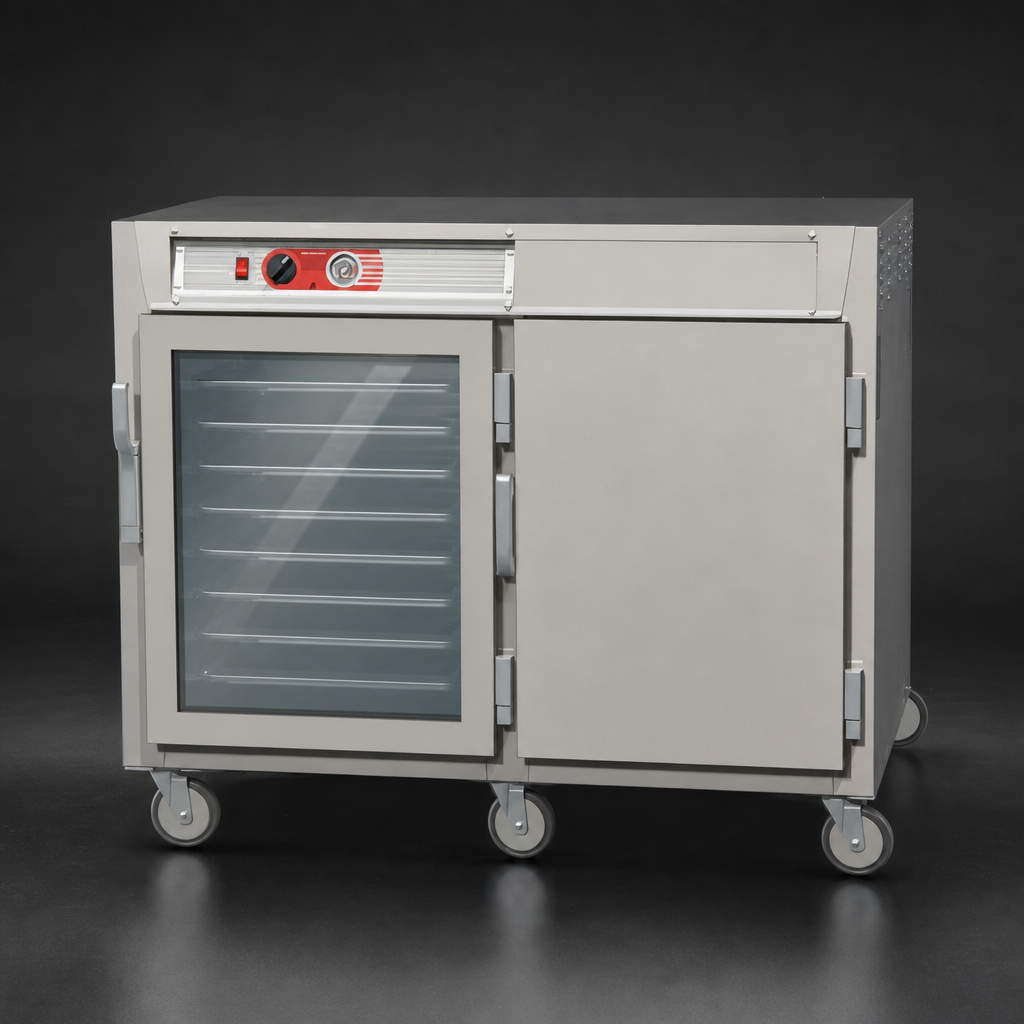

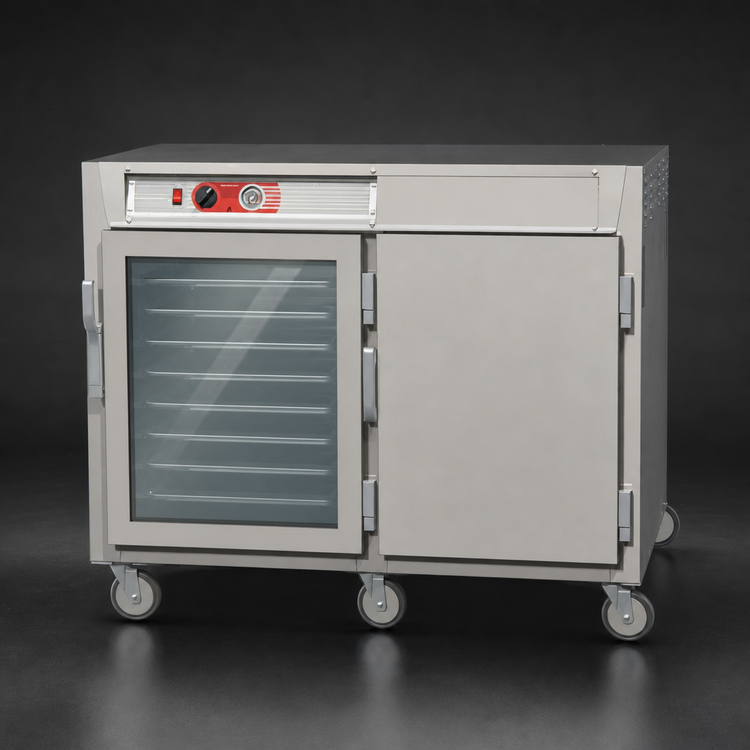

Combination Door Configuration

Includes one tempered double-pane glass door and one solid door for a balance of visibility and heat retention.

Ducted Heating System

The ducted heating design helps distribute heat evenly throughout the cabinet for more consistent holding.

Adjustable Thermostat and Analog Thermometer

Top-mounted controls and a dial thermometer support simple monitoring, with a thermostat range of 70°F to 200°F.

Universal Wire Slides

Adjustable 1-1/2-inch slide centers provide flexible pan spacing for 8 full-size sheet pans or 16 hotel pans.

Humidity Water Pan and Floor Duct

The floor duct holds the water pan to help distribute airflow and add humidity when desired.

Mobile Base with Casters

Five-inch casters, including two with brakes, make the cabinet easy to reposition and lock in place.

304 Stainless Steel Construction

Durable stainless steel construction is designed for commercial holding applications and easy cleaning.

Field-Reversible Doors

Doors can be reversed in the field to suit the installation layout.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Capacity 8 Full-Size Sheet Pans or 16 Hotel Pans
Pan Size 18 x 26 Inches / 12 x 20 x 2-1/2 Inches
Controls Analog
Temperature Range 70 to 200 °F
Material 304 Stainless Steel
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 45 Inches
Shipping Weight 218 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

No. It is designed for hot food holding only, and food should already be at the proper temperature before being placed inside.
It holds 8 full-size 18 x 26 inch sheet pans or 16 12 x 20 x 2-1/2 inch hotel pans.
It operates on 120V, 60 Hz, single-phase power, draws 12 amps, and uses a NEMA 5-15P plug.
Yes. The floor duct holds a water pan, which can be filled with clean warm water to add humidity.
The manual recommends allowing about 45 to 60 minutes of preheat time to reach normal holding temperature.
Yes. The doors are field reversible. For pass-thru cabinets with clear doors, the front and rear doors must be hinged on opposite sides.
