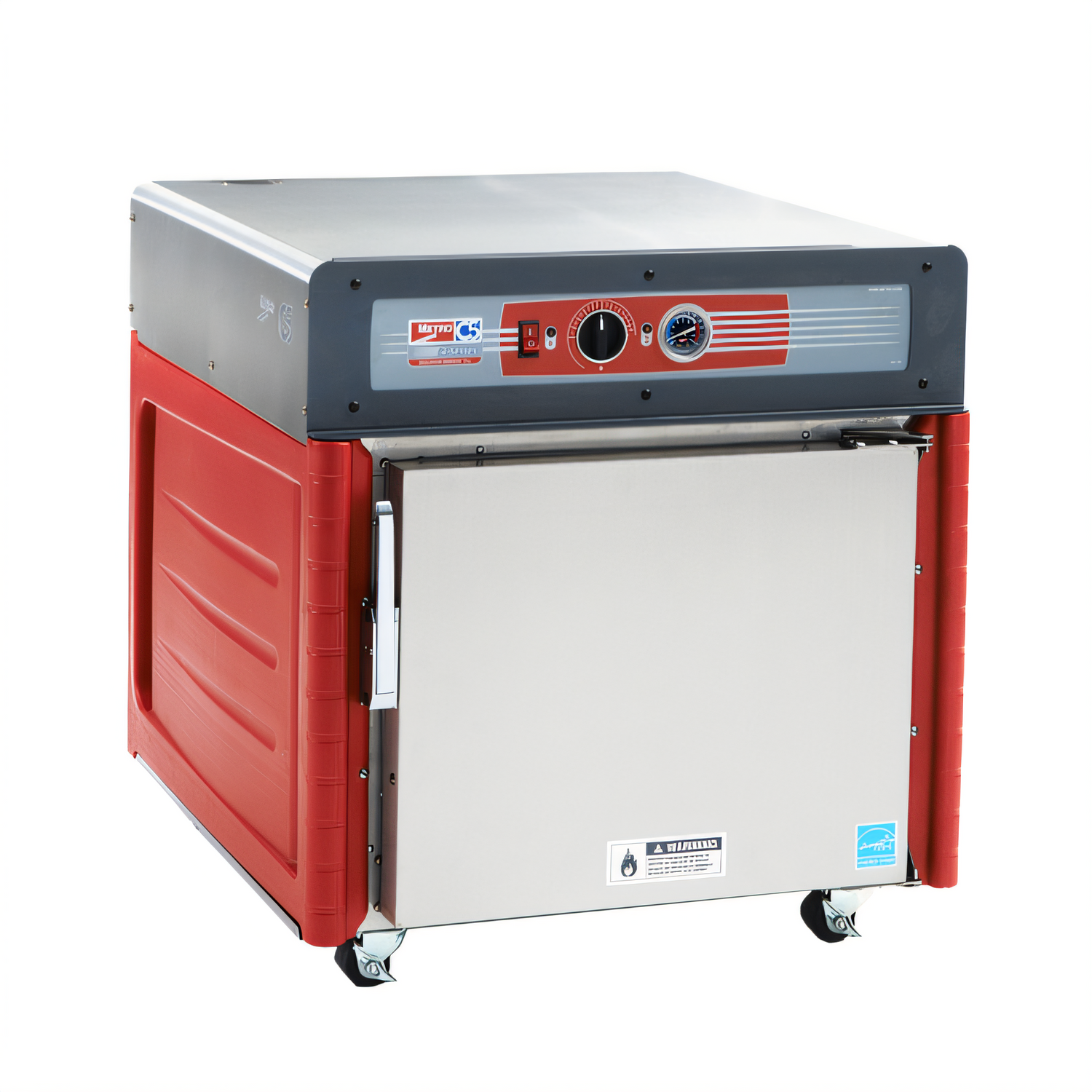

Metro C5 C543-ASFS-U Mobile Undercounter Heated Holding Cabinet, Solid Door, 5 Sheet Pan/10 Hotel Pan Capacity, 120V

SKU: C543-ASFS-U GTIN: 0-41105-86881-2
$4,012.00
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Equipment Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Heated Cabinets & Holding Shelves Heated Holding Cabinets Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro C5 4 Series Insulation Armour Plus Under Counter Mobile Heated Holding Cabinet, Solid Door, Universal Wire Slides, 120V

Top-Mounted Controls, 200°F Max, 5 Sheet Pan / 10 Hotel Pan Capacity

A compact undercounter holding cabinet that combines energy-saving insulation, adjustable universal slides, and 200°F thermostatic control for reliable hot food holding.

  • Undercounter mobile cabinet with a compact 30 in. W x 33 in. D footprint.
  • Universal wire slides adjust on 1 1/2-inch increments and hold multiple pan sizes.
  • Holds 5 full-size sheet pans or 10 full-size hotel pans.
  • Solid insulated door and 304 stainless steel construction support durability and easy cleaning.
  • Insulation Armour Plus panels help improve energy efficiency and protect the cabinet during mobile use.
  • 120V, 60Hz, 1-phase operation with 1400W input and a NEMA 5-15P plug.

Overall Dimensions:

30.0"W x 33.0"D x 30.5"H

Product Weight:

207.0 lb

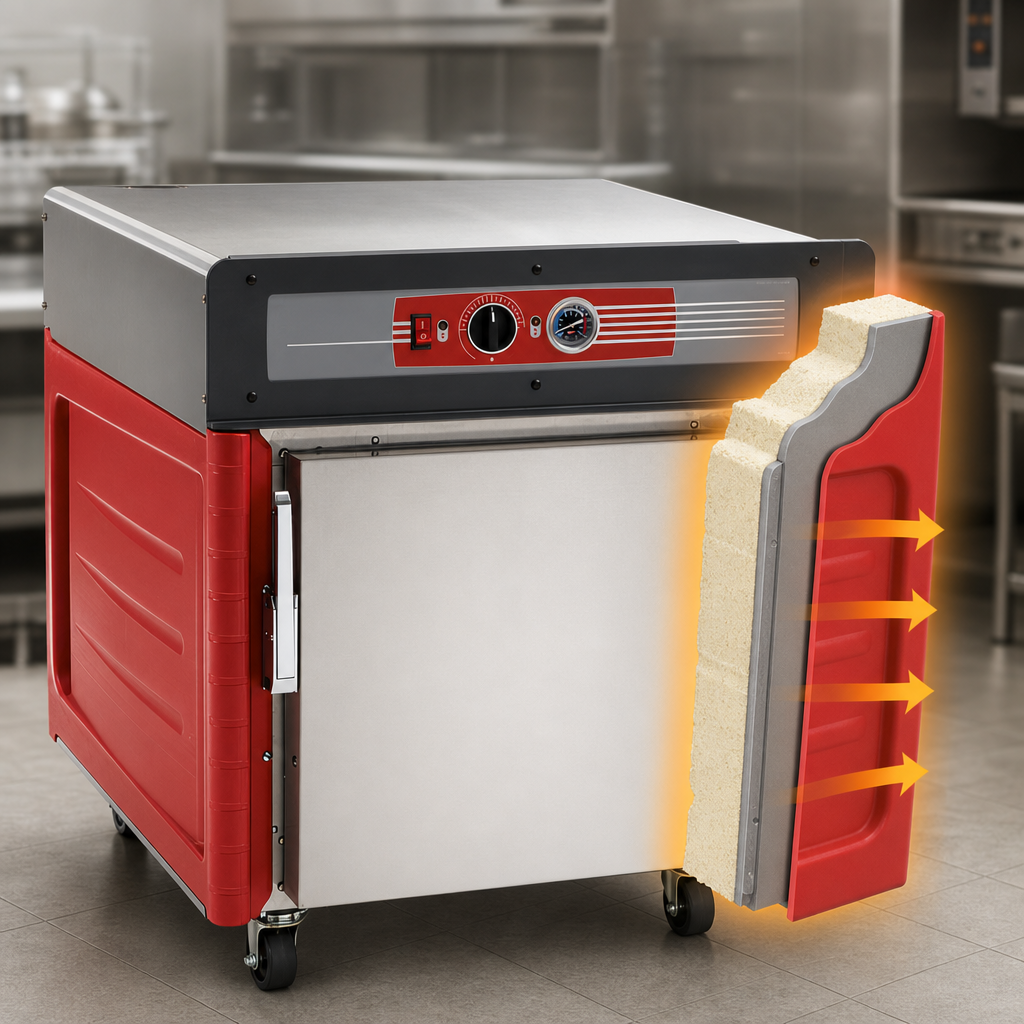

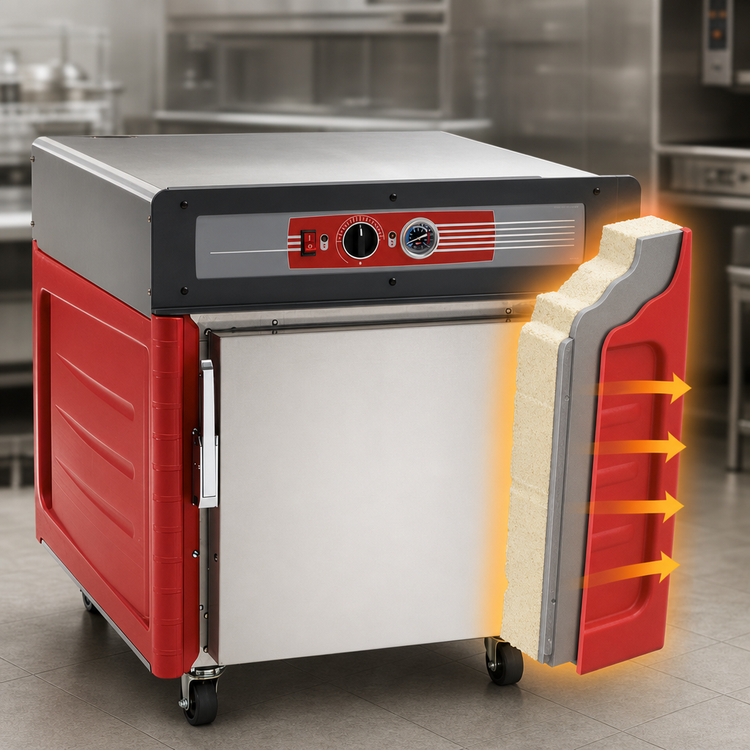

Insulation Armour Plus

Foamed-in-place polyurethane polymer panels replace the traditional sheet metal exterior to improve energy efficiency and add full-body protection for mobile handling.

Insulation Armour Plus

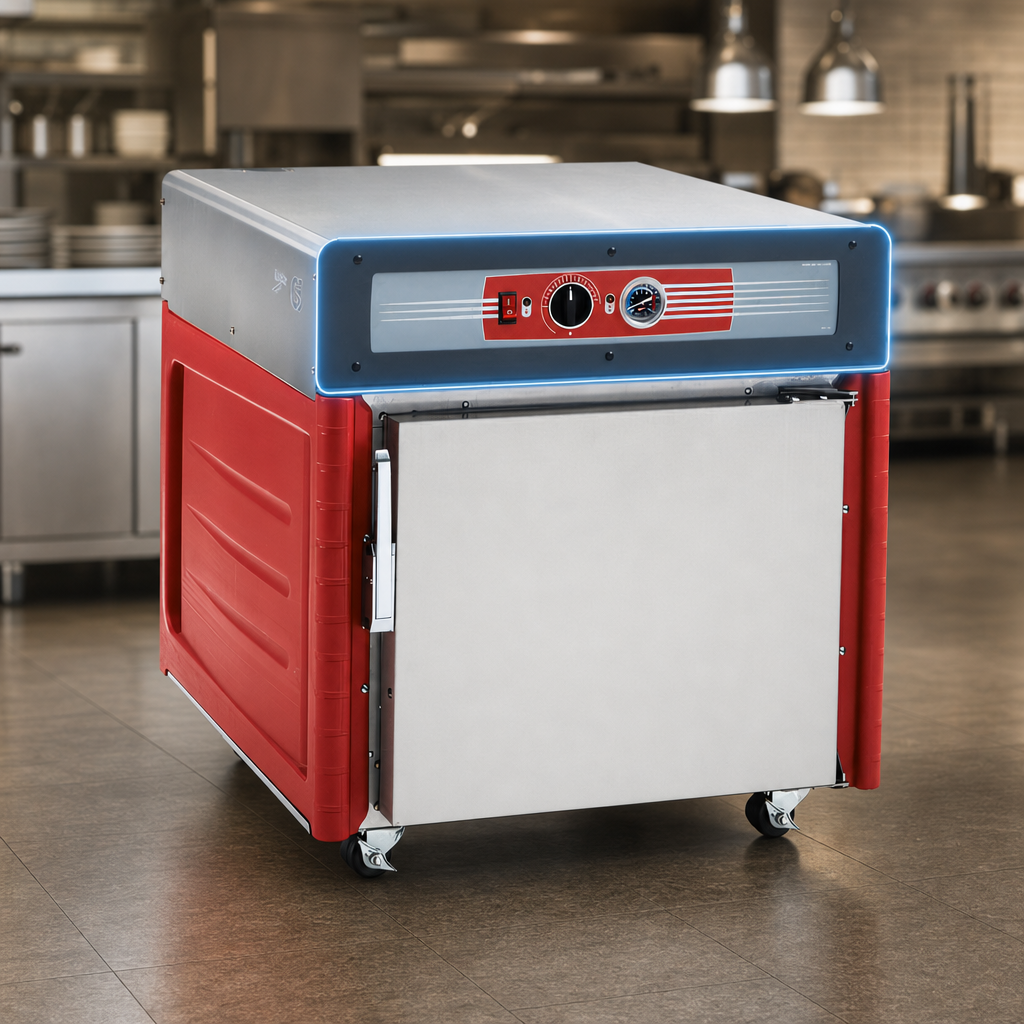

Top-Mounted Controls

User-friendly controls are mounted at the top for easier access, better readability, and protection from damage.

Top-Mounted Controls

Forced Convection Heating

A blower-driven air system gently circulates hot air and channels heat to the bottom of the cabinet for consistent holding temperatures.

Universal Wire Slides

Slides adjust on 1 1/2-inch increments and hold 12 x 20 steam pans, 18 x 26 sheet pans, and GN pans.

Solid Insulated Door

The solid door is fully insulated, field reversible, and swings 180° with a high-temperature gasket and magnetic latch.

Mobile Undercounter Design

2-inch casters provide mobility while the undercounter height fits tight kitchen layouts.

304 Stainless Steel Cabinet

Type 304 stainless steel cabinet body is durable and easy to clean.

Type Heated Holding Cabinet
Style Mobile
Installation Type Undercounter
Compartments 1
Pan Capacity 5 Full-Size Sheet Pans or 10 Full-Size Hotel Pans
Pan Size 18 Inches x 26 Inches or 12 Inches x 20 Inches x 2.5 Inches
Controls Top-Mounted Thermostatic
Temperature Range Up to 200 °F
Material 304 Stainless Steel
Voltage 120 Volts
Amps 11.7 Amps
Watts 1.4 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7.5 Feet
Width 30 Inches
Depth 33 Inches
Height 31 Inches
Weight 212 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It uses universal wire slides that hold 12 x 20 steam pans, 18 x 26 sheet pans, and GN pans; the cabinet capacity is 5 full-size sheet pans or 10 hotel pans.
The thermostat controls heat up to 200°F (93°C).
120V, 60Hz, 1-phase power at 11.7 amps with a NEMA 5-15P plug.
No. It is designed for hot food holding applications only.
Keep at least 18 inches from cooking equipment, 1 1/2 inches on the sides and rear, 6 inches on top, and 1/2 inch above undercounter units.
