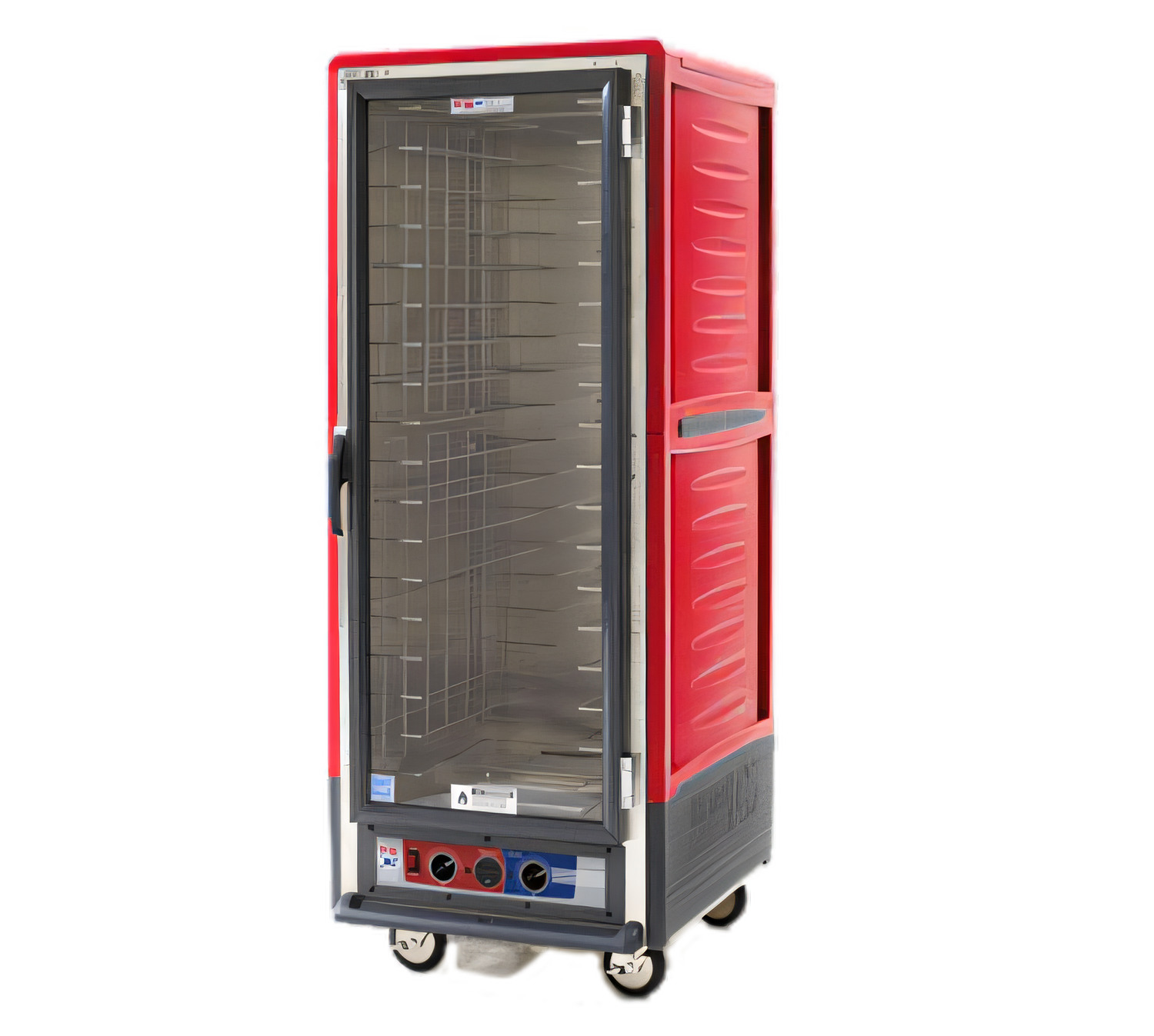

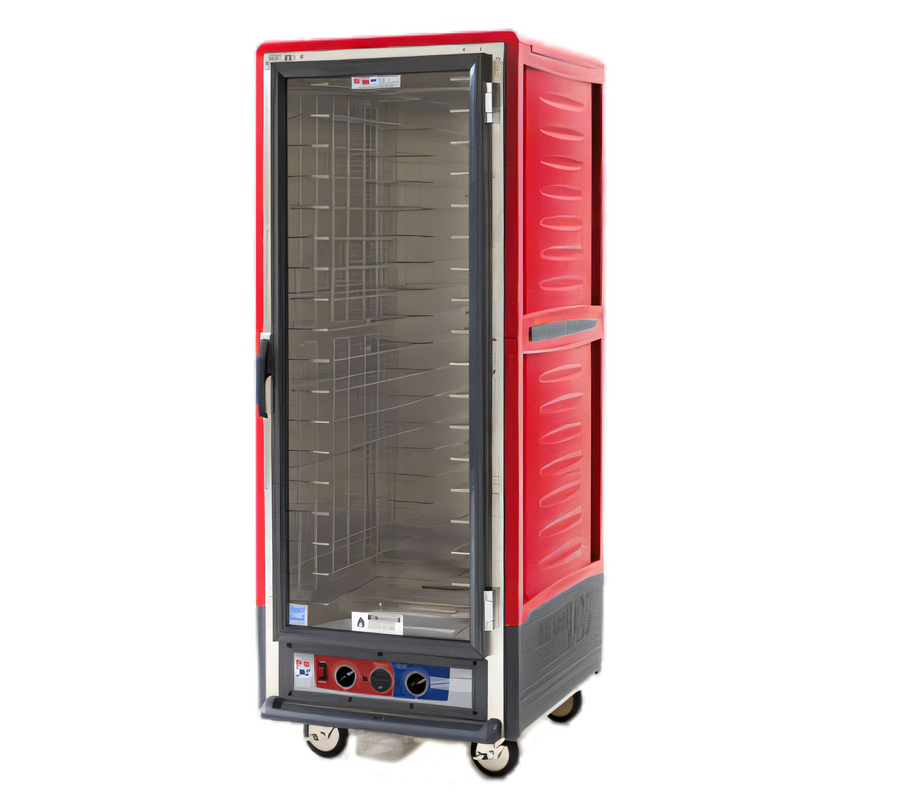

Metro C5 Insulation Armour Full-Height Moisture Heated Holding & Proofing Cabinet, 35-Pan, Full-Length Solid Doors, Lip Load Slides

Red, 120V, 2000W, Mobile With 5-Inch Casters

Built for efficient hot holding and proofing, this full-height cabinet combines moisture control, 35-pan capacity, and a cool-to-touch mobile exterior.

  • Moisture module provides hot holding and proofing with temperature control up to 200°F.
  • Holds up to 35 full-size 18" x 26" pans on lip load aluminum slides with 1-1/2" centers.
  • Red Insulation Armour exterior helps retain heat and stay cool to the touch.
  • Full-length solid insulated aluminum doors help reduce heat loss.
  • Mobile base includes 5" casters with two brakes for easier positioning.
  • Removable control module supports easier cleaning and future service.
  • 120V, 2000W, single-phase power with NEMA 5-20P plug.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

277.0 lb

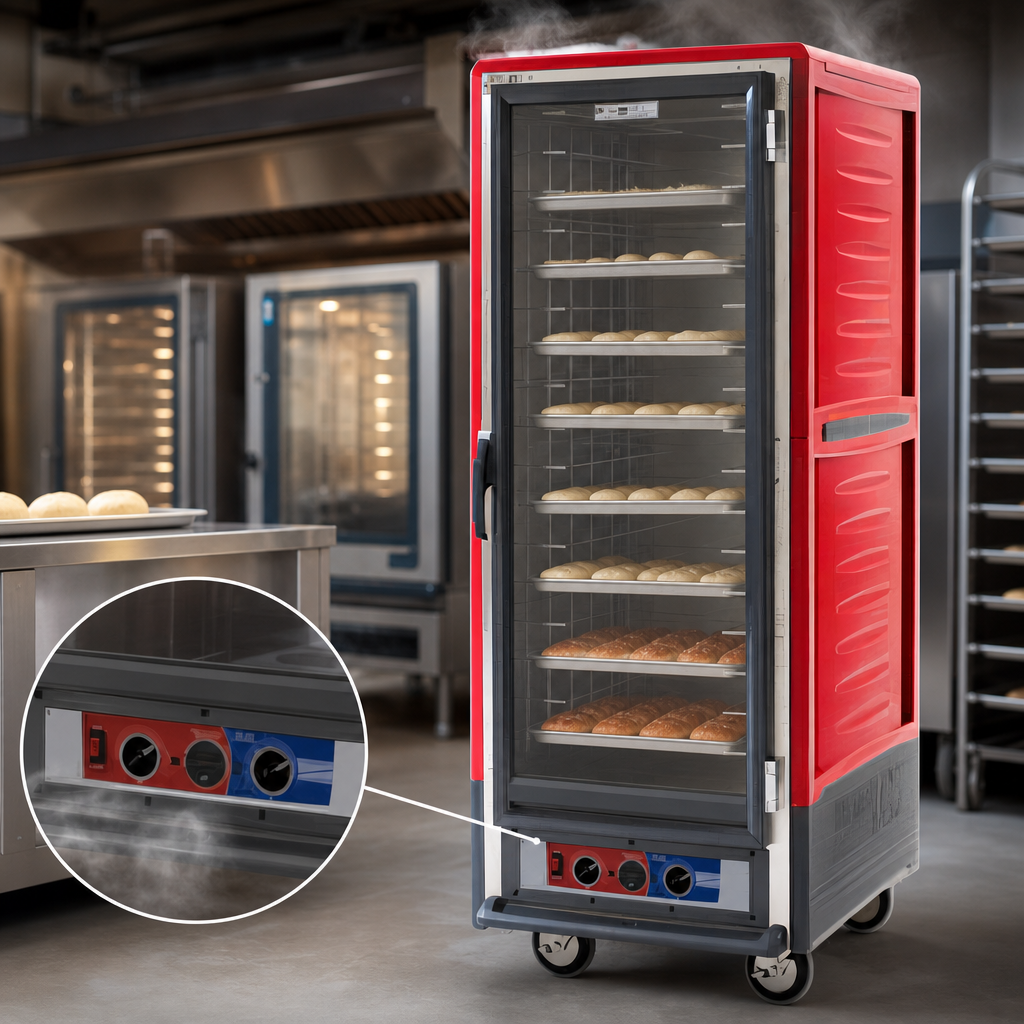

Moisture Control Module

Supports hot holding and proofing with moisture control and a thermostatic operating range up to 200°F.

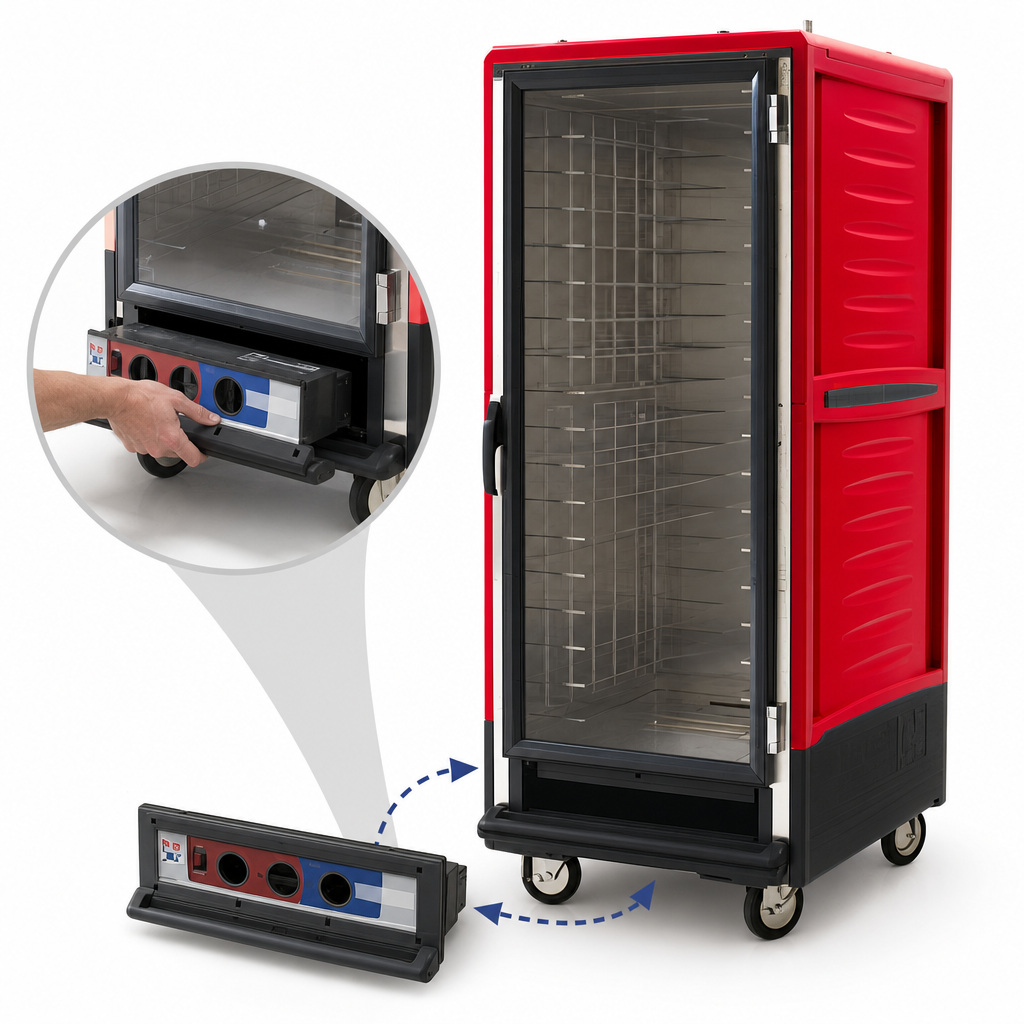

Removable Bottom-Mount Control Module

The control module removes without tools for cleaning and servicing, and allows future module changes without replacing the cabinet body.

Insulation Armour Exterior

Patented red HDPE Insulation Armour helps retain heat, provides a cool-to-touch exterior, and resists dents, impact, and stains.

Full-Length Solid Doors

Insulated aluminum doors help retain heat and support efficient cabinet performance in high-volume kitchens.

Lip Load Slide System

Fixed 1-1/2" slide centers with lip load aluminum channel slides support a 35-pan full-size capacity.

Mobile Caster Base

Includes 5" casters with two brakes for easier movement and stable placement.

Electrical Package

Configured for 120V, 60 Hz, single-phase operation at 2000 watts and 16.7 amps with a NEMA 5-20P plug.

Type Moisture Heated Holding & Proofing Cabinet
Style Full Height
Installation Type Floor Model
Compartments 1
Pan Capacity 35 18" x 26" Pans
Pan Size 18" x 26"
Controls Thermostatic
Temperature Range 80°F to 200°F
Material Aluminum
Interior Finish Aluminum
Finish Red Insulation Armour
Color Red
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 71 Inches
Shipping Weight 277 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It is a full-height moisture heated holding and proofing cabinet with lip load slides and full-length solid doors.
It holds 35 full-size 18" x 26" pans.
The cabinet operates from 80°F to 200°F.
It requires 120V, 60 Hz, single-phase power at 2000 watts and 16.7 amps with a NEMA 5-20P plug.
Yes. The control module removes without tools for easier cleaning and servicing.
Available accessories include shelves, stainless steel legs, alternate slide sets, caster options, transport latches, flush latches, and left-hand hinging options.
